M BSAP
OUNTING THE
The BSAP 2135 also ships with a pole mount base and hose strap to mount the AP to a vertical or
horizontal pole. BSAPs should be positioned for maximum throughput and range between other APs
and wireless client devices.
To mount the BSAP 2135 to a vertical pole:
1. Place the lock washers, then the flat washers on the four hex cap screws, and drive the screws
through the plane bracket into the back of the case as shown in Figure 4.
2. Using the four round head screws with washers and lock washers, attach the pole mounting bracket
to the plane bracket in a vertical position (Figure 6).
3. Thread the open end of the hose strap through the two tabs on the pole mount base (Figure 7).
4. Install the antennas (sold separately) onto the appropriate antenna ports. The antenna ports are
labeled 2.4GHz and 5GHz.
5. Wrap the hose strap around the vertical mounting pole and insert the end into the strap lock.
Tighten the strap lock to secure the unit to the pole (Figure 10).
6
Quick Start Guide, 61700962F1-13B, May 2015
P
TO A OLE

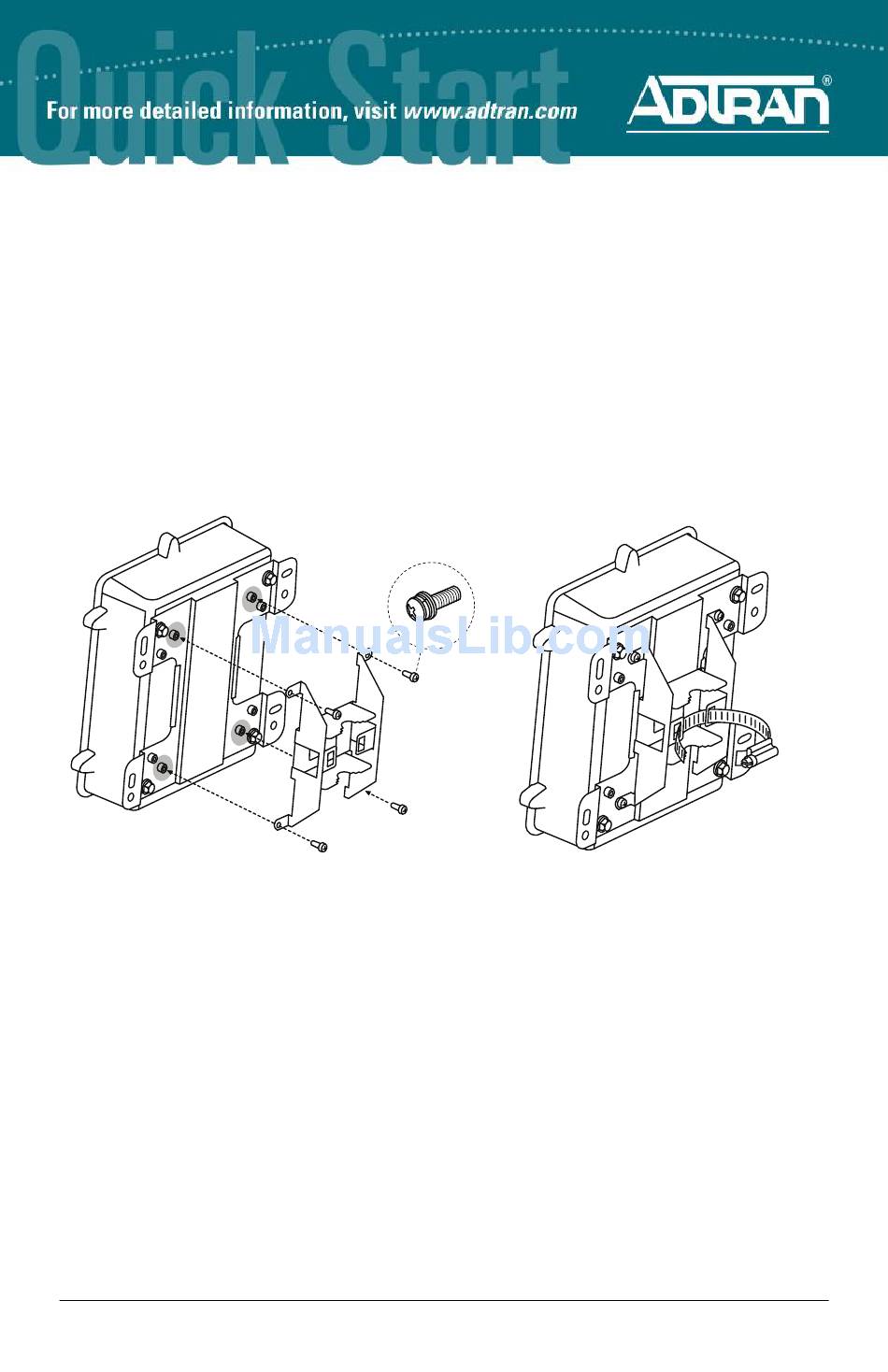

Round Head
Screw
Pole Mount
Base in
Vertical Position
7
Hose Strap
Insertion
