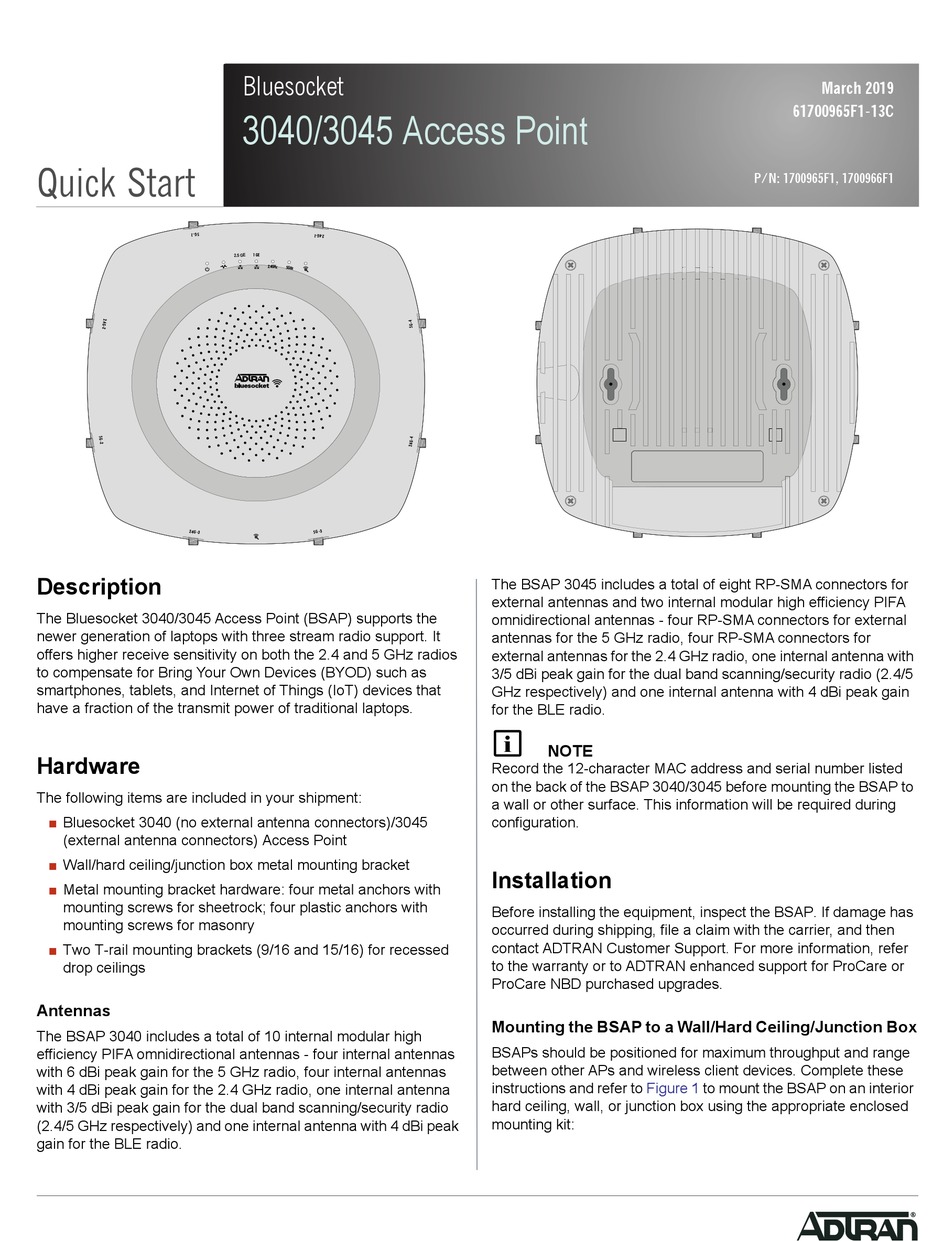

Quick Start

Description
The Bluesocket 3040/3045 Access Point (BSAP) supports the
newer generation of laptops with three stream radio support. It
offers higher receive sensitivity on both the 2.4 and 5 GHz radios
to compensate for Bring Your Own Devices (BYOD) such as
smartphones, tablets, and Internet of Things (IoT) devices that
have a fraction of the transmit power of traditional laptops.
Hardware
The following items are included in your shipment:
■
Bluesocket 3040 (no external antenna connectors)/3045
(external antenna connectors) Access Point
■
Wall/hard ceiling/junction box metal mounting bracket
■ Metal mounting bracket hardware: four metal anchors with
mounting screws for sheetrock; four plastic anchors with
mounting screws for masonry
■
Two T-rail mounting brackets (9/16 and 15/16) for recessed
drop ceilings
Antennas
The BSAP 3040 includes a total of 10 internal modular high
efficiency PIFA omnidirectional antennas - four internal antennas
with 6 dBi peak gain for the 5 GHz radio, four internal antennas
with 4 dBi peak gain for the 2.4 GHz radio, one internal antenna
with 3/5 dBi peak gain for the dual band scanning/security radio
(2.4/5 GHz respectively) and one internal antenna with 4 dBi peak
gain for the BLE radio.
Bluesocket
3040/3045 Access Point

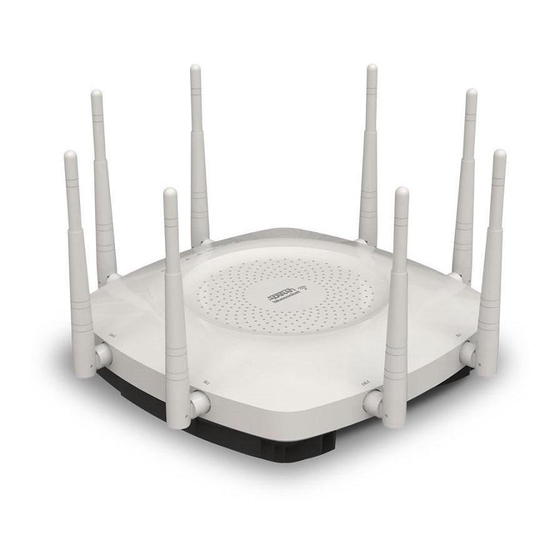

The BSAP 3045 includes a total of eight RP-SMA connectors for
external antennas and two internal modular high efficiency PIFA
omnidirectional antennas - four RP-SMA connectors for external
antennas for the 5 GHz radio, four RP-SMA connectors for
external antennas for the 2.4 GHz radio, one internal antenna with
3/5 dBi peak gain for the dual band scanning/security radio (2.4/5
GHz respectively) and one internal antenna with 4 dBi peak gain
for the BLE radio.
g
NOTE
Record the 12-character MAC address and serial number listed
on the back of the BSAP 3040/3045 before mounting the BSAP to
a wall or other surface. This information will be required during
configuration.
Installation
Before installing the equipment, inspect the BSAP. If damage has
occurred during shipping, file a claim with the carrier, and then
contact ADTRAN Customer Support. For more information, refer
to the warranty or to ADTRAN enhanced support for ProCare or
ProCare NBD purchased upgrades.
Mounting the BSAP to a Wall/Hard Ceiling/Junction Box
BSAPs should be positioned for maximum throughput and range
between other APs and wireless client devices. Complete these
instructions and refer to Figure 1
hard ceiling, wall, or junction box using the appropriate enclosed
mounting kit:
March 2019
61700965F1-13C
P/N: 1700965F1, 1700966F1
to mount the BSAP on an interior
