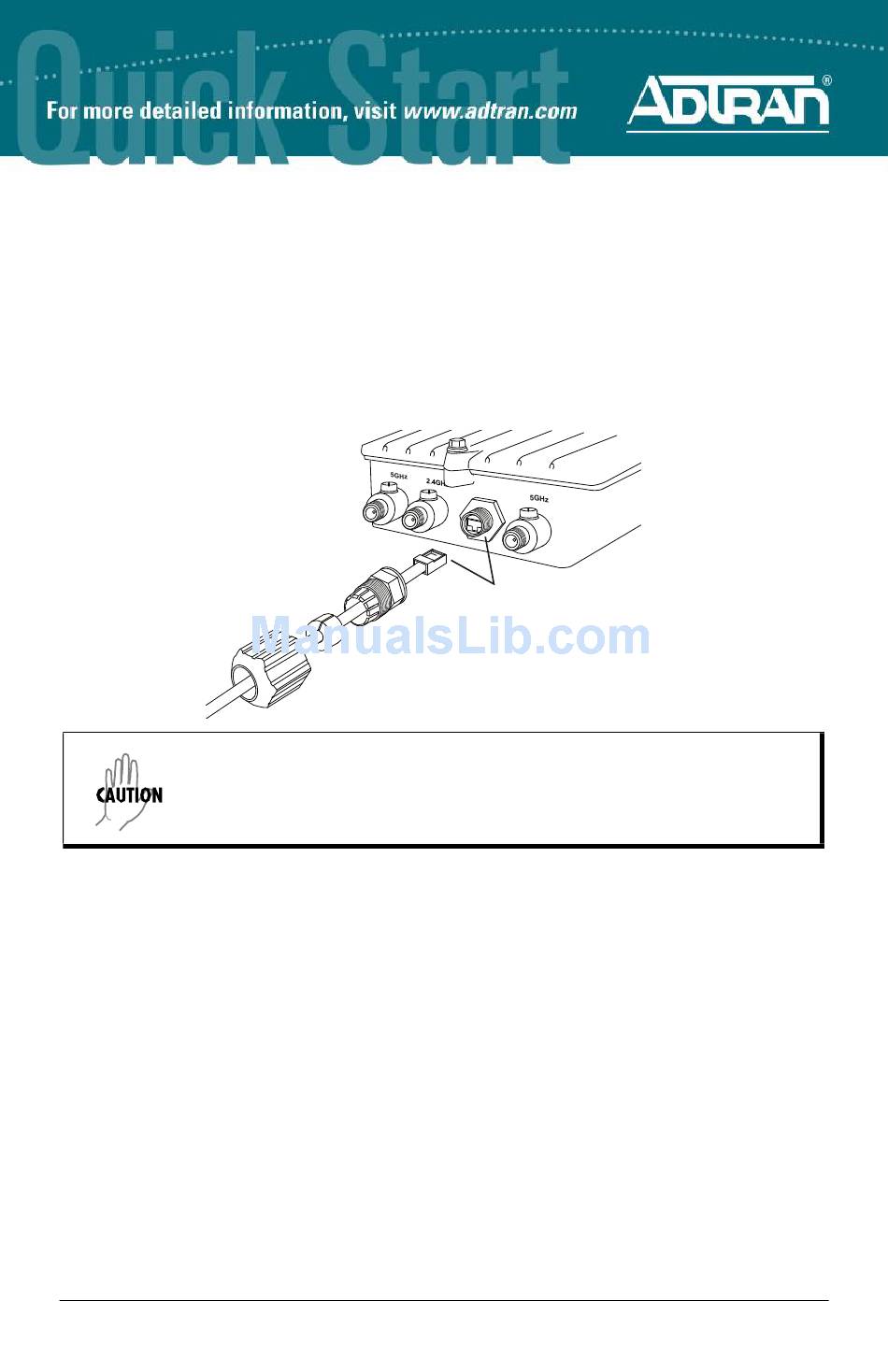

1. Disassemble the watertight fitting by unscrewing the cinch nut and pushing the rubber gasket out
of the strain-relief fitting.
2. Thread the cinch nut onto the customer-provided RJ-45 CAT 5e or CAT 6 cable.
3. Spread the gasket open and wrap it around the cable near the RJ-45 connector.
4. Insert the RJ-45 connector through the strain-relief fitting, and press the gasket back into its
original position.
5. Insert the connector into the RJ-45 receptacle on the bottom of the BSAP.
6. Gently push the strain-relief fitting along the cable until it engages with the black threads, and
screw it onto the BSAP until it is well seated against the unit.
7. Screw the cinch nut onto the strain-relief fitting until it is well seated against the gasket forming a
watertight seal.
For outdoor applications, the watertight fitting must be used when
connecting PoE cables to the BSAP 2135. Failure to use the watertight
fitting when the unit is installed outdoors will void the user's warranty and
could create a fire or shock hazard.
Connect the BSAP to a PoE Source
The BSAP 2135 requires 802.3at PoE. It will not function using 802.3af PoE. The following diagram
illustrates how to provide power to the BSAP 2135 installed outdoors. Three examples are provided:
1. A PoE switch providing power in conjunction with NetVanta PoE Protector/Injector (1702595F15)
installed indoors.
2. A non-PoE switch in conjunction with NetVanta PoE Protector/Injector (1702595F15) and an
optional AC Power Adapter (1700501F1) to provide power installed indoors.
3. A third-party outdoor rated 802.3at PoE injector (PowerDsine PD-9001GO) or equivalent with
GR-1089-Core Criteria B Surge Protection installed outdoors with mesh.
Quick Start Guide, 61700962F1-13B, May 2015
Antenna
Connectors
Gasket
Strain-relief
Fitting
Cinch Nut
RJ-45 Receptacle
and Connector
5
