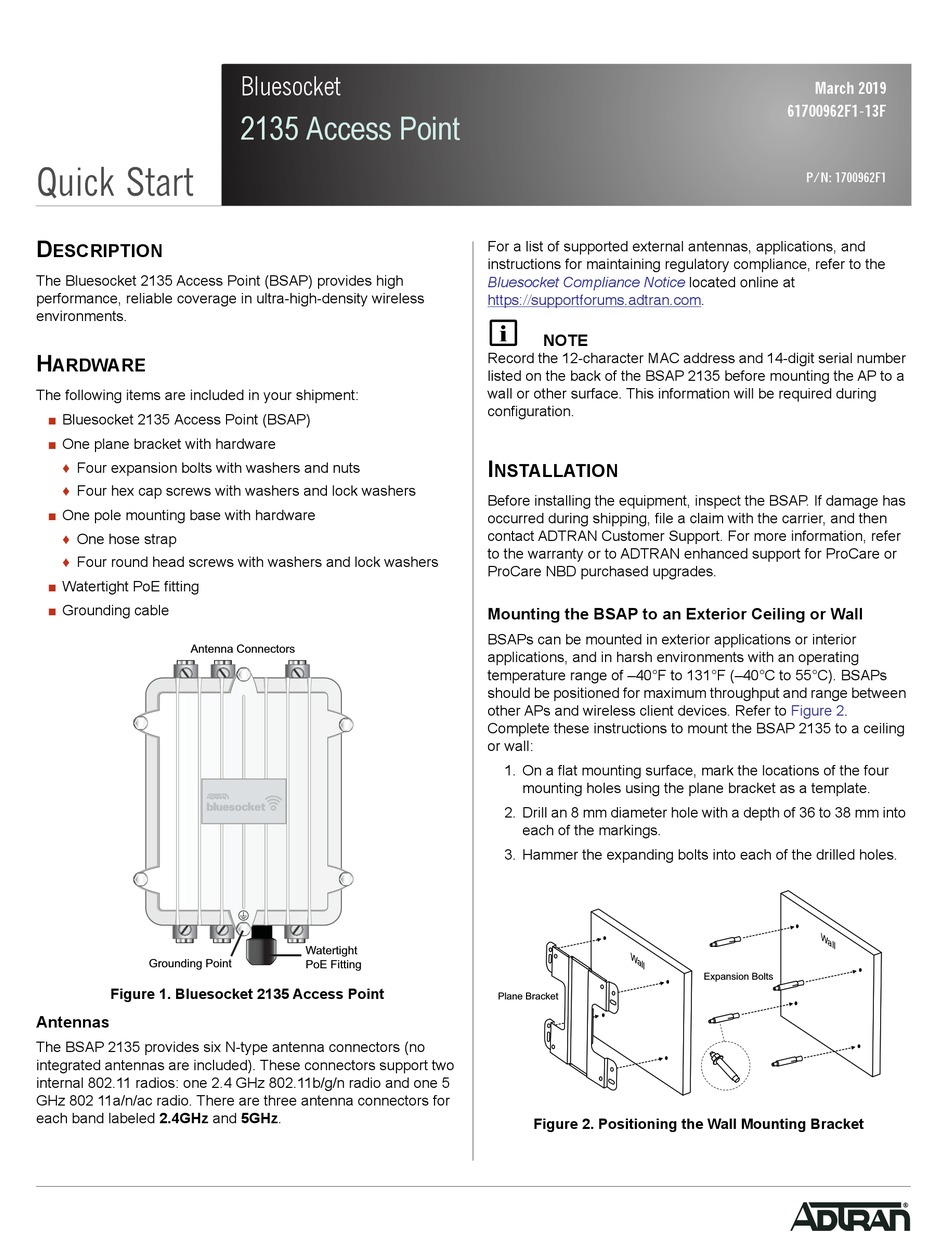

ADTRAN 2135 Quick Start Manual

Quick Start
D
ESCRIPTION
The Bluesocket 2135 Access Point (BSAP) provides high
performance, reliable coverage in ultra-high-density wireless
environments.
H
ARDWARE
The following items are included in your shipment:
■ Bluesocket 2135 Access Point (BSAP)
■ One plane bracket with hardware
♦
Four expansion bolts with washers and nuts
♦ Four hex cap screws with washers and lock washers
■ One pole mounting base with hardware
♦
One hose strap
♦ Four round head screws with washers and lock washers
■
Watertight PoE fitting
■ Grounding cable
Antenna Connectors
Grounding Point
Figure 1. Bluesocket 2135 Access Point
Antennas
The BSAP 2135 provides six N-type antenna connectors (no
integrated antennas are included). These connectors support two
internal 802.11 radios: one 2.4 GHz 802.11b/g/n radio and one 5
GHz 802 11a/n/ac radio. There are three antenna connectors for
each band labeled 2.4GHz and 5GHz.
Bluesocket
2135 Access Point
Watertight
PoE Fitting
For a list of supported external antennas, applications, and
instructions for maintaining regulatory compliance, refer to the
Bluesocket Compliance Notice
https://supportforums.adtran.com.
g
NOTE
Record the 12-character MAC address and 14-digit serial number
listed on the back of the BSAP 2135 before mounting the AP to a
wall or other surface. This information will be required during
configuration.
I
NSTALLATION
Before installing the equipment, inspect the BSAP. If damage has
occurred during shipping, file a claim with the carrier, and then
contact ADTRAN Customer Support. For more information, refer
to the warranty or to ADTRAN enhanced support for ProCare or
ProCare NBD purchased upgrades.
Mounting the BSAP to an Exterior Ceiling or Wall
BSAPs can be mounted in exterior applications or interior
applications, and in harsh environments with an operating
temperature range of –40°F to 131°F (–40°C to 55°C). BSAPs
should be positioned for maximum throughput and range between
other APs and wireless client devices. Refer to
Complete these instructions to mount the BSAP 2135 to a ceiling
or wall:
1. On a flat mounting surface, mark the locations of the four
mounting holes using the plane bracket as a template.
2. Drill an 8 mm diameter hole with a depth of 36 to 38 mm into
each of the markings.
3. Hammer the expanding bolts into each of the drilled holes.
W
a l l
Plane Bracket
Figure 2. Positioning the Wall Mounting Bracket
March 2019
61700962F1-13F
P/N: 1700962F1
located online at
Figure 2.
W
a l l
Expansion Bolts
