ADTRAN BLUESOCKET 1920 Quick Start Manual

B
LUESOCKET
P/N 1700954F1, 1700955F1
H
ARDWARE
Make sure the following items were included in the shipment:

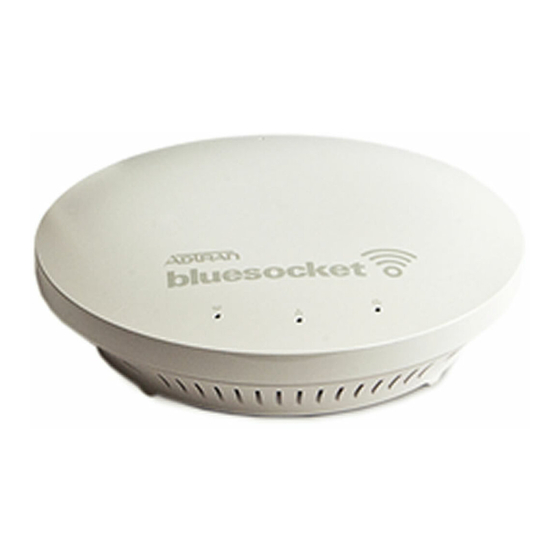

• Bluesocket 1920/1925 Access Point (BSAP)
• One plastic wall/ceiling mounting bracket with hardware (two metal screw anchors, two long
screws, two short screws)
• One flush/recessed ceiling T-rail mounting hardware kit (four T-rail clips (two sizes), two spacers,
two long screws, two short screws)
LEDs
A
NTENNAS
The BSAP 1920 provides one integrated, four element high-efficiency Planar Inverted F Antenna (PIFA)
array with 3 dBi gain (no external antennas are required). The BSAP 1925 provides four reverse-polarity
subminiature version A (RP-SMA) antenna connectors (no integrated antennas are included with this
model). Two antenna connectors are labeled 2.4G and two 5G. These antennas/connectors support two
internal 802.11 radios: one 2.4 GHz 802.11b/g/n radio, and one 5 GHz 802.11a/n radio. Four modular
high-efficiency omnidirectional antennas with 3 dBi gain can be purchased separately for the BSAP
1925 (two 2.4 GHz and two 5 GHz, ADTRAN P/N 1700932F1).
Make a note of the 12-character MAC address and serial number listed on the
back of the BSAP 1920/1925 before mounting the BSAP to a wall or other
surface. This information will be required during configuration.
M
OUNTING THE
BSAPs should be positioned for maximum throughput and range between other APs and wireless client
devices. Follow these instructions to mount the BSAP to an interior ceiling or wall using the enclosed
ceiling/wall mounting kit:
1. BSAP 1925 only: Install the antennas (sold separately) onto the appropriate antenna ports. The
antenna ports are labeled 2.4G and 5G.
2. Using the plastic mounting bracket as a template, mark the location to insert the screw anchors.
3. Press the point of the screw anchors into the sheetrock at the marks and drive them into the wall
using a Phillips-head screwdriver.
4. Insert the long screws through the recessed holes in the plastic mounting bracket and drive them
into the metal anchors.
5. Drive the short screws into the metal screw receptacles on the bottom of the BSAP until they are
firmly seated in the receptacle. If extra space is required, use the spacers and long screws provided
Quick Start Guide, 61700954F1-13B, February 2013
1920/1925 A
Antenna Connectors
BSAP 1925 only
BSAP C
TO A EILING OR
P
CCESS
Mounting Screw
Receptacles
Optional
12 VDC
Power Port
Ethernet
Port
W
ALL
OINT
Kensington Security
Slot
