ADTRAN BSAP 6120 Quick Start Manual

ADTRAN BSAP 6120 Quick Start Manual

Dual-band wi-fi 6 outdoor access point
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Quick Start
Guide
Overview
f
WARNING!
Read all warnings, cautions, notes and installation instructions before installing or servicing this equipment.
This quick start guide describes how to install and access Adtran's Bluesocket 6120 access point (BSAP), a Wi-Fi 6 (802.11ax) 2x2 outdoor AP designed to provide
enterprise-grade performance within high-density wireless environments. This robust AP simultaneously supports two transmit and two receive streams with data
rates up to 1.7 Gbps (1.2 Gbps for 5 GHz and 574 Mbps for 2.4 GHz) using four external SMA-type antennas with up to 5 dBi peak gain, and supports zero-touch
provisioning using Adtran's virtual wireless local area network (vWLAN) cloud-management application. The BSAP 6120 is fully functional with 802.3at Power over
Ethernet (PoE+), WPA3 encryption and Wireless Intrusion Detection (W-IDS) for added security, support for the traditional DynamicRF, Neighbor Discovery, Layer 7
device fingerprinting features and the new multi-user MIMO (MU-MIMO), orthogonal frequency-division multiple access (OFDMA), basic service set (BSS) coloring,
advanced 1024-QAM, and target wake time (TWT) features for Wi-Fi 6.
■
"Installing the BSAP 6120"
■
"Supplying Power to the BSAP 6120"
■
"Managing the BSAP 6120"
■
"BSAP 6120 LED Descriptions"
■
"Product Specifications"
Four SMA
External Antennas
Watertight PoE
Fitting
f
WARNING!
WARNING indicates a hazard which, if not
avoided, could result in death, injury or
serious property damage.
BSAP 6120
Dual-band Wi-Fi 6 Outdoor Access Point
March 2023
61700973F1-13B
on page 2
on page 5
on page 6
on page 7
on page 8
Top View: 5 GHz and 2.4 GHz Antenna
Mounts
Bottom View: 5 GHz and 2.4 GHz
Antenna Mounts and LAN (PoE)
Connection
f
CAUTION indicates a hazard which, if not
avoided, could result in service interruption,
damage to the equipment, or minor property
damage.

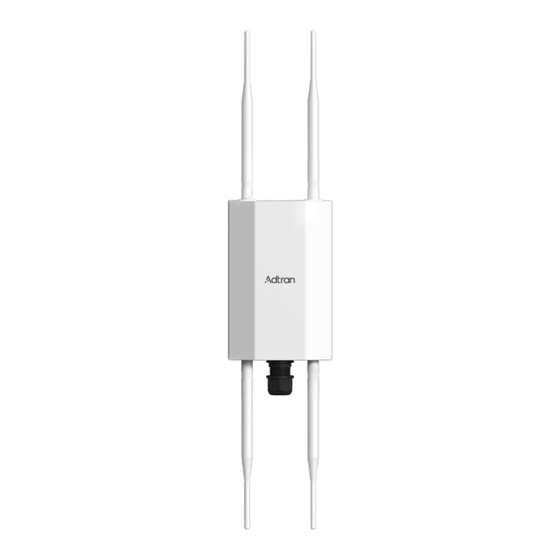

Figure 1. BSAP 6120
CAUTION!
P/N: 1700973F1
LED
Indicators
g
NOTE
NOTES inform the user of additional, but
important, information or features.
Locking
Screw
Four Sliding
Mount
Holes
Grounding
Point

Advertisement

loading

Related Manuals for ADTRAN BSAP 6120

Summary of Contents for ADTRAN BSAP 6120

  • Page 1 Read all warnings, cautions, notes and installation instructions before installing or servicing this equipment. This quick start guide describes how to install and access Adtran’s Bluesocket 6120 access point (BSAP), a Wi-Fi 6 (802.11ax) 2x2 outdoor AP designed to provide enterprise-grade performance within high-density wireless environments.

  • Page 2: Package Contents

    2.4GHz and 5GHz. You must attach the provided antennas prior to the connection of the PoE cable or mounting the BSAP. WARNING! Use only the antennas provided with the unit. All four antennas must be installed directly onto the BSAP 6120 prior to connection of the PoE power source. Grounding the BSAP The BSAP must be grounded prior to installation due to the location of the grounding connection on the chassis.
  • Page 3 The BSAP must be mounted on the bracket so that the locking tab on the bracket aligns with the threaded hole for locking screw on the unit. 8. Slide the keyed slots on the back of the unit’s chassis securely onto the bracket’s protruding mounting tabs, and secure the BSAP 6120 to the bracket by installing and tightening the locking screw (as shown in Figure 9.
  • Page 4 Vertical Pole Mount Figure 4. Vertical Pole Mount 6. Once the BSAP 6120 is securely installed, attach the grounding cable to a reliable earth ground point and proceed to the instructions provided in “Supplying Power to the BSAP 6120” on page 5...
  • Page 5 Supplying Power to the BSAP 6120 The BSAP 6120 does not have a power switch. It is powered when connected to a network device that supplies PoE+ based on the IEEE 802.3at standard. To power the BSAP 6120, follow these instructions:...
  • Page 6 Managing the BSAP 6120 You can connect to and manage the BSAP 6120 using one of Adtran’s cloud management services or by using the BSAP’s command line interface (CLI). Each service offering and management method is described in the following sections.

  • Page 7: Configuring The Application

    Configuring the BSAP 6120 IP Address or Static Discovery Using the CLI By default, DHCP is enabled on the BSAP 6120. However, if static configuration is required for the IP address or AP discovery for the BSAP, users can access the BSAP's CLI using either a VT100 terminal emulation program or an SSH client.

  • Page 8: Product Specifications

    Product Specifications BSAP 6120 QSG LED Array BSAP State 2.4 GHz 5 GHz LAN Initialization Orange Green Solid Flashing 2.4 GHz 5 GHz Discovering vWLAN Orange Green Solid Flashing 2.4 GHz 5 GHz Firmware Upgrade (Download) Orange Green Solid Flashing 2.4 GHz...
  • Page 9 This product is intended for business deployment. Care should be taken to protect cables from damage or vandalism. NOTE Changes or modifications not expressly approved by Adtran will void the warranty. Compliance ■ Changes or modifications not expressly approved by Adtran could void the user's authority to operate this equipment. IEEE 802.3at PoE+ ■ ■ FCC ♦...
