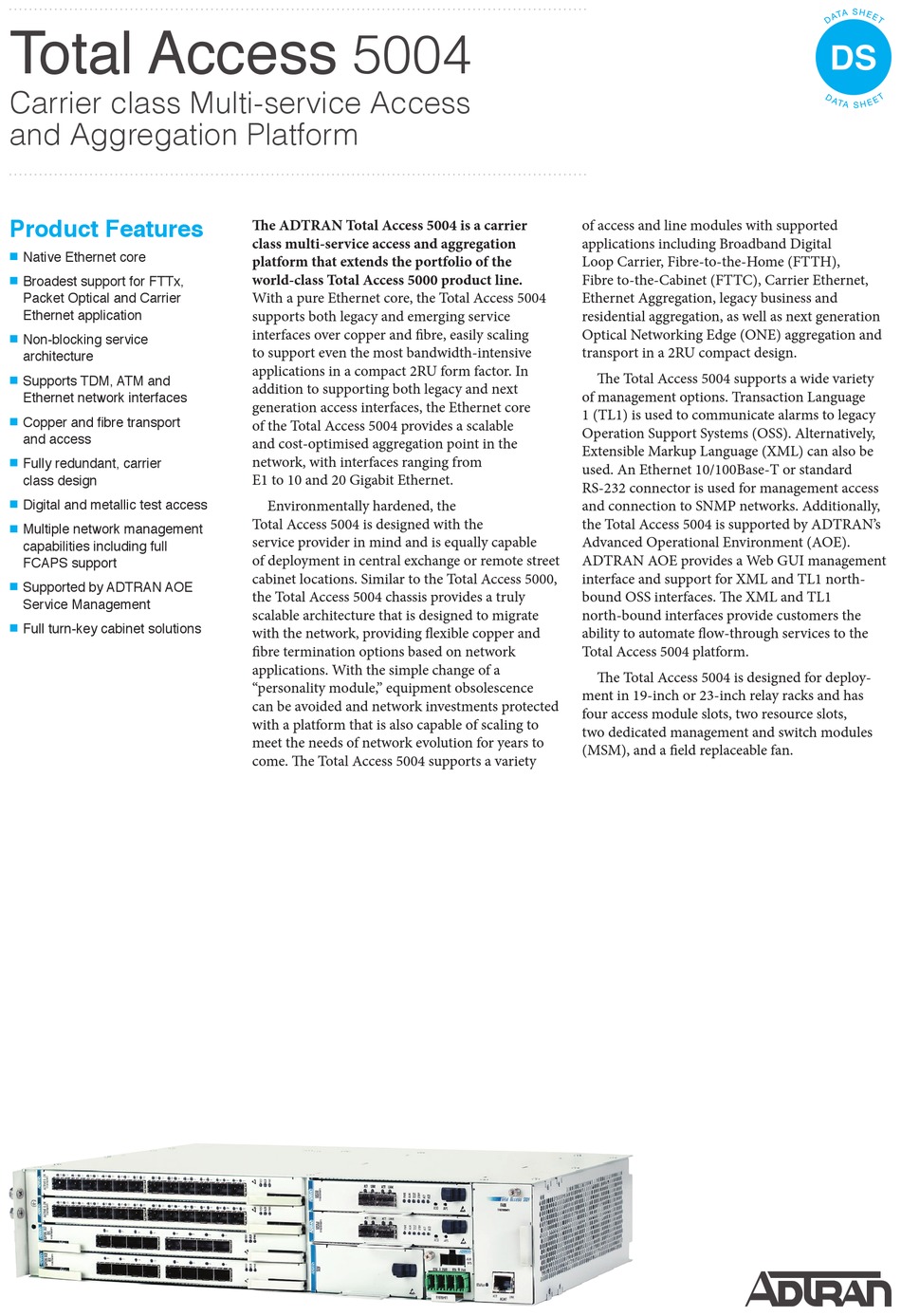

ADTRAN Total Access 5004 Brochure & Specs

Total Access
Carrier class Multi-service Access
and Aggregation Platform

Product Features

Native Ethernet core
n
Broadest support for FTTx,
n
Packet Optical and Carrier
Ethernet application
Non-blocking service
n
architecture
Supports TDM, ATM and
n
Ethernet network interfaces
Copper and fibre transport
n
and access
Fully redundant, carrier
n
class design
Digital and metallic test access
n
Multiple network management
n
capabilities including full
FCAPS support
Supported by ADTRAN AOE
n
Service Management
Full turn-key cabinet solutions
n
5004
The ADTRAN Total Access 5004 is a carrier
class multi-service access and aggregation
platform that extends the portfolio of the
world-class Total Access 5000 product line.
With a pure Ethernet core, the Total Access 5004
supports both legacy and emerging service
interfaces over copper and fibre, easily scaling
to support even the most bandwidth-intensive
applications in a compact 2RU form factor. In
addition to supporting both legacy and next
generation access interfaces, the Ethernet core
of the Total Access 5004 provides a scalable
and cost-optimised aggregation point in the
network, with interfaces ranging from
E1 to 10 and 20 Gigabit Ethernet.
Environmentally hardened, the
Total Access 5004 is designed with the
service provider in mind and is equally capable
of deployment in central exchange or remote street
cabinet locations. Similar to the Total Access 5000,
the Total Access 5004 chassis provides a truly
scalable architecture that is designed to migrate
with the network, providing flexible copper and
fibre termination options based on network
applications. With the simple change of a
"personality module, " equipment obsolescence
can be avoided and network investments protected
with a platform that is also capable of scaling to
meet the needs of network evolution for years to
come. The Total Access 5004 supports a variety
of access and line modules with supported
applications including Broadband Digital
Loop Carrier, Fibre-to-the-Home (FTTH),
Fibre to-the-Cabinet (FTTC), Carrier Ethernet,
Ethernet Aggregation, legacy business and
residential aggregation, as well as next generation
Optical Networking Edge (ONE) aggregation and
transport in a 2RU compact design.
The Total Access 5004 supports a wide variety
of management options. Transaction Language
1 (TL1) is used to communicate alarms to legacy
Operation Support Systems (OSS). Alternatively,
Extensible Markup Language (XML) can also be
used. An Ethernet 10/100Base-T or standard
RS-232 connector is used for management access
and connection to SNMP networks. Additionally,
the Total Access 5004 is supported by ADTRAN's
Advanced Operational Environment (AOE).
ADTRAN AOE provides a Web GUI management
interface and support for XML and TL1 north-
bound OSS interfaces. The XML and TL1
north-bound interfaces provide customers the
ability to automate flow-through services to the
Total Access 5004 platform.

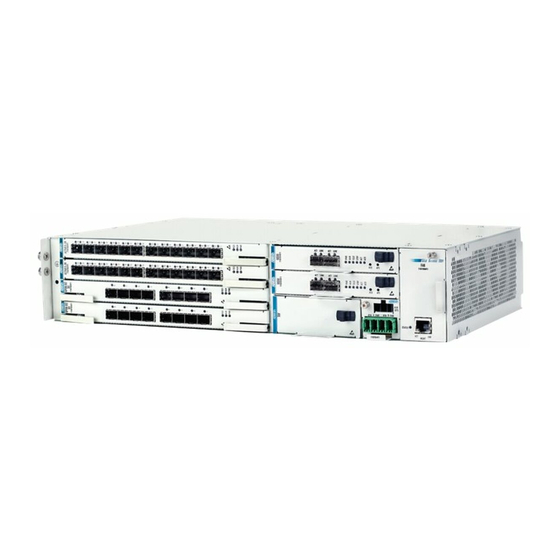

The Total Access 5004 is designed for deploy-
ment in 19-inch or 23-inch relay racks and has
four access module slots, two resource slots,
two dedicated management and switch modules
(MSM), and a field replaceable fan.
