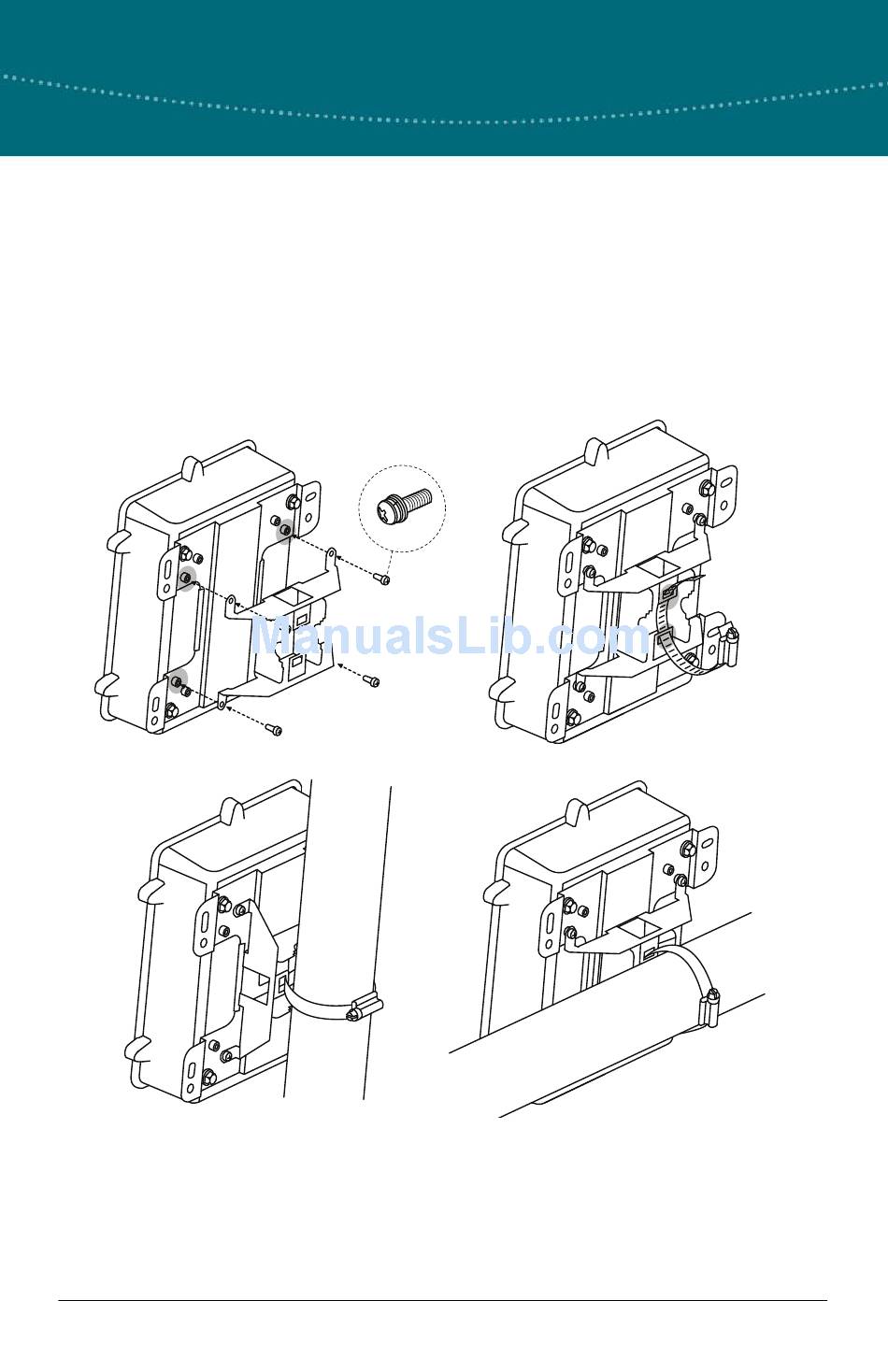

To mount the BSAP 2135 to a horizontal pole:
1. Place the lock washers, then the flat washers on the four hex cap screws, and drive the screws
through the plane bracket into the back of the case as shown in Figure 4.
2. Drive the four round head screws to attach the pole mount base to the plane bracket in a horizontal
position (Figure 8).
3. Thread the open end of the hose strap through the two tabs on the pole mount base (Figure 9).
4. Install the antennas (sold separately) onto the appropriate antenna ports. The antenna ports are
labeled 2.4GHz and 5GHz.
5. Wrap the hose strap around the horizontal mounting pole and insert the end into the strap lock.
Tighten the lock of the hose strap to secure the unit to the pole (Figure 11).
8
10
S P
UPPLYING OWER TO THE
The BSAP 2135 does not have a power switch. It is powered when connected to a network device that
supplies PoE based on the IEEE 802.3at standard or an external PoE injector. To power the BSAP
2135, follow these instructions:
Connect the PoE Cable to the BSAP
4
Round Head
Screw
Pole Mount
Base in
Horizontal Position
Vertical
Pole
Mounting
BSAP
9
11
Horizontal Pole
Mounting
Support - Phone: 888-423-8726
Hose Strap
Insertion
