ADTRAN BlueSocket BSAP 1920 Quick Start

C AP' IP A
ONFIGURING THE S DDRESS
By default, DHCP is enabled on the Bluesocket BSAP 1920/1925. If you need to statically configure the
IP address for the Bluesocket 1920/1925 AP, follow these steps:
1. Ensure that the BSAP is connected to a controlling computer (using the provided RJ-45 Ethernet
cable).
2. Specify that the computer's TCP/IP setting is On or Enabled by navigating to Control Panel >
Network Connections and double-clicking the connection of your network interface card. Select
Internet Protocol (TCP/IP) and select Properties. Then specify that the TCP/IP setting is enabled.
3. Set your PC to a static IP address of 192.168.190.2 with a subnet mask of 255.255.255.0.
4. Next, access the AP's command line interface (CLI) using a Secure Shell (SSH) client. Open an
SSH connection using the unit's default IP address (192.168.190.1) and port 2335. Enter the default
user name and password (adm1n (note the number 1) and blue1socket) at the prompt. To access
the unit using vWLAN, and for more instructions about CLI configuration, refer to the
vWLAN Administrator's Guide, available online at https://supportforums.adtran.com.
C A
ONFIGURING THE PPLICATION
More detailed documentation for configuring the Bluesocket BSAP 1920/1925 is provided in the
Administrator's Guide, available online at https://supportforums.adtran.com.
4
U CLI
SING THE
Bluesocket
Copyright © 2012 ADTRAN, Inc. All Rights Reserved.
B
LUESOCKET
W
IRELESS
H
ARDWARE
Make sure the following items were included in the shipment:

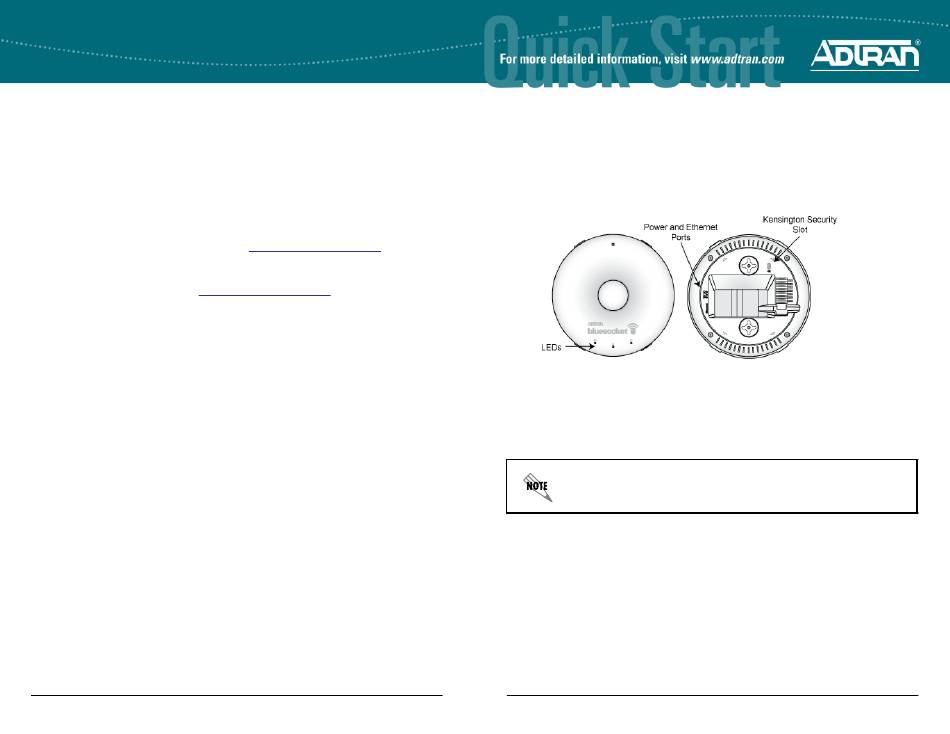

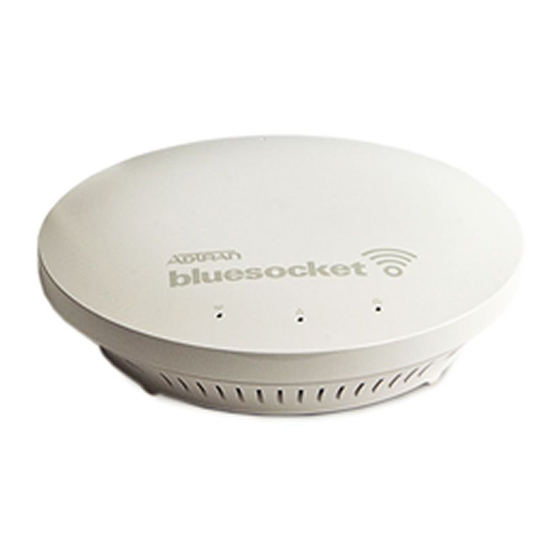

• Bluesocket BSAP 1920/1925 Wireless Access Point (AP)
• One wall/ceiling mount hardware kit
• One ceiling T-rail mount hardware kit
vWLAN
A
NTENNAS
The BSAP 1920 has a modular high-efficiency internal Planar Inverted F Antenna (PIFA) antenna (no
external antenna is required). The BSAP 1925 supports four modular high-efficiency omni-directional
antennas that support two internal 802.11 radios: a 5 GHz 802.11a/n radio, and a 2.4 GHz 802.11b/g/n
radio. The antennas can be ordered from ADTRAN in a set of four (two 5 GHz and two 2.4 GHz,
P/N 1700932F1).
Make a note of the 12-character MAC address and serial number listed on the back of
the BSAP 1920/1925 before mounting the AP to a wall or other surface. This
information will be required during configuration.
M
OUNTING THE
M B
OUNTING RACKET
Bluesocket BSAPs should be positioned for maximum throughput and range between other APs and
wireless client devices. Follow these instructions to mount the BSAP 1920/1925 on the ceiling or drywall
using the enclosed mounting bracket. To mount the AP to the ceiling or drywall:
1. Attach the mounting bracket to the wall or ceiling using the provided wall/ceiling mount hardware kit.
2. Insert the provided short screws into the bottom cover of the BSAP 1920/1925. Leave enough of
the screws exposed to ensure that the unit can be attached to the mounting bracket. If extra space
is required, use the spacers and long screws provided with the T-rail mounting hardware kit to
increase the space between the unit and the mounting bracket.
Quick Start Guide, 61700954F1-13A, September 2012
BSAP 1920/1925
A P
CCESS OINT
AP C W U
TO THE EILING OR ALL
W
SING THE ALL
1
