ADTRAN Bluesocket 2020 Series Quick Start

C A
ONFIGURING THE PPLICATION
More detailed documentation for configuring the BSAP 2020 Series is provided in the
Guide, available online at https://supportforums.adtran.com.
BSAP 2020 S LED D
ERIES ESCRIPTION
BSAP State Status
Boot Loader Initialization Off
Operating System Solid Green
Initialization
LAN Initialization Flashing Green
Discovering vWLAN Flashing Green
Firmware Upgrade Off
(download)
Firmware Upgrade (writing Off
or verifying)
Firmware Upgrade Off
Complete
Operational with No Solid Green
Activity on Radios
Operational with Activity on Solid Green
Radios
FCC R F I
ADIO REQUENCY NTERFERENCE
This device complies with Part 15 of the Federal Communications Commission (FCC) rules. The operation of
this device is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received including interference that may cause undesired
operation.
Additional safety and regulatory guidelines are given in the document
Compliance Notice available online at https://supportforums.adtran.com.
T -P S
HIRD ARTY OFTWARE
The software included in the Bluesocket 2020 Series contains copyrighted software that is licensed under the
GNU General Public License (GPL). For a list of third-party software and their licenses, go to
http://www.adtran.com/software/EULA. You can obtain the complete corresponding source code of such
software components from ADTRAN for a period of three years after our last shipment of this product by
sending a money order or check for $5 to:
ADTRAN, Inc, P.O. Box 933638, Atlanta, GA 31193-3638
Please write GPL Source for product Bluesocket 2020 Series in the memo line of your payment.
This offer is valid to anyone in receipt of this information.
4
vWLAN Administrator's
Ethernet Radio
Off Solid Orange
Off Off
Flashing Orange Off
Flashing Green Off
Flashing Green Flashing Orange (Slow)
Flashing Green Flashing Orange (Fast)
Flashing Green Solid Orange
Flashing Green Solid Green
Flashing Green Flashing Green
Bluesocket
Copyright © 2016 ADTRAN, Inc. All Rights Reserved.
B 2020 S
LUESOCKET ERIES
P/N 1700945F1
H
ARDWARE
The following items are included in your shipment:
• Bluesocket 2020 Series Access Point (BSAP)
• One plastic wall/ceiling mounting bracket with hardware (two metal screw anchors, two long screws, two
short screws)
• One flush/recessed ceiling T-rail mounting hardware kit (four T-rail clips (two sizes), two spacers, two long
screws, two short screws)
LEDs
A
NTENNAS
The BSAP 2020 Series provides one integrated, four element high-efficiency Planar Inverted F Antenna (PIFA)
array with 3 dBi gain (no external antennas are required).
Make a note of the 12-character MAC address and serial number listed on the back of
the BSAP 2020 Series before mounting the BSAP to a wall or other surface. This
information will be required during configuration.
M BSAP C
OUNTING THE TO A EILING OR
BSAPs should be positioned for maximum throughput and range between other APs and wireless client
devices. Follow these instructions to mount the BSAP to an interior ceiling or wall using the enclosed ceiling/
wall mounting kit:
1. Using the plastic mounting bracket as a template, mark the location to insert the screw anchors.
2. Press the point of the screw anchors into the sheetrock at the marks and drive them into the wall using a
Phillips-head screwdriver.
3. Insert the long screws through the recessed holes in the plastic mounting bracket and drive them into the
metal anchors.
4. Drive the short screws into the metal screw receptacles on the bottom of the BSAP until they are firmly
seated in the receptacle. If extra space is required, use the spacers and long screws provided with the T-
rail mounting hardware kit to increase the space between the unit and the mounting bracket. Leave enough
of the long screws exposed above the spacer to ensure they can be inserted into the keyed slots on the
mounting bracket.
5. Mount the BSAP on the mounting bracket by inserting the screws on the back of the BSAP into the keyed
slots on the mounting bracket and rotating the unit clockwise 90 degrees to secure it on the bracket.
6. Optionally, protect your BSAP with a Kensington cable lock (not provided) inserted into the security slot.
Quick Start Guide, 61700945F1-13B, February 2016

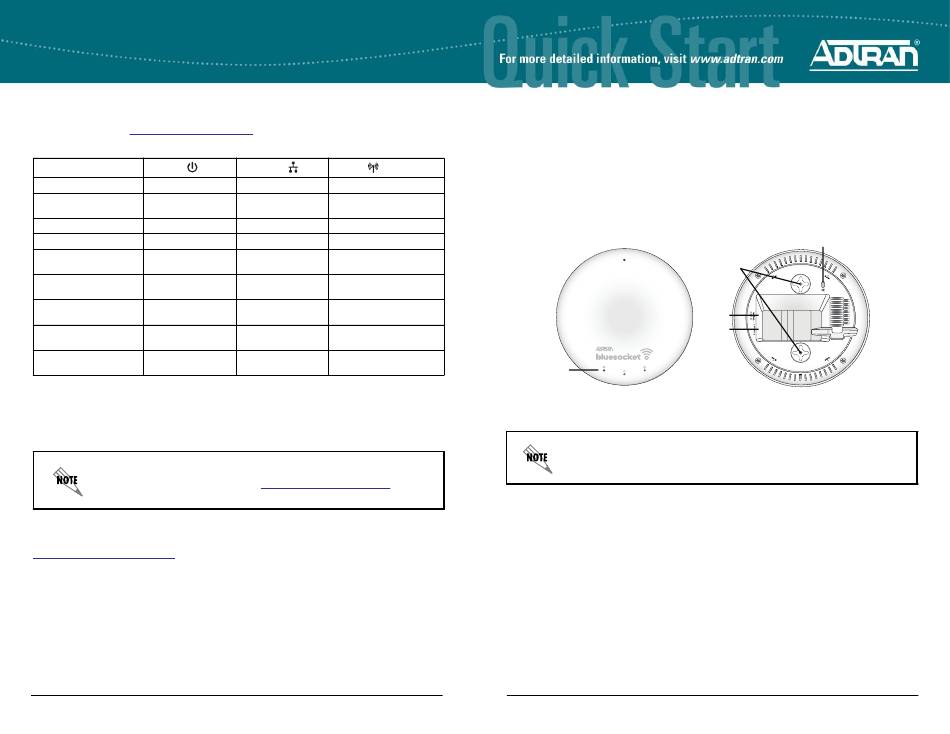

A P
CCESS OINT
Kensington Security
Slot
Mounting Screw
Receptacles
Optional
12 VDC
Power Port
Ethernet
Port
W
ALL
