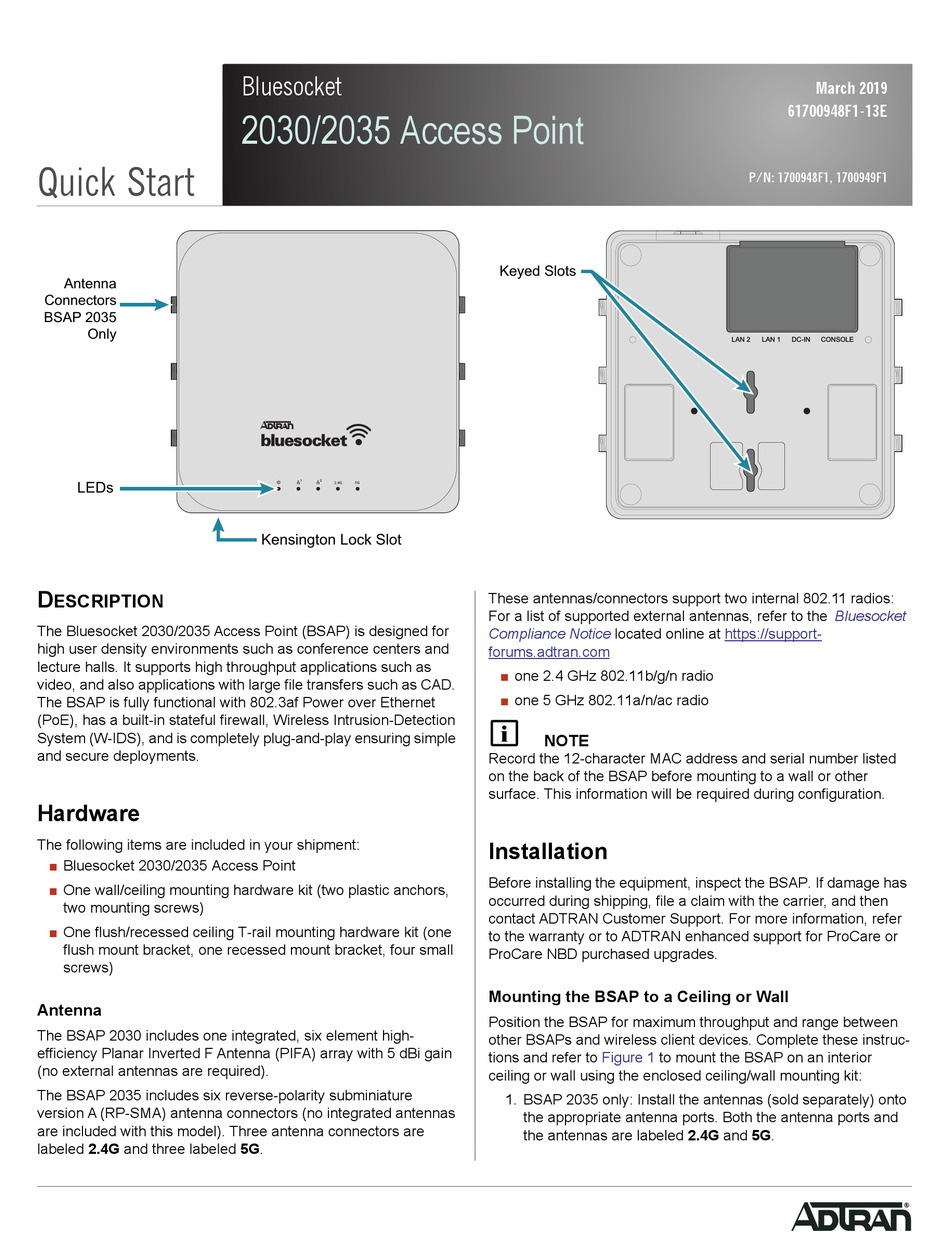

ADTRAN Bluesocket 2030 Quick Start Manual

Quick Start
Antenna
Connectors
BSAP 2035
Only
LEDs
D
ESCRIPTION
The Bluesocket 2030/2035 Access Point (BSAP) is designed for
high user density environments such as conference centers and
lecture halls. It supports high throughput applications such as
video, and also applications with large file transfers such as CAD.
The BSAP is fully functional with 802.3af Power over Ethernet
(PoE), has a built-in stateful firewall, Wireless Intrusion-Detection
System (W-IDS), and is completely plug-and-play ensuring simple
and secure deployments.
Hardware
The following items are included in your shipment:
■ Bluesocket 2030/2035 Access Point
■ One wall/ceiling mounting hardware kit (two plastic anchors,
two mounting screws)
■ One flush/recessed ceiling T-rail mounting hardware kit (one
flush mount bracket, one recessed mount bracket, four small
screws)
Antenna
The BSAP 2030 includes one integrated, six element high-
efficiency Planar Inverted F Antenna (PIFA) array with 5 dBi gain
(no external antennas are required).

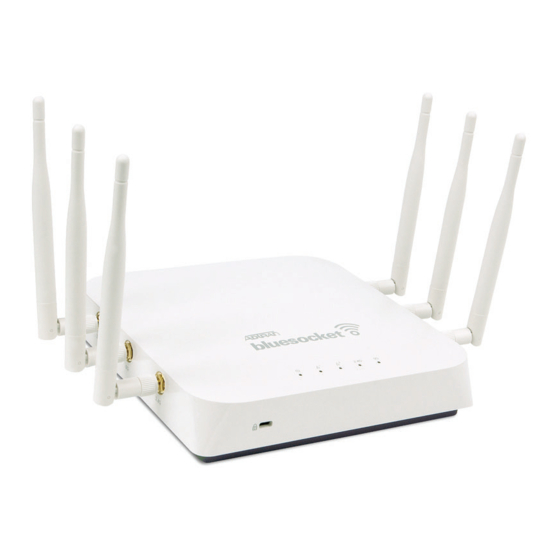

The BSAP 2035 includes six reverse-polarity subminiature
version A (RP-SMA) antenna connectors (no integrated antennas
are included with this model). Three antenna connectors are
labeled 2.4G and three labeled 5G.
Bluesocket
2030/2035 Access Point
Kensington Lock Slot
Keyed Slots
These antennas/connectors support two internal 802.11 radios:
For a list of supported external antennas, refer to the
Compliance Notice located online at
forums.adtran.com
■ one 2.4 GHz 802.11b/g/n radio
■
one 5 GHz 802.11a/n/ac radio
g
NOTE
Record the 12-character MAC address and serial number listed
on the back of the BSAP before mounting to a wall or other
surface. This information will be required during configuration.
Installation
Before installing the equipment, inspect the BSAP. If damage has
occurred during shipping, file a claim with the carrier, and then
contact ADTRAN Customer Support. For more information, refer
to the warranty or to ADTRAN enhanced support for ProCare or
ProCare NBD purchased upgrades.
Mounting the BSAP to a Ceiling or Wall
Position the BSAP for maximum throughput and range between
other BSAPs and wireless client devices. Complete these instruc-
tions and refer to Figure 1 to mount the BSAP on an interior
ceiling or wall using the enclosed ceiling/wall mounting kit:
1. BSAP 2035 only: Install the antennas (sold separately) onto
the appropriate antenna ports. Both the antenna ports and
the antennas are labeled 2.4G and 5G.
March 2019
61700948F1-13E
P/N: 1700948F1, 1700949F1
LAN 2 LAN 1 DC-IN CONSOLE
