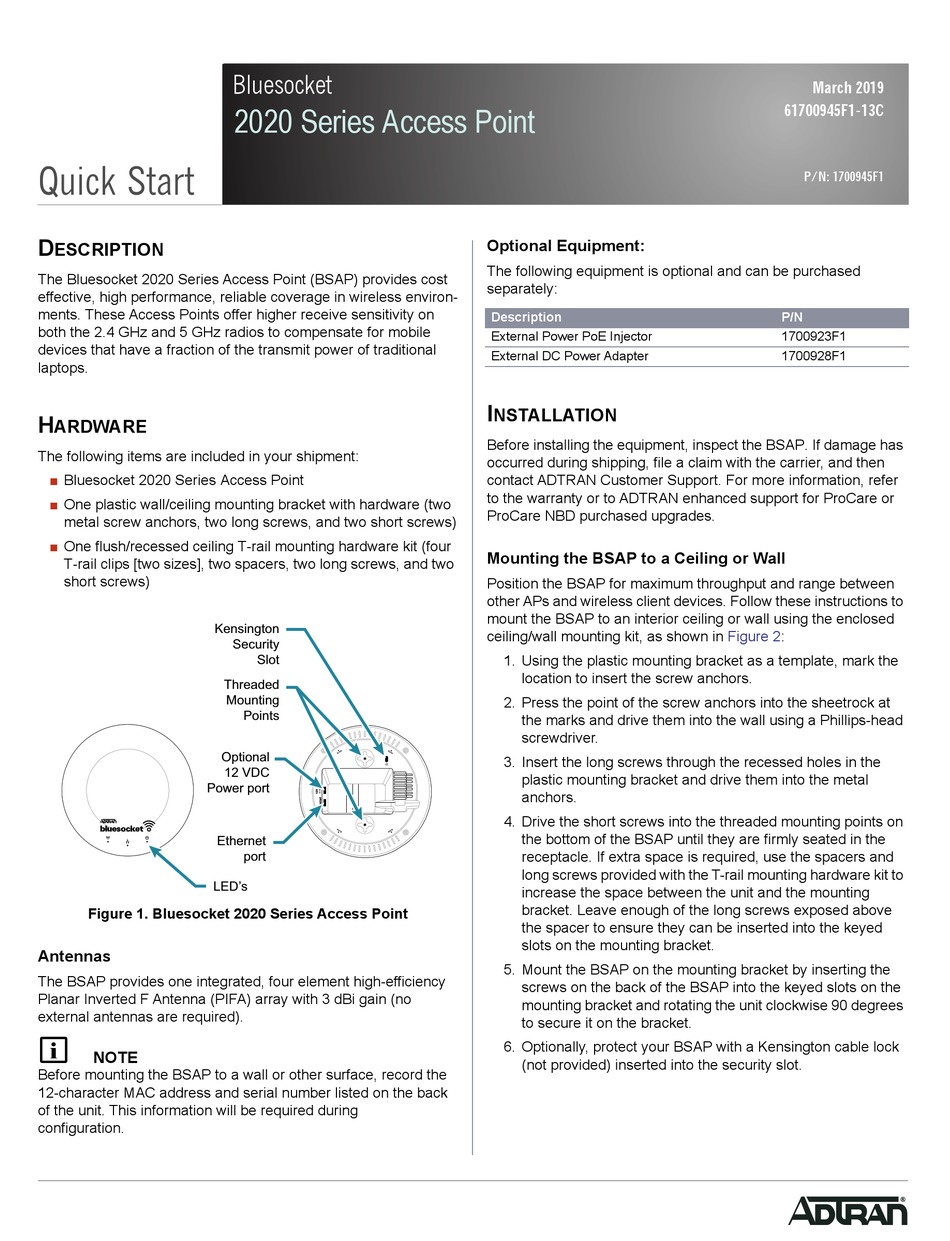

ADTRAN Bluesocket 2020 Series Quick Start Manual

Quick Start

D
ESCRIPTION
The Bluesocket 2020 Series Access Point (BSAP) provides cost
effective, high performance, reliable coverage in wireless environ-
ments. These Access Points offer higher receive sensitivity on
both the 2.4 GHz and 5 GHz radios to compensate for mobile
devices that have a fraction of the transmit power of traditional
laptops.
H
ARDWARE
The following items are included in your shipment:
■ Bluesocket 2020 Series Access Point
■ One plastic wall/ceiling mounting bracket with hardware (two
metal screw anchors, two long screws, and two short screws)
■ One flush/recessed ceiling T-rail mounting hardware kit (four
T-rail clips [two sizes], two spacers, two long screws, and two
short screws)
Kensington
Power port
LED's
Figure 1. Bluesocket 2020 Series Access Point
Antennas
The BSAP provides one integrated, four element high-efficiency
Planar Inverted F Antenna (PIFA) array with 3 dBi gain (no
external antennas are required).
g
NOTE
Before mounting the BSAP to a wall or other surface, record the
12-character MAC address and serial number listed on the back
of the unit. This information will be required during
configuration.
Bluesocket
2020 Series Access Point
Security
Slot
Threaded
Mounting
Points
Optional
12 VDC
Ethernet
port
Optional Equipment:
The following equipment is optional and can be purchased
separately:
Description
External Power PoE Injector
External DC Power Adapter
I
NSTALLATION
Before installing the equipment, inspect the BSAP. If damage has
occurred during shipping, file a claim with the carrier, and then
contact ADTRAN Customer Support. For more information, refer
to the warranty or to ADTRAN enhanced support for ProCare or
ProCare NBD purchased upgrades.
Mounting the BSAP to a Ceiling or Wall
Position the BSAP for maximum throughput and range between
other APs and wireless client devices. Follow these instructions to
mount the BSAP to an interior ceiling or wall using the enclosed
ceiling/wall mounting kit, as shown in
1. Using the plastic mounting bracket as a template, mark the
location to insert the screw anchors.
2. Press the point of the screw anchors into the sheetrock at
the marks and drive them into the wall using a Phillips-head
screwdriver.
3. Insert the long screws through the recessed holes in the
plastic mounting bracket and drive them into the metal
anchors.
4. Drive the short screws into the threaded mounting points on
the bottom of the BSAP until they are firmly seated in the
receptacle. If extra space is required, use the spacers and
long screws provided with the T-rail mounting hardware kit to
increase the space between the unit and the mounting
bracket. Leave enough of the long screws exposed above
the spacer to ensure they can be inserted into the keyed
slots on the mounting bracket.
5. Mount the BSAP on the mounting bracket by inserting the
screws on the back of the BSAP into the keyed slots on the
mounting bracket and rotating the unit clockwise 90 degrees
to secure it on the bracket.
6. Optionally, protect your BSAP with a Kensington cable lock
(not provided) inserted into the security slot.
March 2019
61700945F1-13C
P/N: 1700945F1
P/N
1700923F1
1700928F1
Figure 2:
