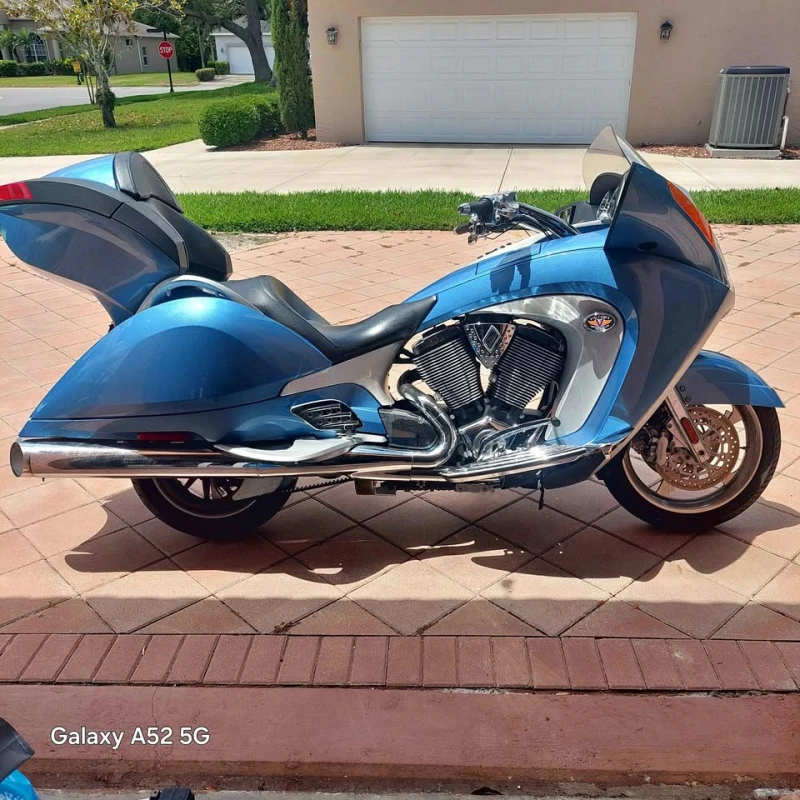

Victory 2009 VISION Rider's Manual

Table of Contents

Quick Links

Table of Contents

Chapters

Table of Contents

Summary of Contents for Victory 2009 VISION

Page 3 inside cover.fm Page 202 Tuesday, April 1, 2008 9:45 AM California Proposition 65 Warning This product contains or emits chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.
Page 5: General Information
All reference to RIGHT, LEFT, FRONT, REAR are from the operator’s perspective seated in a normal riding position. Features of VICTORY Motorcycles are covered by U.S. Patent Nos: 6,976,691; 6,407,663; D489670; D482311; D482304; D481980; D481973; D474142.
Page 6 ® POLARIS ® POLARIS THE WAY OUT ® VICTORY ® VICTORY MOTORCYCLES ® VICTORY VISION ® FREEDOM DUNLOP is a registered trademark of Dunlop Tire Corporation. LOCTITE is a trademark of Henkel Corporation. XM and its corresponding logos are trademarks of XM Radio Inc.
Page 7: Before You Ride
Safety section. Understand and follow the procedures outlined in the Maintenance section to keep your VICTORY motorcycle in top condition on the road or in storage. Bring the manual with you when you ride. Following the precautions and procedures in the manual will add to your enjoyment and help keep you riding safely.
Page 8: Table Of Contents
visionownersmanual.book Page 5 Wednesday, February 13, 2008 4:31 PM TABLE OF CONTENTS BEFORE YOU RIDE ........4 SAFETY .
Page 9 visionownersmanual.book Page 6 Wednesday, February 13, 2008 4:31 PM TABLE OF CONTENTS SPECIFICATIONS ........239-250 AUDIO SYSTEM OVERVIEW .
Page 10: Safety
visionownersmanual.book Page 7 Wednesday, February 13, 2008 4:31 PM SAFETY Safety Symbols and Terms Symbols And Terms Used In This Manual The following safety signal words and symbols appear throughout the Rider’s Manual. Your safety and the safety of others are involved when these words and symbols are used.
Page 11: Safe Riding Practices
To minimize the risk of injury, read and understand the information contained in this section before operating the motorcycle. This section contains safety information specific to the VICTORY motorcycle, as well as information about general motorcycle safety. Anyone who uses the motorcycle (operators and passengers) must follow these safety precautions.
Page 12 • Pay close attention to the motorcycle maintenance requirements in this manual. For additional information or assistance with technical services specified in the manual or required by mechanical circumstances, see the VICTORY service manual or your authorized VICTORY dealer.
Page 13 108. Operating the motorcycle without following break-in procedures can result in serious engine damage. • Some VICTORY models include saddlebags, a windshield, or a touring trunk as standard equipment. To maintain stability, load cargo properly as described in this Rider’s Manual and be prepared to reduce the operating speed of motorcycles equipped with these items as original equipment or as accessories.
Page 14 85. Operating the motorcycle without completing the pre-ride check may cause damage to the motorcycle or result in an accident. • Until you’re thoroughly familiar with the VICTORY motorcycle and all of its controls, practice riding where there is little or no traffic. Practice riding at a moderate speed on varying road surfaces and under varying weather conditions.
Page 15 visionownersmanual.book Page 12 Wednesday, February 13, 2008 4:31 PM SAFETY Safe Riding Practices • The most common cause of accidents involving a motorcycle and an automobile is the automobile driver’s failure to see the motorcycle. Ride defensively, as if you are invisible to other motorists, even in broad daylight.
Page 16 visionownersmanual.book Page 13 Wednesday, February 13, 2008 4:31 PM SAFETY Safe Riding Practices • Reduce your speed when: - The road has potholes or is otherwise rough or uneven. - The road has sand, dirt, gravel or other loose substances on it. - The road is wet, icy, or oily.
Page 17 visionownersmanual.book Page 14 Wednesday, February 13, 2008 4:31 PM SAFETY Safe Riding Practices • To maximize braking effectiveness, use the front and rear brakes together. Improper braking may cause loss of control or may not slow the vehicle in time to avoid a collision. Be aware of the following braking facts and practices: - The rear brake provides 40% of the motorcycle’s stopping power, at most.
Page 18 visionownersmanual.book Page 15 Wednesday, February 13, 2008 4:31 PM SAFETY Safe Riding Practices • When approaching a curve, choose a speed and lean angle that allows you to pass through the curve in your own lane without applying the brakes. Excessive speed, improper lean angle or braking in a curve can cause loss of control.
Page 19: Carrying A Passenger
visionownersmanual.book Page 16 Wednesday, February 13, 2008 4:31 PM SAFETY Carrying A Passenger To carry a passenger safely, do the following: • Direct the passenger to hold on to you or to the passenger hand grips and to keep both feet on the passenger footrests.
Page 20 • Do not exceed the maximum cargo weight limit of any accessory (see accessory instructions and labels), and do not attach cargo to an accessory not designed for that purpose. • Do not attach anything to the motorcycle unless specifically designed for that purpose by VICTORY.
Page 21: Protective Apparel
visionownersmanual.book Page 18 Wednesday, February 13, 2008 4:31 PM SAFETY Protective Apparel To decrease the risk of injury and increase riding comfort, wear protective riding apparel: • Wear a Department of Transportation (DOT) or SNELL approved helmet. Some state laws require that you wear an approved helmet.
Page 22 visionownersmanual.book Page 19 Wednesday, February 13, 2008 4:31 PM SAFETY Saddlebags & Trunk Whenever operating a motorcycle with original equipment or accessory saddlebags: • Never ride at speeds exceeding 80 mph (120 kph). Depending on load and weather conditions, the maximum safe operating speed may be less than 80 mph (120 km/h). Saddlebags, combined with the lifting or buffeting effects of wind, can make the motorcycle unstable and cause loss of control.
Page 23: Parking The Motorcycle
Modifications Modifying the motorcycle by removing any equipment or by adding equipment not approved by VICTORY may void your warranty. Such modifications could make the motorcycle unsafe to ride and could result in severe injury to operator or passengers, as well as damage to the motorcycle.
Page 24 SAFETY Accessory Selection and Installation Because VICTORY cannot test and make specific recommendations concerning every accessory or combination of accessories sold, the operator is responsible for determining that the motorcycle can be safely operated with any accessories or additional weight. Use the following guidelines when choosing and installing accessories: •...
Page 25: Transporting The Motorcycle
visionownersmanual.book Page 22 Wednesday, February 13, 2008 4:31 PM SAFETY Transporting The Motorcycle If you must transport the motorcycle, use a truck or To loop on frame. trailer. Do not tow the motorcycle with another (One tiedown each side) vehicle, as towing will impair the motorcycle’s steering and handling, which can cause loss of control.
Page 26 visionownersmanual.book Page 23 Wednesday, February 13, 2008 4:31 PM SAFETY Fueling Precautions For complete fueling procedure see page 110. Gasoline is highly flammable and can be explosive in certain conditions. Observe the following precautions when you refuel or service the fuel system: •...
Page 27 visionownersmanual.book Page 24 Wednesday, February 13, 2008 4:31 PM SAFETY Gasoline and Exhaust Precautions Gasoline and gasoline vapors are poisonous and can cause severe injury. • Do not swallow gasoline, inhale gasoline vapors, or spill gasoline on yourself or your clothes.
Page 28: Periodic Maintenance
Always perform the safety maintenance procedures as recommended. Perform maintenance and repairs promptly as outlined in the VICTORY service manual, or see your authorized VICTORY dealer for service. • Before each ride, complete a pre-ride check as outlined beginning on page 85.
Page 29: Electromagnetic Interference
• Each fastener used in the motorcycle meets our quality specifications for strength, finish and type. When replacement fasteners are needed, use only genuine VICTORY parts, tightened to the proper torque. A fastener that does not meet original specifications could fail and result in damage to the motorcycle or injury to riders.
Page 30 visionownersmanual.book Page 27 Wednesday, February 13, 2008 4:31 PM SAFETY Gross Vehicle Weight Rating (GVWR) Gross Vehicle Weight is the maximum allowable weight of the vehicle, and includes the total weight of the motorcycle, the operator, and the passenger. NEVER exceed the motorcycle’s Gross Vehicle Weight Rating.
Page 31 155 lbs. (70 kg) Total Weight 1219 lbs. (553 kg) 1264 lbs. (574 kg) NEVER exceed GVWR. If you have any questions about loading your VICTORY motorcycle safely, please consult an authorized VICTORY dealer. See “Gross Vehicle Weight Rating (GVWR)” on page 27.
Page 32 15 lbs. (7 kg) Total Weight 1228 lbs. (557 kg) 1279 lbs. (581 kg) NEVER exceed GVWR. If you have any questions about loading your VICTORY motorcycle safely, please consult an authorized VICTORY dealer. See “Gross Vehicle Weight Rating (GVWR)” on page 27.
Page 33 7 lbs. (3 kg) Total Weight 1235 lbs. (560 kg) 1286 lbs. (584 kg) NEVER exceed GVWR. If you have any questions about loading your VICTORY motorcycle safely, please consult an authorized VICTORY dealer. See “Gross Vehicle Weight Rating (GVWR)” on page 27.
Page 34 3safety.fm Page 31 Tuesday, February 3, 2009 11:50 AM SAFETY Safety and Information Labels - VIN Decal Location of Vehicle Identification Number decal - on frame under rear console cover. See “Seat Removal / Installation” on page 190. VIN decal (under rear console panel) Date of Manufacture Operator / Fuel warning on outside of panel...
Page 35 3safety.fm Page 32 Tuesday, February 3, 2009 11:50 AM SAFETY Safety and Information Labels - VECI Decal Location of Vehicle Emission Control Information decal - inside left saddlebag. VECI decal...
Page 36 3safety.fm Page 33 Tuesday, February 3, 2009 11:50 AM SAFETY Safety and Information Labels - NECI Decal Location of Noise Emission Control Information decal - inside left saddlebag. NECI decal (below VECI decal) Windshield decal...
Page 37 3safety.fm Page 34 Tuesday, February 3, 2009 11:50 AM SAFETY Safety and Information Labels - Tire Information & Cargo Decals Location of Tire Information decal - inside left saddlebag door Cargo decals - inside bags (and trunk if equipped) Tire Information decal...
Page 38: Reporting Safety Defects
visionownersmanual.book Page 35 Wednesday, February 13, 2008 4:31 PM SAFETY Reporting Safety Defects If you believe that your vehicle has a defect that could result in a crash or cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Polaris Industries in writing.
Page 39: Safety
visionownersmanual.book Page 36 Wednesday, February 13, 2008 4:31 PM SAFETY NOTES...
Page 40: Identification / Component Location
4component identification.fm Page 37 Tuesday, February 3, 2009 12:54 PM IDENTIFICATION Identification Numbers Vehicle Identification Number VIN on frame The Vehicle Identification Number is printed on the Manufacturer Information Decal located under the rear console cover on the frame. See “Seat Removal / Installation” on page 190.
Page 41: Engine Number
4component identification.fm Page 38 Tuesday, February 3, 2009 12:54 PM IDENTIFICATION Engine Number The engine number is stamped into the right crankcase behind the rear cylinder (1). Record the number in the space provided on page 40. VECI / NECI & Tire Information Decals The Vehicle Emission Control Information (VECI), Noise Emission Control Information (NECI), and the Tire VECI / NECI / Tire Decal...
Page 42: Ignition Key Number
If you lose both original keys, you will need the following: • Key number (recorded previously) • A new key blank (purchased from your VICTORY dealer) • Proof of ownership • A lock smith or VICTORY dealer with the equipment necessary to cut a new key...
Page 43 4component identification.fm Page 40 Tuesday, February 3, 2009 12:54 PM IDENTIFICATION Record important numbers below for reference: VIN Number Record Engine I.D. Record Ignition Key Number Record...
Page 44 4component identification.fm Page 41 Tuesday, February 3, 2009 12:54 PM IDENTIFICATION Component Location - Left View Left Side View Spark Plugs Front Brake Caliper (left) Gear Shift Pedal Operator’s Footrest Sidestand Oil Drain Plug Oil Filter Passenger’s Footrest Rear Brake Caliper 10.
Page 45 4component identification.fm Page 42 Tuesday, February 3, 2009 12:54 PM IDENTIFICATION Component Location - Right View Right Side View Drive Belt Guard Drive Belt Passenger’s Footrest Drive Sprocket (under cover) Speed Sensor (top of crankcase) Engine Oil Fill Cap / Dipstick Rear Brake Pedal Operator’s Footrest Front Brake Caliper (right)
Page 46 4component identification.fm Page 43 Tuesday, February 3, 2009 12:54 PM IDENTIFICATION Component Location - Front View Front View Front Turn Signal (outer light, each side) Wind Deflector (one each side) Headlamp (high beam) Headlamp (low beam) Driving Lamp (or HID lamp if equipped) Air Filter (front of frame) Tiedown Loop (on frame) Rear Brake Fluid Reservoir...
Page 47 visionownersmanual.book Page 44 Wednesday, February 13, 2008 4:31 PM IDENTIFICATION Component Location - Rear View Rear View Turn Signals (uppermost in lens) Tail Lamps (3 each side; all tail bulbs are ON with lights) Brake Lamps (four lower bulbs illuminate brightly when brake is applied with turn signal OFF;...
Page 48 4component identification.fm Page 45 Tuesday, February 3, 2009 1:27 PM IDENTIFICATION Component Location - Top View Top View Windshield (radio antenna is under dash) Left Mirror Clutch Fluid Reservoir Clutch Lever Glove Compartment Door Operator Seat Passenger Seat Left Saddlebag Latch Trim Panel - Street Model (or Tour w/ Trunk Removed) 10.
Page 49 visionownersmanual.book Page 46 Wednesday, February 13, 2008 4:31 PM IDENTIFICATION Component Location - Rider’s View Rider’s View (See INSTRUMENTS, FEATURES, & CONTROLS for more information) Speaker (left) Fuel Gauge Speedometer Indicator Lamp Display Information Display Tachometer Volt Meter Speaker (Right) Cruise Control Switches 10.
Page 50: Instruments, Features & Controls
visionownersmanual.book Page 47 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Ignition Key CAUTION Before starting the engine, read engine starting instructions beginning on page 112. FUEL DOOR OPEN The ignition key operates the ignition switch, fuel door (page 77) bag locks (page 81) and trunk lock (if equipped, page 82).
Page 51: Ignition Switch
visionownersmanual.book Page 48 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Ignition Switch Place the ignition key in the ignition switch to operate the following functions of the switch. IGNITION SWITCH FUNCTION All electrical circuits are off. The ignition key can be removed. All electrical circuits are on.
Page 52: Instrument Cluster
visionownersmanual.book Page 49 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Instrument Cluster The instrument cluster includes the items listed on the following pages. The MODE button (page 62) is used to toggle through various functions, change unit display (mph to kph) and to reset all functions except the odometer and fuel range.
Page 53: Fuel Gauge
visionownersmanual.book Page 50 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Fuel Gauge The fuel gauge operates when the key is in the ON or ACC position. For most accurate readings, sit on the motorcycle and bring it to an upright position.
Page 54 visionownersmanual.book Page 51 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Indicator Lamp Display The indicator lamps are located on the upper display in the center of the instrument panel. See the following pages for a description of each and its function.
Page 55 If “Err” appears in the clock area, record the three code numbers displayed on the screen. See an Speed Range Inst Time authorized VICTORY dealer for code details. See TRIP 1 km / h “Check Engine” indicator information on page 59.
Page 56: Trip Odometer
visionownersmanual.book Page 53 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Gear Position The number of the current transmission gear is displayed with the key in the ON position and the Stop/Run switch in RUN. “N” displays in neutral.
Page 57 visionownersmanual.book Page 54 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Odometer The odometer displays total mileage of the vehicle in miles or kilometers. See “Trip Odometer” on page 53 to change the odometer display to trip meter. To Change Display Units To change the odometer display from English (miles &...
Page 58 visionownersmanual.book Page 55 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS CONSOLE MOUNTED SWITCHES The console mounted switches are used to control the following features: • Handgrip Heaters (if equipped) • Hazard (emergency flashers) • Driving lamp (center headlamp) •...
Page 59 visionownersmanual.book Page 56 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Hand Grip Heater Switch Press the rocker switch toward the Hi or Low position, depending on the amount of heat required. Grip Heat HIGH Hazard ON Press the rocker switch to the middle position to turn the grip heaters OFF.
Page 60 visionownersmanual.book Page 57 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Driving Lamp Switch When the ignition key is ON, the driving lamp switch operates the center headlamp or HID lamp (if equipped). Driving Lamp ON The driving lamp is not controlled by the high / low beam switch.
Page 61 visionownersmanual.book Page 58 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Neutral, Gear Position, & High Beam Indicator Lamps High Beam Low Fuel Right Turn Left Turn Oil Pressure Neutral Light Cruise Control Low Battery Check Engine Gear Position Transmission gear selection appears in the information display (6th Gear Position gear shown).
Page 62 An error code menu can be viewed in the information display. Use the MODE button to toggle until "Err" is displayed and record the information shown. See an authorized VICTORY dealer for code details. NOTE: Codes are not stored. The "Err" screen displays only when the check engine light is on, or goes on and off during one ignition cycle.
Page 63 visionownersmanual.book Page 60 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Oil Pressure & Low Fuel Indicator Lamps The Low Oil Pressure indicator illuminates when the ignition switch Low Oil Pressure is in the ON position and the engine is not running. This means the indicator circuit is functioning properly.
Page 64: Seat Heater Switches
visionownersmanual.book Page 61 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Seat Heater Switches Switch Front Location The seat heater switches (if equipped) are located on the seat under the left passenger hand grip. High The driver and passenger seat heater settings are independently controlled.
Page 65: Mode Button
visionownersmanual.book Page 62 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS LEFT HANDLEBAR SWITCH Mode Button The MODE button is located on the front side of the left handlebar switch. The MODE button is used to toggle through the various Information display items available, and to change the display from English (miles) to Metric (kilometers).
Page 66 visionownersmanual.book Page 63 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Headlamp High / Low Beam Switch To turn the headlamp on, turn the ignition key High Beam to ON and tap or press the start button. The headlamp high/low beam switch toggles the headlamp between high and low beam.
Page 67 visionownersmanual.book Page 64 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Windshield Adjustment Switch (Motorized) The motorized windshield adjustment switch changes the height (and angle) of the windshield. This button is active with the key in the ON or ACC position.
Page 68: Turn Signal Switch
visionownersmanual.book Page 65 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Turn Signal Switch Use the turn signal switch to activate a turn signal. The key must be in the ON or ACC position. Turn signals automatically cancel after predetermined speed and distance conditions are met.
Page 69: Horn Button
visionownersmanual.book Page 66 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Turn Signal Momentary Feature The momentary signal feature is useful when passing Hold Left or or changing lanes. To use the momentary feature, push Right for one and hold the switch through at least one complete flash flash cycle cycle (at least one second) to activate the feature.
Page 70: Clutch Lever
visionownersmanual.book Page 67 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Clutch Lever To disengage the clutch, pull the lever toward the handlebar. To engage the clutch, gradually release Clutch Lever the lever. For smooth clutch operation, pull the lever quickly and release it gradually.
Page 71 visionownersmanual.book Page 68 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS RIGHT HANDLEBAR CONTROLS Engine Stop / Run Switch The engine stop/run switch completes or interrupts the ignition, starter, and fuel pump circuits. To complete the circuits, allowing the engine to start and run, press the lower portion of the engine stop/ run switch (RUN position).
Page 72 visionownersmanual.book Page 69 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Engine Starter Button The engine starter button is used to start the engine, activate the headlight, and operate in reverse gear (if equipped). To start the engine, the engine stop/run switch must be in the RUN position.
Page 73: Throttle Control Grip
visionownersmanual.book Page 70 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Throttle Control Grip The throttle control grip controls the engine speed. To increase engine speed and power, twist the top of the throttle control grip toward you (A). To decrease engine speed and power, twist the top of the grip away from you (B).
Page 74 visionownersmanual.book Page 71 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Linked Braking System The front and rear brakes on the motorcycle are linked. Application of the front brake lever activates only the front brakes. Application of the rear brake pedal activates the rear brake caliper fully, while simultaneously activating one of the three pistons in each front brake caliper.
Page 75: Front Brake Lever
visionownersmanual.book Page 72 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Front Brake Lever The front brake lever is located on the right handlebar. To apply the front brake, pull the lever toward the handlebar. As described on page 71, the front brake lever activates only the front brake calipers.
Page 76: Rear Brake Pedal
visionownersmanual.book Page 73 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Rear Brake Pedal The rear brake pedal is on the right side of the motorcycle. To apply the rear brake, press down on the rear brake pedal. As described on page 71, a small amount of front brake is also applied.
Page 77: Gear Shift Pedal
visionownersmanual.book Page 74 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Gear Shift Pedal The gear shift pedal is located on the left side of the motorcycle. • To shift to a lower gear, press down on the gear Shift Pedal shift pedal.
Page 78 Foot Control Adjustment The brake pedal and shift pedal can be adjusted to one of three positions. The controls are in the center position as delivered from VICTORY. To move the controls to the front or rear position, do the following: 1.
Page 79 visionownersmanual.book Page 76 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Manual Windshield Adjustment If your motorcycle is not equipped with a motorized windshield, you can adjust it manually using the following procedure: 1. Stop the motorcycle and turn the key OFF. 2.
Page 80 5instruments.fm Page 77 Thursday, February 14, 2008 8:14 AM INSTRUMENTS, FEATURES, & CONTROLS Fuel Door Use the ignition key to unlock the fuel door. Turn key 1. Turn the key to the OFF position. counterclockwise 2. Turn the handlebars full left. to open fuel door.
Page 81: Fuel Cap
visionownersmanual.book Page 78 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Fuel Cap Use the ignition key to unlock the fuel door. 1. Turn the fuel cap counterclockwise to open. 2. Set the cap in the holder while fueling. 3.
Page 82: Glove Compartment
visionownersmanual.book Page 79 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Glove Compartment To OPEN the glove compartment: • Turn the handlebars to clear the door. Press and release the inner edge of the door. The door will open under spring pressure.
Page 83 visionownersmanual.book Page 80 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Sidestand The sidestand is located on the left side of the motorcycle. WARNING Correctly retract the sidestand before operating the motorcycle. An improperly retracted sidestand could come into contact with the ground and cause a loss of control.
Page 84 visionownersmanual.book Page 81 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Saddlebags The saddlebags can be locked with the ignition key. Lock the saddlebags when riding. To UNLOCK the saddlebag: 1. Insert key in bag lock and rotate clockwise to the unlocked position.
Page 85 visionownersmanual.book Page 82 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Trunk Operation The trunk can be locked with the ignition key. Lock the trunk when riding. To UNLOCK the trunk: 1. Insert key in trunk lock and rotate key to the vertical position to unlock.
Page 86 visionownersmanual.book Page 83 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Radio / Audio Systems Refer to the Audio section of this manual (beginning on page 251) for radio and accessory audio systems operation. Radio Panel...
Page 87: Instruments, Features & Controls
visionownersmanual.book Page 84 Wednesday, February 13, 2008 4:31 PM INSTRUMENTS, FEATURES, & CONTROLS Tool Kit The tool kit can be used to perform most of the basic maintenance items and some of the general repairs. 1. 4mm Ball Drive Allen Wrench 2.
Page 88: Pre-Ride Checks
• refer to the maintenance section of this manual • refer to the service manual • or see your authorized VICTORY dealer NOTE: During the pre-ride check you may use products that are potentially hazardous, such as oil or brake fluid.
Page 89: Check Electrical Equipment
visionownersmanual.book Page 86 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Check Electrical Equipment Turn the ignition key to the ON position and move the stop/run switch to RUN before performing the following electrical inspections. Return the ignition key to the OFF position after completing these inspections.
Page 90 visionownersmanual.book Page 87 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Check Electrical Equipment (Cont.) Item Inspection Procedure Emergency Press the top of the hazard switch to turn the flashers on. Verify that all four Flashers turn signals flash, as well as the lamps on the indicator panel. Turn the flashers off.
Page 91: Check Engine Oil Level
visionownersmanual.book Page 88 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Check Engine Oil Level A dipstick attached to the oil fill cap registers the engine oil level. 1. With the transmission in neutral, start and run the engine for several minutes to bring it to operating temperature.
Page 92 visionownersmanual.book Page 89 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS 5. Remove the dipstick and read the oil level. 6. If necessary, add or remove oil to bring the level into the area on the dipstick above the ADD mark and below the FULL mark.
Page 93: Fuel Level
visionownersmanual.book Page 90 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Fuel Level 1. Straddle the motorcycle on level ground and bring it to a vertical position. 2. Turn the ignition switch to the ON or ACC position and watch the fuel gauge (1) on the instrument panel.
Page 94 visionownersmanual.book Page 91 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Check Tires Tire Pressure • Normal riding warms the tires and increases the tire air pressure. For an accurate reading, check the tire pressure before you ride. Adjust tire pressure as required for the total weight of your intended load.
Page 95 visionownersmanual.book Page 92 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Check Brake Operation Pedal / Lever Movement • Squeeze the front brake lever and press the rear brake pedal to be sure both operate normally.The lever and pedal should feel firm and should hold pressure when applied with constant pressure.
Page 96 visionownersmanual.book Page 93 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Front Brake Fluid Level Inspection: 1. Stand the motorcycle upright on level ground. 2. Turn the handlebars until the top of the front MINIMUM brake fluid reservoir is level. LEVEL 3.
Page 97 visionownersmanual.book Page 94 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Rear Brake Fluid Level Inspection: Maximum 1. The rear brake fluid reservoir is located near the rear brake pedal, just inside the right lower leg fairing (view from front right side, see page 171). 2.
Page 98 Inspect all brake hoses and brake hose connections for dampness or stains from leaking or dried brake fluid. Tighten any leaking connections to specified torque listed in the appropriate VICTORY service manual or contact your VICTORY dealer for service. When checking brake pad friction material thickness (page 96) check each brake caliper for dampness or stains from leaking or dried brake fluid.
Page 99: Check Brake Pads
(behind the Minimum: brake pads), a brake hose, or a connection. Rear Pad Have your VICTORY dealer replace brake (1.0 mm) pads if worn beyond the minimum friction material thickness at their thinnest point, or if...
Page 100: Check Throttle Control Grip And Cables
visionownersmanual.book Page 97 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Check Throttle Control Grip and Cables Inspection: 1. Rotate the throttle control grip. It should rotate smoothly from its rest position to its completely open position and back again. It should return to its rest position quickly when released.
Page 101 visionownersmanual.book Page 98 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Check Clutch System Minimum Level 1. Stand the motorcycle upright on level ground. 2. Turn the handlebars until the top of the clutch fluid reservoir is level. 3. View the fluid through the sight glass. The fluid should be clear and at a level above or near the top of the sight glass.
Page 102: Check Front Suspension
visionownersmanual.book Page 99 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Check Front Suspension 1. Straddle the motorcycle and bring it to the vertical position. 2. Apply front brake and push down hard on the handlebars 3-4 times. The front suspension should operate smoothly and quietly.
Page 103: Check Steering
visionownersmanual.book Page 100 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Check Steering Straddle the motorcycle and bring it to a vertical position. Turn the handlebars from stop to stop. The action should be smooth but not loose or interfered with by wires, hoses or control cables.
Page 104: Check Rear Suspension
visionownersmanual.book Page 101 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Check Rear Suspension Proper rear suspension adjustment is essential for the most comfortable ride and optimum safety. Check the rear shock absorber movement and air pressure to ensure the motorcycle has the proper amount of available suspension travel and ground clearance.
Page 105: Check Drive Belt
Drive Belt Check the drive belt teeth for stones or other debris. Replace the drive belt if it is cracked, has broken teeth, missing teeth, or frayed edges (see the service manual or an authorized VICTORY dealer).
Page 106: Check Sidestand
visionownersmanual.book Page 103 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Check Sidestand Straddle the motorcycle and bring it to a vertical position. Move the sidestand to its stored (up) position, then to its fully extended (down) position and back again. It should move smoothly and quietly.
Page 107 visionownersmanual.book Page 104 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Check Sidestand Pad Wear The sidestand pad is a wear item and must be inspected before each ride and replaced if worn. The sidestand pad is designed to move the stand to the stored position if the stand is inadvertently left in the down position.
Page 108: Check Fasteners
Visually inspect the entire motorcycle chassis and engine for loose, damaged or missing fasteners. Tighten loose fasteners to the proper torque (see the service manual for torque specifications not listed in this Rider’s Manual or contact an authorized VICTORY dealer). Immediately replace stripped, damaged or broken fasteners with genuine VICTORY fasteners.
Page 109 visionownersmanual.book Page 106 Wednesday, February 13, 2008 4:31 PM PRE-RIDE CHECKS Check Mirror Adjustment Check and adjust mirrors for proper rear view. Press the left, right, top, or bottom edge of the mirror as required to adjust.
Page 110: Operation
visionownersmanual.book Page 107 Wednesday, February 13, 2008 4:31 PM OPERATION OPERATION Vehicle Operation The operation section of this manual describes how to ensure maximum performance and longevity through the proper care and operation of your motorcycle. NOTE: Even if you're an experienced motorcycle operator or passenger, read all of the safety information in this manual before operating the motorcycle.
Page 111 visionownersmanual.book Page 108 Wednesday, February 13, 2008 4:31 PM OPERATION Engine Break-In Period During the first 500 miles (800 kilometers), critical engine parts require special wear-in procedures so they seat and mate properly. Read, understand and use the following rules for operating the motorcycle during the first 500 miles (800 kilometers) to ensure your engine’s long-term performance and durability.
Page 112 Perform initial maintenance as described in the Maintenance section of this Rider’s Manual. This maintenance is one of the most important services your motorcycle requires and should be performed by an authorized VICTORY dealer. Initial maintenance service must include inspection / adjustments, tightening of fasteners, and engine oil and filter change.
Page 113 visionownersmanual.book Page 110 Wednesday, February 13, 2008 4:31 PM OPERATION Fueling Precautions Fuel the motorcycle with the sidestand down and on level ground. Use only the recommended fuel (see Fuel Specifications on page 247). Fill the fuel tank to a level just below the bottom of the fuel filler neck.
Page 114 visionownersmanual.book Page 111 Wednesday, February 13, 2008 4:31 PM OPERATION Priming the Fuel System If the motorcycle has run completely out of fuel, prime the system before starting the engine. 1. Fill the fuel tank. 2. Turn the ignition key ON. 3.
Page 115: Starting The Engine
visionownersmanual.book Page 112 Wednesday, February 13, 2008 4:31 PM OPERATION Starting The Engine Starter Interlock A starter interlock system prevents the motorcycle from being started in gear unless the clutch lever is pulled in (clutch disengaged). Tilt Sensor A tilt sensor stops the engine if the motorcycle tips beyond 45 degrees to one side. The check engine light will also illuminate.
Page 116 visionownersmanual.book Page 113 Wednesday, February 13, 2008 4:31 PM OPERATION Starting The Engine (Cont.) 4. Place the sidestand in the UP (retracted) position. 5. If the NEUTRAL light is not illuminated, shift the transmission to neutral. 6. Apply the front brake. Leave the throttle closed and press the starter button until the engine starts.
Page 117 visionownersmanual.book Page 114 Wednesday, February 13, 2008 4:31 PM OPERATION Shifting Gears (General) WARNING The clutch must be fully disengaged (clutch lever pulled completely toward the handlebars) before you attempt to shift gears. Forced shifting (shifting without the clutch disengaged) may damage the engine, transmission, and drive train, causing loss of control of the motorcycle.
Page 118 visionownersmanual.book Page 115 Wednesday, February 13, 2008 4:31 PM OPERATION Shifting Gears (Recommended Shift Speeds) The following table shows the appropriate speeds at which to shift up or down to each gear. RECOMMENDED SHIFT SPEEDS Upshift (Acceleration) Downshift (Deceleration) Upshift Speed Downshift Speed Gear Change Gear Change...
Page 119 visionownersmanual.book Page 116 Wednesday, February 13, 2008 4:31 PM OPERATION Shifting Gears (Upshifting) 1. Start the engine (page 112). 2. With the engine at idle, apply the front brake and disengage the clutch (pull the clutch lever all the way to the handlebar.) 3.
Page 120 visionownersmanual.book Page 117 Wednesday, February 13, 2008 4:31 PM OPERATION Shifting Gears (Downshifting) WARNING Downshifting at a speed in excess of the recommended downshift point may severely damage the transmission or cause the rear wheel to lose traction. It could also result in engine damage from running at excessive RPM.
Page 121 visionownersmanual.book Page 118 Wednesday, February 13, 2008 4:31 PM OPERATION Shifting Gears (Downshifting, Cont.) NOTE: Within the recommended speed ranges you can downshift to reduce vehicle speed or to increase the available power. You may want to downshift when climbing a hill or passing. Downshifting also helps to decrease your speed when combined with closing the throttle.
Page 122 visionownersmanual.book Page 119 Wednesday, February 13, 2008 4:31 PM OPERATION Accelerating To accelerate, open the throttle (roll the throttle control grip toward you). For even acceleration, open the throttle with a smooth, continuous motion. When you reach the recommended speed for upshifting, shift up one gear in accordance with the instructions for shifting gears.
Page 123 visionownersmanual.book Page 120 Wednesday, February 13, 2008 4:31 PM OPERATION Cruise Control Safety Read all of the important information below and on the following pages so you can safely operate the Cruise Control system. WARNING Improper operation of the cruise control could result in a loss of control and serious personal injury or death.
Page 124 visionownersmanual.book Page 121 Wednesday, February 13, 2008 4:31 PM OPERATION Cruise Control Operation - Setting To set the cruise control (if equipped): 1. Turn the cruise control power switch ON. 2. Accelerate to the desired speed and press the SET button. This speed will be logged in memory. 3.
Page 125 visionownersmanual.book Page 122 Wednesday, February 13, 2008 4:31 PM OPERATION Cruise Control Operation - Resume, Accelerate RESUME Resume Pressing the Resume button (RES) will reset the cruise to the memorized speed after braking or disengaging the cruise control with either brake, throttle, or clutch. NOTE: Turning the cruise control master switch OFF will erase the SET speed from memory and disengage the cruise...
Page 126 visionownersmanual.book Page 123 Wednesday, February 13, 2008 4:31 PM OPERATION Cruise Control Operation - Decelerate / Cancel DECELERATE Press (tap) and release the Decelerate (DEC) button to decrease speeds in approximately 1 mph increments. Press and hold the DEC button to reduce SET speed to desired speed, then release to enter a new SET speed.
Page 127 visionownersmanual.book Page 124 Wednesday, February 13, 2008 4:31 PM OPERATION Braking To slow the motorcycle with the brakes, close the throttle and apply the front and rear brakes evenly. As the motorcycle slows, either disengage the clutch or downshift each time your speed reaches a downshift point.
Page 128: Stopping The Engine
visionownersmanual.book Page 125 Wednesday, February 13, 2008 4:31 PM OPERATION Stopping The Engine Before stopping the engine, bring the motorcycle to a complete stop either in neutral or with the clutch disengaged. Once the motorcycle is at a complete stop, if it is not already in neutral, shift into neutral.
Page 129 visionownersmanual.book Page 126 Wednesday, February 13, 2008 4:31 PM OPERATION Parking the Motorcycle WARNING The engine and exhaust pipes are hot for some time after the engine is stopped. Touching the engine or exhaust pipes while hot can cause serious burns. Allowing flammable materials to contact a hot engine or exhaust pipes may cause a fire.
Page 130 visionownersmanual.book Page 127 Wednesday, February 13, 2008 4:31 PM OPERATION Reverse NOTICE: Do not attempt to engage or disengage the reverse system when the motorcycle is moving. BEFORE operating in reverse NEVER operate in reverse • always sit on the motorcycle with legs astride •...
Page 131 visionownersmanual.book Page 128 Wednesday, February 13, 2008 4:31 PM OPERATION Reverse 1. Check the area behind and around the motorcycle for obstacles or people. Be aware that the front wheel may travel outward and require a larger operating area. 2. If already seated, dismount any passenger and make sure the motorcycle is stationary. 3.
Page 132: Maintenance
Review and comply with ALL Warnings on the following pages. Some maintenance procedures and repairs require advanced technical skills and special tools. Your VICTORY dealer has the equipment and training required to properly perform all maintenance, service, repairs, and emission system related service.
Page 133 visionownersmanual.book Page 130 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Maintenance Safety Reminders Review all warnings below as well as any warnings contained within this manual that apply to a specific maintenance procedure and all information on maintenance product labels before attempting any maintenance or service procedure. WARNING Care should be taken to be sure the motorcycle will not tip or fall while elevated or while on the sidestand.
Page 134 If you have any doubt as to your ability to safely and correctly perform any procedure outlined in this Rider’s Manual, whether due to the lack of knowledge, mechanical skill, or the proper equipment, contact your VICTORY dealer to have the work performed.
Page 135: First Service
If you have any doubt as to your ability to safely and correctly perform any procedure outlined in this Rider’s Manual, whether due to the lack of knowledge, mechanical skill, or the proper equipment, contact your VICTORY dealer to have the work performed.
Page 136 visionownersmanual.book Page 133 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Periodic Maintenance Table ODOMETER READING IN MILES (KILOMETERS) Component Page Air Filter Battery Brake Fluid Brake Pads Clutch Fluid Clutch Lever Control Cables Maintenance Key: I = Inspect, clean, adjust, correct or replace if necessary; P = Perform;...
Page 137 visionownersmanual.book Page 134 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Periodic Maintenance Table ODOMETER READING IN MILES (KILOMETERS) ITEM Page Crankcase Vent Drive Belt Drive Belt Adjust Adjust with each tire change thereafter Engine Oil & Filter* R R R R R R R R R R R R R R R R R R R R R Evaporative Emission Control Exhaust System...
Page 138 visionownersmanual.book Page 135 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Periodic Maintenance Table ODOMETER READING IN MILES (KILOMETERS) ITEM Page Front Fork Oil** Front Fork / Axle Fuel System Gear Shift Pedal Headlamp Maintenance Key: I = Inspect, clean, adjust, correct or replace if necessary; P = Perform;...
Page 139 visionownersmanual.book Page 136 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Periodic Maintenance Table ODOMETER READING IN MILES (KILOMETERS) ITEM Page Rear Wheel Align Rear Shock Rear Brake Pedal Reverse Idler Port Road Test Sidestand Sidestand Pad Maintenance Key: I = Inspect, clean, adjust, correct or replace if necessary; P = Perform;...
Page 140 visionownersmanual.book Page 137 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Periodic Maintenance Table ODOMETER READING IN MILES (KILOMETERS) ITEM Page Spark Plugs Steering Head Swingarm Throttle Cable Tires Maintenance Key: I = Inspect, clean, adjust, correct or replace if necessary; P = Perform;...
Page 141: Maintenance Log
visionownersmanual.book Page 138 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Maintenance Log Performed Maintenance Performed Miles / Km Notes...
Page 142 visionownersmanual.book Page 139 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Maintenance Log Performed Maintenance Performed Miles / Km Notes...
Page 143: Engine Oil Level
visionownersmanual.book Page 140 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Engine Oil Level Check the engine oil level daily before each ride. See page 88. Engine Oil & Filter Change Change the engine oil at the intervals listed in the Periodic Maintenance Table on page 134.
Page 144 Tighten the filter by hand an additional 3/4 turn. 10. Fill crankcase through the oil fill cap with approximately 4.5 quarts (4.25 liters) of oil. Use only VICTORY brand Semi-Synthetic 20W-40 Motor Oil or equivalent oil for use with wet clutches such as JASO MA rating.
Page 145 visionownersmanual.book Page 142 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Engine Oil & Filter Change (Cont.) 11. Reinstall the oil fill cap. Start and run the engine until it reaches normal operating temperature. NOTE: After an oil change, the low oil pressure indicator remains illuminated longer than usual before going out.
Page 146: Air Filter
Page 143 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Air Filter The standard VICTORY air filter element is a dry paper design and does not require the use of air filter oil. Inspect the air filter often if riding in Tabs unusually wet or dusty conditions.
Page 147: Drive Belt Condition
Replace the drive belt if it is cracked or has broken teeth or frayed edges. No matter its condition, the drive belt should be replaced at periodic intervals (see the VICTORY service manual or an authorized VICTORY dealer). DO NOT attempt to check belt tension if the belt has been exposed to rain or washing within a 24 hour period or if the belt is hot from riding.
Page 148: Drive Belt Wear Analysis
visionownersmanual.book Page 145 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Drive Belt Wear Analysis Drive Belt Wear Analysis External tooth cracks: Internal tooth cracks (hairline): Missing teeth: Chipping (not serious): Replace belt Replace belt OK to run, but monitor condition OK to run, but monitor condition Fuzzy edge cord: Hook wear:...
Page 149: Drive Belt Tension Data
8maintenance.fm Page 146 Wednesday, April 16, 2008 1:58 PM MAINTENANCE Drive Belt Tension Data Specifications are listed below for deflection and sonic tension. Sonic tension measurement requires Gates Sonic Tension Meter 507C or an equivalent. Drive Belt Deflection (Using PV-43532 Tension Gauge) Deflection 32mm ±...
Page 150 visionownersmanual.book Page 147 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Drive Belt Tension Overview On new drive systems or belt, adjust belt tension after the first 500 miles (800 km). Adjust tension at each tire change thereafter. This procedure involves using the belt tension gauge, part no.
Page 151 visionownersmanual.book Page 148 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Belt Tension Measurement Procedure 1. Safely elevate and support the motorcycle with the rear tire 1-2 inches off the floor (see page 200). 2. Place the transmission in neutral. 3. Rotate the rear wheel in a forward direction until the valve stem is at the bottom.
Page 152 visionownersmanual.book Page 149 Wednesday, February 13, 2008 4:31 PM MAINTENANCE 6. Note the graduation mark on the rule that aligns ° with the lower edge of the belt. This position Drive Belt represents zero force. 7. Place the support base of the tension gauge squarely against the lower surface of the belt as close as possible to the rule or tape.
Page 153 8maintenance.fm Page 150 Wednesday, April 16, 2008 1:59 PM MAINTENANCE Determine The Tightest Spot 11. Repeat the above deflection measurements with ° the tire’s valve stem at the rear most position, top, and front most positions (90 degrees rotation each time), recording each measurement.
Page 154: Drive Belt Tension Adjustment
visionownersmanual.book Page 151 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Drive Belt Tension Adjustment 1. Move wheel to the tight spot location determined previously in Drive Belt Tension Inspection. 2. Loosen the rear axle nut (1) on the left side. 3.
Page 155 visionownersmanual.book Page 152 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Drive Belt / Rear Wheel Alignment 1. Look at the alignment reference marks (3) on each side of the swingarm and the marks (4) on the axle plates to verify proper wheel alignment. Axle plate mark to reference mark alignment must be the same on both sides.
Page 156: Rear Suspension Adjustment
Rest motorcycle on sidestand on level ground. Remove all riders and cargo. Refer To Decal • VICTORY Air Pump & Gauge PV-48909 is preferred for checking and adjusting pressure. If Motorcycle not available, use a pressurized air source (maximum line pressure 72 PSI) and the gauge provided in the tool kit.
Page 157 8maintenance.fm Page 154 Wednesday, April 16, 2008 2:05 PM MAINTENANCE Rear Suspension Adjustment (Cont.) Adjustment Procedure 1. Open left saddlebag door. 2. Remove cap from air fitting (1) in left bag. 3. Read recommended air pressure from decal for total cargo and occupant weight. Use the appropriate column (with trunk or no trunk).
Page 158: Swing Arm / Rear Axle Inspection
If there is movement at the front of the swingarm, check the swingarm pivot nut torque and swingarm pivot bearings. 4. Contact your VICTORY dealer for service if you detect noise or movement at the swingarm pivot.
Page 159 If there is movement at the rear axle, inspect wheel bearings and rear axle nut torque. 6. Contact your VICTORY dealer for service if you detect noise or movement at the wheel bearings. 7. With the transmission in neutral, slowly rotate the rear wheel.
Page 160: Front Fork Oil
Inspect front forks for abnormal noise as outlined in Pre-Ride Inspection on page 99. Front Fork Oil Replace fork oil in accordance with the Periodic Maintenance Table on page 135. See your VICTORY dealer for front fork service.
Page 161: Steering Head Inspection
Move the handlebars from full left to full right. Movement should be smooth without any rough spots. Alternately push and pull on the lower fork legs and feel for movement in the steering head area. See your VICTORY dealer if any movement is detected.
Page 162: Evaporative Emission Control System
visionownersmanual.book Page 159 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Check Fuel System Components Fuel system hoses & connections - Inspect fuel hoses for cracks or damage. Inspect hose connections at the fuel tank and at the fuel rail for dampness or stains from leaks.
Page 163: Fast Idle
visionownersmanual.book Page 160 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Fast Idle A fast idle speed during warm up of between 1200 and 2000 RPM is automatically set by the EFI system Idle Air Control (IAC). Periodic adjustment is not required. Crankcase Breather Hose Breather Hose Inspect the crankcase breather hose for cracks or...
Page 164: Throttle Control Inspection
3. Remove the triangular cover from the right side of the motorcycle by pulling straight outward at each corner to release the three tabs. Inspect cables for frayed ends. Contact your VICTORY dealer if throttle operation is not smooth, if the Cable Area throttle grip does not return properly, or if cable ends are frayed.
Page 165: Throttle Cable Freeplay
visionownersmanual.book Page 162 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Throttle Cable Freeplay Throttle cable freeplay, the amount of control grip movement from the rest position to the point of ″ cable resistance, should be .080-.160 (2-4 mm). Throttle Cable Freeplay Adjustment Procedure: Throttle Opening Cable Adjustment 1.
Page 166 4. Verify the throttle grip moves smoothly and Reduce Increase returns freely when released in all handlebar positions. Contact your VICTORY dealer if throttle operation is not smooth or if the throttle grip does not return properly. Adjuster Lock Nut Fig.
Page 167 visionownersmanual.book Page 164 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Cruise Control Cable (If equipped) 1. Remove the triangular cover from the right side of the motorcycle by pulling straight outward at each corner to release the three tabs. 2. Inspect the throttle body end of the cruise control cable for fraying and be sure the end is secured in the bracket.
Page 168 The lever should move smoothly without binding and return smoothly to the engaged position (out). 2. Lubricate the pivot bushing with VICTORY All Purpose Grease (P/N 2872187) or a light spray lubricant at regular intervals in accordance with the Periodic Maintenance Table on page 133, or whenever binding is evident.
Page 169 1. Squeeze the brake lever until firm and release it. The lever should move smoothly without binding and return smoothly to the rest position. 2. Lubricate the pivot bushing with VICTORY All Max 3/4 in. (19mm) Purpose Grease (P/N 2872187) or a light spray lubricant at regular intervals in accordance with the Periodic Maintenance Table on page 134.
Page 170 If pedal movement is excessive, contact your VICTORY dealer for service. Lubricate the rear brake pedal pivot bushing with VICTORY All Purpose Grease (P/N 2872187) or a light spray lubricant at regular intervals in accordance with the Periodic Maintenance Table on Max 3/8 in.
Page 171: Brake Fluid Precautions
visionownersmanual.book Page 168 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Brake Fluid Precautions WARNING Do not operate the front brake with the reservoir cover removed. Fluid could overflow from the reservoir and allow air to enter the system. Air in the brake system could cause the brakes to malfunction.
Page 172: Clutch Fluid
visionownersmanual.book Page 169 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Clutch Fluid Minimum Level Review Brake Fluid Precautions on page 168 1. Set the vehicle upright on a level surface and turn handlebars until top of reservoir is level. 2. View the fluid level through the sight glass. 3.
Page 173 visionownersmanual.book Page 170 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Front Brake Fluid Level Review Brake Fluid Precautions on page 168. 1. Set vehicle upright on a level surface and turn Minimum Level handlebars until top of reservoir is level. 2.
Page 174: Rear Brake Fluid
8maintenance.fm Page 171 Tuesday, February 3, 2009 12:58 PM MAINTENANCE Rear Brake Fluid Review Brake Fluid Precautions on page 168. 1. Set vehicle upright on a level surface and view the rear brake fluid reservoir through the right leg fairing. 2.
Page 175 VICTORY dealer for replacement. Clean discs if minor squeaks develop due to dirt or dust. Apply VICTORY Brake Cleaner (P/N 2872191) to a clean shop towel and wipe disc. DO NOT allow brake cleaner to Minimum Thickness contact painted or plastic parts.
Page 176 Lubricate the reverse idler shaft and gear at every oil change (except the 500 mile/800 km break-in service). Refer to the Periodic Maintenance Table. We recommend the use of VICTORY Multi-Purpose Lubricant (P/N 2872863). 1. Stop the engine and position the motorcycle on its sidestand.
Page 177 Check the shift pedal and linkage and tighten any loose fasteners. Lubricate the gear shift pedal pivot bushing with VICTORY All Purpose Grease (P/N 2872187) or a light spray lubricant at regular intervals in accordance with the Periodic Maintenance Table on...
Page 178: Tire Tread Depth
Inspect the tire sidewalls, road contact surface, and tread base for cuts, punctures, and cracking. Replace damaged tires immediately (see your VICTORY service manual or an authorized VICTORY dealer). Tire Tread Depth Use a depth gauge or an accurate ruler to measure the depth of the center tire tread on both front and rear tires.
Page 179: Tire Pressure
8maintenance.fm Page 176 Tuesday, April 1, 2008 7:52 AM MAINTENANCE Tire Pressure Refer to the table below or the Tire Information Label on the motorcycle, located in the left saddlebag. Tire Pressure Table ⇓ ⇒ Tire Load Up to 200 lbs. (91 kg) Load 201 lbs.
Page 180: Spark Plugs
visionownersmanual.book Page 177 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Spark Plugs 1. Make sure the engine is at room temperature. 2. Pull upward on the spark plug boot (not the wire) to remove. WARNING ″ .036 (.9mm) 0.032 inch (0.8 mm) Wear eye protection when using pressurized air.
Page 181 An engine compression test can be performed in accordance with the Periodic Maintenance Interval table to monitor general engine condition. Refer to the VICTORY service manual or contact your VICTORY dealer to have a compression test performed. Exhaust Inspect exhaust fasteners as shown at right and tighten clamps and fasteners to the proper torque.
Page 182 Keep the battery connections clean and tight at all times. NOTICE: If your VICTORY motorcycle will not be used for a period of 6 weeks or longer, a maintenance charger should be connected to the battery. A fused maintenance charger connection is provided.
Page 183: Battery Charging
visionownersmanual.book Page 180 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Battery Charging WARNING The battery may contain explosive gases. • Keep sparks, cigarettes, or any flame away from the battery. • Shield eyes and protect skin and clothing when handling or working near the battery.
Page 184: Battery Removal
visionownersmanual.book Page 181 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Battery Removal CAUTION Do not disconnect the positive cable before the negative cable. Disconnecting the positive cable first can produce an electric shock that could result in damage or injury. 1.
Page 185 visionownersmanual.book Page 182 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Battery Removal (Cont.) 4. Remove the negative (-) battery cable from battery terminal (3) with a 10mm wrench. 5. Lift the red protective boot (4) off of the positive (+) cable end to expose positive terminal. Remove the positive cable from the battery terminal (10 mm wrench).
Page 186: Battery Installation
visionownersmanual.book Page 183 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Battery Installation 85 lb-in. (10 Nm) CAUTION 36 lb-in. (4 Nm) + Terminal Connecting the negative cable first can produce an electric shock that could result in damage or injury. Always connect the positive cable first.
Page 187 visionownersmanual.book Page 184 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Windshield Trim Panel To remove the panel: 1. Release corners of panel by lifting straight upward at each end (1). 2. Carefully slide panel toward windshield to disengage lower tabs (2) and remove the panel. 3.
Page 188: Fuse Box
visionownersmanual.book Page 185 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Fuse Box There are two fuse boxes under the windshield trim panel. Remove the trim panel (page 184) to access the fuses, auto-reset circuit breakers, and relays. Use the fuse puller provided in the tool kit to remove a fuse if necessary.
Page 189: Fuse Replacement
visionownersmanual.book Page 186 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Fuse Replacement 1. Remove the windshield trim panel (page 184). Right Fuse Box Left Fuse Box NOTE: The reverse system fuse is located on the left rear side of the motorcycle, under the seat 2.
Page 190 visionownersmanual.book Page 187 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Headlamp Aim Inspection The headlamp should shine straight ahead. The top Wall of the HIGH beam should be just below the height of the center of the headlamp lens, at a distance of 25 ft.
Page 191: Headlamp Aim Adjustment
visionownersmanual.book Page 188 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Headlamp Aim Adjustment The headlamp adjustment knob can be accessed Headlamp Adjuster Access through the opening in the headlamp housing mount under the windshield trim panel. 1. Remove the windshield trim panel (page 184). 2.
Page 192: Sidestand Pad
Visually inspect the chassis and engine for loose, broken or missing fasteners. Replace stripped, Sidestand Pivot damaged or broken fasteners with genuine VICTORY hardware of equal size and strength Sidestand Pad immediately. Tighten fasteners to the proper Seat Bolts torque (see page 201).
Page 193 visionownersmanual.book Page 190 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Seat Removal / Installation To remove the seat: 1. Open the glove compartment door and fuel door. 2. Lift the console trim panel straight upward at each corner to remove it. Do not tip the panel backward. 3.
Page 194: Trunk Removal
visionownersmanual.book Page 191 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Trunk Removal To remove the trunk: 1. Remove the seat (page 190). 2. Disconnect the trunk wire harness (1). 3. Remove the license plate and then remove the plate bracket by removing the two 4mm Allen screws (2).
Page 195: Trunk Installation
visionownersmanual.book Page 192 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Trunk Removal (Cont.) 4. Open the trunk and remove all contents. 5. Remove the compartment cover by squeezing between the notches (1) and lift the cover away. 6. Remove three of the four trunk mount bolts (2) using a 13 mm socket and an extension on a suitable drive handle.
Page 196 visionownersmanual.book Page 193 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Street Trim Panel Removal Trim Panel Removal 1. Remove seat (page 190). 36 LB-IN. 2. Remove license plate and plate bracket by (4 nM) removing the two 4mm Allen screws (1). 3.
Page 197 visionownersmanual.book Page 194 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Street Trim Panel Installation Trim Panel Installation 1. Remove license plate bracket (page 191) and 36 LB-IN. trunk (if equipped). (4 nM) 2. Lift edges of tail molding in the order outlined on page 193 for Street Trim Panel Removal.
Page 198: Headlamp Bulb Replacement
visionownersmanual.book Page 195 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Headlamp Bulb Replacement To replace a headlamp bulb: 1. Remove air filter (page 143). Pull sealing boot away from the back of the bulb(s) and housing. 2. Press the looped end of the wire clip bulb retainer and swing the end toward the center of the bulb to release it from the latch tab.
Page 199: Turn Signal Bulb Replacement (Front)
visionownersmanual.book Page 196 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Turn Signal Bulb Replacement (Front) To replace a front turn signal bulb: IMPORTANT! 1. Remove the windshield trim panel (page 184). Remove harness connector from bulb 2. IMPORTANT: Disconnect the wire harness from socket BEFORE rotating socket to remove socket BEFORE removing socket from the lens.
Page 200 visionownersmanual.book Page 197 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Tail / Brake Lamp / Turn Signal Bulb Replacement 1. Open saddlebags. (NOTE: Trunk or Street Panel removal is not necessary). 2. Remove license plate and plate bracket (1). Lift tail trim (“M”...
Page 201: Electrical Precautions
DO’s • DO use ONLY genuine VICTORY parts and accessories designed for your model and follow the instructions provided. • DO use the accessory power jack provided in the glove compartment or in the trunk (Tour model).
Page 202 • DO NOT tap in to any power or ground on the motorcycle unless specifically directed to do so by the VICTORY instructions that come with the kit. • DO NOT back-probe electrical connectors on the vehicle unless directed to do so by the Service Manual.
Page 203: Road Test
visionownersmanual.book Page 200 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Lifting The Motorcycle WARNING Care should be taken to be sure the motorcycle will not tip or fall while elevated or while on the sidestand. Serious injury or death can occur if the motorcycle tips or falls. Some procedures such as tire removal, and steering, fork, swingarm, or axle inspection require lifting of the motorcycle to remove weight from the component being inspected.
Page 204 8maintenance.fm Page 201 Tuesday, February 3, 2009 12:57 PM MAINTENANCE Fastener Torque NOTE: Refer to the service manual or an authorized VICTORY dealer for procedures and fastener torques not listed in this manual. Switch Screws Windshield Screws Handlebar End Cap Screws Front Fender 36 inch lbs.
Page 205: Troubleshooting
For your personal safety, do not attempt inspection or repairs not fully described in this Rider’s Manual. Contact an authorized VICTORY dealer for service if you cannot determine the cause of a problem or if the inspection / repair exceeds your mechanical ability or tool resources.
Page 206 visionownersmanual.book Page 203 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Troubleshooting Starter Motor Does Not Turn or Turns Slowly Possible Cause Possible Remedy/Action Engine Stop / Run Switch in Stop Position Place switch in RUN position. Battery Discharged Fully charge the battery (page 180). Battery Cables Loose or Corroded Inspect battery cables.
Page 207 visionownersmanual.book Page 204 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Troubleshooting Engine Starts But Misses or Runs Poorly NOTE: Turn engine OFF before inspecting any of these items. Possible Cause Possible Remedy/Action Battery Discharged Fully charge the battery (page 180). Battery Cables Loose or Corroded Inspect battery cables and connections.
Page 208 Inspect system for leaks (see dealer). Clutch Damage Replace clutch Brake Noise / Poor Brake Performance NOTE: Contact a VICTORY dealer if brake performance does not return after these inspections. Possible Cause Possible Remedy/Action Dust / Dirt On Brake Disc(s) Clean disc (page 172).
Page 209: Maintenance
visionownersmanual.book Page 206 Wednesday, February 13, 2008 4:31 PM MAINTENANCE Troubleshooting Battery Charging Rate Low or Battery Discharges Possible Cause Possible Remedy/Action Loose/Corroded Charging Circuit Check / clean battery cable connections (page 181) Connection and charging circuit connections (see dealer). Accessory Load Exceeds Charge Rate Use ACC position and limit accessory operation when engine is off.
Page 210: Cleaning
After cleaning the motorcycle, inspect for damage to the painted surfaces. Repair chips or scratches promptly by applying VICTORY touch-up paint to prevent corrosion. For more information, or for answers to your cleaning and detailing questions, see your VICTORY dealer or write to the Pure VICTORY Polishes Staff at: victorymailbag@polarisind.com.
Page 211 Page 208 Wednesday, February 13, 2008 4:31 PM CLEANING Washing the VICTORY Motorcycle Before Washing Make sure exhaust pipes are cool. Cover each pipe opening with a plastic bag secured with a strong rubber band. Check that the spark plugs, spark plug wire caps, oil fill cap and fuel caps are properly seated.
Page 212 Page 209 Wednesday, February 13, 2008 4:31 PM CLEANING Washing the VICTORY Motorcycle There are two totally different styles of motorcycle washing and there is a Pure VICTORY Polish product for each style. Standard “Bucket Wash” This is the conventional way to wash your motorcycle. We recommend the use of Pure VICTORY Bike Wash Concentrate, a concentrated gentle product formulated to clean without diminishing the life of any durable polish.
Page 213 Washing the VICTORY Motorcycle Spray-Rinse-and-Ride Wash This is the new way to clean your VICTORY quickly and easily, then resume riding. Pure VICTORY Spray Rinse and Ride bike wash is safe and will not harm any surface that water won’t harm.
Page 214 CLEANING Quick Clean-Ups For quick clean-ups between washings, or when water is not available, use Pure VICTORY Spray & Wipe Instant Detailer, a complete spray-and-wipe product designed to clean and polish all surfaces. It works quickly and easily and is silicone-free so it leaves no oily nor white residue. It provides protection from UV rays, acid rain, and dirt.
Page 215 Polishing the VICTORY Motorcycle Polished Aluminum Care When a VICTORY is new, the polished aluminum wheels, hand levers and shifter shine like chrome. Ultraviolet (UV) rays and oxidation will cause polished aluminum to grow dull, however, if it’s not properly polished and protected.
Page 216 There are now two totally different styles of polishing or protecting your paint and chrome. Standard Method of Polishing Paint and Chrome Pure VICTORY Windshield, Paint and Chrome Polish is a unique formula designed to produce a glass-like shine on painted or clear-coated finishes and chrome surfaces. Use it on chrome-plated accessories to prevent surface rust and create a glass-like shine.
Page 217 Standard Method of Polishing Paint and Chrome Shake the container well before using. Apply with Pure VICTORY 100% Microfiber Wax Applicator in a circular motion or straight line to a clean surface. It can be applied in direct sunlight. Rub the product until it is almost clear, then allow to dry to a haze before removal. The entire motorcycle can be treated before removing polish.
Page 218 Spray Liquid Spray Wax on a wet or dry bike, one section at a time. (For best results, the bike’s surface should be cool.) Wipe dry one section at a time with Pure VICTORY Microfiber Chamois or microfiber towel. When finished drying, buff the entire motorcycle with a clean, dry Pure VICTORY Microfiber Polishing Towel for a clean and luxurious shine.
Page 219: Cleaning
Slippery tires can cause loss of traction and loss of control. Both situations could result in serious injury or death. For the finest leather care, use Pure VICTORY Leather, Vinyl & Rubber Conditioner, a unique, pleasantly scented formula of premium-quality polymers designed to restore luster and softness to vinyl, leather and rubber without making them slippery.
Page 220: Storage
visionownersmanual.book Page 217 Wednesday, February 13, 2008 4:31 PM STORAGE Storage Reminders If you will not operate the motorcycle for several months, such as during the winter, store the motorcycle to prevent damage to the fuel system and the battery and to protect components from corrosion or deterioration.
Page 221 visionownersmanual.book Page 218 Wednesday, February 13, 2008 4:31 PM STORAGE Storage Area Preparation Choose a dry, well-ventilated storage location, inside a garage or other structure if possible. The location should have a firm, flat surface and allow enough space for the motorcycle.
Page 222: Clean And Protect The Motorcycle
visionownersmanual.book Page 219 Wednesday, February 13, 2008 4:31 PM STORAGE Clean and Protect the Motorcycle To prepare the motorcycle for storage, begin by cleaning it as outlined beginning on. Wax painted surfaces and polish chromed and other metal surfaces. Apply protectant to exposed rubber, vinyl, and plastic parts.
Page 223: Fuel Stabilizer
STORAGE Fuel Stabilizer Using a mixture of fuel and the recommended amount of VICTORY Premium Carbon Clean Plus or other gasoline stabilizer, fill the fuel tank only to the top of the filler insert. Ride the motorcycle or start and run the engine for 15 minutes in a well ventilated area to pass the stabilized fuel through entire fuel-injection system.
Page 224: Tire Inflation
3. Wash the posts and the ends of the battery cables with a solution of 1 part baking soda to 16 parts water. Rinse with clean water and wipe dry. 4. Apply a thin film of dielectric grease (available from your VICTORY dealer) to the posts and cable connectors.
Page 225: Park And Cover The Motorcycle
Park and Cover the Motorcycle Park the motorcycle in its storage location. Cover it with a genuine VICTORY motorcycle cover, or a cover made from a durable, breathable material designed for storage. Covering the motorcycle helps protect it from dust and other airborne materials. The cover must be of a breathable material to prevent moisture from building up on the motorcycle which can cause oxidation of metal surfaces.
Page 226 visionownersmanual.book Page 223 Wednesday, February 13, 2008 4:31 PM STORAGE Maintenance During Storage Check and maintain normal air pressure in the tires (page 176) and battery voltage in the battery (page 180) during extended storage periods.
Page 227: Storage
visionownersmanual.book Page 224 Wednesday, February 13, 2008 4:31 PM STORAGE Removal From Storage 1. Remove the cover and unlock the front forks (if locked). 2. Check the tire pressure (page 176) and inflate the tires if necessary. 3. Install the battery (page 183) and perform an electrical check (page 86). 4.
Page 228: Warranty
visionownersmanual.book Page 225 Wednesday, February 13, 2008 4:31 PM WARRANTY Motorcycle Noise Regulation Tampering Tampering with noise control systems is prohibited. Federal law prohibits the following acts or causing thereof: • The removal or rendering inoperative by any person other than for the purposes of maintenance, repair, or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use, or...
Page 229 visionownersmanual.book Page 226 Wednesday, February 13, 2008 4:31 PM WARRANTY Among those acts presumed to constitute tampering are: • Removal or puncturing of the muffler, baffles, header pipes, or any other component which conducts exhaust gasses. • Removal or puncturing of any part of the intake system. •...
Page 230: Noise Emission Warranty
WARRANTY Noise Emission Warranty VICTORY Motorcycle Division warrants that this exhaust system, at the time of sale, meets all applicable U.S. EPA Federal noise standards. This warranty extends to the first person who buys this exhaust system for purposes other than resale, and to all subsequent buyers.
Page 231: Emissions Control System Warranty
The California Air Resources Board and VICTORY Motorcycle Division, Polaris Sales Inc. (hereinafter VICTORY) are pleased to explain the emission control system warranty on your 2007 or later VICTORY motorcycle. In Cali- fornia, new motor vehicles must be designed, built and equipped to meet the state’s stringent anti-smog standards.
Page 232 VICTORY recommends that you retain all receipts covering maintenance on your motorcycle, but VICTORY cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. You are responsible for presenting your motorcycle to a VICTORY dealer as soon as a problem exists.
Page 233 VICTORY Motorcycle Division, Polaris Sales Inc., (hereinafter VICTORY) warrants that each new 2009 and later VICTORY Motorcycle that includes as standard equipment a headlight, taillight and stoplight, and is street legal: A. is designed, built and equipped so as to conform at the time of initial retail purchases with all applicable regulations of the United States Environmental Protection Agency, and the California Air Resources Board;...
Page 234 VICTORY dealers is not reasonably available, a part is not available within 30 days, or a repair is not complete within 30 days. Any replacement part can be used in an emergency repair. VICTORY will reimburse the owner for expenses, including diagnosis, not to exceed VICTORY’s suggested retail price for all warranted parts replaced and labor charges based on VICTORY’s recommended time allowance for the...
Page 235 Accident Misuse Repairs improperly performed or replacements improperly installed Use of replacement parts or accessories not conforming to VICTORY specifications which adversely affect performance and/or Use in competitive racing or related events. B. Inspections, replacement of parts, and other services and adjustments necessary for required maintenance C.
Page 236 WARRANTY lll. Limited Liability A. The liability of VICTORY under this Emission Control System Warranty is limited solely to the remedying of defects in material or workmanship by an authorized VICTORY motorcycle dealer at its place of business during customary business hours.
Page 237 Any replacement part that is equivalent in performance and durability may be used in the performance of any maintenance or repairs. However, VICTORY is not liable for these parts. The owner is responsible for the performance of all required maintenance. Such maintenance may be performed at a service establishment or by any individual.
Page 238: Victory Motorcycle Warranty Policy
VICTORY Motorcycle dealer. Registration At the time of sale, the Warranty Registration Form must be completed by your dealer and submitted to VICTORY Motorcycle Division, Polaris Sales Inc. within ten days. Upon receipt of this registration, VICTORY Motorcycle Divi- sion, Polaris Sales Inc.
Page 239: Warranty Coverage And Exclusions
This warranty does not cover the use of unauthorized lubricants, chemicals, or fuels that are not compatible with the VICTORY Motorcycle. The exclusive remedy for breach of this warranty shall be, at VICTORY Motorcycle Division, Polaris Sales Inc. exclusive option, repair or replacement of any defective materials, or components or products. THE REMEDIES SET FORTH IN THIS WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY.
Page 240 How To Obtain Warranty Service If your VICTORY Motorcycle requires warranty service, you must take it to a VICTORY Motorcycle Servicing Dealer. When requesting warranty service you must present your copy of the Warranty Registration form to the dealer. (THE COST OF TRANSPORTATION TO AND FROM THE DEALER IS YOUR RESPONSIBILITY).
Page 241: Warranty
visionownersmanual.book Page 238 Wednesday, February 13, 2008 4:31 PM WARRANTY NOTES...
Page 242: Specifications
Page 239 Wednesday, February 13, 2008 4:31 PM SPECIFICATIONS Model Year 2009 Specifications 2009 VICTORY VISION Dimensions Overall Length Street: 103.5 inches (262.9 cm) Tour: 104.9 inches (266.5 cm) Overall Width 45.2 inches (114.7 cm) Overall Height 58.5 inches (148.5 cm) Seat Height 26.5 inches (67.3 cm)
Page 243 Page 240 Wednesday, February 13, 2008 4:31 PM SPECIFICATIONS 2009 VICTORY VISION Weight Dry Weight Street: 804 lbs. (365 kg) Tour: 849 lbs. (385 kg) Wet Weight Street: 844 lbs. (383 kg) Tour: 889 lbs. (403 kg) Gross Vehicle Weight Rating (GVWR) 1414 lbs.
Page 244 Page 241 Wednesday, February 13, 2008 4:31 PM SPECIFICATIONS 2009 VICTORY VISION Engine Engine Type ® VICTORY Freedom 106 / 6 V-Twin Configuration 50° V-Twin 4 Stroke SOHC Displacement 106 Cubic Inch (1737 cc) Cooling System Air & Oil Compression Ratio 9.4 : 1...
Page 245 Page 242 Wednesday, February 13, 2008 4:31 PM SPECIFICATIONS 2009 VICTORY VISION Chassis Front Suspension Type / Travel Telescopic Fork / 5.1 in. (13 cm) Front Fork Tube Diameter 46mm Rear Suspension Type / Travel Single Monotube Air Adjustable Shock / 4.7 in. (12 cm)
Page 246 Page 243 Wednesday, February 13, 2008 4:31 PM SPECIFICATIONS 2009 VICTORY VISION Drive System Final Drive Type Carbon Fiber Reinforced Belt Transmission Type 6 Speed Constant Mesh with True Overdrive Primary Drive Type (Reduction Ratio) Gear Drive with Torque Compensator (1.5 : 1)
Page 247 Page 244 Wednesday, February 13, 2008 4:31 PM SPECIFICATIONS 2009 VICTORY VISION Wheels And Tires Front Wheel Type / Size Cast or Billet 18 x 3.0 inch Front Tire Type / Size Dunlop Elite 3 - 130/70R18 63H Radial Rear Wheel Type / Size Cast or Billet 16 x 5.0 inch...
Page 248 Page 245 Wednesday, February 13, 2008 4:31 PM SPECIFICATIONS 2009 VICTORY VISION Light & Fuses (Continued) Fuses (Left Fuse Box, Continued) Radio Secondary Lights Horn Turn Signal / Brake (Right Fuse Box) (See page 185) Engine 15A Breaker Windshield (Electric)
Page 249 Page 246 Wednesday, February 13, 2008 4:31 PM SPECIFICATIONS 2009 VICTORY VISION Lights Headlamp (High / Low) H4 55/60W Driving Lamp (Standard) HS1 35W Driving Lamp (HID) D1R 35W Turn / Tail / Brake Lamp 3157 27/ 7W License Plate Lamp...
Page 250 Page 247 Wednesday, February 13, 2008 4:31 PM SPECIFICATIONS Fuel Specification Your VICTORY motorcycle was designed to use unleaded gasoline with a minimum octane rating of 91 (R+M / 2 method) for best performance. Follow the guidelines below to ensure maximum performance, driveability, and engine service life.
Page 251 Page 248 Wednesday, February 13, 2008 4:31 PM SPECIFICATIONS Engine Oil Specification Polaris Recommends the use of VICTORY brand Semi-Synthetic 20W40 Motor Oil or equivalent motorcycle oil that is approved for use in wet clutch transmissions such as JASO MA rating.
Page 252 Be sure you have the required technical skills and tools that are needed before you attempt ANY service on your motorcycle. Your VICTORY dealer has trained technicians with the knowledge and skills to keep your motorcycle operating at peak performance.
Page 253 visionownersmanual.book Page 250 Wednesday, February 13, 2008 4:31 PM SPECIFICATIONS NOTES...
Page 254: System Overview
European listed above. Components not installed at • FM 87.5 to 108.00 MHz the factory can be purchased from and installed by your local VICTORY dealer. • MW 531 to 1602 kHz • LW 144 to 279 kHz...
Page 255 visionownersmanual.book Page 252 Wednesday, February 13, 2008 4:31 PM AUDIO SYSTEM OVERVIEW Main User Interface...
Page 256 visionownersmanual.book Page 253 Wednesday, February 13, 2008 4:31 PM AUDIO SYSTEM OVERVIEW Reference the main user interface graphic on previous page. 1. LCD screen: The LCD screen displays information for the active source. 3. Volume - Menu Option Select control: Acts as volume control or cycles 2.
Page 257 visionownersmanual.book Page 254 Wednesday, February 13, 2008 4:31 PM AUDIO SYSTEM OVERVIEW 4. Power ON / OFF: Press U.S. Sources: the power button to turn • FM / AM / WB / AUX or iPod / XM Radio the system on or off. / CD Changer NOTE: Ignition switch must be...
Page 258 visionownersmanual.book Page 255 Wednesday, February 13, 2008 4:31 PM AUDIO SYSTEM OVERVIEW Lower Left-Hand Control 1. Volume control: Press to increase(+) or decrease(-) audio volume. Press and hold to rapidly increase or decrease volume. 2. Tuner control: Press to manually tune radio stations, CD or iPod tracks.
Page 259 visionownersmanual.book Page 256 Wednesday, February 13, 2008 4:31 PM AUDIO SYSTEM OVERVIEW Upper Left-Hand Control* 1. PTT: “Push-to-Talk” Press and hold PTT button to transmit over CB radio. 2. Squelch: Press SQ(+) or SQ(-) to adjust CB radio channel reception sensitivity.
Page 260 visionownersmanual.book Page 257 Wednesday, February 13, 2008 4:31 PM AUDIO SYSTEM OVERVIEW Rear Passenger Control 1. Rear PTT: “Push-to-Talk” Press and hold PTT to transmit over the CB radio only if CB radio is present. 2. Rear Volume control: Press VOL(+) to increase or VOL(-) to decrease rear passenger headset volume.
Page 261: System Overview
visionownersmanual.book Page 258 Wednesday, February 13, 2008 4:31 PM AUDIO SYSTEM OVERVIEW Audio System Notes...
Page 262: Features
It is position to use the audio system. recommended to have the engine running whenever using the audio With the key in the ACC or ON position system. and audio system OFF, the screen will display “VICTORY MOTORCYCLES”.
Page 263 14audio features.fm Page 260 Thursday, February 14, 2008 8:18 AM AUDIO FEATURES Press the power button to 1. Current audio source: turn the audio system on. • (U.S.) FM / AM / WB / iPod - AUX / XM / When powered, the screen CD Changer will display the active...
Page 264 visionownersmanual.book Page 261 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES Volume Control To resume volume to prior level, press and release: MUTE on LH control The driver can set the volume level for the front and rear speakers, turn the speakers off or on and mute the system audio level.
Page 265 visionownersmanual.book Page 262 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES Audio Volume Passenger Volume Press and release (+) or (-) on console to The passenger can control the rear raise or lower volume headset music volume and the CB/ICOM volume when either are active.
Page 266 visionownersmanual.book Page 263 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES Selecting Audio Sources FM source active: FM 92.5 ST Press and release S/E U.S. / European models AM source active: AM 1130 or SRC until desired source is active. U.S.
Page 267 visionownersmanual.book Page 264 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES WB (Weather) source active: XM Radio source active*: WB 1 XM 8 The 80s U.S. models only U.S. models only AUX source active: * Source skipped if component not present. After 5 seconds, the display will show either the artist, song title, channel name or category.
Page 268 visionownersmanual.book Page 265 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES CD Changer source active*: LW (Long Wave) source: CD 1 TRK4 0:04 LW 144 U.S. / European models European models only * Source skipped if component not present. MW (Medium Wave) source: MW 531 European models only...
Page 269 visionownersmanual.book Page 266 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES Audio Tuning Press and release TUNE (+) or TUNE (-) on the LH control FM, AM, WB, and XM stations can be selected by using the tuning function. Press and release TUNE (+) or TUNE (-) on the left control to locate stations in single-step increments.
Page 270 visionownersmanual.book Page 267 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES Memory Presets Once the station is given a preset location, the screen will display its memory preset The audio system features 12 user-defined location. presets that can be used to store favorite FM 92.5 ST stations.
Page 271 visionownersmanual.book Page 268 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES Bass Setting Press S/E on the LH control, Press the console panel (+) or (-) button to or the SRC increase or decrease audio bass level. button at any time to exit the system setting sub-menus and...
Page 272 visionownersmanual.book Page 269 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES Treble Setting Fader Setting* Press the console panel (+) or (-) button to Press the console panel (+) or (-) button to increase or decrease audio treble level. attenuate the front and rear speaker output ratio.
Page 273 visionownersmanual.book Page 270 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES External Speakers Press the console panel (+) or (-) button to turn the external speakers on or off.
Page 274 visionownersmanual.book Page 271 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES Automatic Volume Control (AVC) AVC Display Press the console panel (+) or (-) button to set the Automatic Volume Control settings. AVC will lower or raise the speaker/ headset volume based on the ambient vehicle noise level.
Page 275 14audio features.fm Page 272 Thursday, February 14, 2008 8:19 AM AUDIO FEATURES CB Headset ENT Mode* OFF = Enables the driver and passenger *Setting skipped when COM system is not present. to communicate with the ICOM without Press the console panel (+) or (-) button to listening to an audio source.
Page 276 visionownersmanual.book Page 273 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES ICOM Volume* Tuning (Seek / Scan Modes) Press the console panel (+) or (-) button to Press the console panel (+) or (-) button to set the driver ICOM volume. set the tuner seek or scan mode.
Page 277 visionownersmanual.book Page 274 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES CB LO/DX* XM Display* Press the console panel (+) or (-) button to Press the console panel (+) or (-) button to set the CB to either LOCAL (LO) or set the screen to display the artist, song DISTANT (DX) mode.
Page 278 visionownersmanual.book Page 275 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES XM Category* XM Scan Mode* Press the console panel (+) or (-) button to Press the console panel (+) or (-) button to set the music selection category when turn ON or OFF the XM Scan Mode.
Page 279 visionownersmanual.book Page 276 Wednesday, February 13, 2008 4:31 PM AUDIO FEATURES NOAA Weather Band (WB) WB Channels When the WB source is selected, a total of WB Ch. Freq. 7 weather band channels are available. 162.400 Weather band channels are broadcast by 162.425 the National Oceanic and Atmospheric 162.450...
Page 280: Cb Radio - Icom
With the key in the ACCESSORY or RUN position and audio system OFF, the screen will display “VICTORY MOTORCYCLES”. NOTE: To prevent battery power loss, do not leave the key in the ACC position for long periods of time. It...
Page 281 visionownersmanual.book Page 278 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM Adjusting Channels CAUTION When the CB radio system is active, CB and the active CB channel will be shown on the display screen. Some local governments restrict or prohibit the use of helmet-mounted headsets.
Page 282 visionownersmanual.book Page 279 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM Push COM or ICOM or (+) / (-) on the Press S/E on the lower LH control, or allow console panel to select desired CB the system to time-out to exit the channel.
Page 283 visionownersmanual.book Page 280 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM Push-to-Talk (PTT) The passenger can communicate over the CB radio by pushing and holding the rear Press and hold the PTT button on the PTT button. upper left control to communicate over the CB radio.
Page 284 visionownersmanual.book Page 281 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM Squelch “TX” will be displayed on the console screen whenever one of the PTT buttons is Squelch is a feature that blocks undesired pressed signifying the user is transmitting signals and noise by only allowing the over the CB radio.
Page 285 visionownersmanual.book Page 282 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM The squelch level can be adjusted Press S/E on the lower left control or allow between OPEN and CLOSED. the system to time-out to exit the SQUELCH set screen and return to the main display.
Page 286 visionownersmanual.book Page 283 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM CB Radio Volume Setting (Driver)* *Setting skipped when CB radio is not present. Press the console panel (+) or (-) button to set the CB volume. Press and release the MODE button on the console panel to enter the audio...
Page 287 visionownersmanual.book Page 284 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM CB Radio Volume Setting CB LO/DX* (Passenger)* *Setting skipped when CB radio is not present. *Setting skipped when CB radio is not present. Press and release the MODE button on the The passenger can control rear headset console panel to enter...
Page 288 visionownersmanual.book Page 285 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM CB Frequencies Press the console panel (+) or (-) button to set the CB to either LOCAL (LO) or There are 40 citizen band (CB) channels DISTANT (DX) mode. designated for use by the Federal Communications Commission (FCC).
Page 289 visionownersmanual.book Page 286 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM CB Channels / Frequencies CB Channels / Frequencies Freq. Freq. Freq. Freq. Freq. Freq. 26.965 27.055 27.135 27.255 27.325 26.975 27.065 27.155 27.235 27.335 26.985 27.075 27.165 27.245 27.345 27.005...
Page 290 visionownersmanual.book Page 287 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM ICOM System VOX Break Setting Press and release ICOM on the upper LH The intercom is opened and closed using a control to activate the intercom system. voice operated switch (VOX).
Page 291 visionownersmanual.book Page 288 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM Push COM or ICOM or (+) / (-) on the Press S/E on the lower LH control to exit console panel to select desired VOX the VOX volume set screen and return to sensitivity setting.
Page 292 visionownersmanual.book Page 289 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM ICOM Volume Setting (Driver)* Press the console panel (+) or (-) button to set the ICOM volume. *Setting skipped when CB radio is not present. Press and release the MODE button on the console panel to enter the audio system...
Page 293: Headset Receptacles
visionownersmanual.book Page 290 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM ICOM Volume Setting Headset Receptacles (Passenger) A headset receptacle is provided for both the driver and passenger (if equipped). The passenger can control the rear speaker volume only when the CB radio, Driver Receptacle ICOM, or rear headset speakers are HEADSET RECEPTACLE...
Page 294 visionownersmanual.book Page 291 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM Passenger Receptacle HEADSET RECEPTACLE (Left Side)
Page 295 visionownersmanual.book Page 292 Wednesday, February 13, 2008 4:31 PM CB RADIO / ICOM CB Radio / ICOM NOTES...
Page 296: Aux - Ipod
ACCESSORY or RUN position to use the AUX or iPod function. With the key in the ACCESSORY or RUN position and audio system OFF, the screen will display “VICTORY MOTORCYCLES”. NOTE: To prevent battery power loss, do not ...or SRC on the console panel until AUX...
Page 297 visionownersmanual.book Page 294 Wednesday, February 13, 2008 4:31 PM AUX - iPod When AUX is active, the console screen When iPod is active, the console screen will display “AUX”. will display the name of the iPod. * iPod is a registered trademark of Apple Inc.
Page 298 visionownersmanual.book Page 295 Wednesday, February 13, 2008 4:31 PM AUX - iPod AUX Input Cable Input Cable Setup The AUX and iPod input cables are connected to the audio system through a small hole in the left-side console storage bin. Only one input cable can be connected at any given time.
Page 299 visionownersmanual.book Page 296 Wednesday, February 13, 2008 4:31 PM AUX - iPod 4. Disconnect the cable from the harness by carefully pushing up on the green tab. DO NOT ALLOW THE HARNESS TO DROP BACK THROUGH THE HOLE. AUX INPUT CABLE 5.
Page 300 visionownersmanual.book Page 297 Wednesday, February 13, 2008 4:31 PM AUX - iPod iPod Play-Lists Press and release preset button (1) to access the iPod’s main music library. The iPod’s main music library and user- defined play-list(s) can be accessed by using the console preset buttons.
Page 301: Aux - Ipod
visionownersmanual.book Page 298 Wednesday, February 13, 2008 4:31 PM AUX - iPod iPod Tuning Press and release the TUNE (+) or TUNE Press and hold the TUNE (+) or TUNE (-) (-) button on the lower LH control to move button on the lower LH control to fast 1 track forward or 1 track backward.
Page 302: Xm Radio
With the key in the ACC or ON position and whenever they want it. and audio system OFF, the screen will • Over 170 digital channels display “VICTORY MOTORCYCLES”. • The most commercial-free music in satellite radio • Live concerts plus exclusive original programming •...
Page 303 visionownersmanual.book Page 300 Wednesday, February 13, 2008 4:31 PM XM Radio NOTE: Press and release the S/E button on the To prevent battery power loss, do not leave the key in the ACC position for lower left control long periods of time. It is recommended to have the engine running whenever using the audio system.
Page 304 visionownersmanual.book Page 301 Wednesday, February 13, 2008 4:31 PM XM Radio XM Reception When the XM Radio is active, the console screen will display the XM radio channel, If the XM radio is not receiving a signal due and either the artist, song title, channel to being located indoors or some other name or category.
Page 305: Xm Radio
During the activation process, the ignition key must be in the ACCESSORY position and the audio system must be ON. To prevent battery discharge, VICTORY recommends activating your XM radio by NOTE: The letters I, O, S, and F are not used.
Page 306: Cd Changer
With the key in the ACC or ON position Press and release the S/E and audio system OFF, the screen will button on the display “VICTORY MOTORCYCLES”. lower LH control... NOTE: To prevent battery power loss, do not leave the key in the ACC position for long periods of time.
Page 307 visionownersmanual.book Page 304 Wednesday, February 13, 2008 4:31 PM CD CHANGER CD Player Cartridge When the CD changer is active, the console screen will display the 1. With ignition switch ON or in ACC, CD 1 TRK4 0:04 open the CD changer door. 2.
Page 308 visionownersmanual.book Page 305 Wednesday, February 13, 2008 4:31 PM CD CHANGER Selecting CDs The CD changer can hold up to 10 CDs. If no disc is located in the location pressed, Each CD can be accessed by using the the CD changer will move to the next console preset buttons.
Page 309 visionownersmanual.book Page 306 Wednesday, February 13, 2008 4:31 PM CD CHANGER CD Track Selection When a disc is found, the disc number (A), track number (B), and track time duration Press and release the TUNE (+) or TUNE (C) will be shown on the console display (-) button on the lower LH control to move screen.
Page 310: Index
visionownersmanualix.fm Page 307 Thursday, February 14, 2008 8:27 AM Accelerate, Cruise Control ....122 Audio Features Accelerating ......119 AM Radio .
Page 311 visionownersmanualix.fm Page 308 Thursday, February 14, 2008 8:27 AM Audio Features Audio Systems Source Selection .....263 Main User Interface ....252 LCD Screen .
Page 312 visionownersmanualix.fm Page 309 Thursday, February 14, 2008 8:27 AM Battery Brakes, Linked ......71 Charging .
Page 313 visionownersmanualix.fm Page 310 Thursday, February 14, 2008 8:27 AM CB Radio / ICOM System, Getting Started ..277 Cruise Control CB System, Headset Receptacles ... .290 Accelerate ......122 CD Changer Cable Inspection .
Page 314 visionownersmanualix.fm Page 311 Thursday, February 14, 2008 8:27 AM E-85 Fuel Blends ......247 Engine Number ......38 Electrical Precautions .
Page 315 visionownersmanualix.fm Page 312 Thursday, February 14, 2008 8:27 AM Fuel Handgrip Heater Switch ....56 Cap ....... . .78 Hazard Switch .
Page 316 visionownersmanualix.fm Page 313 Thursday, February 14, 2008 8:27 AM Identification Numbers ..... .37 Installation, Battery ..... . . 183 Idle, Fast .
Page 317 visionownersmanualix.fm Page 314 Thursday, February 14, 2008 8:27 AM Light Bulb, Tail, Brake, Turn ....197 Maintenance Linked Brake System ..... . .71 First Service .
Page 318 visionownersmanualix.fm Page 315 Thursday, February 14, 2008 8:27 AM Maintenance, Headlamp Aim Inspection ..187 Odometer ....... 54 Maintenance, Periodic, Safety .
Page 319 Resetting Displays ......62 Pure VICTORY Products ....207 Resume, Cruise Control .
Page 320 visionownersmanualix.fm Page 317 Thursday, February 14, 2008 8:27 AM Saddlebag .......81 Shifting Gears Saddlebags .
Page 321 visionownersmanualix.fm Page 318 Thursday, February 14, 2008 8:27 AM Speedometer ......49 Swing Arm Inspection ..... 155 Squelch .
Page 322 Brakes ......205 VICTORY Cleaning Products ....207 Engine Misfire .
Page 323 Volume Setting, CB Radio ....283 Washing the VICTORY Motorcycle ..208-210 Volume Setting, ICOM .....289 Weight, GVWR .
