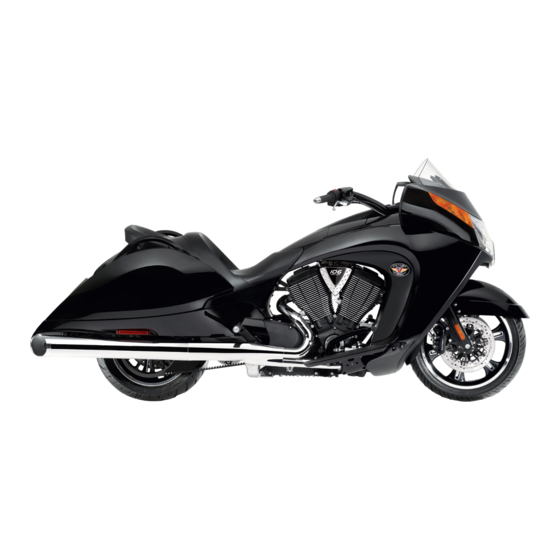

  • Page 1 Rider’s Manual 2010...
  • Page 2 For your nearest Victory dealer, call 1-800-POLARIS or visit www.polarisindustries.com Polaris Sales Inc., 2100 Hwy. 55, Medina, MN 55340 Phone 1-888-704-5290 Part No. 9922441 Rev 01 Printed in USA...
  • Page 3 inside cover.fm Page 202 Monday, May 11, 2009 1:31 PM California Proposition 65 Warning This product contains or emits chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.
  • Page 4 inside back cover Vision.fm Page 202 Monday, May 11, 2009 1:31 PM The text is printed on 100% recycled with 40% post-consumer waste (PCW).
  • Page 5 9922441.book Page 1 Monday, May 11, 2009 1:16 PM 2010 RIDER’S MANUAL Victory Vision ® Victory Vision 8-Ball ™ P/N 9922441 E2009 Polaris Sales Inc. All Rights Reserved. Printed in U.S.A.

  • Page 6: Introduction

    9922441.book Page 2 Monday, May 11, 2009 1:16 PM Introduction General Information All information contained within this publication is based on the latest product information available at the time of publication. Product improvements or other changes may result in differences between this manual and the motorcycle. Depictions and/or procedures in this publication are intended for reference use only.
  • Page 7 VICTORY MOTORCYCLES® VICTORY VISION® FREEDOM® 8-BALL™ is a trademark of Polaris Industries Inc. DUNLOP® is a registered trademark of Dunlop Tire Corporation. LOCTITE® is a registered trademark of Henkel Corporation. XM Ready® is a registered trademark of XM® Satellite Radio Inc. All rights reserved.

  • Page 8: Before You Ride

    Read your Rider’s Manual This rider’s manual contains information that is essential to safe riding and proper mainte- nance of your VICTORY VISION motorcycle. Anyone who uses the motorcycle (operators and passengers) must read the rider’s manual before riding. Carefully read and understand the information found in the Safety section.

  • Page 9: Table Of Contents

    9922441.book Page 5 Monday, May 11, 2009 1:16 PM Table of Contents Introduction ..........2 Safety .
  • Page 10 9922441.book Page 6 Monday, May 11, 2009 1:16 PM Table of Contents Audio System..........263 System Overview .

  • Page 11: Safety

    9922441.book Page 7 Monday, May 11, 2009 1:16 PM Safety Safety Symbols and Signal Words The following signal words and symbols appear throughout this manual. Your safety and the safety of others is involved when these words and symbols are used. Become familiar with their meanings before reading the manual.

  • Page 12: Safe Riding Practices

    9922441.book Page 8 Monday, May 11, 2009 1:16 PM Safety Safe Riding Practices WARNING! Improper use of this motorcycle can result in serious injury or death to you, your passenger and others. To minimize the risk of injury, read and understand the information contained in this section before operating the motorcycle.
  • Page 13 9922441.book Page 9 Monday, May 11, 2009 1:16 PM Safety Safe Riding Practices • Your ability to safely operate the motorcycle depends on your judgment and your use of safe riding habits. Take a rider education course from the Motorcycle Safety Foundation or another qualified instructor.
  • Page 14 9922441.book Page 10 Monday, May 11, 2009 1:16 PM Safety Safe Riding Practices Design characteristics affect how you should ride the VICTORY motorcycle: • The motorcycle is designed for on-road use with one rider and one passenger. Do not exceed the Gross Vehicle Weight Rating. See the manufacturer’s label (under the rear panel on the console).
  • Page 15 9922441.book Page 11 Monday, May 11, 2009 1:16 PM Safety Safe Riding Practices Follow these general safe riding practices: • Before each ride, perform the pre-ride inspections as outlined beginning on page 87. Fail- ure to do so may result in damage to the motorcycle or an accident. •...
  • Page 16 9922441.book Page 12 Monday, May 11, 2009 1:16 PM Safety Safe Riding Practices • Do not ride when you're fatigued or under the influence of alcohol, prescription drugs, over-the-counter drugs or any other drugs. Fatigue, alcohol and drugs can cause drowsi- ness, loss of coordination and loss of balance.
  • Page 17 9922441.book Page 13 Monday, May 11, 2009 1:16 PM Safety Safe Riding Practices • Be especially cautious at intersections, as these are the most likely places for an accident. • To prevent loss of control, keep your hands on the handlebars and your feet on the foot- rests.
  • Page 18 9922441.book Page 14 Monday, May 11, 2009 1:16 PM Safety Safe Riding Practices • Reduce speed when: • the road has potholes, or is otherwise rough or uneven. • the road contains sand, dirt, gravel or other loose substances. • the road is wet, icy or oily. •...
  • Page 19 9922441.book Page 15 Monday, May 11, 2009 1:16 PM Safety Safe Riding Practices • To maximize braking effectiveness, use the front and rear brakes together. Improper brak- ing may cause loss of control or may not slow the vehicle in time to avoid a collision. Be aware of the following braking facts and practices: •...
  • Page 20 9922441.book Page 16 Monday, May 11, 2009 1:16 PM Safety Safe Riding Practices • When approaching a curve, choose a speed and lean angle that allows you to pass through the curve in your own lane without applying the brakes. Excessive speed, improper lean angle or braking in a curve can cause loss of control.

  • Page 21: Parking The Motorcycle

    9922441.book Page 17 Monday, May 11, 2009 1:16 PM Safety Parking the Motorcycle When leaving the motorcycle unattended, turn the engine off and lock the steering. See page 48. Remove the ignition key to prevent unauthorized use. Park the motorcycle where people are not likely to touch the hot engine or exhaust system or place combustible materials near these hot areas.

  • Page 22: Carrying A Passenger

    9922441.book Page 18 Monday, May 11, 2009 1:16 PM Safety Carrying a Passenger Not all models are equipped from the factory with a passenger seat and passenger footrests. Do not carry a passenger unless the motorcycle is equipped with passenger seat and passen- ger footrests.
  • Page 23 9922441.book Page 19 Monday, May 11, 2009 1:16 PM Safety Carrying a Passenger • To obtain the best ride and handling characteristics, adjust the rear shock absorber air pres- sure. See page 160. • Before riding, be sure your passenger knows safe riding procedures. Discuss any safety information unfamiliar to your passenger.
  • Page 24 9922441.book Page 20 Monday, May 11, 2009 1:16 PM Safety Carrying Cargo Use the following guidelines when attaching cargo or accessories to the motorcycle. Where applicable, these guidelines also refer to the contents of any accessories. • Keep cargo and accessory weight to a minimum, and keep items as close to the motorcycle as possible to minimize a change in the motorcycle’s center of gravity.
  • Page 25 9922441.book Page 21 Monday, May 11, 2009 1:16 PM Safety Carrying Cargo • Do not attach large or heavy cargo such as sleeping bags, duffel bags or tents to the han- dlebars, front fork area or front fender. Cargo or accessories placed in these areas can cause instability (due to improper weight distribution or aerodynamic changes) and could cause loss of control.

  • Page 26: Protective Apparel

    9922441.book Page 22 Monday, May 11, 2009 1:16 PM Safety Protective Apparel Wear protective apparel to decrease the risk of injury and increase riding comfort. • Always wear a helmet that meets or exceeds established safety standards. Approved hel- mets in the USA and Canada bear a U.S. Department of Transportation (DOT) label. Laws in some areas require that you wear an approved helmet.
  • Page 27 9922441.book Page 23 Monday, May 11, 2009 1:16 PM Safety Protective Apparel • All riders should wear bright or light-colored and/or reflective clothing to improve visibil- ity to other motorists. A motorist's failure to see or recognize a motorcycle is the leading cause of automobile/motorcycle accidents.
  • Page 28 9922441.book Page 24 Monday, May 11, 2009 1:16 PM Safety Use of Accessories Because VICTORY cannot test and make specific recommendations concerning every acces- sory or combination of accessories sold, the operator is responsible for determining that the motorcycle can be safely operated with any accessories or additional weight. Use the follow- ing guidelines when choosing and installing accessories: •...
  • Page 29 9922441.book Page 25 Monday, May 11, 2009 1:16 PM Safety Use of Accessories • Do not install electrical accessories that exceed the capacity of the motorcycle’s electrical system. Never install higher wattage light bulbs than those supplied as original equipment. An electrical failure could result and cause hazardous loss of engine power or lights, or damage to the electrical system.
  • Page 30 9922441.book Page 26 Monday, May 11, 2009 1:16 PM Safety Saddlebags and Trunk Whenever operating a motorcycle with saddlebags: • Never ride at speeds exceeding 80 MPH (120 km/h). Depending on load and weather con- ditions, the maximum safe operating speed may be less. Saddlebags, combined with the lifting or buffeting effects of wind, can make the motorcycle unstable and cause loss of control.

  • Page 31: Transporting The Motorcycle

    9922441.book Page 27 Monday, May 11, 2009 1:16 PM Safety Transporting the Motorcycle If you must transport the motorcycle: To loop on frame (one tiedown each side) • Use a truck or trailer. Do not tow the motorcycle with another vehicle, as towing will impair the motorcycle's steering and handling.
  • Page 32 9922441.book Page 28 Monday, May 11, 2009 1:16 PM Safety Fuel and Exhaust Safety Always heed these fuel safety warnings when refueling or servicing the fuel system. For fueling procedures, see page 112. WARNING! Gasoline is highly flammable and explosive under certain conditions. •...
  • Page 33 9922441.book Page 29 Monday, May 11, 2009 1:16 PM Safety Fuel and Exhaust Safety WARNING! Gasoline and gasoline vapors are poisonous and can cause severe injury. • Do not swallow gasoline, inhale gasoline vapors, or spill gasoline. If you swallow gasoline, inhale more than a few breaths of gasoline vapor, or get gasoline in your eyes, see a physician immediately.
  • Page 34 9922441.book Page 30 Monday, May 11, 2009 1:16 PM Safety Safety Maintenance WARNING! Failure to perform safety maintenance as recommended can result in difficult handling and loss of control, which could result in serious injury or death. Always perform the safety maintenance procedures as recommended.

  • Page 35: Electromagnetic Interference

    9922441.book Page 31 Monday, May 11, 2009 1:16 PM Safety Safety Maintenance • Always ensure proper steering head bearing adjustment. Regularly inspect the rear shock absorber and the front forks for fluid leaks or damage. Make any necessary repairs promptly. •...
  • Page 36 9922441.book Page 32 Monday, May 11, 2009 1:16 PM Safety Gross Vehicle Weight Rating (GVWR) WARNING! Exceeding the gross vehicle weight rating of your motorcycle can reduce stability and han- dling and could cause loss of control. NEVER exceed the GVWR of your motorcycle. The maximum load capacity of your motorcycle is the maximum weight you may add to your motorcycle without exceeding the GVWR.
  • Page 37 9922441.book Page 33 Monday, May 11, 2009 1:16 PM Safety Gross Vehicle Weight Rating (GVWR) When determining the weight you will be adding to your motorcycle, and to ensure you do not exceed the maximum load capacity, include the following: •...
  • Page 38 9922441.book Page 34 Monday, May 11, 2009 1:16 PM Safety Safety and Information Labels Vehicle Identification Number (VIN) Tip: See page 202 for seat removal instructions. VIN Label Date of Manufacture (on frame, under rear console cover) GVWR Information Operator/Fuel Warning (outside of cover) VIN Number Tire &...
  • Page 39 9922441.book Page 35 Monday, May 11, 2009 1:16 PM Safety Safety and Information Labels Vehicle Emission Control Information (VECI) VECI Label (inside left saddlebag)
  • Page 40 9922441.book Page 36 Monday, May 11, 2009 1:16 PM Safety Safety and Information Labels Noise Emission Control Information (NECI) Windshield Label NECI Label (below VECI label)
  • Page 41 9922441.book Page 37 Monday, May 11, 2009 1:16 PM Safety Safety and Information Labels Tire and Cargo Information Cargo Information Label (inside saddlebags and trunk, if equipped)

  • Page 42: Reporting Safety Defects

    9922441.book Page 38 Monday, May 11, 2009 1:16 PM Safety Reporting Safety Defects If you believe that your vehicle has a defect that could result in a crash or cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Polaris Industries in writing.

  • Page 43: Component Identification

    04 Component Identification.fm Page 39 Monday, May 11, 2009 1:51 PM Component Identification Ignition Key Number Key Number The ignition key number is stamped on the small metal tag attached to the key ring. Remove the tag and record the number on page 40.

  • Page 44: Identification Number Record

    04 Component Identification.fm Page 40 Monday, May 11, 2009 1:51 PM Component Identification Identification Number Record Record important identification numbers below. Vehicle Identification Number (VIN) (see page 34) Engine Identification Number (see page 39) Ignition Key Number (see page 39)

  • Page 45: Component Locations

    04 Component Identification.fm Page 41 Monday, May 11, 2009 1:51 PM Component Identification Component Locations 1. Spark Plugs 13 12 2. Front Brake Caliper 3. Gear Shift Pedal 4. Operator Footrest 5. Sidestand 6. Oil Drain Plug 7. Oil Filter 8.
  • Page 46 04 Component Identification.fm Page 42 Monday, May 11, 2009 1:51 PM Component Identification Component Locations 1. Drive Belt Guard 2. Drive Belt 3. Passenger Footrest 4. Drive Sprocket (under cover) 5. Speed Sensor (top of crankcase) 6. Engine Oil Fill Cap / Dipstick 7.
  • Page 47 04 Component Identification.fm Page 43 Monday, May 11, 2009 1:51 PM Component Identification Component Locations 1. Front Turn Signal (outer light, each side) 2. Wind Deflector 3. Headlamp 4. Driving Lamp (or HID lamp if equipped) 5. Air Filter (front of frame) 6.
  • Page 48 04 Component Identification.fm Page 44 Monday, May 11, 2009 1:51 PM Component Identification Component Locations 1. Turn Signals (uppermost in lens) 2. Tail Lamps (3 each side) 3. Brake Lamps 4. Exhaust Mufflers 5. License Plate Bracket...
  • Page 49 04 Component Identification.fm Page 45 Monday, May 11, 2009 1:51 PM Component Identification Component Locations 1. Windshield 2. Radio Antenna (under dash) 3. Mirror 4. Clutch Fluid Reservoir 5. Clutch Lever 6. Glove Compartment Door 7. Operator Seat 8. Passenger Seat 9.
  • Page 50 04 Component Identification.fm Page 46 Monday, May 11, 2009 1:51 PM Component Identification Component Locations 1. Speakers 2. Fuel Gauge 3. Speedometer 4. Indicator Lamp Display 5. Multi-Function Display 6. Tachometer 7. Volt Meter 8. Cruise Control Switches (if equipped) 9.

  • Page 51: Instruments/Features/Controls

    9922441.book Page 47 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Ignition Switch Place the ignition key in the ignition switch to operate the following functions of the switch. All electrical circuits are off. The key can be removed. All electrical circuits are on. The ignition key cannot be removed. Headlamp, taillight, running lights, radio and instrument lights illuminate.

  • Page 52: Ignition Key

    9922441.book Page 48 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Ignition Switch Ignition Key The ignition key operates the ignition switch, fuel door, saddlebag door locks and trunk door lock (if equipped). Read the engine starting procedures beginning on page 114 before start- ing the engine.

  • Page 53: Ignition Switch

    9922441.book Page 49 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Ignition Switch Fuel Door Lock 1. Turn the handlebars full left. Fuel Door 2. Turn the key to the OFF position. Release Tip: Do not push the key down when unlocking the fuel door. 3.

  • Page 54: Instrument Cluster

    9922441.book Page 50 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Instrument Cluster The instrument cluster includes the speedometer, tachometer, fuel gauge, volt meter, indica- tor lamps and multi-function display. Indicator Lamps Tachometer Speedometer Volt Meter Fuel Gauge Multi-Function Display...

  • Page 55: Fuel Gauge

    9922441.book Page 51 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Speedometer Fuel Gauge The speedometer displays vehicle speed in The fuel gauge displays fuel level. The key either miles per hour or kilometers per hour. must be in the ON or ACC position. For the See page 58.

  • Page 56: Indicator Lamps

    9922441.book Page 52 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Indicator Lamps Anti-Lock Brake System (ABS) (if equipped) Right Turn High Beam Low Fuel Left Turn Oil Pressure Cruise Control Check Engine Battery Warning Neutral...
  • Page 57 9922441.book Page 53 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Indicator Lamps Lamp Indicates Condition Neutral This lamp illuminates when the transmission is in neutral and the ignition key is in the ON or ACC position. High Beam This lamp illuminates when the headlamp switch is set to high beam. Check Engine This lamp illuminates momentarily when the ignition switch is in the ON position and the engine is off.
  • Page 58 9922441.book Page 54 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Indicator Lamps Lamp Indicates Condition Turn Signal One arrow flashes when the corresponding turn signal is activated. Both arrows flash when the hazard signal is activated. If a bulb fails, or if there is a short circuit in the signal system, the lamp flashes at more than twice the normal rate.
  • Page 59 9922441.book Page 55 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Indicator Lamps Lamp Indicates Condition Low Fuel This lamp illuminates when approximately one gallon (3.8 liters) of fuel remains in the fuel tank. Low Battery This lamp illuminates when battery voltage is low. Make sure the Warning charging system is operating properly.
  • Page 60 9922441.book Page 56 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Multi-Function Display Use the mode button to toggle through the modes of the multi-function display. See page 65. Modes available include: • clock • gear position Clock • ambient temperature •...
  • Page 61 9922441.book Page 57 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Multi-Function Display Engine Error Codes The error screen displays only when the CHECK Error Code Failure Mode ENGINE light is on or when it goes on and off Number (0-9) Indicator (FMI) during one ignition cycle.
  • Page 62 9922441.book Page 58 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Multi-Function Display Display Units (Standard/Metric) The display can be changed to display either standard or metric units of measurement. Tip: To exit the set-up mode at any time, wait 10 seconds.The display automatically exits and returns to the odometer display.
  • Page 63 9922441.book Page 59 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Multi-Function Display Display Units (Standard/Metric) 1. Turn the key to the OFF position. 2. Press and hold the mode button while turning the key to the ON or ACC position. 3.
  • Page 64 9922441.book Page 60 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Multi-Function Display Clock Tip: The clock must be reset any time the battery has been disconnected or discharged. 1. Turn the key to ON or ACC. Use the mode button to toggle to the odometer display. Tip: If LOW FUEL is flashing, the display will not enter the CLOCK SET mode.
  • Page 65 9922441.book Page 61 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Multi-Function Display Odometer/Trip Odometer The odometer displays the total distance traveled by the vehicle. The trip odometer displays distance traveled since the trip odometer was reset. To view the trip odometer, turn the key to the ON position.

  • Page 66: Console Switches

    9922441.book Page 62 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Console Switches Optional Hand Grip Accessory Heater Switch Switch Hazard Switch Driving Lamp Switch...
  • Page 67 9922441.book Page 63 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Console Switches Hand Grip Heater Switch High Press the top (high heat) or bottom (low heat) of the rocker switch to turn the hand grip heaters on. Move the switch to the center position to turn the heat- ers off.
  • Page 68 9922441.book Page 64 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Seat Heater Switches High Seat heater switches (if equipped) are located on the seat under the left passenger hand grip. The low heat setting is adequate for most conditions. Use the high heat setting with caution.

  • Page 69: Mode Button

    9922441.book Page 65 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Mode Button The mode button is located on the front side of the left handlebar switch. Use the mode button to tog- gle through the modes of the multi-function dis- play.

  • Page 70: Horn Switch

    9922441.book Page 66 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Headlamp Switch (High/Low) High Beam The headlamp switch is located on the left handlebar. Use the switch to toggle the headlamp to high beam or low beam. The key must be in the ON or ACC position. Beam Tip: To turn the headlamp on, turn the ignition key to ON and tap or press the start switch.
  • Page 71 9922441.book Page 67 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Windshield Adjustment Switch Raise Windshield The motorized windshield adjustment switch (if equipped) is located on the left handlebar. Use the switch to change the height and angle of the wind- shield.

  • Page 72: Turn Signal Switch

    9922441.book Page 68 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Turn Signal Switch The turn signal switch is located on the left handlebar. Use the switch to activate a turn signal. The key must be in the ON or ACC position. •...

  • Page 73: Clutch Lever

    9922441.book Page 69 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Clutch Lever The clutch lever is located on the left handlebar. Disengage the clutch before shifting gears. For smooth clutch operation, pull the lever quickly and release it gradually. • To disengage the clutch, pull the lever toward the handlebar.
  • Page 74 9922441.book Page 70 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Engine Stop/Run Switch Stop The engine stop/run switch is located on the right handle- bar. This switch completes or interrupts the ignition, starter and fuel pump circuits. Use the engine stop/run switch to turn the engine off quickly.

  • Page 75: Engine Starter Switch

    9922441.book Page 71 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Engine Starter Switch The starter switch is located on the right handlebar. Use the starter switch to start the engine, turn the headlights on and operate in reverse (if equipped). The switch will operate only when the engine stop/run switch is in the RUN position and the transmission is in neutral (or the clutch is disengaged).

  • Page 76: Throttle Control Grip

    9922441.book Page 72 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Throttle Control Grip The throttle control grip is located on the Decrease right handlebar. Use the throttle control grip Speed to control engine speed. While seated in the proper riding position: •...
  • Page 77 9922441.book Page 73 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Brakes Linked Braking System The front and rear brakes on the motorcycle are linked. The front brake lever activates only the front brake calipers. The rear brake pedal activates the rear brake caliper fully while simultaneously activating one of the three pistons in each front brake caliper.
  • Page 78 9922441.book Page 74 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Brakes Anti-Lock Brake System (ABS) (if equipped) • The anti-lock brake system cannot be • When the anti-lock brakes engage during turned off. a braking event, the rider will feel pulsing at the brake levers.
  • Page 79 9922441.book Page 75 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Brakes Anti-Lock Brake System (ABS) (if equipped) • Operating with non-recommended tires • It is not unusual to leave tire marks on the or improper tire pressure may reduce the road surface during a hard braking event.
  • Page 80 9922441.book Page 76 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Brakes Front Brake Lever Front Brake Lever The front brake lever is located on the right handlebar. This lever controls only the front brakes. The front brakes should be applied simultaneously with the rear brakes.
  • Page 81 9922441.book Page 77 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Brakes Front Brake Lever Front brake lever reach (distance to the hand grip) is adjustable. 1. Pull and hold the lever away from the hand grip. 2. To increase reach distance, rotate the adjuster to align a lower number with the Pull and hold lever arrow on the lever.
  • Page 82 9922441.book Page 78 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Brakes Rear Brake Pedal The rear brake pedal is located on the right side of the motorcycle. Press downward on the rear brake pedal to apply the rear brake. The rear brake pedal activates the rear brake caliper fully while simultaneously activating one of the three pistons in each front brake cal- iper.

  • Page 83: Gear Shift Pedal

    9922441.book Page 79 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Gear Shift Pedal The gear shift pedal is located on the left side of the motorcycle. • Press downward on the gear shift pedal to shift to a lower gear. •...
  • Page 84 9922441.book Page 80 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Pedal Adjustment The brake pedal and gear shift pedal controls can be adjusted to a front, rear or center position. The center position is the factory setting. 1. Remove the screw from the footwell support. Tool: 6 mm Allen wrench 2.

  • Page 85: Windshield Adjustment

    9922441.book Page 81 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Windshield Adjustment Use the motorized windshield adjustment switch (if equipped) to adjust the windshield. See page 67. If the motor- Retaining Clip cycle is not equipped with this feature, you can manually adjust the windshield.

  • Page 86: Glove Compartment

    9922441.book Page 82 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Glove Compartment Before opening the glove compartment, turn the handle- bars slightly to the right. 1. Press and release the inner edge of the compartment door. The door will open under light spring tension. 2.
  • Page 87 9922441.book Page 83 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Sidestand The sidestand is located on the left side of the motorcycle. WARNING! An improperly retracted sidestand could contact the ground and cause a loss of control resulting in serious injury or death. Always retract the sidestand fully before operating the motorcycle. To park the motorcycle, swing the end of the sidestand downward and away from the motorcycle until it is fully extended.
  • Page 88 9922441.book Page 84 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Saddlebag and Trunk Door Locks Use the ignition key to lock and unlock the trunk and sad- Unlock dlebag doors. The doors should be locked before riding. To lock a door, place the key in the lock and turn it counter-clockwise.
  • Page 89 9922441.book Page 85 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Radio/Audio Systems Radio Panel Refer to the Audio System section of this manual (beginning on page 263) for radio and accessory audio systems operation.

  • Page 90: Tool Kit

    9922441.book Page 86 Monday, May 11, 2009 1:16 PM Instruments/Features/Controls Tool Kit The tool kit can be used to perform most basic maintenance items. Tools provided in the tool kit include: 1. 4 mm Ball Drive Allen Wrench 2. 4 mm / 6 mm Open End Wrench 3.

  • Page 91: Pre-Ride Inspections

    9922441.book Page 87 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections To keep your motorcycle in safe operating condition, always perform the recommended pre- ride inspections before each ride. This is especially important before making a long trip and when removing the motorcycle from storage. WARNING! Failure to perform the recommended pre-ride inspections could result in component failure while riding, which could result in serious injury or death.
  • Page 92 9922441.book Page 88 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Turn the ignition key to the ON position and move the stop/run switch to RUN before per- forming the following electrical inspections. Return the ignition key to the OFF position after completing these inspections.
  • Page 93 9922441.book Page 89 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Item Inspection Procedure Electrical Emergency Press the top of the hazard switch to turn the flashers on. Verify that all four turn Flashers signals flash, as well as the lamps on the indicator panel. Turn the flashers off. Verify that all signals and indicator lamps stop flashing.
  • Page 94 9922441.book Page 90 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Item Inspection Procedure See Page General Engine Oil Level Check the oil level on the dipstick. Fuel Level View the fuel gauge. Tires Inspect condition, pressure and tread depth. Brake Operation Inspect pedal and lever movement.
  • Page 95 9922441.book Page 91 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Item Inspection Procedure See Page General Clutch (Hydraulic) Check fluid level and lever operation. Clutch (Mechanical) Check lever operation and freeplay. Front Suspension Check for leaks, debris and damage. Steering Check for smooth operation.

  • Page 96: Engine Oil Level

    9922441.book Page 92 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Engine Oil Level The oil fill cap/dipstick is located on the right side of the vehicle. Always use the recommended oil. See page 262. Tip: The engine must be at normal operating temperature when checking the oil level.
  • Page 97 9922441.book Page 93 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Engine Oil Level 5. Remove the oil fill cap/dipstick and wipe it clean. Reinstall the dipstick and turn the cap clockwise until it seats. 6. Remove the dipstick and view the oil level. Safe Range 7.

  • Page 98: Fuel Level

    9922441.book Page 94 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Fuel Level 1. On level ground, straddle the motorcycle and bring it to the fully upright position. 2. Turn the ignition switch to the ON or ACC position. Observe the fuel level in the fuel gauge.
  • Page 99 9922441.book Page 95 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Tires Tire Pressure Check tire pressure before riding, when the tires are cold. This will provide the most accurate reading, as riding warms the tires and increases tire air pressure. Adjust tire pressure as needed based on the total weight of your intended load.

  • Page 100: Front Brake Lever

    9922441.book Page 96 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Front Brake Lever 1. Pull the front brake lever toward the han- Minimum Level dlebar and hold it. The lever should move freely and smoothly. It should not move more than 3/4 inch (19 mm) before resistance is firm.
  • Page 101 9922441.book Page 97 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Front Brake Fluid Level 1. Straddle the motorcycle and bring it to the fully upright position. Position the handlebars so that the fluid reservoir is level. 2. View the fluid level through the sight glass. The fluid should be clear. Replace cloudy or contaminated fluid.

  • Page 102: Rear Brake Pedal

    9922441.book Page 98 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Rear Brake Pedal 1. Press downward on the rear brake pedal. It should move freely and smoothly. It should not move more than 3/8 inch (8 mm) before resistance is firm. It should continue to feel firm, without loss of pres- sure, until the pedal is released.
  • Page 103 9922441.book Page 99 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Rear Brake Fluid Level The rear brake fluid reservoir is located near the rear brake pedal, just inside the right lower leg fairing. View the reservoir from the front right side of the vehicle.
  • Page 104 9922441.book Page 100 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Brake Lines Inspect all brake hoses and connections for dampness or stains from leaking or dried fluid. Tighten any leaking connections and replace components as necessary. Tip: Refer to the service manual or contact your dealer for fastener torque values. WARNING! Brake fluid leaks or low brake fluid levels could cause brake system failure, which could result in serious injury or death.

  • Page 105: Brake Pads

    9922441.book Page 101 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Brake Pads Inspect each front brake pad on both sides of Friction the front disc. Inspect each rear brake pad on Material both sides of the rear disc. When the thinnest point of the friction material has worn to the minimum recommended thickness, see your VICTORY dealer for brake pad replacement.
  • Page 106 9922441.book Page 102 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Throttle Rotate the throttle control grip. It should rotate 2-4 mm to smoothly from the rest position to the com- resistance pletely open position. It should return to the rest position quickly when released.

  • Page 107: Hydraulic Clutch

    9922441.book Page 103 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Hydraulic Clutch Minimum 1. Position the motorcycle on level ground in the fully Level upright position. Position the handlebars so that the clutch fluid reservoir is level. 2. View the fluid level through the sight glass. The fluid should be clear.
  • Page 108 9922441.book Page 104 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Mechanical Clutch 1. Squeeze the clutch lever toward the handlebar and release it. It should move freely and smoothly, and it should return to the rest posi- tion quickly when released. If the lever fails to perform as stated, service the clutch lever before riding.

  • Page 109: Front Suspension

    9922441.book Page 105 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Front Suspension Inspect the front forks for oil leaks or damage, and verify smooth suspension operation. See page 167. Steering 1. On level ground, straddle the motorcycle and bring it to the fully upright position. Turn the handlebars from stop to stop.

  • Page 110: Drive Belt

    9922441.book Page 106 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Drive Belt 1. Check drive belt tension. See page 153. The drive belt should fit tightly. Tip: The drive belt system must be cool, clean and dry to accurately measure belt tension (deflection). Do not measure belt tension when the belt or drive system is wet, or when it is hot (such as immediately after riding).
  • Page 111 9922441.book Page 107 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Sidestand 1. On level ground, straddle the motorcycle and bring it to the fully upright position. 2. Move the sidestand up to the stored position and down to the fully extended position sev- eral times.
  • Page 112 9922441.book Page 108 Monday, May 11, 2009 1:16 PM Pre-Ride Inspections Fasteners 1. Inspect the entire motorcycle chassis and engine for loose, damaged or missing fasten- ers. Tighten loose fasteners to the proper torque. Tip: Refer to the specifications section of this manual or the service manual for fastener torque values, or see your VICTORY dealer.

  • Page 113: Operation

    9922441.book Page 109 Monday, May 11, 2009 1:16 PM Operation The operation section of this manual describes how to ensure maximum performance and longevity through the proper care and operation of your motorcycle. Tip: Even if you're an experienced motorcycle operator or passenger, read all of the safety information in this manual before operating the motorcycle.
  • Page 114 9922441.book Page 110 Monday, May 11, 2009 1:16 PM Operation Engine Break-In The engine break-in period for your motorcycle is the first 500 miles (800 km) of operation. During this break-in period, critical engine parts require special wear-in procedures so they seat and mate properly.
  • Page 115 9922441.book Page 111 Monday, May 11, 2009 1:16 PM Operation Engine Break-In Odometer Break-in Procedure Miles 0-90 0-145 Do not operate for extended periods above 1/3 throttle or at any one throttle position. Vary engine speed frequently. 91-300 146-483 Do not operate for extended periods above 1/2 throttle or at any one throttle position.
  • Page 116 9922441.book Page 112 Monday, May 11, 2009 1:16 PM Operation Fueling Always refuel on level ground with the sidestand down. Review the fuel warnings. See page 28. Use only the recommended fuel. See page 262. Hold the nozzle while filling. Do not rest the weight of the nozzle and hose on the filler neck.
  • Page 117 9922441.book Page 113 Monday, May 11, 2009 1:16 PM Operation Priming the Fuel System If the motorcycle runs out of fuel, prime the fuel system before attempting to restart the engine. 1. Fill the fuel tank. 2. Turn the ignition key to the ON position. 3.

  • Page 118: Starting The Engine

    9922441.book Page 114 Monday, May 11, 2009 1:16 PM Operation Starting the Engine The starter interlock system allows the engine to be started only when the transmission is in neutral, or when the transmission is in gear with the clutch disengaged (clutch lever pulled in).
  • Page 119 9922441.book Page 115 Monday, May 11, 2009 1:16 PM Operation Starting the Engine 7. Apply the front brakes. 8. Leaving the throttle closed, press and hold the starter switch to start the engine. Release the switch promptly when the engine starts. If the engine does not start within 10 sec- onds, release the starter switch.

  • Page 120: Shifting Gears

    9922441.book Page 116 Monday, May 11, 2009 1:16 PM Operation Shifting Gears WARNING! Forced shifting (with clutch engaged) could cause damage to the engine, transmission and drive train. Such damage could cause loss of control, which could result in serious injury or death. Always pull the clutch lever fully toward the handlebars to disengage the clutch before shifting gears.
  • Page 121 9922441.book Page 117 Monday, May 11, 2009 1:16 PM Operation Shifting Gears 1. Start the engine. See page 114. 2. With the engine at idle speed, apply the front brakes. 3. Disengage the clutch (pull the clutch lever fully toward the handlebar). 4.
  • Page 122 9922441.book Page 118 Monday, May 11, 2009 1:16 PM Operation Shifting Gears Tip: Within the recommended speed ranges (see page 119), you can downshift to slow the motorcycle or to increase power. You may want to downshift when climbing a hill or passing. Downshifting also helps to decrease speed when combined with closing the throttle.
  • Page 123 9922441.book Page 119 Monday, May 11, 2009 1:16 PM Operation Shifting Gears Recommended Shift Points Upshifting (Accelerating) Downshifting (Decelerating) Gear Change Recommended Speed Gear Change Recommended Speed 1 to 2 18 MPH (29 km/h) O/D to 5 50 MPH (80 km/h) 2 to 3 30 MPH (48 km/h) 5 to 4...
  • Page 124 9922441.book Page 120 Monday, May 11, 2009 1:16 PM Operation Accelerating Accelerate by opening the throttle (rolling the throttle control grip rearward). For even accel- eration, open the throttle with a smooth, continuous motion. When you reach the recom- mended speed for upshifting, shift up one gear. WARNING! Accelerating abruptly could cause your body to shift rearward suddenly, which could result in loss of control.
  • Page 125 9922441.book Page 121 Monday, May 11, 2009 1:16 PM Operation Braking Always allow sufficient stopping distance so that brakes can be applied gradually. Tip: Applying slightly more front brake than rear brake generally provides the best braking perfor- mance. 1. To slow the motorcycle with the brakes, close the throttle and apply the front and rear brakes evenly and gradually.
  • Page 126 9922441.book Page 122 Monday, May 11, 2009 1:16 PM Operation Using Cruise Control If equipped, the cruise control is located on the right handlebar. Make sure you read this sec- tion and understand how to safely operate this feature. WARNING! Improper operation of cruise control could cause loss of control and result in serious injury or death.
  • Page 127 9922441.book Page 123 Monday, May 11, 2009 1:16 PM Operation Using Cruise Control Set Speed 1. Move the cruise control power switch to ON. 2. Accelerate to the desired speed and press the SET switch. The cruise control indicator lamp will illuminate. Tip: •...
  • Page 128 9922441.book Page 124 Monday, May 11, 2009 1:16 PM Operation Using Cruise Control Resume Speed After disengaging the cruise control with the brake, throttle Resume or clutch, press the resume button (RES) to return to the set speed. Tip: Turning the cruise control master switch off will erase the set speed from memory and disengage the cruise control.
  • Page 129 9922441.book Page 125 Monday, May 11, 2009 1:16 PM Operation Using Cruise Control Decelerate Tap and release the decelerate (DEC) button to decrease speed in approximately 1 MPH (1-2 km/h) increments. Press and hold the DEC button to decelerate to a new SET speed (resets when button is released), or to the minimum cruise speed of 25 MPH (40 km/h).

  • Page 130: Stopping The Engine

    9922441.book Page 126 Monday, May 11, 2009 1:16 PM Operation Stopping the Engine Before stopping the engine, bring the motorcycle to a complete stop. Shift to neutral or dis- engage the clutch. WARNING! Stopping the engine with the transmission in gear while the motorcycle is moving could cause loss of rear wheel traction or engine and transmission damage, which could cause loss of control and serious injury or death.

  • Page 131: Parking On A Slope

    9922441.book Page 127 Monday, May 11, 2009 1:16 PM Operation Parking Choose a firm level surface to park the motorcycle. 1. When fully stopped, shift into neutral. 2. Stop the engine. 3. Fully extend the sidestand. 4. Turn the handlebars to the left and lean the motorcycle to the left until the sidestand firmly supports the motorcycle.
  • Page 132 9922441.book Page 128 Monday, May 11, 2009 1:16 PM Operation Parking on a Soft Surface If parking on a soft surface is unavoidable, place a sidestand footrest under the foot of the sidestand to provide a firm surface. The sidestand footrest must be strong enough and large enough to support the motorcycle's weight without sinking into the parking surface.
  • Page 133 9922441.book Page 129 Monday, May 11, 2009 1:16 PM Operation Reverse Operation (if equipped) NOTICE: Do not attempt to engage or disengage the reverse system when the motorcycle is moving. Before Operating in Reverse: NEVER Operate in Reverse: • always sit on the motorcycle with legs •...
  • Page 134 9922441.book Page 130 Monday, May 11, 2009 1:16 PM Operation Reverse Operation (if equipped) 1. Always check for obstacles or people behind the motorcycle. Be aware that the front wheel may travel outward and require a larger operating area. 2. Make sure the motorcycle is stationary. 3.
  • Page 135 9922441.book Page 131 Monday, May 11, 2009 1:16 PM Operation Reverse Operation (if equipped) 8. Lift the reverse lever and verify that the reverse indicator (R) displays in the multi-func- tion display. 9. Recheck the area behind and around the motorcycle to ensure a clear operating area. 10.

  • Page 136: Maintenance

    08 Maintenance.fm Page 132 Monday, May 11, 2009 2:03 PM Maintenance Safety During Service Procedures WARNING Failure to follow recommended precautions and procedures could result in severe injury or death. Always heed all safety precautions and follow all operation, inspection and maintenance procedures outlined in this manual.
  • Page 137 08 Maintenance.fm Page 133 Monday, May 11, 2009 2:03 PM Maintenance Safety During Service Procedures • Hot engine and exhaust components can cause burns to skin and can ignite a fire if exposed to flammable materials. Always park the motorcycle clear of flammable materials and where people are not likely to contact hot components.
  • Page 138 08 Maintenance.fm Page 134 Monday, May 11, 2009 2:03 PM Maintenance Proper maintenance assures the highest level of safety, durability and dependability for your motorcycle. • Have your VICTORY dealer perform the break-in maintenance procedures when the motorcycle’s odometer registers 500 miles (800 km). •...

  • Page 139: Major Maintenance

    08 Maintenance.fm Page 135 Monday, May 11, 2009 2:03 PM Maintenance Break-In Maintenance Have your VICTORY dealer perform the break-in maintenance procedures when the motor- cycle’s odometer registers 500 miles (800 km). Performing the break-in maintenance will help ensure optimum engine performance for the entire service life of the engine. Your dealer will change engine oil, inspect all fluids and serviceable components, ensure that all fasten- ers are tightened and make other adjustments as needed.

  • Page 140: Periodic Maintenance

    08 Maintenance.fm Page 136 Monday, May 11, 2009 2:03 PM Maintenance Periodic Maintenance Inspect, clean, lubricate, adjust and replace parts as necessary. When inspection reveals the need for replacement parts, use genuine VICTORY parts available from your VICTORY dealer. Record service and maintenance information in the Maintenance Log beginning on page 142.
  • Page 141 08 Maintenance.fm Page 137 Monday, May 11, 2009 2:03 PM Maintenance Periodic Maintenance Table See table key below Odometer Reading in Miles (Kilometers) Component Page Air Filter Battery Brake Fluid Brake Pads Clutch Cable (Mechanical) Clutch Fluid Clutch Lever (Hydraulic) Maintenance Key: I = Inspect, clean, adjust, correct or replace if necessary;...
  • Page 142 08 Maintenance.fm Page 138 Monday, May 11, 2009 2:03 PM Maintenance Periodic Maintenance Table See table key below Odometer Reading in Miles (Kilometers) Component Page Clutch Lever (Mechanical) Control Cables Crankcase Vent Drive Belt Drive Belt Adjustment Adjust with each tire change thereafter Engine Oil &...
  • Page 143 08 Maintenance.fm Page 139 Monday, May 11, 2009 2:03 PM Maintenance Periodic Maintenance Table See table key below Odometer Reading in Miles (Kilometers) Component Page Evaporative Emission Control System (if equipped) Exhaust System Fasteners Front Brake Lever Front Fork Oil** Front Fork / Axle Maintenance Key: I = Inspect, clean, adjust, correct or replace if necessary;...
  • Page 144 08 Maintenance.fm Page 140 Monday, May 11, 2009 2:03 PM Maintenance Periodic Maintenance Table See table key below Odometer Reading in Miles (Kilometers) Component Page Fuel System Gear Shift Pedal Headlamp Ignition Switch & Locks Rear Wheel Align Rear Shock Rear Brake Pedal Road Test P P P P P P P P P P P P P P P P P P P P P...
  • Page 145 08 Maintenance.fm Page 141 Monday, May 11, 2009 2:03 PM Maintenance Periodic Maintenance Table See table key below Odometer Reading in Miles (Kilometers) Component Page Sidestand Sidestand Pad Spark Plugs Steering Head Bearings Swingarm Throttle Cable Tires Maintenance Key: I = Inspect, clean, adjust, correct or replace if necessary; P = Perform; R = Replace / Rebuild; L = Lubricate w/ proper lubricant;...

  • Page 146: Maintenance Log

    08 Maintenance.fm Page 142 Monday, May 11, 2009 2:03 PM Maintenance Maintenance Log Maintenance Performed Miles / Km Notes Performed...
  • Page 147 08 Maintenance.fm Page 143 Monday, May 11, 2009 2:03 PM Maintenance Maintenance Log Maintenance Performed Miles / Km Notes Performed...
  • Page 148 08 Maintenance.fm Page 144 Monday, May 11, 2009 2:03 PM Maintenance Maintenance Log Maintenance Performed Miles / Km Notes Performed...
  • Page 149 08 Maintenance.fm Page 145 Monday, May 11, 2009 2:03 PM Maintenance Maintenance Log Maintenance Performed Miles / Km Notes Performed...
  • Page 150 08 Maintenance.fm Page 146 Monday, May 11, 2009 2:03 PM Maintenance Engine Oil / Filter Change Change the engine oil at the intervals specified in the periodic maintenance table beginning on page 137. 1. Start the engine and allow it to idle for several min- utes.
  • Page 151 08 Maintenance.fm Page 147 Monday, May 11, 2009 2:03 PM Maintenance Engine Oil / Filter Change 5. Clean the drain plug sealing surface on the crankcase. 6. Reinstall the drain plug with a new seal. DO NOT overtighten. Torque: 15 ft-lbs (20 Nm) 7.
  • Page 152 08 Maintenance.fm Page 148 Monday, May 11, 2009 2:03 PM Maintenance Engine Oil / Filter Change 10. Start the engine and allow it to idle for several min- utes. Stop the engine. NOTICE: After an oil change, the low oil pressure indicator remains illuminated longer than usual before going out.

  • Page 153: Air Filter

    08 Maintenance.fm Page 149 Monday, May 11, 2009 2:03 PM Maintenance Air Filter Inspect the air filter often if riding in unusually wet or dusty conditions. Do not apply air filter oil to this air filter. Tabs 1. Remove the two air filter retaining screws. 2.

  • Page 154: Drive Belt Condition

    08 Maintenance.fm Page 150 Monday, May 11, 2009 2:03 PM Maintenance Drive Belt Condition Replace the drive belt if it is cracked or has broken teeth or frayed edges. No matter its condition, the drive belt should be replaced at periodic intervals. See the VICTORY Service Manual or an authorized VICTORY dealer.
  • Page 155 08 Maintenance.fm Page 151 Monday, May 11, 2009 2:03 PM Maintenance Drive Belt Wear Analysis Internal tooth cracks External tooth cracks: Missing teeth: Chipping (not serious): (hairline): Replace belt Replace belt OK to run, but monitor OK to run, but condition monitor condition Fuzzy edge cord:...
  • Page 156 Specifications are listed below for deflection and sonic tension. Sonic tension measurement requires Gates Sonic Tension Meter 507C or an equivalent. Drive Belt Deflection (Using PV-43532 Tension Gauge) Deflection VISION 8-BALL All other VISION 15 mm ± 0.5 mm 32 mm ± 0.5 mm...
  • Page 157 08 Maintenance.fm Page 153 Monday, May 11, 2009 2:03 PM Maintenance Drive Belt Tension Inspection On new drive systems or belt, adjust belt tension after the Base first 500 miles (800 km). Adjust tension at each tire change thereafter. Tip: Do not inspect or adjust drive belt tension when the belt is Belt Tension Gauge wet.
  • Page 158 08 Maintenance.fm Page 154 Monday, May 11, 2009 2:03 PM Maintenance Drive Belt Tension Inspection 1. Elevate and support the motorcycle with the rear tire slightly off the floor. CAUTION! Make sure the motorcycle is stable when elevated. Injury may occur if the motorcycle tips or falls. 2.
  • Page 159 08 Maintenance.fm Page 155 Monday, May 11, 2009 2:03 PM Maintenance Drive Belt Tension Inspection 6. Note the graduation mark on the rule that aligns with the lower edge of the belt. This position represents zero force. 90° Drive Belt 7.
  • Page 160 08 Maintenance.fm Page 156 Monday, May 11, 2009 2:03 PM Maintenance Drive Belt Tension Inspection Determine The Tightest Spot ° Rear Wheel 11. Repeat the above deflection measurements with the tire’s valve stem at the rear most position, top, and front most positions (90 degrees rotation each time), recording each measurement.
  • Page 161 08 Maintenance.fm Page 157 Monday, May 11, 2009 2:03 PM Maintenance Drive Belt Tension Adjustment 1. Move the wheel to the tight spot location deter- mined previously. 2. Loosen the rear axle nut on the left side. 3. Turn each axle adjuster nut clockwise an equal amount to tighten the belt (reduce deflection) or an equal amount counter-clockwise to loosen the belt (increase deflection).
  • Page 162 08 Maintenance.fm Page 158 Monday, May 11, 2009 2:03 PM Maintenance Drive Belt / Rear Wheel Alignment 1. Look at the alignment reference marks on each side of the swingarm and the marks on the axle plates to verify proper wheel alignment.
  • Page 163 08 Maintenance.fm Page 159 Monday, May 11, 2009 2:03 PM Maintenance Drive Belt Cleaning Cleaning the drive belt will maximize belt and sprocket life and minimize drive line noise. Clean the belt at every tire change. Clean the belt more often if riding in dirty, dusty or high debris environments.

  • Page 164: Rear Suspension Adjustment

    08 Maintenance.fm Page 160 Monday, May 11, 2009 2:03 PM Maintenance Rear Suspension Adjustment For riding comfort and to ensure proper ground clearance, adjust rear shock air pressure as specified on the label located in left saddlebag area (reproduced on page 162). Follow these guidelines when adjusting: •...
  • Page 165 08 Maintenance.fm Page 161 Monday, May 11, 2009 2:03 PM Maintenance Rear Suspension Adjustment If the VICTORY air pump and gauge are not available, use the gauge provided in the tool kit, and a pressurized air source with a maximum line pressure of 72 PSI (496 kPa). After using this gauge, remove it quickly to minimize leakage.
  • Page 166 08 Maintenance.fm Page 162 Monday, May 11, 2009 2:03 PM Maintenance Rear Suspension Adjustment...
  • Page 167 08 Maintenance.fm Page 163 Monday, May 11, 2009 2:03 PM Maintenance Rear Suspension Adjustment 1. Park the motorcycle with the sidestand down Bleed on a firm, level surface. Remove all riders and Button Fitting cargo. 2. Open the left saddlebag door. Remove the cap from the air fitting.
  • Page 168 08 Maintenance.fm Page 164 Monday, May 11, 2009 2:03 PM Maintenance Rear Suspension Adjustment 5. To reduce air pressure, push the bleed button on the gauge. Bleed pressure in small amounts until the desired pressure is attained. 6. To increase pressure, pump the handle until pressure increases to the desired amount. CAUTION! DO NOT exceed 72 PSI (496 kPa) in the shock.

  • Page 169: Swing Arm / Rear Axle Inspection

    08 Maintenance.fm Page 165 Monday, May 11, 2009 2:03 PM Maintenance Swing Arm / Rear Axle Inspection 1. Sit in the operator's seat and slowly bounce the rear suspension a few times. Make sure the suspension moves freely without binding. Listen for abnormal noises. 2.
  • Page 170 08 Maintenance.fm Page 166 Monday, May 11, 2009 2:03 PM Maintenance Swing Arm / Rear Axle Inspection 5. Grasp the top or bottom surface of the tire and try to move it side to side. If there is movement at the rear axle, inspect wheel bearings and rear axle nut torque.
  • Page 171 08 Maintenance.fm Page 167 Monday, May 11, 2009 2:03 PM Maintenance Front Fork / Suspension Inspection 1. Place the motorcycle on the sidestand and inspect the front forks. Make sure there is no fork oil present on the outer fork tubes, around the fork seals or around the inner tubes.

  • Page 172: Steering Head Inspection

    08 Maintenance.fm Page 168 Monday, May 11, 2009 2:03 PM Maintenance Steering Head Inspection 1. Elevate and support the motorcycle with the View front tire slightly off the floor. CAUTION! Make sure the motorcycle is stable when elevated. Injury may occur if the motorcycle tips or falls. 2.

  • Page 173: Evaporative Emission Control System

    08 Maintenance.fm Page 169 Monday, May 11, 2009 2:03 PM Maintenance Fuel System Components 1. Inspect fuel hoses for cracks or damage. 2. Inspect hose connections at the fuel tank and at the fuel rail for dampness or stains from leaks. Evaporative Emission Control System 1.

  • Page 174: Fast Idle

    08 Maintenance.fm Page 170 Monday, May 11, 2009 2:03 PM Maintenance Fast Idle A fast idle speed during warm up of between 1200 and 2000 RPM is automatically set by the EFI system Idle Air Control (IAC). Periodic adjustment is not required. Crankcase Breather Hose Breather Hose Inspect the crankcase breather hose for cracks or damage.

  • Page 175: Throttle Control Inspection

    08 Maintenance.fm Page 171 Monday, May 11, 2009 2:03 PM Maintenance Throttle Control Inspection 1. With the engine OFF, rotate the throttle control grip fully open and then release it. It should rotate smoothly from the rest position to the completely open position.

  • Page 176: Throttle Cable Freeplay

    08 Maintenance.fm Page 172 Monday, May 11, 2009 2:03 PM Maintenance Throttle Cable Freeplay Throttle freeplay is the amount of throttle control grip movement from the rest position to the point of cable resistance. Measure this distance. Freeplay should be 2-4 mm.
  • Page 177 08 Maintenance.fm Page 173 Monday, May 11, 2009 2:03 PM Maintenance Throttle Cable Freeplay 4. Turn the adjuster on the throttle opening cable (front cable) away from the lock nut until throttle freeplay is 2-4 mm. 5. To adjust the closing cable (rear cable), hold the throttle grip lightly in the closed posi- tion.

  • Page 178: Throttle Cable Lubrication

    08 Maintenance.fm Page 174 Monday, May 11, 2009 2:03 PM Maintenance Throttle Cable Lubrication Lubricate control cable ends at the intervals recommended in the periodic maintenance table beginning on page 137. NOTICE: External casings are factory-lubricated. Additional lubrication could be detrimental to cable performance.

  • Page 179: Cruise Control Cable Inspection

    08 Maintenance.fm Page 175 Monday, May 11, 2009 2:03 PM Maintenance Cruise Control Cable Inspection (if equipped) 1. Remove the right side access cover. 2. Inspect the throttle body end of the cruise control cable for fraying and be sure the end is secured in the bracket.

  • Page 180: Hydraulic Clutch Fluid

    08 Maintenance.fm Page 176 Monday, May 11, 2009 2:03 PM Maintenance Hydraulic Clutch Fluid Check the hydraulic clutch fluid level. See page 103. The fluid level should be at or above the top of the sight glass. Add fluid as needed. Replace cloudy or contaminated fluid. Use DOT 4 brake fluid in the hydraulic clutch reservoir.
  • Page 181 08 Maintenance.fm Page 177 Monday, May 11, 2009 2:03 PM Maintenance Hydraulic Clutch Fluid 1. Straddle the motorcycle and bring it to the fully upright position. Position the handlebars so that the Minimum fluid reservoir is level. Level 2. Wipe the fluid container and the area around the res- ervoir cover with a clean cloth.
  • Page 182 08 Maintenance.fm Page 178 Monday, May 11, 2009 2:03 PM Maintenance Mechanical Clutch Lever Freeplay 1. Remove the right side access cover. 2. Hold the clutch cable and loosen the adjuster lock nut. 3. While holding the cable, turn the cable adjuster inward or outward until clutch lever freeplay is 0.5-1.5 mm.
  • Page 183 08 Maintenance.fm Page 179 Monday, May 11, 2009 2:03 PM Maintenance Mechanical Clutch Lever Lubrication 1. Remove the right side access cover. Loosen the clutch Pivot Screw cable adjuster lock nut. 2. Turn the cable adjuster completely inward to provide maximum lever freeplay.
  • Page 184 08 Maintenance.fm Page 180 Monday, May 11, 2009 2:03 PM Maintenance Mechanical Clutch Cable Lubrication Lubricate control cable ends at the intervals recommended in the periodic maintenance table beginning on page 137. NOTICE: External casings are factory-lubricated. Additional lubrication could be detrimental to cable performance.
  • Page 185 08 Maintenance.fm Page 181 Monday, May 11, 2009 2:03 PM Maintenance Front Brake Lever 1. See page 77 for front brake lever reach adjustments. 2. Lubricate the pivot bushing at the intervals recom- mended in the periodic maintenance table beginning on page 137.

  • Page 186: Brake Fluid Precautions

    08 Maintenance.fm Page 182 Monday, May 11, 2009 2:03 PM Maintenance Brake Fluid Precautions WARNING Using the wrong fluid or allowing air or contaminants into the fluid system can damage the system seals or result in a malfunction that could lead to serious injury or death. Use only DOT 4 brake fluid from a sealed container.

  • Page 187: Rear Brake Fluid

    08 Maintenance.fm Page 183 Monday, May 11, 2009 2:03 PM Maintenance Rear Brake Fluid 1. Position the motorcycle on level ground in the fully upright position. 2. The rear brake fluid reservoir is located near the rear brake pedal, just inside the right lower leg fairing. Wipe the fluid container and the area around the reservoir cover with a clean cloth.

  • Page 188: Front Brake Fluid

    08 Maintenance.fm Page 184 Monday, May 11, 2009 2:03 PM Maintenance Front Brake Fluid Change the brake fluid at the intervals recommended in the periodic maintenance table beginning on page 137. Maximum Level Do not attempt to change the anti-lock brake system fluid.
  • Page 189 08 Maintenance.fm Page 185 Monday, May 11, 2009 2:03 PM Maintenance Front Brake Fluid 3. To add fluid, remove the three reservoir cover screws. Remove the cover and diaphragm. Carefully add fluid to the top of the sight glass. Do not overfill. Reinstall the diaphragm, cover and screws.
  • Page 190 08 Maintenance.fm Page 186 Monday, May 11, 2009 2:03 PM Maintenance Brake Disc Inspection / Cleaning 1. Inspect brake pads as outlined on page 101. 2. Inspect brake discs for nicks, scratches, cracks or other damage. Inspect the thickness of each brake disc at four or more locations around the disc.
  • Page 191 08 Maintenance.fm Page 187 Monday, May 11, 2009 2:03 PM Maintenance Brake Hoses / Connections Inspect all brake hoses and connections for dampness or stains from leaking or dried fluid. Tighten any leaking connections and replace components as necessary. See the VICTORY Service Manual or your authorized VICTORY dealer.
  • Page 192 08 Maintenance.fm Page 188 Monday, May 11, 2009 2:03 PM Maintenance Gear Shift Pedal 1. Inspect the shift pedal and linkage. Tighten any loose fasteners. 2. Lubricate the pivot bushing at the intervals rec- ommended in the periodic maintenance table beginning on page 137.

  • Page 193: Wheel Inspection

    08 Maintenance.fm Page 189 Monday, May 11, 2009 2:03 PM Maintenance Wheel Inspection Inspect both wheels for cracks or damage and replace damaged wheels promptly. Do not operate the motorcycle if wheels are damaged or cracked. See the VICTORY Service Manual or your authorized VICTORY dealer.
  • Page 194 08 Maintenance.fm Page 190 Monday, May 11, 2009 2:03 PM Maintenance Tires WARNING Operating the motorcycle with improper tires or with improper or uneven tire pressure could cause loss of control or accident. Always use the correct size and type of tires specified for your vehicle. Always maintain proper tire pressure as recommended in the owner's manual and on safety labels.

  • Page 195: Recommended Pressure

    08 Maintenance.fm Page 191 Monday, May 11, 2009 2:03 PM Maintenance Tires Tire Pressure Riding warms the tires and increases tire air pressure. For an accurate reading, check tire pressure before riding. Adjust tire pressure as recommended for the total weight of your intended load (see table).

  • Page 196: Spark Plugs

    08 Maintenance.fm Page 192 Monday, May 11, 2009 2:03 PM Maintenance Spark Plugs Replace spark plugs at the intervals recommended in the periodic maintenance table beginning on page 137. Always replace spark plugs in pairs. .036 inch (0.9 mm) Spark Plug Specifications Spark Plug Type NGK DCPR6E Spark Plug Gap...
  • Page 197 08 Maintenance.fm Page 193 Monday, May 11, 2009 2:03 PM Maintenance Spark Plugs CAUTION! Wear eye and face protection when using pressurized air. 3. To prevent debris from entering the spark plug hole, use compressed air to clean the area around the plugs before removing them.

  • Page 198: Exhaust System Inspection

    08 Maintenance.fm Page 194 Monday, May 11, 2009 2:03 PM Maintenance Engine Compression Test An engine compression test can be performed to monitor general engine condition. See the VICTORY Service Manual or your authorized VICTORY dealer. Exhaust System Inspection Check the exhaust system for stains from leaking exhaust gasses. Replace damaged or leak- ing exhaust gaskets.
  • Page 199 08 Maintenance.fm Page 195 Monday, May 11, 2009 2:03 PM Maintenance Battery The motorcycle battery is a sealed, maintenance-free battery. Do not remove the battery cap strip for any reason. Keep the battery connections clean and tight at all times. WARNING Battery electrolyte is poisonous.

  • Page 200: Battery Removal

    08 Maintenance.fm Page 196 Monday, May 11, 2009 2:03 PM Maintenance Battery Removal 1. Turn the handlebars full right. 2. Remove the five belly pan screws. Tool: 6 mm Allen wrench 3. Remove the screw that joins the two side grills.
  • Page 201 08 Maintenance.fm Page 197 Monday, May 11, 2009 2:03 PM Maintenance Battery Removal WARNING! Improperly connecting or disconnecting battery cables can result in an explosion and cause serious injury or death. When removing the battery, always disconnect the negative (black) cable first.

  • Page 202: Battery Installation

    08 Maintenance.fm Page 198 Monday, May 11, 2009 2:03 PM Maintenance Battery Installation WARNING! Improperly connecting or disconnecting battery 85 in-lbs (10 Nm) cables can result in an explosion and cause serious injury or 36 in-lbs (4 Nm) death. When removing the battery, always disconnect the negative (black) cable first.

  • Page 203: Battery Charging

    08 Maintenance.fm Page 199 Monday, May 11, 2009 2:03 PM Maintenance Battery Charging Tip: If your VICTORY motorcycle will not be used for a period of 6 weeks or longer, a maintenance charger should be connected to the battery. A fused maintenance charger connection is provided. The connector is designed for use with the VICTORY accessory maintenance charger available at your authorized VICTORY dealer.
  • Page 204 08 Maintenance.fm Page 200 Monday, May 11, 2009 2:03 PM Maintenance Ignition Switch / Lock Lubrication Periodically lubricate the ignition switch and door locks. We recommend the use of VIC- TORY Multi-Purpose Lubricant. 1. Spray lubricant directly into the ignition switch and into each lock cylinder for 1-2 sec- onds.

  • Page 205: Sidestand Lubrication

    08 Maintenance.fm Page 201 Monday, May 11, 2009 2:03 PM Maintenance Sidestand Lubrication Periodically lubricate the sidestand pivot and the ends of the spring. See page 107 for sidestand inspections. Fastener Inspection 1. Inspect the entire motorcycle chassis and engine for loose, damaged or missing fasteners.
  • Page 206 08 Maintenance.fm Page 202 Monday, May 11, 2009 2:03 PM Maintenance Seat Removal / Installation 1. Open the glove compartment door and the fuel door. 2. Lift the console trim panel straight upward at each corner to remove it. Do not tip the panel rearward. 3.

  • Page 207: Trunk Removal

    08 Maintenance.fm Page 203 Monday, May 11, 2009 2:03 PM Maintenance Trunk Removal 1. Remove the seat. See page 202. Wire 2. Disconnect the trunk wire harness. Harness 3. Remove the license plate. 4. Remove the two 4 mm Allen screws from bottom of the license plate bracket.

  • Page 208: Trunk Installation

    08 Maintenance.fm Page 204 Monday, May 11, 2009 2:03 PM Maintenance Trunk Removal 6. Remove the compartment cover by squeezing between the two notches. 7. Remove three of the four trunk mount bolts. Support the trunk before removing the last bolt. Tool: 13 mm socket, extension, drive handle 8.

  • Page 209: Windshield Trim Panel Removal

    08 Maintenance.fm Page 205 Monday, May 11, 2009 2:03 PM Maintenance Windshield Trim Panel Removal Remove the windshield trim panel to access fuse boxes, the manual windshield adjustment mechanism, the headlamp adjustment knob and the front turn signal bulbs. 1. Lift each panel end upward to release the ends. 2.

  • Page 210: Street Trim Panel Removal

    08 Maintenance.fm Page 206 Monday, May 11, 2009 2:03 PM Maintenance Street Trim Panel Removal 1. Remove the seat, license plate and bracket. See page 202. Tabs 2. Working from top to bottom, lift each edge of the tail molding to release the tabs. Lift the tail molding just enough to provide clearance to remove the trim panel.

  • Page 211: Street Trim Panel Installation

    08 Maintenance.fm Page 207 Monday, May 11, 2009 2:03 PM Maintenance Street Trim Panel Installation 1. Remove the seat, license plate and bracket. 2. Working from top to bottom, lift each edge of the tail molding to release the tabs. Lift the tail molding just enough to provide clearance to install the trim panel.

  • Page 212: Headlamp Bulb Replacement

    08 Maintenance.fm Page 208 Monday, May 11, 2009 2:03 PM Maintenance Headlamp Bulb Replacement 1. Remove the air filter. See page 149. 2. Pull the sealing boot away from the back of the bulbs and housing. 3. Press the looped end of the wire bulb retainer clip and swing the end toward the center of the bulb to release it from the latch tab.
  • Page 213 08 Maintenance.fm Page 209 Monday, May 11, 2009 2:03 PM Maintenance Front Turn Signal Bulb Replacement IMPORTANT Disconnect the wire harness from 1. Remove the windshield trim panel. See page 205. the socket before removing the 2. Disconnect the wire harness from the socket socket from the lens.

  • Page 214: Running Light Bulb Replacement

    08 Maintenance.fm Page 210 Monday, May 11, 2009 2:03 PM Maintenance Running Light Bulb Replacement Replace the running light bulb (innermost bulb) using the same procedure as the turn signal bulb, but leave the wire harness attached to the bulb socket when removing the socket from the lens.
  • Page 215 08 Maintenance.fm Page 211 Monday, May 11, 2009 2:03 PM Maintenance Taillight / Brake Light / Turn Signal Bulb Replacement 4. Remove the six button-head screws from the lower rear Screws bumper. Remove the five button-head screws that secure the taillight lenses. Tool: 4 mm Allen wrench 5.

  • Page 216: Headlamp Aim Adjustment

    08 Maintenance.fm Page 212 Monday, May 11, 2009 2:03 PM Maintenance Headlamp Aim Adjustment The high beam should shine straight forward. The low beam will spread more toward the right (U.S./Canada). 1. Verify that tire pressure is at specification. See 25 ft.
  • Page 217 08 Maintenance.fm Page 213 Monday, May 11, 2009 2:03 PM Maintenance Headlamp Aim Adjustment 5. Remove the windshield trim panel. See page 205. Reach through the opening in the headlamp housing mount. 6. To lower the headlamp beam, turn the knob clock- wise (as viewed from the operator’s seat).

  • Page 218: Fuse Boxes

    08 Maintenance.fm Page 214 Monday, May 11, 2009 2:03 PM Maintenance Fuse Boxes Remove the windshield trim panel to access the fuses, auto-reset circuit breakers and relays. See page 205. Use the fuse puller provided in the tool kit to remove a fuse. Left Fuse Box Right Fuse Box...

  • Page 219: Fuse Replacement

    08 Maintenance.fm Page 215 Monday, May 11, 2009 2:03 PM Maintenance Fuse Replacement 1. Remove the windshield trim panel. See page 205. 2. Push the center of the dart upward to remove a fuse box cover panel. 3. Pull the tab to release a fuse box cover. Tip: The reverse system fuse is located on the left rear side of the motorcycle, under the seat NOTICE: Always use the recommended fuse to prevent electrical system damage.

  • Page 220: Electrical Precautions

    08 Maintenance.fm Page 216 Monday, May 11, 2009 2:03 PM Maintenance Electrical Precautions Be aware of the following “DO’s” and “DO NOT’s” regarding the electrical system to avoid disruption of electrical signals and possible system malfunction. • DO use ONLY genuine VICTORY parts and accessories designed for your model and fol- low the instructions provided.
  • Page 221 08 Maintenance.fm Page 217 Monday, May 11, 2009 2:03 PM Maintenance Electrical Precautions DO NOT: • DO NOT splice or cut any wires. • DO NOT tap in to any power or ground on the motorcycle unless specifically directed to do so by the VICTORY instructions that come with the kit.

  • Page 222: Road Test

    08 Maintenance.fm Page 218 Monday, May 11, 2009 2:03 PM Maintenance Elevating the Motorcycle WARNING! Serious injury or death can occur if the motorcycle tips or falls. Make sure the motorcycle will not tip or fall while elevated or while on the sidestand. Some procedures require raising the motorcycle to remove weight from the component being inspected.
  • Page 223 08 Maintenance.fm Page 219 Monday, May 11, 2009 2:03 PM Maintenance Fastener Torque Refer to the service manual or an authorized VICTORY dealer for procedures and fastener torques not listed in this manual. Switch Screws Handlebar Front Fender 25 in-lbs (3 Nm) Windshield Screws End Cap Screws 8 ft-lbs (11 Nm)

  • Page 224: Troubleshooting

    08 Maintenance.fm Page 220 Monday, May 11, 2009 2:03 PM Maintenance Troubleshooting For your personal safety, do not attempt inspection or repairs not fully described in this rider’s manual. Contact an authorized VICTORY dealer for service if you cannot determine the cause of a problem or if the inspection / repair exceeds your mechanical ability or tool resources.
  • Page 225 08 Maintenance.fm Page 221 Monday, May 11, 2009 2:03 PM Maintenance Troubleshooting Starter Motor Does Not Turn or Turns Slowly Possible Cause Possible Remedy/Action Engine Stop / Run Switch in Stop Position Place switch in RUN position. Battery Discharged Fully charge the battery. See page 199. Battery Cables Loose or Corroded Inspect battery cables.
  • Page 226 08 Maintenance.fm Page 222 Monday, May 11, 2009 2:03 PM Maintenance Troubleshooting Engine Starts But Misses or Runs Poorly Tip: Turn engine OFF before inspecting any of these items. Possible Cause Possible Remedy/Action Battery Discharged Fully charge the battery. See page 199. Battery Cables Loose or Corroded Inspect battery cables and connections.
  • Page 227 08 Maintenance.fm Page 223 Monday, May 11, 2009 2:03 PM Maintenance Troubleshooting Shifting Difficulties or Hard to Find Neutral Possible Cause Possible Remedy/Action Shift Linkage Bushings Dry Or Worn Lubricate shift linkage. Engine Oil Level Incorrect Or Wrong Type Inspect level and quality of oil. See page 92. Hydraulic Clutch Fluid Contaminated Flush hydraulic clutch fluid (see dealer).
  • Page 228 08 Maintenance.fm Page 224 Monday, May 11, 2009 2:03 PM Maintenance Troubleshooting Battery Charging Rate Low or Battery Discharges Possible Cause Possible Remedy/Action Loose/Corroded Charging Circuit Check/clean battery cable connections. Check/clean Connection charging circuit connections. See dealer. Accessory Load Exceeds Charge Rate Use ACC position and limit accessory operation when engine is off.
  • Page 229 08 Maintenance.fm Page 225 Monday, May 11, 2009 2:03 PM Maintenance Troubleshooting Brake Noise / Poor Brake Performance Tip: Contact a VICTORY dealer if brake performance does not return after these inspections. Possible Cause Possible Remedy/Action Dust / Dirt On Brake Disc(s) Clean disc.
  • Page 230 08 Maintenance.fm Page 226 Monday, May 11, 2009 2:03 PM Maintenance Service Manual Availability Some procedures are beyond the scope of this manual. See your dealer to purchase a VIC- TORY Service Manual for your motorcycle. Some procedures provided in the Service Manual require specialized knowledge, equipment, and training.

  • Page 231: Cleaning And Storage

    9922441.book Page 227 Monday, May 11, 2009 1:16 PM Cleaning and Storage VICTORY Cleaning Products This section provides tips on the very best way to clean, polish and preserve every surface of your beautiful new VICTORY Motorcycle. We recommend the use of our new Pure VIC- TORY cleaning and polishing products and accessories, which have been specially designed to offer the best care possible for your VICTORY motorcycle.
  • Page 232 9922441.book Page 228 Monday, May 11, 2009 1:16 PM Cleaning and Storage Washing the Motorcycle NOTICE: Do not use pressurized water to wash the motorcycle. Water may seep in and deteriorate wheel bearings, brake caliper assemblies, brake master cylinders, electrical connectors, steering head bearings, and transmission seals.
  • Page 233 9922441.book Page 229 Monday, May 11, 2009 1:16 PM Cleaning and Storage Washing the Motorcycle 2. Rinse off as much dirt and mud as possible with water running at low pressure. Use as little water as possible when washing near the air cleaner or the exhaust pipe openings. Dry these components thoroughly before using the motorcycle.
  • Page 234 9922441.book Page 230 Monday, May 11, 2009 1:16 PM Cleaning and Storage Washing the Motorcycle There are two totally different styles of motorcycle washing and there is a Pure VICTORY Polish product for each style. Standard “Bucket Wash” This is the conventional way to wash your motorcycle. We recommend the use of Pure VIC- TORY Bike Wash Concentrate, a concentrated gentle product formulated to clean without diminishing the life of any durable polish.
  • Page 235 9922441.book Page 231 Monday, May 11, 2009 1:16 PM Cleaning and Storage Washing the Motorcycle Spray-Rinse-and-Ride Wash This is the new way to clean your VICTORY quickly and easily, then resume riding. Pure VICTORY Spray Rinse and Ride bike wash is safe and will not harm any surface that water won’t harm.
  • Page 236 9922441.book Page 232 Monday, May 11, 2009 1:16 PM Cleaning and Storage Washing the Motorcycle Quick Clean-Ups For quick clean-ups between washings, or when water is not available, use Pure VICTORY Spray & Wipe Instant Detailer, a complete spray-and-wipe product designed to clean and polish all surfaces.
  • Page 237 9922441.book Page 233 Monday, May 11, 2009 1:16 PM Cleaning and Storage Polishing the Motorcycle Polished Aluminum Care When a VICTORY is new, the polished aluminum wheels, hand levers and shifter shine like chrome. Ultraviolet (UV) rays and oxidation will cause polished aluminum to grow dull, however, if it’s not properly polished and protected.
  • Page 238 9922441.book Page 234 Monday, May 11, 2009 1:16 PM Cleaning and Storage Polishing the Motorcycle There are now two totally different styles of polishing or protecting your paint and chrome. Standard Method of Polishing Paint and Chrome Pure VICTORY Windshield, Paint and Chrome Polish is a unique formula designed to pro- duce a glass-like shine on painted or clear-coated finishes and chrome surfaces.
  • Page 239 9922441.book Page 235 Monday, May 11, 2009 1:16 PM Cleaning and Storage Polishing the Motorcycle Standard Method of Polishing Paint and Chrome 1. Shake the container well before using. 2. Apply with Pure VICTORY 100% Microfiber Wax Applicator in a circular motion or straight line to a clean surface.
  • Page 240 9922441.book Page 236 Monday, May 11, 2009 1:16 PM Cleaning and Storage Polishing the Motorcycle Premium Polishing for Long-Lasting Protection This newer style of polishing paint and chrome utilizes the latest in high-quality polymer technology that provides the longest-lasting protection available in the polish industry today. Pure VICTORY Liquid Spray Wax for Windshields, Paint &...
  • Page 241 9922441.book Page 237 Monday, May 11, 2009 1:16 PM Cleaning and Storage Polishing the Motorcycle Premium Polishing for Long-Lasting Protection 1. Shake container well before use. 2. Begin by washing and rinsing the motorcycle. 3. Spray Liquid Spray Wax on a wet or dry bike, one section at a time. (For best results, the bike’s surface should be cool.) 4.
  • Page 242 9922441.book Page 238 Monday, May 11, 2009 1:16 PM Cleaning and Storage Leather, Rubber and Vinyl Care WARNING Never use a non-recommended protectant on seats, footrests, hand grips or tires. Slippery seats, footrests or hand grips can cause loss of control. Slippery tires can cause loss of traction and loss of control.
  • Page 243 Applied to rubber, this product creates a water-repellent, like-new appearance. This product can also be used to restore or maintain the factory finish on a VICTORY VISION instrument panel/dash and rear storage compartment black vinyl surfaces. Regular use increases soil resistance.
  • Page 244 9922441.book Page 240 Monday, May 11, 2009 1:16 PM Cleaning and Storage If you will not operate the motorcycle for several months, such as during the winter, store the motorcycle to prevent damage to the fuel system and the battery and to protect components from corrosion or deterioration.

  • Page 245: Clean And Protect The Motorcycle

    9922441.book Page 241 Monday, May 11, 2009 1:16 PM Cleaning and Storage Clean and Protect the Motorcycle To prepare the motorcycle for storage, begin by cleaning it as outlined beginning on. Wax painted surfaces and polish chromed and other metal surfaces. Apply protectant to exposed rubber, vinyl, and plastic parts.

  • Page 246: Battery Care

    9922441.book Page 242 Monday, May 11, 2009 1:16 PM Cleaning and Storage Engine Protection Change the engine oil. See page 146. Carbon deposits and combustion acids, normally sus- pended in the engine oil when in service, settle on internal engine components during stor- age.

  • Page 247: Park And Cover The Motorcycle

    9922441.book Page 243 Monday, May 11, 2009 1:16 PM Cleaning and Storage Park and Cover the Motorcycle Park the motorcycle in its storage location. Cover it with a genuine VICTORY motorcycle cover, or a cover made from a durable, breathable material designed for storage. Covering the motorcycle helps protect it from dust and other airborne materials.

  • Page 248: Removal From Storage

    9922441.book Page 244 Monday, May 11, 2009 1:16 PM Cleaning and Storage Removal From Storage 1. Remove the cover and unlock the front 5. Inspect the storage area for signs of forks (if locked). fluid leaks. Identify and perform service to any leaking components.

  • Page 249: Warranty

    9922441.book Page 245 Monday, May 11, 2009 1:16 PM Warranty Motorcycle Noise Regulation Tampering with noise control systems is prohibited. Federal law prohibits the following acts or causing thereof: • The removal or rendering inoperative by any person other than for the purposes of maintenance, repair, or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or deliv- ery to the ultimate purchaser or while it is in use, or •...

  • Page 250: Emissions Control System Warranty

    9922441.book Page 246 Monday, May 11, 2009 1:16 PM Warranty Emissions Control System Warranty VICTORY MOTORCYCLES, Polaris Sales Inc. - Emission Control System Warranty Statement Your Warranty Rights and Obligations The California Air Resources Board and VICTORY Motorcycle Division, Polaris Sales Inc. (hereinafter VICTORY) are pleased to explain the emission control system warranty on your 2007 or later VICTORY motorcycle.
  • Page 251 9922441.book Page 247 Monday, May 11, 2009 1:16 PM Warranty Emissions Control System Warranty Owner’s Warranty Responsibilities As the motorcycle owner, you are responsible for the performance of the required maintenance listed in your Rider’s manual. VICTORY recommends that you retain all receipts covering maintenance on your motorcycle, but VICTORY cannot deny war- ranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
  • Page 252 9922441.book Page 248 Monday, May 11, 2009 1:16 PM Warranty Emissions Control System Warranty VICTORY Motorcycle Division, Polaris Sales Inc. - Limited Warranty on Emission Control System VICTORY Motorcycle Division, Polaris Sales Inc., (hereinafter VICTORY) warrants that each new 2009 and later VICTORY Motorcycle that includes as standard equipment a headlight, taillight and stoplight, and is street legal: A.
  • Page 253 9922441.book Page 249 Monday, May 11, 2009 1:16 PM Warranty Emissions Control System Warranty l. Coverage Warranty defects shall be remedied during customary business hours at any authorized VICTORY motorcycle dealer located within the United States of America in compliance with the Clean Air Act and applicable regulations of the United States Envi- ronmental Protection Agency and the California Air Resources Board.
  • Page 254 9922441.book Page 250 Monday, May 11, 2009 1:16 PM Warranty Emissions Control System Warranty ll. Limitations The Emission Control System Warranty shall not cover any of the following: A. Repair or replacement required as a result of: • Accident • Misuse •...
  • Page 255 9922441.book Page 251 Monday, May 11, 2009 1:16 PM Warranty Emissions Control System Warranty lll. Limited Liability A. The liability of VICTORY under this Emission Control System Warranty is limited solely to the remedying of defects in material or workmanship by an authorized VICTORY motorcycle dealer at its place of business during customary business hours.
  • Page 256 9922441.book Page 252 Monday, May 11, 2009 1:16 PM Warranty Emissions Control System Warranty lV. Legal Rights THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. V. This warranty is in addition to the VICTORY Limited Motorcycle Warranty Vl.

  • Page 257: Victory Motorcycle Warranty Policy

    9922441.book Page 253 Monday, May 11, 2009 1:16 PM Warranty VICTORY Motorcycle Warranty Policy Limited Warranty VICTORY Motorcycle Division, Polaris Sales Inc., P.O. Box 47700, Hamel, Minnesota 55340-9960, gives a ONE YEAR LIM- ITED WARRANTY on all components of the VICTORY Motorcycle against defects in material or workmanship. This war- ranty covers the parts and labor charges for repair or replacement of defective parts which are covered by this warranty.
  • Page 258 9922441.book Page 254 Monday, May 11, 2009 1:16 PM Warranty VICTORY Motorcycle Warranty Policy Warranty Coverage and Exclusions: Limitations of Warranties and Remedies The warranty excludes any failures that are not caused by a defect in material or workmanship. This warranty does not cover accidental damage, normal wear and tear, abuse or improper handling.
  • Page 259 9922441.book Page 255 Monday, May 11, 2009 1:16 PM Warranty VICTORY Motorcycle Warranty Policy Warranty Coverage and Exclusions: Limitations of Warranties and Remedies ALL IMPLIED WARRANTIES (INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT- ABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO THE ABOVE ONE YEAR WARRANTY PERIOD.

  • Page 260: Specifications

    11 Specifications.fm Page 256 Wednesday, May 13, 2009 7:48 AM Specifications 2010 Vision 2010 Vision 2010 Vision 8-Ball/Ness Tour Tour ABS Dimensions (Dimensions and specifications may vary with features, options and accessories) Overall Length 103.5 in. (262.9 cm) 104.9 in. (266.5 cm) 104.9 in.
  • Page 261 9922441.book Page 257 Monday, May 11, 2009 1:16 PM Specifications All 2010 Vision Models Capacities Engine Oil 5 qt (4.75 l) [Approximately 4.5 qt (4.25 l) at oil change] Fuel 6.0 Gallons (22.7 l) Fuel Reserve 1.0 Gallon (3.8 l) Engine ®...
  • Page 262 Front Fork Tube Diameter 46 mm Rear Suspension Type / Travel Single Monotube Air Adjustable Shock: 4.7 in. (12 cm) 3.5 in. (9 cm) (8-Ball) Swingarm Cast Aluminum with Rising Rate Linkage Front Brakes Dual Disc / Floating Rotor / 3 Piston Calipers...
  • Page 263 9922441.book Page 259 Monday, May 11, 2009 1:16 PM Specifications All 2010 Vision Models Drive System Gear Shift Pattern 1 Down 5 Up Internal Gear Ratios 3.15:1 2.03:1 1.53: 1.24:1 6th (Overdrive) .84:1 Final Drive Ratio 2.12:1 Clutch Type Wet, Multi Plate, Diaphragm Spring...
  • Page 264 9922441.book Page 260 Monday, May 11, 2009 1:16 PM Specifications All 2010 Vision Models Wheels And Tires Front Wheel Type / Size Cast or Billet 18 x 3.0 inch Front Tire Type / Size DUNLOP Elite 3 - 130/70R18 63H Radial Rear Wheel Type / Size Cast or Billet 16 x 5.0 inch Rear Tire Type / Size...
  • Page 265 9922441.book Page 261 Monday, May 11, 2009 1:16 PM Specifications All 2010 Vision Models Fuses / Circuit Breakers Left Fuse Box Ignition 10A Breaker Headlight 20A Breaker Gauges Radio Secondary Lights Horn Turn Signal / Brake Right Fuse Box Engine 15A Breaker Windshield (Electric) Fuel Pump / Ignition Coil...

  • Page 266: Engine Oil Recommendation

    9922441.book Page 262 Monday, May 11, 2009 1:16 PM Specifications Fuel Recommendation For best performance, use only unleaded gasoline with a 91 pump octane minimum (R+M/2 Method). DO NOT USE E-85 GASOLINE OR GASOLINE CONTAINING METHANOL. Using E85 or gasoline / methanol blends can result in poor starting and driveability, and may damage critical fuel system components.

  • Page 267: Audio System

    9922441.book Page 263 Monday, May 11, 2009 1:16 PM Audio System Overview Audio System Introduction Radio Frequencies North America Not all motorcycles are equipped with all components discussed in the audio section • AM 520 to 1720 kHz of this manual. Components not installed at •...
  • Page 268 9922441.book Page 264 Monday, May 11, 2009 1:16 PM Audio System Overview Main User Interface...
  • Page 269 9922441.book Page 265 Monday, May 11, 2009 1:16 PM Audio System Overview Main User Interface Refer to the illustration on the previous page. 1. LCD screen: The LCD screen displays 3. Volume/Menu Option: information for the active sources. Adjust volume or cycle through menu options in the mode menus.
  • Page 270 9922441.book Page 266 Monday, May 11, 2009 1:16 PM Audio System Overview Main User Interface 5. Source (SRC): Press SRC U.S.A. Sources to cycle through available • FM • AM sources or to exit mode • WX • AUX (NAV MP3, AUX or iPod) menus.

  • Page 271: Audio Controls

    9922441.book Page 267 Monday, May 11, 2009 1:16 PM Audio System Overview Audio Controls Operation of the left handlebar audio controls is outlined in greater detail on the following pages. 1. Volume: Press to increase (+) or decrease (-) audio volume.
  • Page 272 9922441.book Page 268 Monday, May 11, 2009 1:16 PM Audio System Overview Citizens Band (CB) Radio Controls If equipped, the operator’s CB radio controls are located on the left handlebar above the audio controls. Operation of these controls is outlined in greater detail on the following pages.
  • Page 273 9922441.book Page 269 Monday, May 11, 2009 1:16 PM Audio System Overview Citizens Band (CB) Radio Controls Passenger CB Controls 1. Push-to-Talk (PTT): Press and hold the button to transmit. 2. Rear Volume: Press (+) or (-) on the passenger control to raise or lower volume.

  • Page 274: System Operation

    9922441.book Page 270 Monday, May 11, 2009 1:16 PM Audio System Operation Audio System Power The ignition key must be in the ACC or ON Press the power button to turn position to use the audio system. the audio system on. The screen will display the active With the key in the ACC or ON position and sources.
  • Page 275 9922441.book Page 271 Monday, May 11, 2009 1:16 PM Audio System Operation Audio System Power Audio Volume Control The driver can adjust volume for the front 1. Current audio source: and rear speakers, turn the speakers off or • (U.S.) FM / AM / WX / iPod - AUX / XM on and mute the system audio.
  • Page 276 9922441.book Page 272 Monday, May 11, 2009 1:16 PM Audio System Operation Audio Volume Control Passenger Volume Control Audio Volume The passenger can control the rear headset volume. Press (+) or (-) on the passenger Press and release (+) or (-) on the console to control to adjust the volume.
  • Page 277 9922441.book Page 273 Monday, May 11, 2009 1:16 PM Audio System Operation Selecting Audio Sources Press and release S/E or SRC until the FM source active: desired source is active. U.S. / European models 97.1 AM source active: U.S. models only 1130 WX (Weather) source active: U.S.
  • Page 278 9922441.book Page 274 Monday, May 11, 2009 1:16 PM Audio System Operation Selecting Audio Sources NAV MP3 source active: AUX source active: U.S. / European models U.S. / European models ICOM ICOM NAV MP3 CB19 CB19 iPod source active: XM Radio source active: U.S.
  • Page 279 9922441.book Page 275 Monday, May 11, 2009 1:16 PM Audio System Operation Selecting Audio Sources Audio Tuning MW (Medium Wave) Source: Use the tuner on the European models only left control to select radio stations. Press and release TUNE (+) or TUNE (-) to locate stations in single-step increments.
  • Page 280 9922441.book Page 276 Monday, May 11, 2009 1:16 PM Audio System Operation Memory Presets The audio system features 12 user-defined Press and hold one of the console preset but- presets for storing favorite stations. tons (1-12) until the audio sound is muted for 1/2 second.
  • Page 281 9922441.book Page 277 Monday, May 11, 2009 1:16 PM Audio System Operation Audio Mode Menus Entering Mode Menus Exiting Mode Menus Press and release the MODE Press S/E on the left button on the console panel to control to exit the enter the audio system mode screen and return to menus.
  • Page 282 9922441.book Page 278 Monday, May 11, 2009 1:16 PM Audio System Operation Audio Mode Menus To change mode settings, enter the mode menu. Press (+) or (-) on the console panel to change settings. Press S/E to save and exit. Bass Setting Treble Setting Press (+) or (-) on...
  • Page 283 9922441.book Page 279 Monday, May 11, 2009 1:16 PM Audio System Operation Audio Mode Menus To change mode settings, enter the mode menu. Press (+) or (-) on the console panel to change settings. Press S/E to save and exit. Fader Setting External Speakers Press (+) or (-) on...
  • Page 284 9922441.book Page 280 Monday, May 11, 2009 1:16 PM Audio System Operation Audio Mode Menus To change mode settings, enter the mode menu. Press (+) or (-) on the console panel to change settings. Press S/E to save and exit. Automatic Volume Control (AVC) When set, this Off: Volume will not adjust...
  • Page 285 9922441.book Page 281 Monday, May 11, 2009 1:16 PM Audio System Operation Audio Mode Menus CB Headset Volume Controls (if equipped) The headsets have three separate volume settings: Intercom (ICOM) volume, CB receive volume and entertainment (ENT) volume. Always position headsets with the speakers directly over your ears to ensure the best sound quality and volume.
  • Page 286 9922441.book Page 282 Monday, May 11, 2009 1:16 PM Audio System Operation Audio Mode Menus CB Headset ENT Mode (if equipped) To change mode settings, enter the mode menu. Press (+) or (-) on the console panel to change settings. Press S/E to save and exit. OFF: Only MIX: The audio source volume drops lower HEADSET ENT MODE...
  • Page 287 9922441.book Page 283 Monday, May 11, 2009 1:16 PM Audio System Operation Audio Mode Menus To change mode settings, enter the mode menu. Press (+) or (-) on the console panel to change settings. Press S/E to save and exit. Tip: Sources and menu options will be displayed CB LO/DX Mode only for installed components.
  • Page 288 9922441.book Page 284 Monday, May 11, 2009 1:16 PM Audio System Operation Audio Mode Menus To change mode settings, enter the mode AUX Mode menu. Press (+) or (-) on the console panel Press (+) or (-) on to change settings. Press S/E to save and AUX MODE the console panel exit.
  • Page 289 9922441.book Page 285 Monday, May 11, 2009 1:16 PM Audio System Operation Audio Mode Menus XM Category Press (+) or (-) on To change mode settings, enter the mode XM CATEGORY the console panel menu. Press (+) or (-) on the console panel All Channels to set the music to change settings.
  • Page 290 9922441.book Page 286 Monday, May 11, 2009 1:16 PM Audio System Operation Audio Mode Menus To change mode settings, enter the mode XM Tune Mode menu. Press (+) or (-) on the console panel Press (+) or (-) on XM TUNE MODE to change settings.

  • Page 291: Weather Band (Wx)

    9922441.book Page 287 Monday, May 11, 2009 1:16 PM Audio System Operation Weather Band (WX) Weather band channels are broadcast by the Press P1-P7 on the console to access a chan- National Oceanic and Atmospheric Admin- nel, or use TUNE (+) or TUNE (-). istration (NOAA).

  • Page 292: Cb Radio / Intercom (Icom)

    14 CB Radio ICOM.fm Page 288 Monday, May 11, 2009 2:26 PM CB Radio / ICOM System CB/ICOM Introduction In the U.S.A., refer to the Federal Commu- Headset Use nications Commission (FCC) Plain Rules The use of helmet-mounted headsets may be pamphlet accompanying this rider’s manual restricted or prohibited in some areas.

  • Page 293: Getting Started

    14 CB Radio ICOM.fm Page 289 Monday, May 11, 2009 2:26 PM CB Radio / ICOM System Getting Started The ignition key must be in the ACC or ON Tip: To minimize distractions while riding, always make adjustments to the CB/ICOM system position to use the audio system.
  • Page 294 14 CB Radio ICOM.fm Page 290 Monday, May 11, 2009 2:26 PM CB Radio / ICOM System CB Channels When the CB radio system is active, “CB” Push COM or ICOM on the left control or and the active channel will display. (+) or (-) on the console panel to change channels.
  • Page 295 14 CB Radio ICOM.fm Page 291 Monday, May 11, 2009 2:26 PM CB Radio / ICOM System Push-to-Talk (PTT) Press and hold the “TX” will display on the console screen top or bottom of the when one of the PTT buttons is pressed. PTT button to trans- “RX”...
  • Page 296 14 CB Radio ICOM.fm Page 292 Monday, May 11, 2009 2:26 PM CB Radio / ICOM System Squelch Squelch blocks undes- When squelch is set to OPEN, no filtering ired signals and noise occurs. Setting squelch to CLOSED blocks by allowing the recep- all signals, including strong signals.
  • Page 297 14 CB Radio ICOM.fm Page 293 Monday, May 11, 2009 2:26 PM CB Radio / ICOM System Driver CB Radio Volume Passenger CB Radio Volume To change The passenger can control rear headset vol- CB VOL 15 settings, enter the ume when Entertainment, CB radio or mode menu.
  • Page 298 14 CB Radio ICOM.fm Page 294 Monday, May 11, 2009 2:26 PM CB Radio / ICOM System Local/Distant CB Radio Mode To change mode Distant: Use this setting for weaker signals. CB LO / DX MODE settings, enter the Receiver sensitivity will be increased. Static DISTANT mode menu.
  • Page 299 14 CB Radio ICOM.fm Page 295 Monday, May 11, 2009 2:26 PM CB Radio / ICOM System CB Radio Frequencies The FCC has designated 40 citizen band (CB) channels for consumer use. Channel 9 is des- ignated as an EMERGENCY channel for emergency use only. CB Channels / Frequencies Freq.
  • Page 300 14 CB Radio ICOM.fm Page 296 Monday, May 11, 2009 2:26 PM CB Radio / ICOM System ICOM System Press and release VOX Break Setting ICOM on the left The intercom is opened and closed using a control to activate voice-operated switch (VOX).
  • Page 301 14 CB Radio ICOM.fm Page 297 Monday, May 11, 2009 2:26 PM CB Radio / ICOM System ICOM System VOX Break Setting Press S/E on the left control to exit the Push COM or ICOM or (+) or (-) on the screen and return to console panel to adjust the sensitivity set- the main display.
  • Page 302 14 CB Radio ICOM.fm Page 298 Monday, May 11, 2009 2:26 PM CB Radio / ICOM System ICOM System Driver ICOM Volume Passenger ICOM Volume To change The passenger can control rear ICOM VOL 15 settings, enter the speaker volume only when the mode menu.

  • Page 303: Headset Receptacles

    14 CB Radio ICOM.fm Page 299 Monday, May 11, 2009 2:26 PM CB Radio / ICOM System Headset Receptacles The driver’s headset receptacle is located on the console. The passenger’s receptacle (if equipped) is located near the passenger’s audio controls. Driver Headset 12-Volt...

  • Page 304: Aux / Ipod

    9922441.book Page 300 Monday, May 11, 2009 1:16 PM AUX / iPod Input Cable Setup The AUX and iPod input cables are con- nected to the audio system through a small hole in the left console storage bin. Only one input cable can be connected at any AUX Input given time.
  • Page 305 9922441.book Page 301 Monday, May 11, 2009 1:16 PM AUX / iPod Input Cable Setup To change an input cable: 6. Carefully push the 1. Open the left console storage bin. sealing 2. Locate the input cable and sealing grommet AUX Input grommet at the bottom of the bin.
  • Page 306 9922441.book Page 302 Monday, May 11, 2009 1:16 PM AUX / iPod Getting Started The ignition key must be in the ACC or ON Press the power button to turn the audio sys- position to use the audio system. tem on. Press and release the S/E button on the left control, or SRC on the console Tip: To prevent battery drain, do not leave the panel, until AUX or iPod is active.
  • Page 307 9922441.book Page 303 Monday, May 11, 2009 1:16 PM AUX / iPod Getting Started When AUX is active, the console screen To change the mode, press the MODE button will display “AUX” as the active source. on the console repeatedly to toggle to the AUX mode.

  • Page 308: Ipod Playlists

    9922441.book Page 304 Monday, May 11, 2009 1:16 PM AUX / iPod iPod Playlists Access the iPod’s main music library and Press and release preset button 1 to access user-defined playlists with the console pre- the iPod’s main music library. set buttons.
  • Page 309 9922441.book Page 305 Monday, May 11, 2009 1:16 PM AUX / iPod iPod Tuning Press TUNE (+) or TUNE (-) once to move Tip: To exit the screen without changing tracks, press S/E. one track forward or backward. Press the button twice (double click) to bring up the Track 1 track selection screen, then use the TUNE...
  • Page 310 9922441.book Page 306 Monday, May 11, 2009 1:16 PM AUX / iPod iPod Tuning Press and release any preset button to bring Tip: Press and hold TUNE (+) or TUNE (-) to fast-forward or fast-reverse the track. up the items in the selected list. Press TUNE (+) or TUNE (-) to make a selection.

  • Page 311: Xm Radio

    9922441.book Page 307 Monday, May 11, 2009 1:16 PM XM Radio About XM Radio XM is North America’s number one satellite radio company, offering an extraordinary vari- ety of commercial-free music, plus the best in premier sports, news, talk radio, comedy, chil- dren’s and entertainment programming, broadcast in superior digital audio quality coast to coast.

  • Page 312: Xm Ready Legal

    9922441.book Page 308 Monday, May 11, 2009 1:16 PM XM Radio XM Ready Legal ® XM monthly service subscription sold separately. XM Mini-Tuner and Home Dock required (each sold separately) to receive XM service. It is prohibited to copy, decompile, disassem- ble, reverse engineer, hack, manipulate or otherwise make available any technology or soft- ware incorporated in receivers compatible with the XM satellite Radio System.

  • Page 313: Xm Ready Subscription

    9922441.book Page 309 Monday, May 11, 2009 1:16 PM XM Radio XM Ready Subscription Once you have installed the XM Mini- Record the Radio ID below for reference. Tuner Home Dock, inserted the XM Mini- Tip: The XM Radio ID does not use the letters “I”, Tuner, connected the XM Mini-Tuner Home “O”, “S”...
  • Page 314 9922441.book Page 310 Monday, May 11, 2009 1:16 PM XM Radio XM Ready Subscription Activate your XM Satellite Radio service in the U.S. online at http://activate.xmradio.com or call 1-800-XMRADIO (1-800-967-2346). Activate your XM Satellite Radio service in Can- ada online at https://activate.xmradio.ca or call 1-877-GET-XMSR (1-877-438-9677). You will need a major credit card.
  • Page 315 9922441.book Page 311 Monday, May 11, 2009 1:16 PM XM Radio Getting Started The ignition key must be in the ACC or ON When the XM radio is active, the console position to use the audio system. screen will display radio channel, preset number (if applicable), channel name or cat- Tip: To prevent battery drain, do not leave the egory, artist, and song title.

  • Page 316: Xm Radio Reception

    9922441.book Page 312 Monday, May 11, 2009 1:16 PM XM Radio XM Radio Reception XM Radio Menu Options If the XM radio system is not receiving a The XM radio system has unique menus signal due to being indoors (or any overhead that apply only to this system when the XM obstruction), “No Signl”...
  • Page 317 9922441.book Page 313 Monday, May 11, 2009 1:16 PM XM Radio XM Radio Settings To access the menus, turn the audio system In the CATEGORY mode, the category of a power on and change the active source to selected station will display in the upper XM Radio.

  • Page 318: Xm Radio Categories

    9922441.book Page 314 Monday, May 11, 2009 1:16 PM XM Radio XM Radio Categories XM Radio Channels With XM as the active source, use the Press TUNE (+) or TUNE (-) on the left MODE button on the console to scroll to the control to change the channel.

  • Page 319: Nav Mp3

    9922441.book Page 315 Monday, May 11, 2009 1:16 PM NAV MP3 Navigation MP3 Introduction Please read this manual and the GARMIN The audio integration kit must be installed ZUMO 660 NAV MP3 information pro- to enable outputs from the NAV MP3 (such vided with your player to become familiar as navigation instructions or user-loaded with all unit features and operation.
  • Page 320 9922441.book Page 316 Monday, May 11, 2009 1:16 PM NAV MP3 Navigation MP3 Operation Tips • Signals coming from the NAV MP3 unit will • Pause or stop the MP3 player to switch to override any source of the motorcycle’s audio radio.
  • Page 321 9922441.book Page 317 Monday, May 11, 2009 1:16 PM NAV MP3 Changing to NAV MP3 Mode The ignition key must be in the ACC or ON To change the mode, press the MODE button position to use the audio system. on the console repeatedly to toggle to the AUX mode.

  • Page 322: Index

    9922441.book Page 318 Monday, May 11, 2009 1:16 PM Index ABS ........73-75 Audio System.
  • Page 323 9922441.book Page 319 Monday, May 11, 2009 1:16 PM Index Brake Fluid Level, Rear Brake ....99 Brakes Brake Fluid, Front Brake ....184-185 Anti-Lock Brake System.
  • Page 324 9922441.book Page 320 Monday, May 11, 2009 1:16 PM Index Rear Brake Fluid ....99, 183 CB Radio Frequencies ..... . 295 Rear Brake Pedal .
  • Page 325 9922441.book Page 321 Monday, May 11, 2009 1:16 PM Index Clutch Lever Lubrication, Mechanical ..179 Drive Belt Inspection ..... . 106 Compliance, Vehicle.
  • Page 326 9922441.book Page 322 Monday, May 11, 2009 1:16 PM Index Equipment Modifications ....25 Fork Inspection ......167 Error Codes, Engine.
  • Page 327 9922441.book Page 323 Monday, May 11, 2009 1:16 PM Index Gasoline Handling Safety ....28-29 Identification Number Record....40 Gear Shift Pedal .
  • Page 328 9922441.book Page 324 Monday, May 11, 2009 1:16 PM Index Key Number....... 39 Linked Braking System .
  • Page 329 9922441.book Page 325 Monday, May 11, 2009 1:16 PM Index Maintenance Safety....132-133 Odometer....... . . 61 Maintenance, Required .
  • Page 330 9922441.book Page 326 Monday, May 11, 2009 1:16 PM Index Polished Aluminum Care....233 Saddlebag Lock ......84 Polishing Paint and Chrome .
  • Page 331 9922441.book Page 327 Monday, May 11, 2009 1:16 PM Index Signal Words....... 7 Storage Spark Plugs .
  • Page 332 9922441.book Page 328 Monday, May 11, 2009 1:16 PM Index Switches Tachometer ....... 51 Engine Starter Switch .
  • Page 333 9922441.book Page 329 Monday, May 11, 2009 1:16 PM Index Tires ......95, 190-191 Trip Odometer.
  • Page 334 9922441.book Page 330 Monday, May 11, 2009 1:16 PM Index Washing the Motorcycle ....228-232 XM Radio Categories ..... . 314 Weather Band (WX) .
