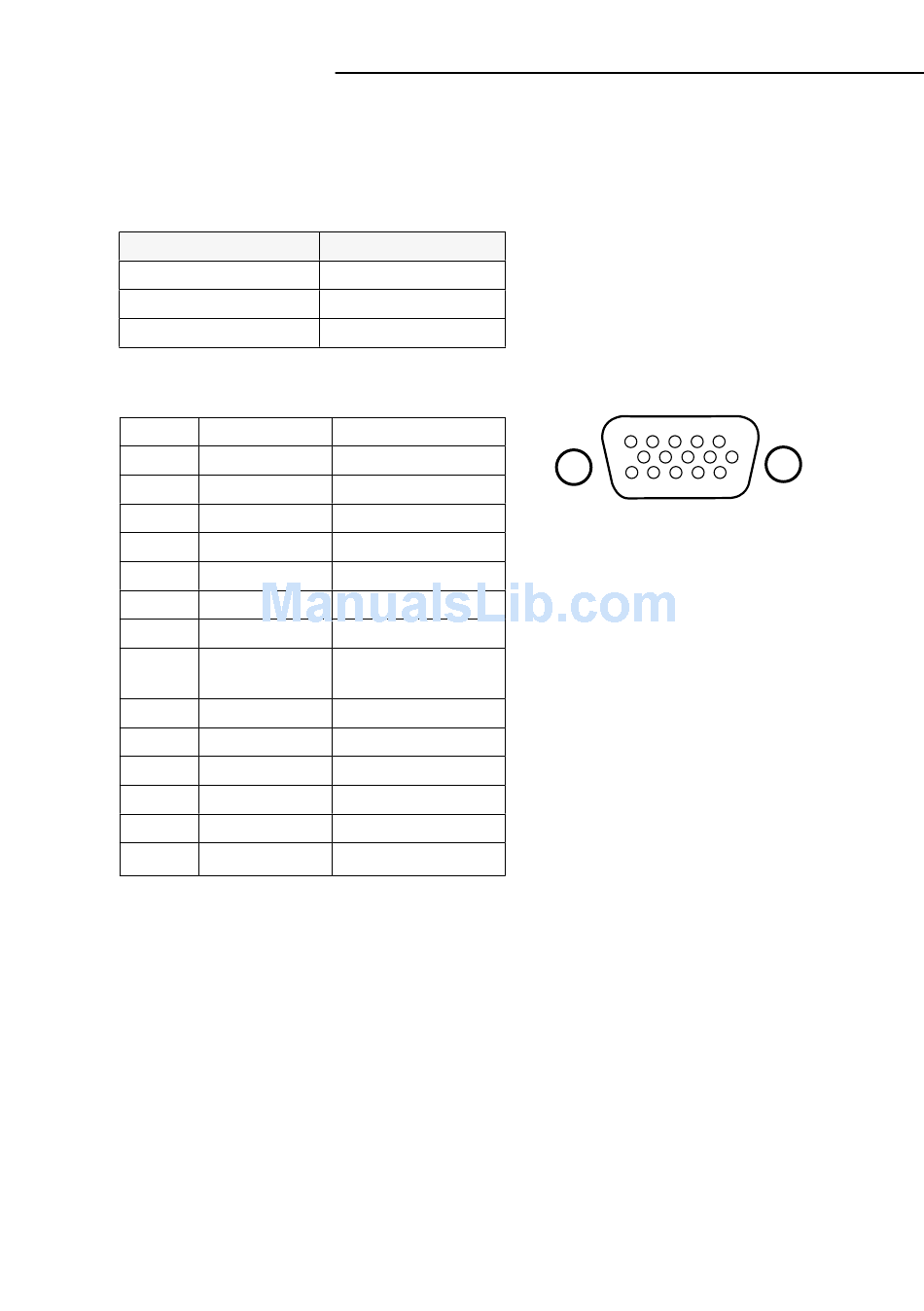

6. Pinout Configuration
Please visit our website for the latest tips, best practices & more information about the
B-220-1CAT-VGA-A. If other wires need to be utilized for a component breakout cable or
other applications, use the chart below for proper pinout configuration.
Pair of Cat-5/5e/6 Cable
Blue
Orange
Brown
*Green pair n/a
Pin 1
RED
Pin 2
GREEN
Pin 3
BLUE
Pin 4
N/C
Pin 5
GND
Pin 6
RED_RTN
Pin 7
GREEN_RTN
Pin 8
BLUE_RTN
Pin 9
SENSE
Pin 10
GND
Pin 11
N/C
Pin 12
SDA
Pin 13
HSync
Pin 14
VSync
Pin 15
SCL
www.snapav.com Support: (800) 838-5052
Associated Definition
RED Channel of VGA
GREEN Channel of VGA
BLUE Channel of VGA
Red Video
Green Video
Blue Video
Not Connected
Ground (HSync)
Red Return
Green Return
Blue Return
+5V DC from gfx
adapter
Ground (Vvsync, DDC)
Monitor ID
PC Data
Horizontal Sync
Vertical Sync
PC Clock
4
2
1
5
3
10
9
8
7
6
11
12 13 14 15
