4. Installation Steps

4.1 Transmitter

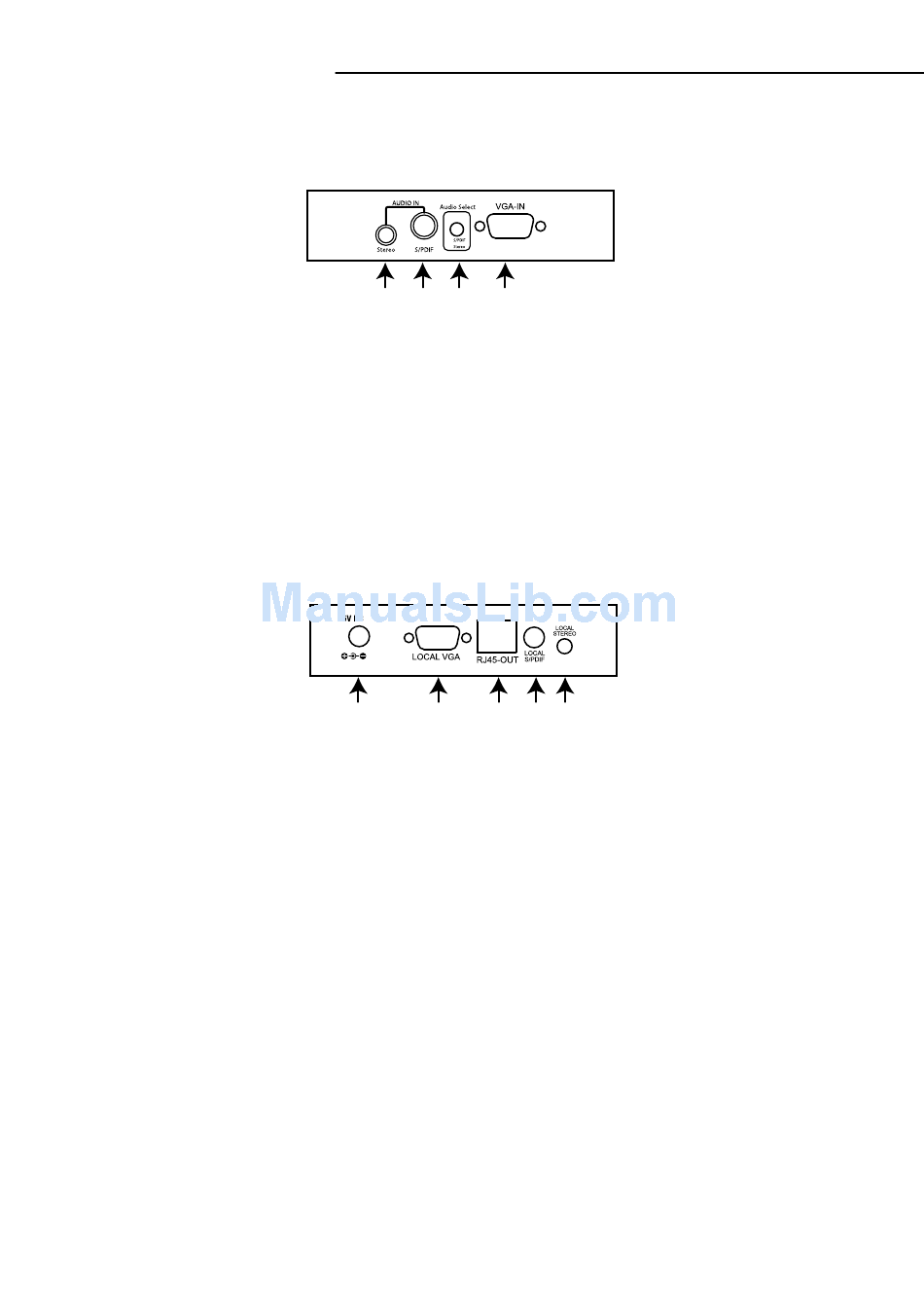

4.1.1 Front Panel
1. Stereo Audio In
Connect a stereo cable from the source to transmit signal
2. S/PDIF Audio In
Connect a S/PDIF audio cable from the source to transmit signal
3. Audio Select
Select between S/PDIF or stero Audio In
4. VGA-IN
Connect a VGA input from a video source
4.1.2 Rear Panel
1 2 3 4
1. +5V DC
Inter-locked power jack to connect to 5V DC power supply unit (included)
2. Local VGA
VGA loop-out to a local VGA display or component video display via a VGA-component
breakout cable
1 2 3
3. RJ45-Out
Plug in a Cat-5/5e/6 cable that needs to be linked to the RJ-45 connector of the receiving unit
of the B-220-1CAT-VGA-A
4. Local Stereo Audio Out
Loop out for stereo audio to a local audio receiver or display
5. Local S/PDIF Audio Out
Loop out for S/PDIF audio to a local audio receiver or display
www.snapav.com Support: (800) 838-5052
1 2 3
1 2
1 2 3 4
1 2 3 4 5
4
3 1
5
6
1 2 3 4
2 3 4 5
Pg. 4
