CRUISE CONTROL
Cruise Control System

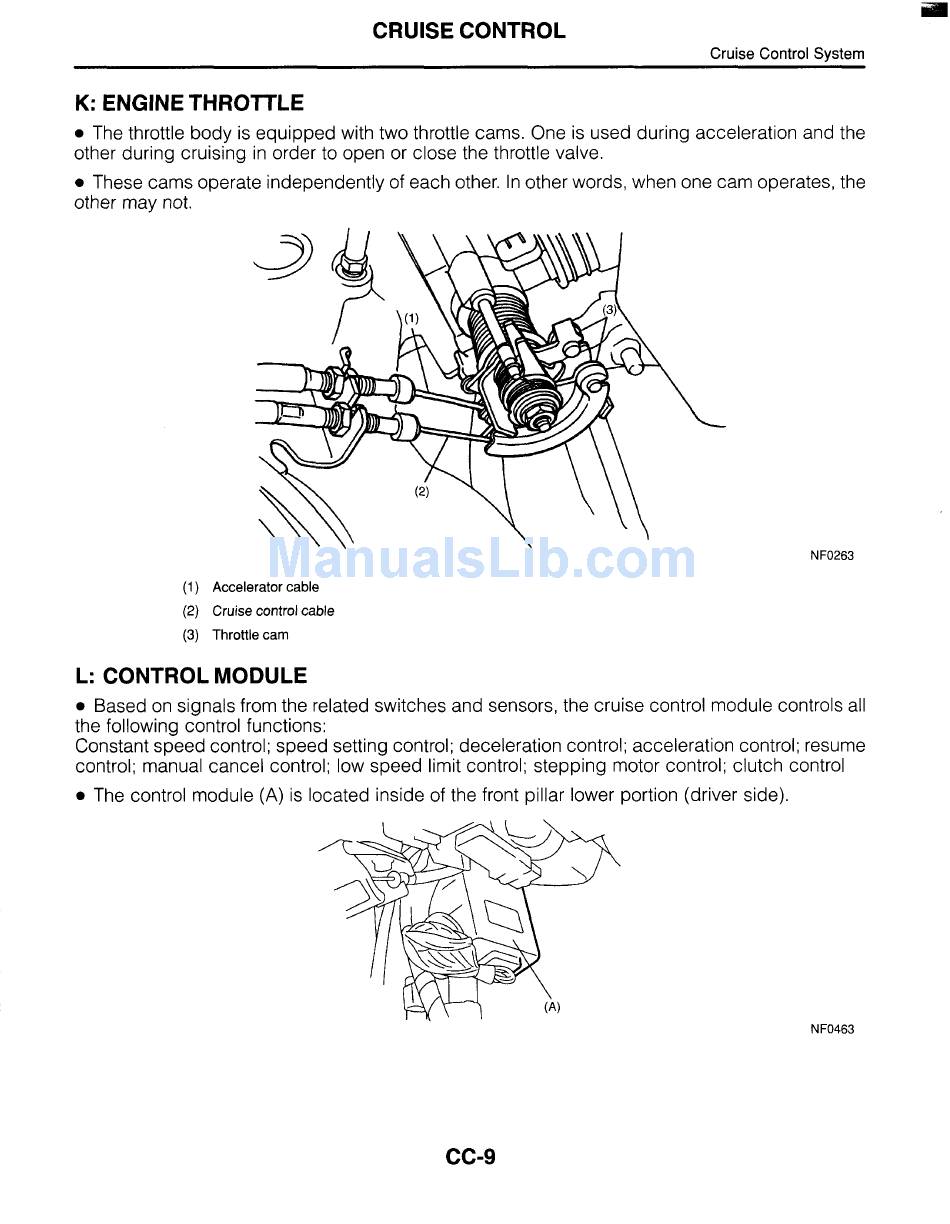

K: ENGINE THROTTLE
0
The throttle body is equipped with two throttle cams. One is used during acceleration and the
other during cruising in order to open or close the throttle valve.
0
These cams operate independently of each other. In other words, when one cam operates, the
other may not.
NF0263
(1 ) Accelerator cable
(2) Cruise control cable
(3) Throttle cam
L: CONTROL MODULE
0
Based on signals from the related switches and sensors, the cruise control module controls all
the following control functions:
Constant speed control; speed setting control; deceleration control; acceleration control; resume
control; manual cancel control; low speed limit control; stepping motor control; clutch control
0
The control module (A) is located inside of the front pillar lower portion (driver side).
NF0463
cc-9
