I
Mechanical
GENERAL
1.
General

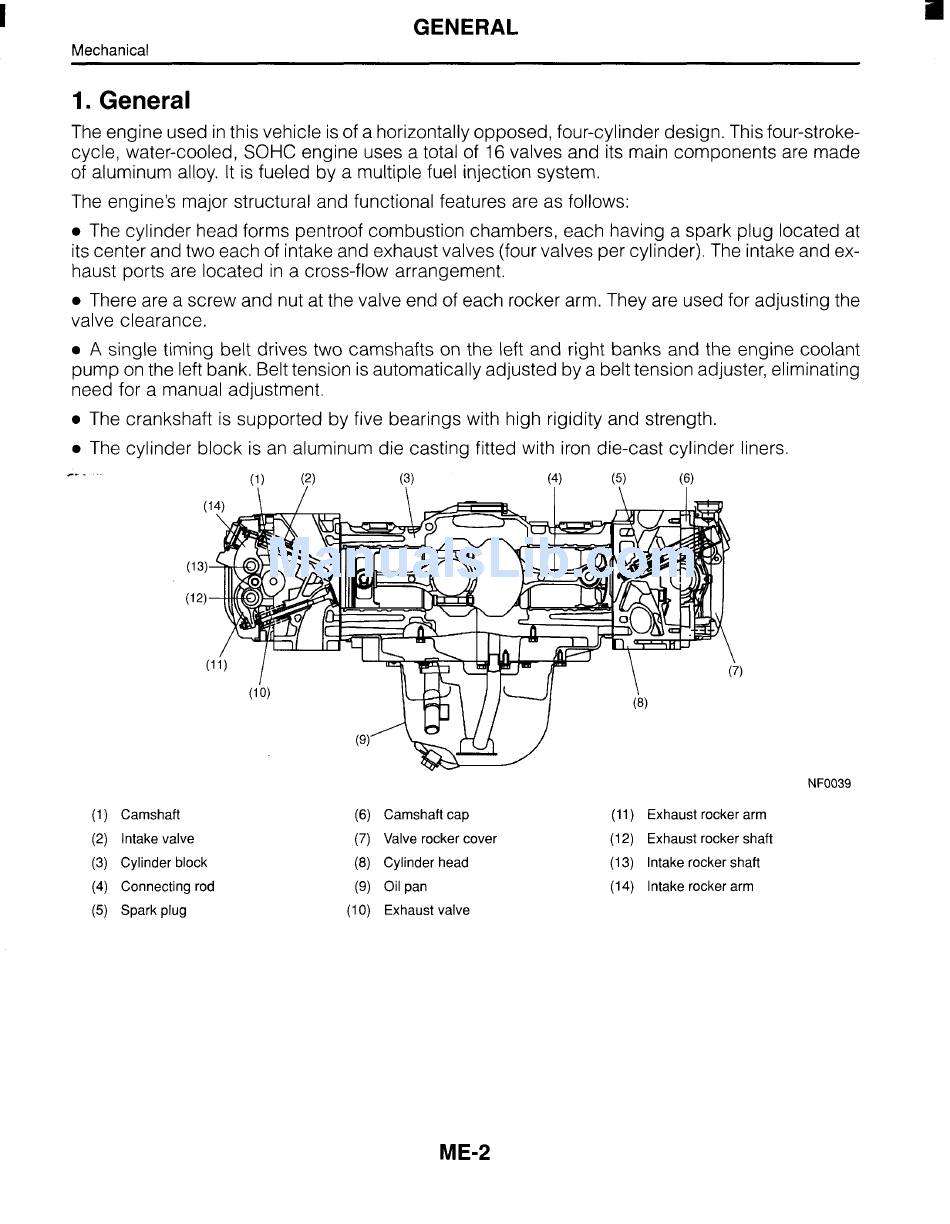

The engine used in this vehicle is of a horizontally opposed, four-cylinder design. This four-stroke-
cycle, water-cooled, SOHC engine uses a total of 16 valves and its main components are made
of aluminum alloy. It is fueled by a multiple fuel injection system.
The engine's major structural and functional features are as follows:
0
The cylinder head forms pentroof combustion chambers, each having a spark plug located at
its center and two each of intake and exhaust valves (four valves per cylinder). The intake and ex-
haust ports are located in a cross-flow arrangement.
0
There are a screw and nut at the valve end of each rocker arm. They are used for adjusting the
valve clearance.
0
A single timing belt drives two camshafts on the left and right banks and the engine coolant
pump on the left bank. Belt tension is automatically adjusted by a belt tension adjuster, eliminating
need for a manual adjustment.
0
The crankshaft is supported by five bearings with high rigidity and strength.
0
The cylinder block is an aluminum die casting fitted with iron die-cast cylinder liners.
C.
-
(1) Camshaft
(2) Intake valve
(3) Cylinder block
(4) Connecting rod
(5) Spark plug
(6)
Camshaft cap
(7) Valve rocker cover
(8) Cylinder head
(9)
Oil pan
(1 0) Exhaust valve
NF0039
(11) Exhaust rocker arm
(1 2) Exhaust rocker shaft
(13) Intake rocker shaft
(14) Intake rocker arm
M E-2
