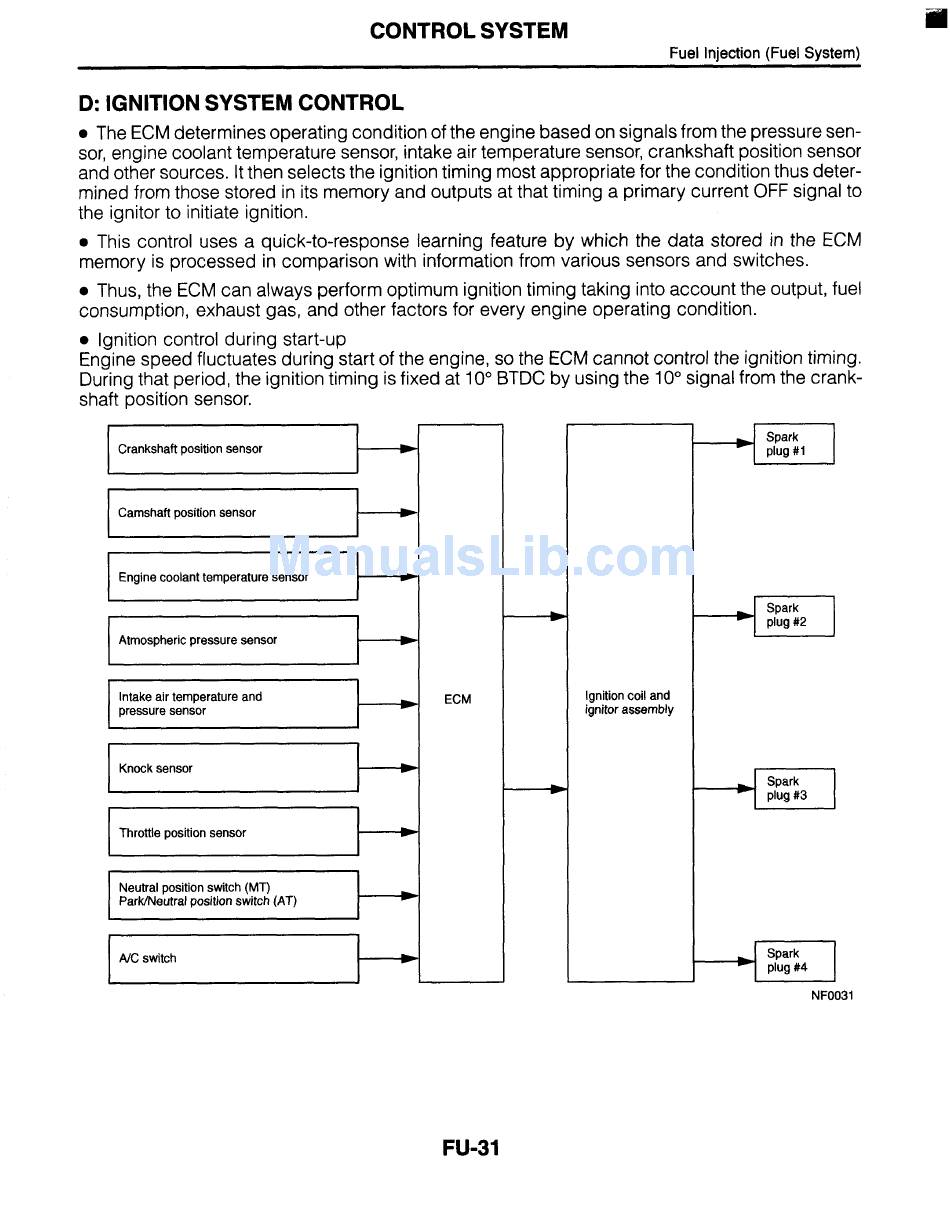

D: IGNITION SYSTEM CONTROL
0
The ECM determines operating condition of the engine based on signals from the pressure sen-
sor, engine coolant temperature sensor, intake air temperature sensor, crankshaft position sensor
and other sources. It then selects the ignition timing most appropriate for the condition thus deter-
mined from those stored in its memory and outputs at that timing a primary current OFF signal to
the ignitor to initiate ignition.
0
This control uses a quick-to-response learning feature by which the data stored in the ECM
memory is processed in comparison with information from various sensors and switches.
0
Thus, the ECM can always perform optimum ignition timing taking into account the output, fuel
consumption, exhaust gas, and other factors for every engine operating condition.
