SHIFT LOCK SYSTEM
Control System
B: SHIFT LOCK SYSTEM OPERATION

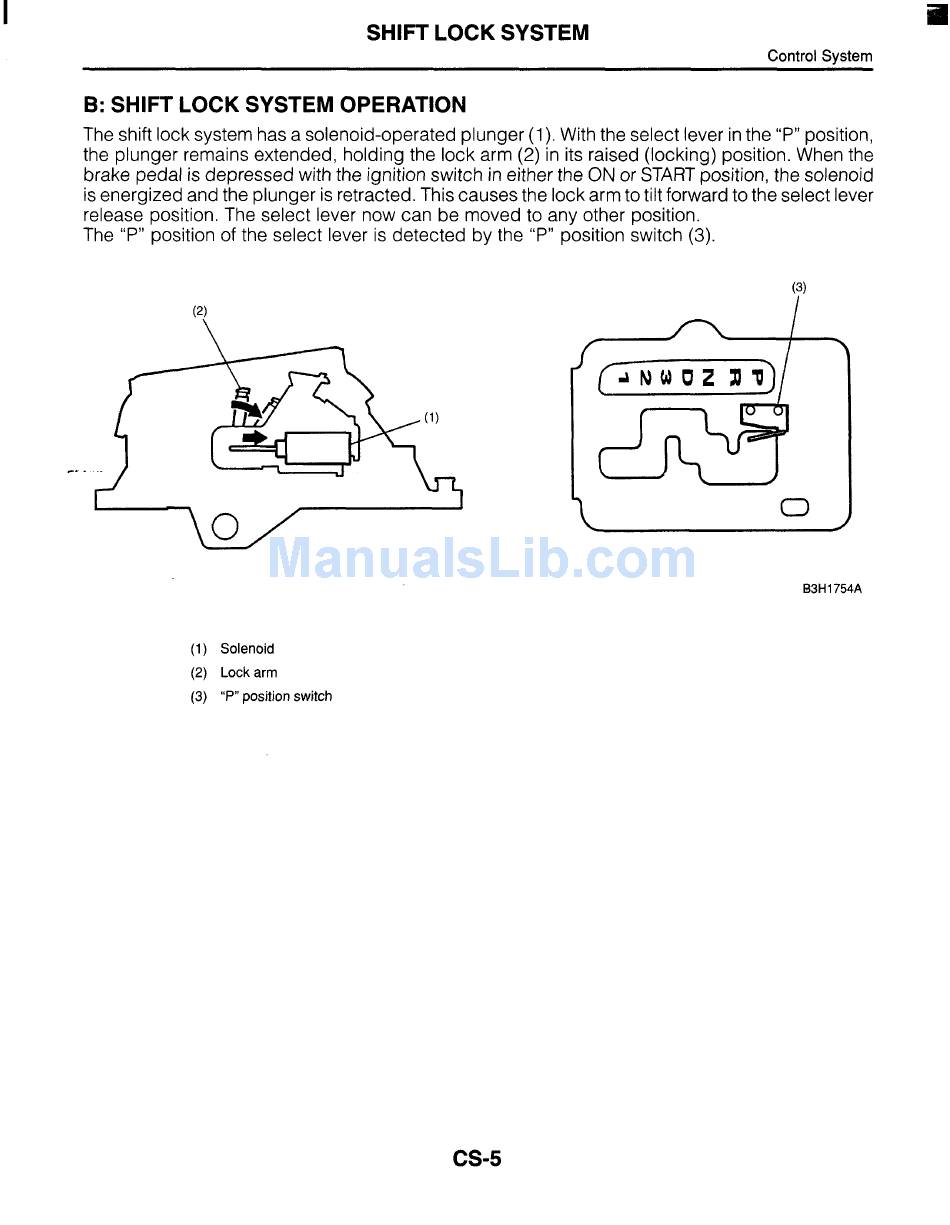

The shift lock system has a solenoid-operated plunger (1 ). With the select lever in the "P" position,
the plunger remains extended, holding the lock arm (2) in its raised (locking) position. When the
brake pedal is depressed with the ignition switch in either the ON or START position, the solenoid
is energized and the plunger is retracted. This causes the lock arm to tilt forward to the select lever
release position. The select lever now can be moved to any other position.
The "P" position of the select lever is detected by the "P" position switch (3).
r .
-
I
\ O
/ J
B3H1754A
(1) Solenoid
(2) Lockarm
(3)
"P"
position switch
