HYDRAULIC CLUTCH PEDAL SYSTEM
Clutch
5. Hydraulic Clutch Pedal System
A: CONSTRUCTION
0
The hydraulic clutch pedal is connected to the master cylinder via a rod.
0
The clutch pedal and brake pedal are mounted on the same bracket.
0
The clutch pedal has a mechanism that reduces the initial force required to depress the clutch
pedal.

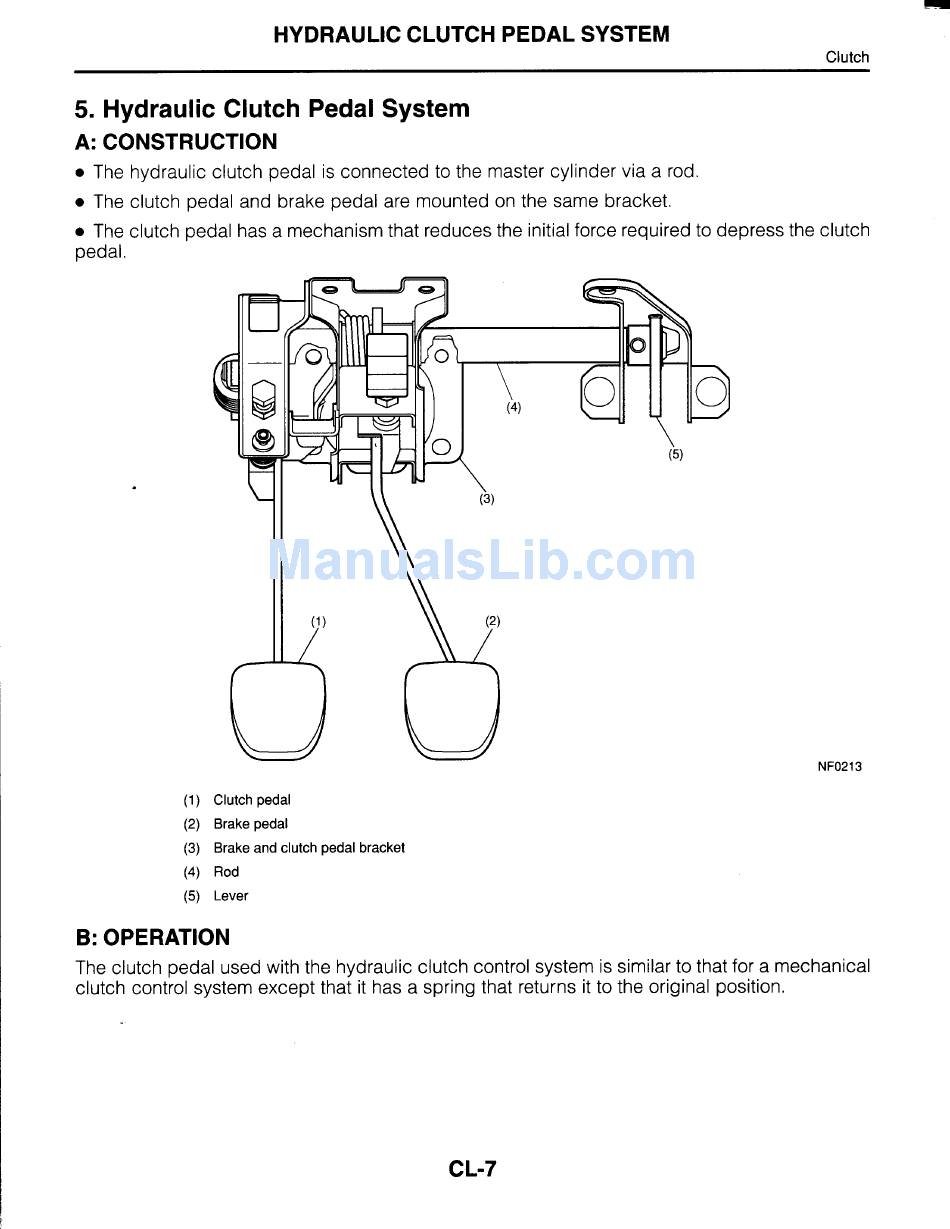

NF0213
(1) Clutch pedal
(2) Brake pedal
(3) Brake and clutch pedal bracket
(4)
Rod
(5) Lever
B: OPERATION
The clutch pedal used with the hydraulic clutch control system is similar to that for a mechanical
clutch control system except that it has a spring that returns it to the original position.
