Speed Control System
GENERAL
1. General
The accelerator outer cable is secured to the accelerator pedal bracket rather than to the toe-
board. Securing the outer cable in this way has a merit of making the ratio of throttle valve move-
ment to cable stroke less variable. This arrangement is also effective to prevent unsmooth cable
return movement that may result from deformation of the toeboard or improper installation of the
accelerator pedal and, therefore, to improve safety.
In addition, the floating type casing cap through which the cable is attached to the bracket re-
duces vibration of the pedal, thus improving quietness.

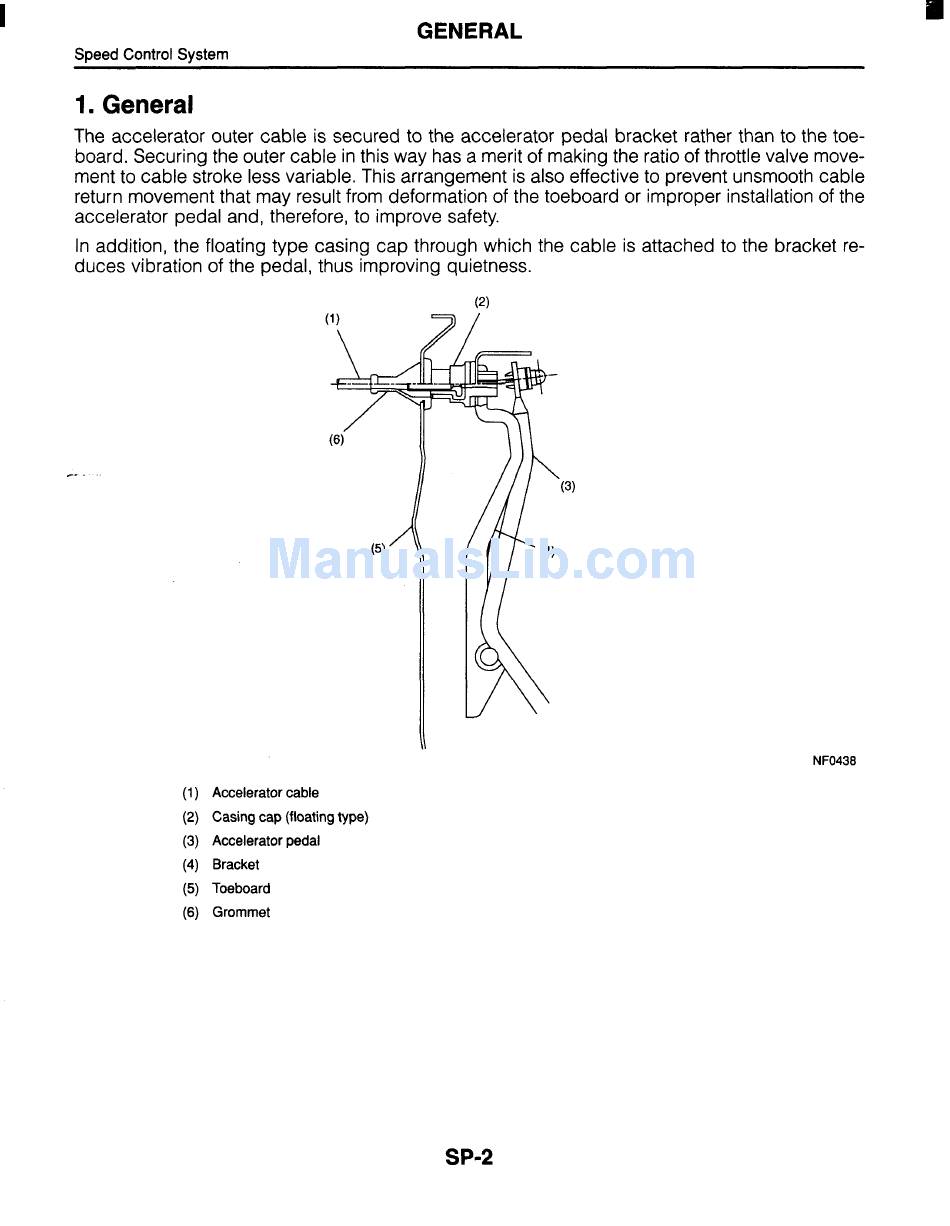

NF0438
(1 ) Accelerator cable
(2) Casing cap (floating type)
(3) Accelerator pedal
(4)
Bracket
(5) Toeboard
(6) Grommet
