VACUUM CONNECTIONS
Emission Control
(Aux.
Emission Control Devices)
9. Vacuum Connections

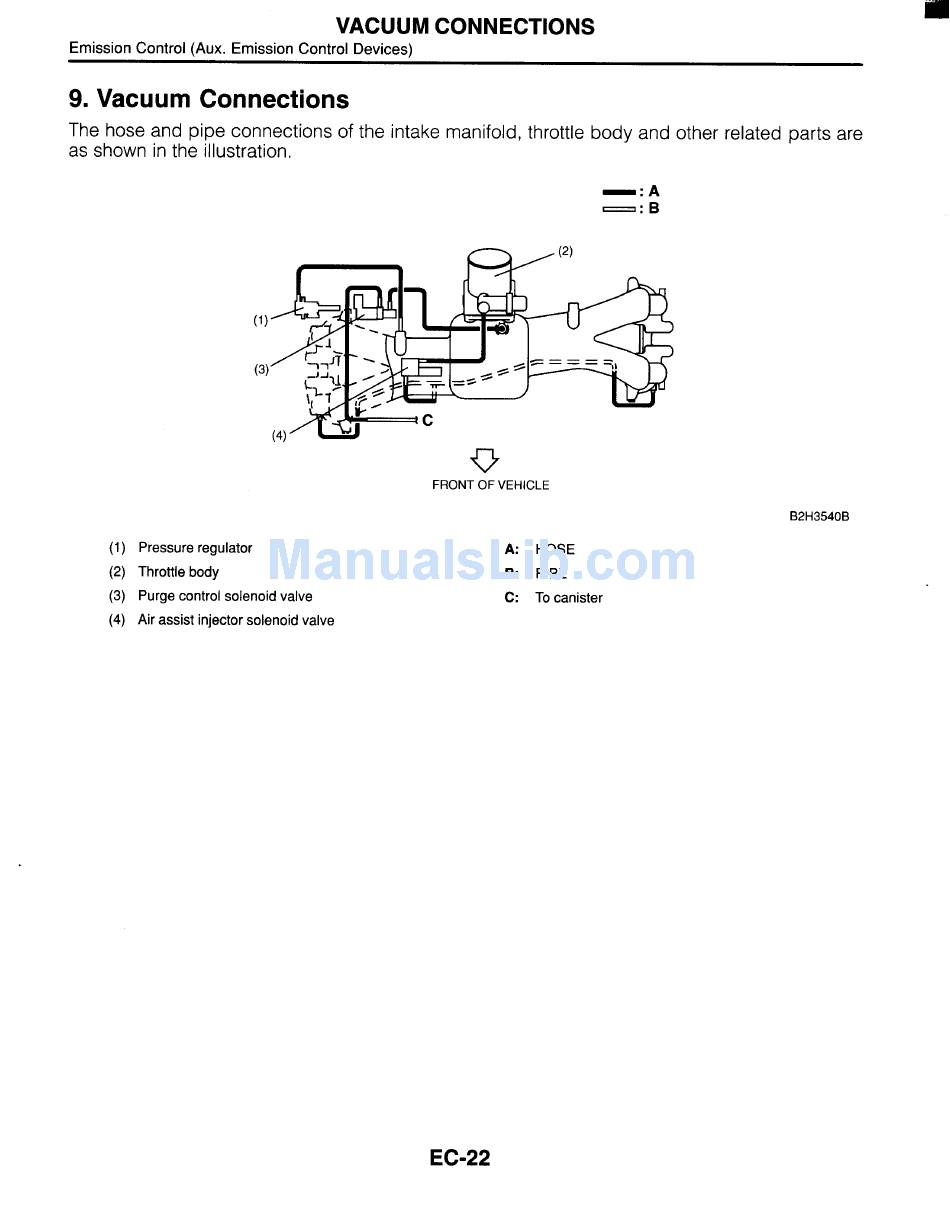

The hose and pipe connections of the intake manifold, throttle body and other related parts are
as shown in the illustration.
c)
FRONT OF VEHICLE
- : A
-:
B
B2H3540B
(1) Pressure regulator
(2) Throttle body
(3) Purge control solenoid valve
(4) Air assist injector solenoid valve
A: HOSE
B:
PIPE
C: To canister
