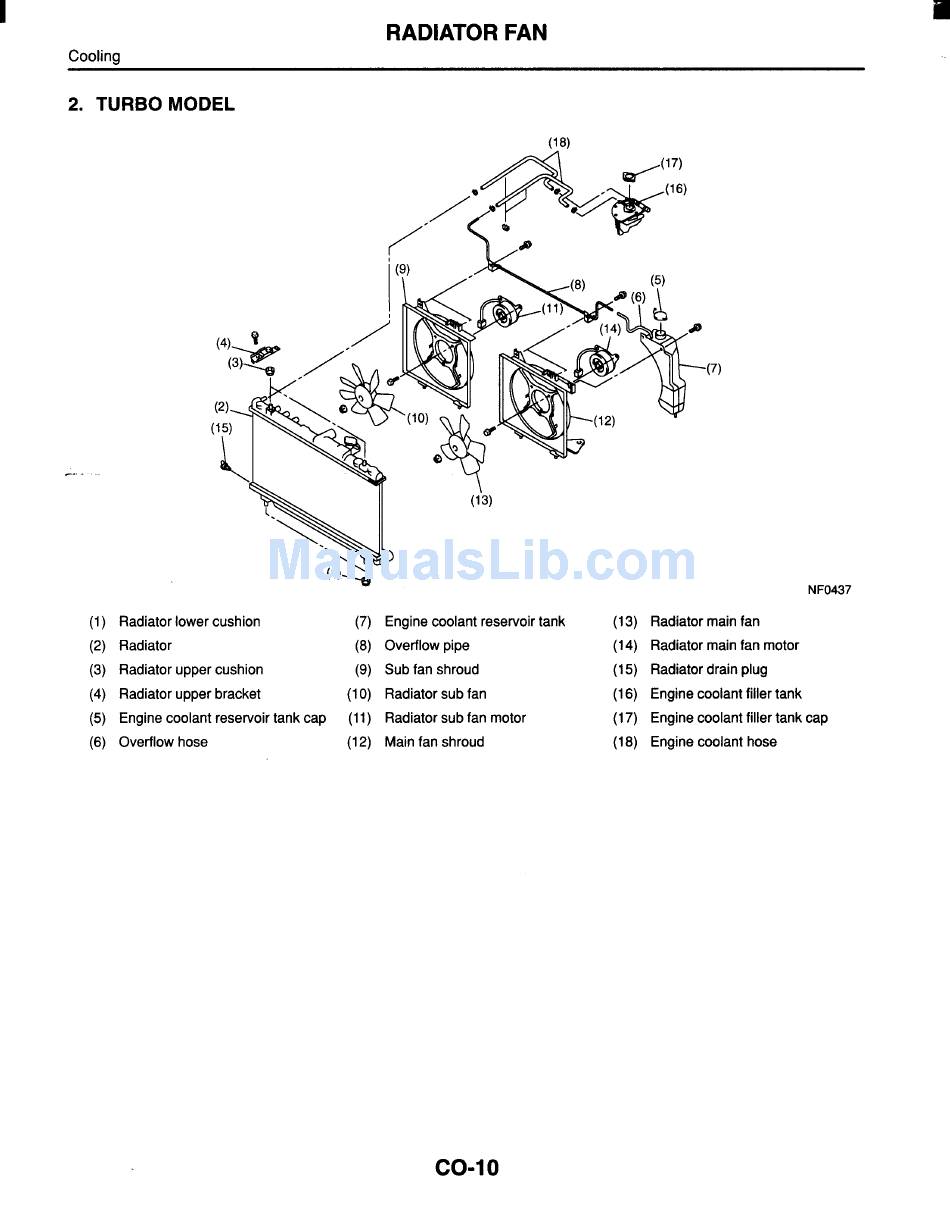

RADIATOR FAN
Coolina
2. TURBO MODEL
(1 8)
NF0437
(1) Radiator lower cushion
(7) Engine coolant reservoir tank
(1
3) Radiator main fan
(2) Radiator ( 8 ) Overflow pipe (1 4) Radiator main fan motor
(3) Radiator upper cushion (9) Sub fan shroud (1 5) Radiator drain plug
(4) Radiator upper bracket (1 0) Radiator sub fan
(16) Engine coolant filler tank
(5) Engine coolant reservoir tank cap (11) Radiator sub fan motor (17) Engine coolant filler tank cap
(6) Overflow hose (12) Main fan shroud (1 8 ) Engine coolant hose
co-10
