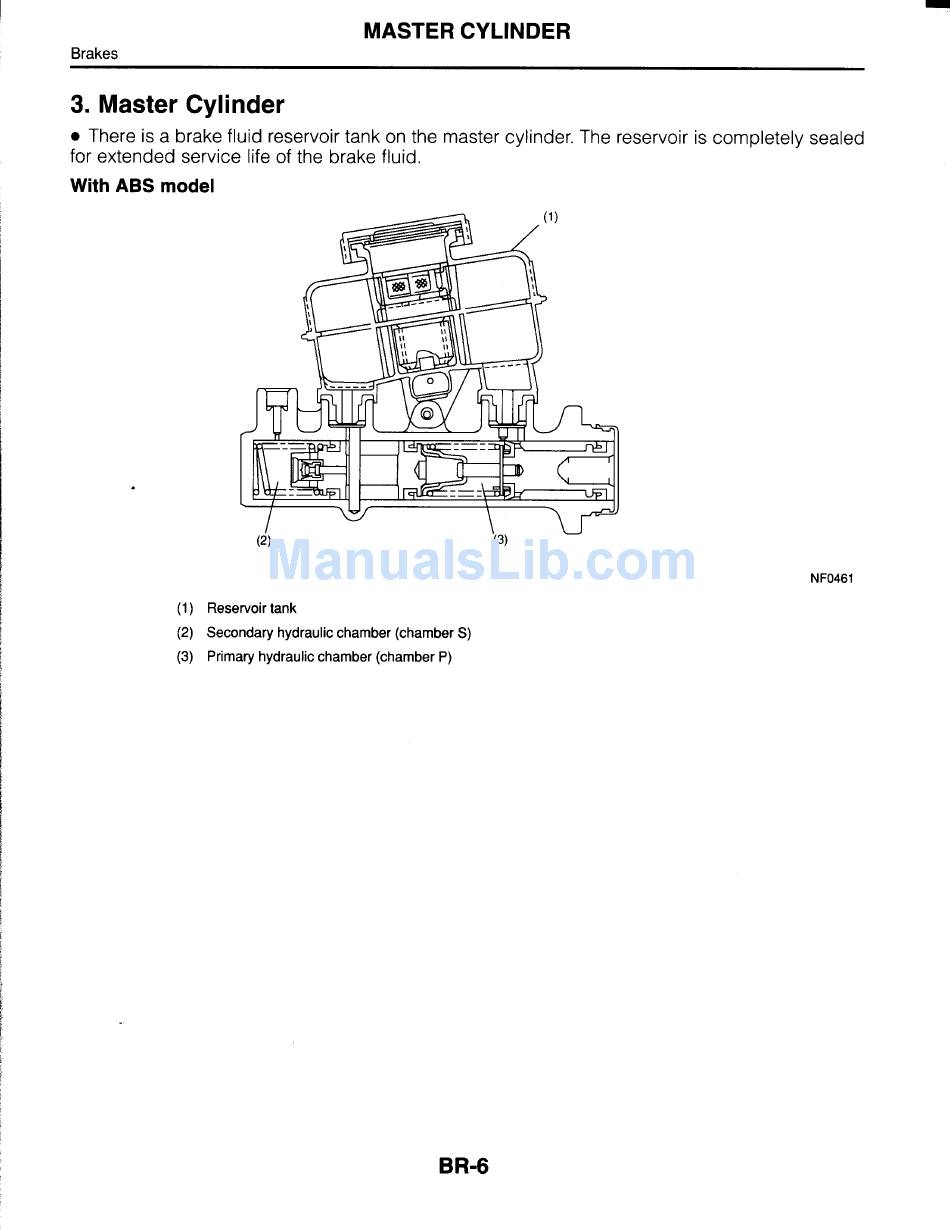

MASTER CYLINDER
Brakes
3. Master Cylinder
0
There is a brake fluid reservoir tank on the master cylinder. The reservoir is completely sealed
for extended service life of the brake fluid.
With ABS model
(1 ) Reservoir tank
(2)
Secondary hydraulic chamber (chamber S)
(3) Primary hydraulic chamber (chamber P)
B R-6
NF0461
