FUEL LINE
Fuel Injection (Fuel System)

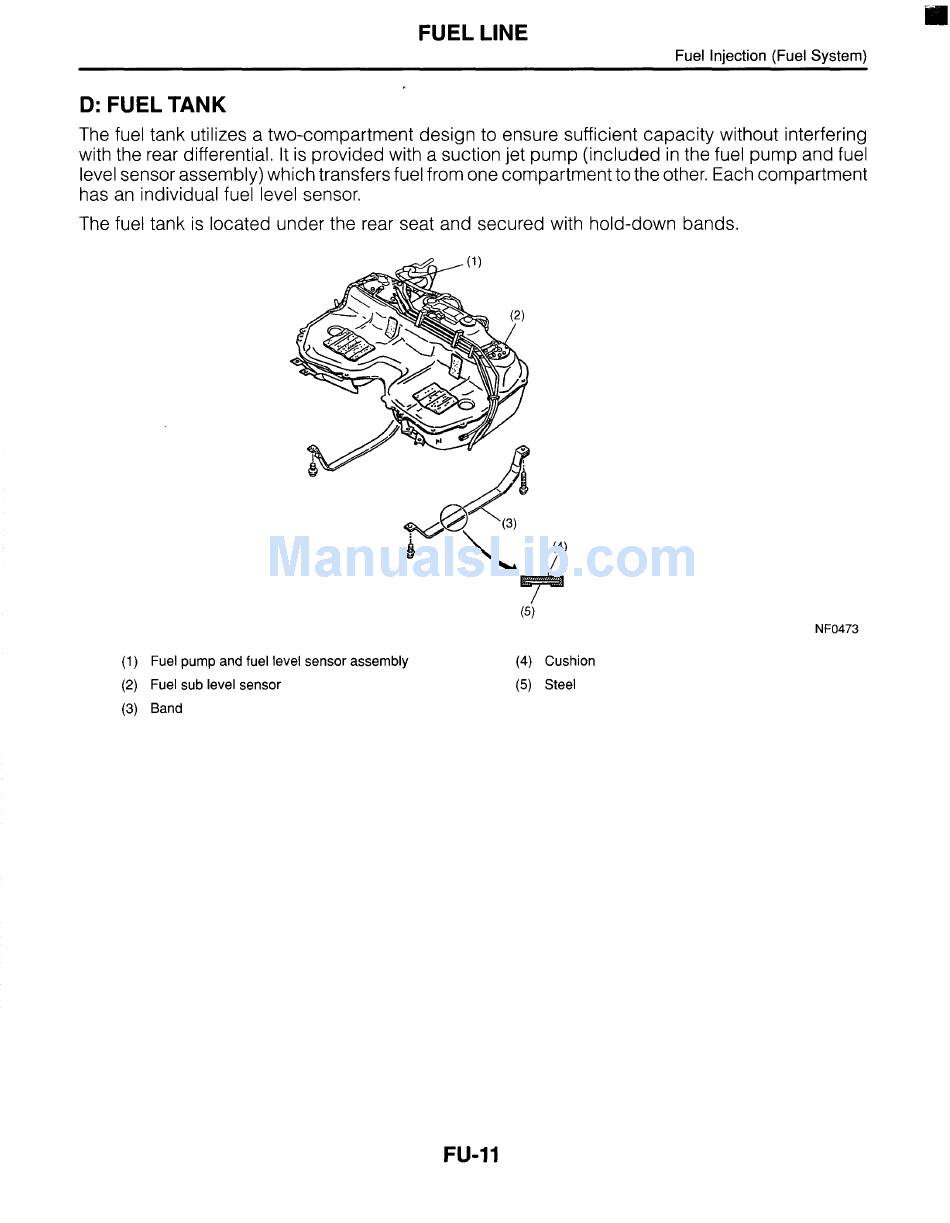

D: FUEL TANK
The fuel tank utilizes a two-compartment design to ensure sufficient capacity without interfering
with the rear differential. It is provided with a suction jet pump (included in the fuel pump and fuel
level sensor assembly) which transfers fuel from one compartment to the other. Each compartment
has an individual fuel level sensor.
The fuel tank is located under the rear seat and secured with hold-down bands.
(1 ) Fuel pump and fuel level sensor assembly
(2) Fuel sub level sensor
(3)
Band
(4) Cushion
(5) Steel
NF0473
FU-11
