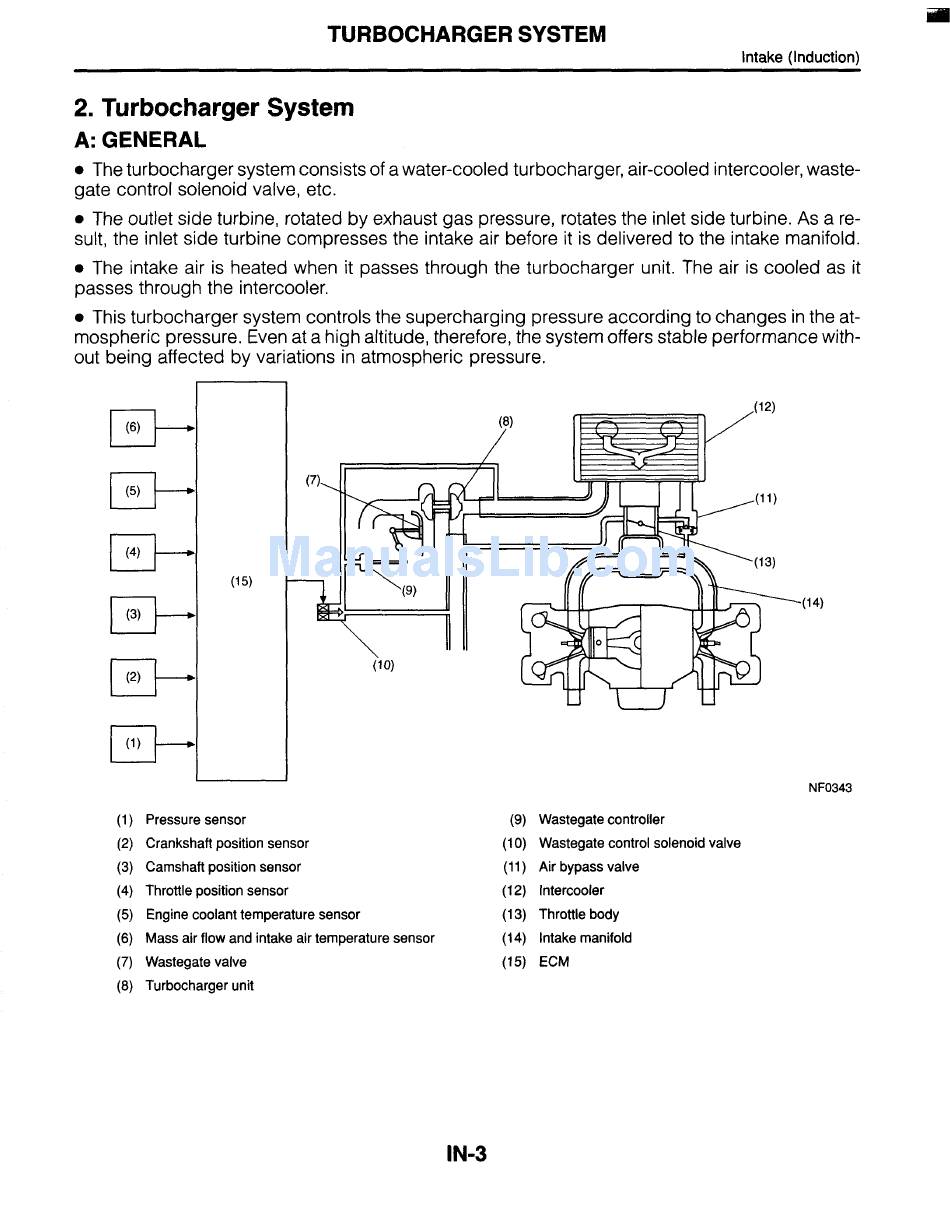

TURBOCHARGER SYSTEM
Intake
(Induction)
2. Turbocharger System
A: GENERAL
0
The turbocharger system consists of a water-cooled turbocharger, air-cooled intercooler, waste-
gate control solenoid valve, etc.
0
The outlet side turbine, rotated by exhaust gas pressure, rotates the inlet side turbine. As a re-
sult, the inlet side turbine compresses the intake air before it is delivered to the intake manifold.
0
The intake air is heated when it passes through the turbocharger unit. The air is cooled as it
passes through the intercooler.
0
This turbocharger system controls the supercharging pressure according to changes in the at-
mospheric pressure. Even at a high altitude, therefore, the system offers stable performance with-
out being affected by variations in atmospheric pressure.
- u u
NF0343
(1 ) Pressure sensor
(2) Crankshaft position sensor
(3) Camshaft position sensor
(4) Throttle position sensor
(5) Engine coolant temperature sensor
(6) Mass air flow and intake air temperature sensor
(7) Wastegate valve
(8) Turbocharger unit
(9) Wastegate controller
(1 0) Wastegate control solenoid valve
(1 1 ) Air bypass valve
(1 2) Intercooler
(1 3) Throttle body
(14) Intake manifold
(15) ECM
IN-3
