INTAKE SYSTEM
Intake (Induction)
1. Intake
System
A: GENERAL
The intake system consists of an air intake duct, a resonator chamber, and an air cleaner element
housed in its case. The resonator, located upstream of the air cleaner case, effectively reduces
the intake noise level.

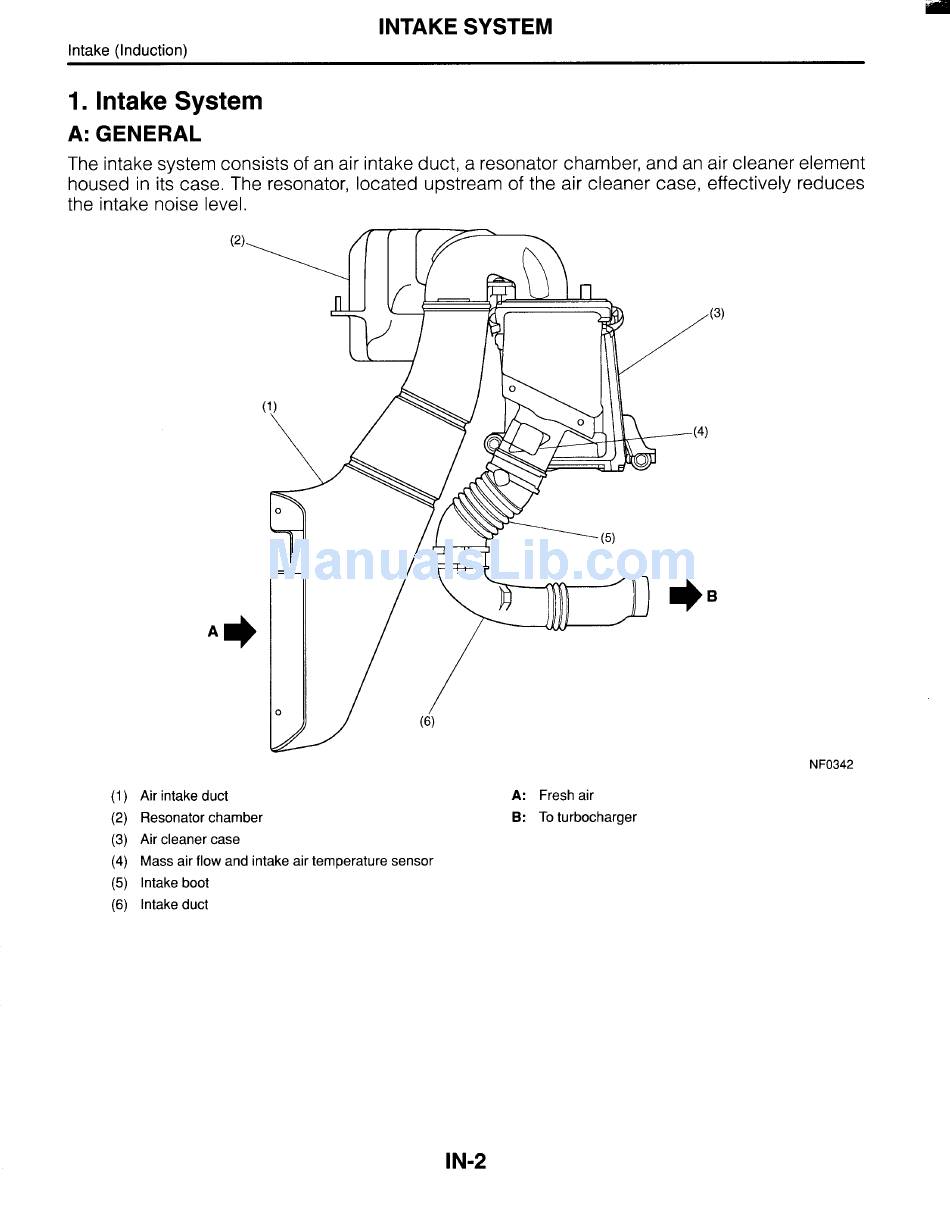

e),
NF0342
(1 ) Air intake duct
A: Fresh air
(2) Resonator chamber
B: To turbocharger
(3) Air cleaner case
(4) Mass air flow and intake air temperature sensor
(5) Intake boot
(6)
Intake duct
