POWER DOOR LOCK
Security and Locks
2. Power Door Lock
A: CONSTRUCTION
0
The power door lock system consists of an integrated module, driver's and front passenger's
door lock switches, a front door lock actuators, rear door lock actuators, and a rear gate lock ac-
tuator.
0
When the driver's/front passenger's door is locked or unlocked using the door lock switch, the
other doors and the rear gate are also locked or unlocked automatically.

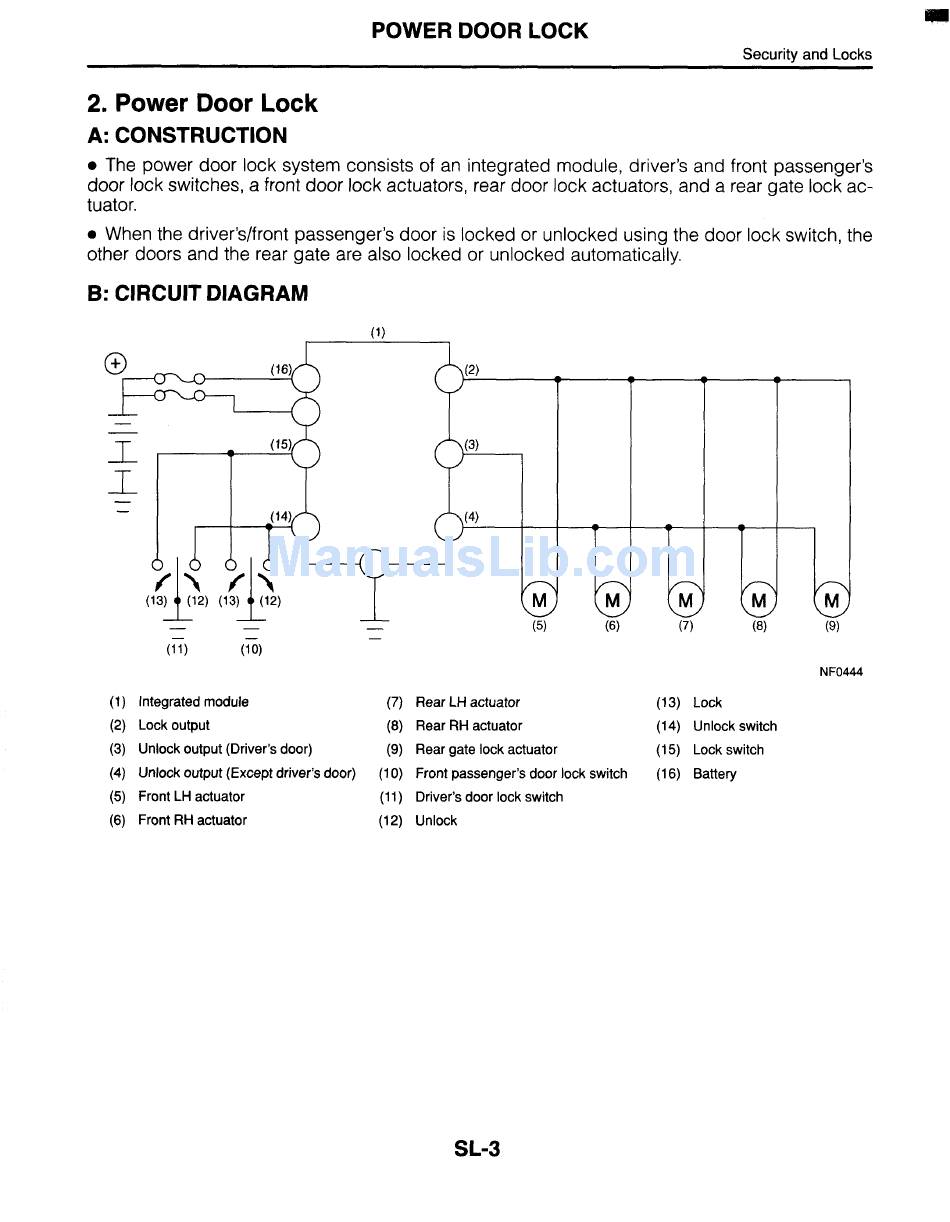

B: CIRCUIT DIAGRAM
(1)
NF0444
(1) Integrated module (7) Rear LH actuator (13) Lock
(2) Lock output (8) Rear RH actuator
(14) Unlock switch
(3) Unlock output (Driver's door) (9) Rear gate lock actuator (15) Lock switch
(4) Unlock output (Except driver's door) (1 0) Front passenger's door lock switch (1 6) Battery
(5) Front LH actuator (11) Driver's door lock switch
(6) Front RH actuator
(12) Unlock
SL-3
