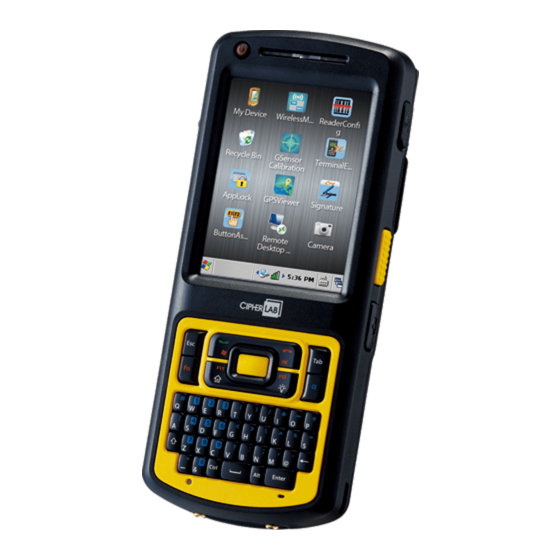

Page 1 Windows Embedded Handheld 6.5 CP55 Mobile Computer (WEH) Version 1.00...
Page 2: Disclaimer
The information contained in this document, including all pictures, illustrations and software, is the proprietary information of CIPHERLAB CO., LTD. and its respective legal owners; it is protected by copyright laws and international copyright treaties, as well as other intellectual property laws and treaties, with all rights reserved.
Page 3: Safety Notices
SAFETY NOTICES FOR HAND-HELD PRODUCT WITH RF FUNCTIONS CP55/CP55 G serial handheld equipment uses wireless radios that have been designed and manufactured to meet safety requirements for limiting exposure to radio waves. When used in accordance with the instructions set forth in this manual, the equipment has been independently verified to not exceed the emission limits for safe exposure to radio frequency (RF) energy as specified by EN50360 of EEC.
Page 4: For United States
THESE PRODUCT MODELS HAVE BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The CP55 series mobile computer has been designed to comply with applicable safety requirements for exposure to radio waves. Your mobile computer is a radio transmitter and receiver.
Page 5: For Product With Laser
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. The use of any batteries or charging devices which are not originally sold or manufactured by CipherLab will void your warranty and may cause damage to human body or the product itself.
Page 6: Europe - Eu Declaration Of Conformity
EUROPE – EU DECLARATION OF CONFORMITY This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN 60950-1: 2001 EN 60950-1/A1: 2010 EN 60950-1/A11: 2009...
Page 7 EN 300 440-2 V1.4.1: 2010 Electromagnetic compatibility and Radio spectrum Matters (ERM); Short range devices; Radio equipment to be used in the 1 GHz to 40 GHz frequency range; Part 2: Harmonized EN under article 3.2 of the R&TTE Directive. EN 300 328 V1.7.1: 2006 Electromagnetic compatibility...
Page 8 0700...
Page 9: Declaration Of Conformity
DECLARATION OF CONFORMITY...
Page 10: Release Notes
RELEASE NOTES Version Date Notes 1.00 Nov 7, 2014 Initial release...
Page 11: Table Of Contents
CONTENTS PREFACE ....................- 2 - Copyright.................... - 2 - Disclaimer................... - 2 - Trademark Recognition ................- 2 - Contact ....................- 2 - Safety Notices..................- 3 - For Hand-held Product with RF Functions ..........- 3 - For United States................- 4 - For Product with Laser ................
Page 12 1.7.2. Check Storage ..............34 1.7.3. Insert SD Card ..............36 1.8. Direct Data Communication ............37 1.8.1. Use Snap-on Cable ..............37 1.8.2. Use Cradle................38 1.8.3. Syncing Tools ............... 39 1.8.4. Sync Partnership ..............39 1.8.5. USB Sync ................. 40 1.8.6.
Page 13 4.4. Set Screen Lock ..............109 4.4.1. Unlock Screen ..............109 4.5. Manage Applications..............110 4.5.1. Task Manager ..............110 4.6. Suspend & Reset Mobile Computer..........116 4.6.1. Suspend Mobile Computer ............116 4.6.2. Wake Up Mobile Computer ............117 4.6.3. Reset Mobile Comptuer ............118 4.7. Update OS Image..............119 4.7.1.
Page 14 MORE APPLICATIONS................. 177 7.1. Button Assignment ..............178 7.1.1. Launch Button Assignment ............178 7.1.2. Redefine Keys ..............179 7.1.3. Main Menu ................182 7.1.4. Keypad Modes ..............186 7.2. GPS Viewer.................190 7.3. Signature Utility..............192 7.3.1. Install Signature Utility ............192 7.3.2. Launch Signature Utility ............196 7.3.3.
Page 15 1D Symbologies ..................257 2D Symbologies ..................264 Miscellaneous ..................265 HF RFID READER ..................267 RFID Tag Default Start Byte...............267 PHYSICAL KEYPAD REFERENCE TABLE ............269 Numeric Keypad ..................269 Using Alpha, Shift & Fn Keys ..............269 QWERTY Keypad ..................270 Using Alpha, Shift & Fn Keys ..............270...
Page 17: Introduction
A high-spec 5 mega-pixel camera also comes inside to take pictures and shoot videos to deliver better documentation for users. Rated with IP65, the rugged CP55 is light-weighted and easy to cradle in your hand, and will be your good help on field works.
Page 18: Features
CP55 Mobile Computer Reference Manual FEATURES Rugged yet smoothened outlined, with hand strap for secure hold IP65-rated tough form to survive drop, shock, heat, cold, and impervious to moisture/dust Windows Embedded Handheld 6.5 OS, TI OMAP4430 1GHz CPU 512MB SDRAM to run application programs...
Page 19: Use Mobile Computer
Chapter 1 USE MOBILE COMPUTER Before the mobile computer takes part in your work, get to know it first. This chapter includes the basic features of the mobile computer including the power supply, memory, and the units that bridge users with the mobile computer. This chapter helps you set the mobile computer to work at the earliest.
Page 20: Take A Tour
CP55 Mobile Computer Reference Manual 1.1. TAKE A TOUR This section shows the major components on the mobile computer and inside battery chamber. You will also learn how to power on/off the mobile computer and how the mobile computer gives information about its status.
Page 21: Inside Battery Chamber
Chapter 1 Use Mobile Computer 1.1.2. INSIDE BATTERY CHAMBER Inside the battery chamber of the mobile computer are the sockets for SIM card and storage card. Each is equipped with a hinged cover. Figure 2: Inside Battery Chamber 1.1.3. BEFORE INITIAL USE Prior to using the mobile computer for the first time, we recommend applying the protective film over the LCD.
Page 22: Power On/Off Mobile Computer
CP55 Mobile Computer Reference Manual 1.2. POWER ON/OFF MOBILE COMPUTER POWER ON To power on the mobile computer, press the Power button on the upper left corner. The mobile computer powers on. Note: For the mobile computer to power on, the battery cover must be secured in place.
Page 23: Notifications
Same as the speaker and LED light, the vibrator also works for good barcode reading. Enable/disable vibration and set its duration on the Reader Config Notification Settings page. Alternatively, program the vibrator through API deployment to have it vibrate when a successful reading occurs. See the CP55 Programming Guide for details.
Page 24: Battery
Reference Manual 1.4. BATTERY The CP55 mobile computer is fed by two batteries, main battery pack and backup battery. The main battery is removable and replaceable from the battery chamber while the backup battery is mounted on the main board inside the mobile computer.
Page 25 Chapter 1 Use Mobile Computer To install the main battery pack, follow through the steps below: Figure 4: Main Battery Setup 1) Remove the handstrap. 2) Push the battery door lock (left) to “unlock” position. 3) Push back the battery release button (right). The battery door opens automatically. Detach the battery door to reveal the battery chamber.
Page 26: Charge Batteries
CP55 Mobile Computer Reference Manual 5) Replace the battery door by fixing the lower edge first, and pushing the release button. 6) Push the battery lock back to “lock” position. Note: (1) When main battery level drops to low level, charge it ASAP or replace it with a charged battery.
Page 27 Chapter 1 Use Mobile Computer DIRECT CHARGING USING SNAP-ON CABLE Direct charging of the mobile computer relies on the Snap-on Charging & Communication Cable (hereinafter “snap-on cable”). There is a power jack on the connector of this cable to connect external power. Prior to charging, install the main battery as described in Main Battery Setup.
Page 28 CP55 Mobile Computer Reference Manual DIRECT CHARGING USING CRADLE Direct cradle charging makes use of a Charging & Communication Cradle (hereinafter “cradle”). The cradle is one of the accessories you can opt for. Prior to charging, install main battery as described in Main Battery Setup.
Page 29: Monitor Battery Level
Chapter 1 Use Mobile Computer 1.4.3. MONITOR BATTERY LEVEL The main battery is the only source that feeds the mobile computer to work. It also supplies the backup battery on main board to retain the data stored in DRAM. Hence when main battery level gets low, recharge it or change it as soon as possible.
Page 30 CP55 Mobile Computer Reference Manual BATTERY STATUS ICONS The OS features a couple of icons that deliver main battery status. These icons can be found on the Title Bar. Battery status icon Battery level is illustrated by the following icons:...
Page 31 Chapter 1 Use Mobile Computer LOW BATTERY ALERT When main battery level drops below 40%, the mobile computer prompts “Main Battery Low” for a recharge. When further reduced to under 20%, the mobile computer prompts “Main Battery Very low” to solicit your immediate action. Low battery may incur shutdown to the mobile computer and cause DRAM data damage.
Page 32 CP55 Mobile Computer Reference Manual BACKUP BATTERY LEVEL 1) To check backup battery level, tap Start | Settings | Power On Battery tab page of Power Properties window, backup battery level is summarized as “High”, “Low” or “Critical” under the Power label.
Page 33: Power Management
Chapter 1 Use Mobile Computer LOW BATTERY ALERT When backup battery level drops to “Very Low”, the mobile computer prompts a “Backup Battery Very Low” warning to alert users that backup battery level is almost drained out. Backup battery is rechargeable by the main battery pack or the power adapter. Low backup battery puts DRAM data in great danger.
Page 34: Keypad
CP55 Mobile Computer Reference Manual 1.5. KEYPAD The mobile computer has a physical keypad and a touchscreen to receive user’s input. Among the two, the touchscreen provides more intuitiveness in interacting with the device. This section shows how to input text using physical keypad and on-screen keyboard. To...
Page 35 (Requires Function Key pressed beforehand.) Send Key available for function assignment in CipherLab utility Button Assignment. Key available for function assignment in CipherLab utility Button Assignment. Opens the previous screen worked on. Closes a menu of an application, or an opened dialog.
Page 36 CP55 Mobile Computer Reference Manual NUMERIC KEYPAD Numeric keypad wedges a set of character keys at the lower half. They are laid out similar to a telephone keypad, and additionally featured are an Esc key, Tab key, Enter key, Backspace key, and Shift key that enable more sophisticated text input.
Page 37 Chapter 1 Use Mobile Computer ALPHA KEY By default, the numeric keypad is set to numeric mode, and the QWERTY keypad is set to alpha (lowercase alphabetic) mode. The Alpha key [α] serves as a switch key between numeric and alphabetic input modes. The status icon on the taskbar delivers the current input mode: Status Icon Alpha Key...
Page 38 CP55 Mobile Computer Reference Manual FUNCTION KEY The Function key [Fn] serves as a specified key, and the functionality of each key combination is application-dependent. 1) To enable this special key, press [Fn] on the keypad. Its icon will appear on the status bar.
Page 39: On-Screen Keyboard
Chapter 1 Use Mobile Computer 1.5.2. ON-SCREEN KEYBOARD The OS provides users with an on-screen keyboard. Compared to a physical keypad, the on-screen keyboard bears likeness to a laptop keyboard as it has modifiers keys arranged on the left edge and features a “QWERTY” layout. The on-screen keyboard supports entering a series of diacritics for European languages by tapping a modifier key.
Page 40 CP55 Mobile Computer Reference Manual MODIFIER KEYS Although the touchscreen is a resistive single-touch type, use of modifier keys, which normally involves hitting two keys, are still available on the on-screen keyboard. On the on-screen keyboard there are four modifier keys, which are seated at the left edge.
Page 41 Chapter 1 Use Mobile Computer key on on-screen keyboard. key becomes color-inverted Then tap a character key. Letter variant “ü” is entered After the letter variant “ü” is entered, the on-screen keyboard restores to normal English alphanumeric layout. Diacritical letters and letter variants are presented bother lowercase and uppercase.
Page 42 CP55 Mobile Computer Reference Manual Lowercase Uppercase OTHER KEYS Description Tab key Navigates among the highlight items in some applications. For text input, it inserts Tab character, which means it moves caret to the next tab stop. Backspace Erases the characters to the left of caret.
Page 43 Chapter 1 Use Mobile Computer CHANGE KEYBOARD ORIENTATION The mobile computer is built-in with a G-sensor and supports screen orientation, which is enabled by default. So when the mobile computer turns sideways or upright, the screen changes its orientation, and on-screen keyboard also readjusts itself to the new orientation. Upright (Portrait Mode) Sideways (Landscape Mode) To disable automatic screen rotation, see...
Page 44: Edit Text
CP55 Mobile Computer Reference Manual 1.5.3. EDIT TEXT On the mobile computer, cut, copy, and paste text within an application or across applications by the menu commands. Some applications don’t support editing some or all of the text they display while others may offer their own way to edit text.
Page 45: Touch Control
Chapter 1 Use Mobile Computer 1.6. TOUCH CONTROL The mobile computer’s LCD is overlaid by a resistive touch panel and thus forms a resistive touchscreen. Since a resistive touchscreen locates the user’s touch by the force applied on it, by operating with the stylus one can apply minimum force to trigger actions from the touchscreen.
Page 46 CP55 Mobile Computer Reference Manual Screen Rotation window opens with three orientation modes to select from and an option to suspend the mobile computer when the screen is facing down. Three screen orientation modes Allows mobile computer to enter suspension when facing down 2) Tap the modes that you wish to enable.
Page 47: Adjust Backlight
Chapter 1 Use Mobile Computer SIGNATURE MODE The signature mode is for combined usage with the CipherLab application Signature. With this mode enabled, the screen will immediately rotate 180° when the front of the mobile computer is tilted outwards, which is convenient for signing by a second party.
Page 48 CP55 Mobile Computer Reference Manual AUTOMATIC BACKLIGHT PROFILES The mobile computer stores three backlight profiles to represent backlight level under different environments. These can be configured according to user’s likings. To set backlight profiles: 1) Tap Start | Settings | System | Backlight 2) Uncheck Manual backlight setting to enable profile function.
Page 49: Calibration
Chapter 1 Use Mobile Computer 1.6.4. CALIBRATION A resistive touchscreen needs calibration to work accurately after serving for a period of time. Calibration aligns the coordinates of the touch panel and the LCD underneath to improve touch accuracy. To calibrate the touchscreen: 1) Tap Start | Settings | System | Screen 2) Tap General tab page.
Page 50: Memory
CP55 Mobile Computer Reference Manual 1.7. MEMORY The mobile computer packs the following memory units to retain data and instructions from users: Random-access Memory (RAM) 512 MB SDRAM for temporary storage and fast access of active applications. When the main battery pack is absent, SDRAM is fed by backup battery to retain data.
Page 51 Chapter 1 Use Mobile Computer EXTERNAL STORAGE Tap Start | Settings | System | Storage Information . The Storage Card label shows the available space on the storage card (if no storage card is installed on the mobile computer, the available size will be displayed as 0).
Page 52: Insert Sd Card
CP55 Mobile Computer Reference Manual 1.7.3. INSERT SD CARD Day-to-day use of the mobile computer might cause the available internal storage to run short. Equip the mobile computer with an external memory unit to expand storage capacity. Follow the steps below to install a SD card: 1) Power off the mobile computer.
Page 53: Direct Data Communication
Syncing Tools and subsequent sections to know how to use ActiveSync. Note: The CP55 mobile computer uses COM9 for serial transmission via RS-232. Figure 11: Direct Data Communication Using Snap-on Cable...
Page 54: Use Cradle
CP55 Mobile Computer Reference Manual 1.8.2. USE CRADLE Direct cradle charging makes use of a Charging & Communication Cradle (hereinafter “cradle”). The cradle is one of the accessories you can opt for. Prior to charging, install main battery as described in Main Battery Setup.
Page 55: Syncing Tools
Chapter 1 Use Mobile Computer 1.8.3. SYNCING TOOLS Microsoft’s syncing tools enables users to update or back up the data on their mobile computers to desktop computers. Two syncing tools are featured by Microsoft - ActiveSync and Windows Mobile Device Center (“WMDC”).
Page 56: St Usb Sync
CP55 Mobile Computer Reference Manual 1.8.5. 1 USB SYNC This section will guide you through USB syncing. To connect ActiveSync using USB: 1) Download the right syncing tool as described in Syncing Tools and install it on your PC. 2) Connect the mobile computer and your PC as described in Use Snap-on Cable.
Page 57: Disconnect Usb Activesync
Chapter 1 Use Mobile Computer A “Temporary Relationship” is established between the mobile computer and the PC Note: If you encounter trouble during USB ActiveSync connection, tap Start | Settings | System | USB Connection and make sure “ActiveSync Serial Mode” is selected. 1.8.6.
Page 58: Activesync Actions To Take
CP55 Mobile Computer Reference Manual 1.8.7. ACTIVESYNC ACTIONS TO TAKE Once “Synchronization Relationship” or “Temporary Relationship” is established between two computers, a variety of actions can be taken to enhance resource sharing between them as previously mentioned in Sync Partnership.
Page 59 Chapter 1 Use Mobile Computer 4) Select the application program(s) to install to the mobile computer, and deselect the application program(s) to uninstall from the mobile computer. 5) Press the OK button. ActiveSync proceeds to install programs and/or remove programs to/from the mobile computer.
Page 60 CP55 Mobile Computer Reference Manual The mobile computer’s internal storage’s root directory “Mobile Device” opens presenting a few folders (and files). 4) Double-click My Windows Mobile-Based Device My Windows Mobile-Based Device opens. 5) Double-click Program Files. Program Files folder opens. This is where the downloaded applications are normally installed on the mobile computer’s local storage.
Page 61 Chapter 1 Use Mobile Computer ADD FILE SHORTCUTS TO START SCREEN To add a file shortcut to Start screen: 1) Connect two computers as described in Use Snap-on Cable. 2) Sync two computers as described in 1st USB Sync 3) On the PC, from ActiveSync menu bar, select Tools | Explore Pocket PC, or from its toolbar, press Explore button.
Page 62 CP55 Mobile Computer Reference Manual Context menu opens 5) Select New Folder. A new folder is created. BACKUP DATA To best protect your work, back up the data on your mobile computer regularly. You may choose to manually back up using ActiveSync to copy & paste the files to your PC.
Page 63: Volume And Audio
Chapter 1 Use Mobile Computer 1.9. VOLUME AND AUDIO 1.9.1. AUDIO PLAYBACK Use a headset for audio playback and hands-free telephone communication. The headset jack (3.5 mm DIA) is built up on one side of the mobile computer and sealed with a hinged rubber.
Page 64 CP55 Mobile Computer Reference Manual ON-SCREEN VOLUME GAUGE The mobile computer features an on-screen volume gauge to control the system volume, including event sounds, notifications and media playback. 1) Tap the volume notification icon on the title bar. 2) In the drop-down bar that opens, tap the volume...
Page 65: Data Capture
Chapter 2 DATA CAPTURE Although highly converged, the mobile computer is a dedicated barcode/RFID reader. The mobile computer ships with either a CCD reader, laser 1D reader or 2D imager, and sometimes plus an RFID reader. A number of symbologies and RFID tags are supported and data about them can be decoded and collected.
Page 66: Use Reader Config
The mobile computer is capable of reading printed barcodes. The reader module can be a either a (laser) 1D reader or a 2D imager. The mobile computer is installed with a CipherLab utility Reader Config to configure the scan engine built inside. Use it to create a profile of settings that best suits your needs.
Page 67: General Settings
Chapter 2 Data Capture 2.1.2. GENERAL SETTINGS General Settings is where all reader settings are accessed from except for symbologies settings. Tap the green arrow next to each item to enter the sub-menu for that given item. Tap to enter each sub-menu General Settings The functions under General Settings include:...
Page 68 CP55 Mobile Computer Reference Manual Scanner Preferences settings page opens. Featured settings are different for each type of reader: CCD READER SETTINGS Setting Description Default Decode Timeout Sets the maximum time (configurable from 1 to 9 sec) for 3 sec the decoding process during a scan attempt.
Page 69 Chapter 2 Data Capture Timeout Between 1 sec Sets the time for the barcode reader to resurrect its ability to Symbols once more decode a barcode it just decoded. Only applied in Continuous mode 1D (LASER) READER SETTINGS Setting Description Default Decode Timeout Sets the maximum time for the decoding process during a...
Page 70 CP55 Mobile Computer Reference Manual 2D IMAGER SETTINGS Setting Description Default Decode Timeout Sets the maximum time for the decoding process during a 3 sec. scan. Configurable between 1 sec to 9 sec. Redundancy Level Sets how many successful readings should be done before...
Page 71 Chapter 2 Data Capture DATA OUTPUT Data Output allows users to set the way to output decoded data. To open Data Output settings page: 1) Open Reader Config as described in Launch Reader Config. Reader Config main menu opens. 2) Tap the arrow next to Data Output. Data Output settings page opens.
Page 72 CP55 Mobile Computer Reference Manual HOW TO OUTPUT After the output destination is set, configure how to output decoded data, i.e. the “format” to present decoded data. Setting Description Default Auto Enter Adds an ENTER character before or after each scanning act.
Page 73 Chapter 2 Data Capture NOTIFICATION SETTINGS Notification Settings enables audible, visible and tactile feedback for scanning good read, which helps notify the user of a successful decoding. To open Notification Settings page: 1) Open Reader Config as described in Launch Reader Config.
Page 74: Symbology
CP55 Mobile Computer Reference Manual 2.1.3. SYMBOLOGY Symbology section sets the symbologies to read, and also enables/disables some feature(s) for a symbology to read, such as: Customize and transmit start/stop characters Verify/transmit check digits Enable/disable addon digits Convert to another symbology...
Page 75 Chapter 2 Data Capture Symbology settings page opens listing all symbologies which can be decoded. 1D Symbologies 2D Symbologies ENABLE/DISABLE SYMBOLOGY The icon in the Enable column indicates whether the specific symbology is enabled. A check indicates that decoding of the symbology is enabled, while a short bar indicates decoding of the symbology is disabled.
Page 76 CP55 Mobile Computer Reference Manual SYMBOLOGY SETTINGS Tap the arrow next to each symbology checkbox to access detailed settings for that symbology.
Page 77 Chapter 2 Data Capture GENERAL PREFERENCES For certain symbologies, common settings are grouped together and displayed in a detailed settings page for that barcode family. To open the general settings page for a set of symbologies, tap the arrow next to General Preference. General settings are provided for Composite Code, Postal Code, and UPC/EAN families.
Page 78: Miscellaneous
CP55 Mobile Computer Reference Manual 2.1.4. MISCELLANEOUS This section allows enabling code ID transmission for easy identification of the scanned barcode. Miscellaneous Setting Description Default Transmit AIM Code ID Sets whether to include AIM code ID character in the Deselected decoded data.
Page 79: Reader Config Option Menu
Chapter 2 Data Capture 2.1.5. READER CONFIG OPTION MENU Reader Config provides an option menu which is accessible on the menu bar of the main settings page. This menu allows you to import/export all settings in a re-usable format, reset all settings back to factory default, view copyright and version information, and exit the application.
Page 80 CP55 Mobile Computer Reference Manual RESET TO FACTORY DEFAULT This function restores all settings in the Reader Config application to default. To enable Factory Reset: 1) Open Reader Config as described in Launch Reader Config. Reader Config main view opens.
Page 81 Chapter 2 Data Capture IMPORT AND EXPORT Reader Config supports saving the settings and exporting them as an .xml file. Previously exported symbology and scanner settings can be imported again on the mobile computer. This can also be used to implement identical Reader Config settings on two or more devices.
Page 82 CP55 Mobile Computer Reference Manual To export settings: 1) Open Reader Config as described in Launch Reader Config. Reader Config main view opens. 2) Tap Menu button on the menu bar to open the option menu. 3) Tap Export. An export page opens allowing you to enter and select information about the profile to be saved.
Page 83 Chapter 2 Data Capture ABOUT Tap About in the Reader Config option menu to display software version and copyright information. Information about the software...
Page 84: Read Printed Barcodes
CP55 Mobile Computer Reference Manual 2.1.6. READ PRINTED BARCODES Aside from output to destinations as per Keyboard Emulation settings, Reader Config provides a Scan Test feature for quick viewing of decoded data. To perform test scanning of barcodes: 1) Open Reader Config as described in Launch Reader Config.
Page 85 Chapter 2 Data Capture The decoded data will appear on the page. When finished viewing, tap OK on the softkey bar to leave the test scan page. Tap to exit the test scan page To display more information such as barcode type and length, configure the reader as in Data Output.
Page 86: Use Hf Rfid Configuration
CP55 Mobile Computer Reference Manual 2.2. USE HF RFID CONFIGURATION 2.2.1. LAUNCH HF RFID CONFIGURATION If the mobile computer is equipped with an RFID reader, you may use HF RFID Configuration to configure the RFID reader and test scan RFID tags.
Page 87: General Settings
Chapter 2 Data Capture 2.2.2. GENERAL SETTINGS General Settings can set the data output format, notification of successful reading/writing of RFID tags, and check or change ISO14443A Key A and Key B values. The following items are available. Enable RFID Reader (Enabled by default) Data Output Notification Settings ISO14443A Login Key...
Page 88 CP55 Mobile Computer Reference Manual Setting Description Default Keyboard Treats decoded data as typed text and outputs it to the active Input on local Emulation application locally on the mobile computer or remotely on a machine connected computer. Options are: None: Disables Keyboard emulation whereby decoded data won’t be output.
Page 89 Chapter 2 Data Capture NOTIFICATION SETTINGS Notification Settings control if a successful decoding is made recognizable through audible, visible and/or tactile feedback. To open Notification Settings page: 1) Launch the RFID reader as described in Launch HF RFID Configuration. 2) Tap the green arrow next to Notification Settings. Setting Description Default...
Page 90 CP55 Mobile Computer Reference Manual ISO14443A LOGIN KEY Some RFID tags support authentication for security concerns, such as Mifare Standard 1K/4K and SLE66R35 tags. The security keys, Keys A and Key B, are two keys that enable the RFID reader to access (read or write) data blocks on a Mifare tag. Enter the keys before...
Page 91 Chapter 2 Data Capture ISO14443A CHANGE KEY You may change the Keys A and/or B used to access an RFID tag. To change the value of key A or key B: 1) Launch the RFID reader as described in Launch HF RFID Configuration.
Page 92: Hf Rfidconfig Option Menu
CP55 Mobile Computer Reference Manual 2.2.3. HF RFIDCONFIG OPTION MENU On the HF RFIDConfig main view is a menu button which allows you to import and export the settings, reset all settings back to default, check software version and developer...
Page 93 Chapter 2 Data Capture RESET TO FACTORY DEFAULT This function restores all settings in HF RFIDConfiguration to default. To reset the settings to default: 1) Launch the RFID reader as described in Launch HF RFID Configuration. 2) Tap Menu button on the menu bar to open the option menu. 3) Tap Reset to Factory default.
Page 94 CP55 Mobile Computer Reference Manual IMPORT AND EXPORT HF RFID Configuration supports saving the settings and exporting them as an .xml file. Previously exported symbology and scanner settings can be imported again on the mobile computer. This can also be used to implement identical HF RFID Configuration settings on two or more devices.
Page 95 Chapter 2 Data Capture To export settings: 1) Launch the RFID reader as described in Launch HF RFID Configuration. 2) Tap Menu button on the menu bar to open the option menu. 3) Tap Export. An export page opens allowing you to enter and select information about the profile to be saved.
Page 96 CP55 Mobile Computer Reference Manual ABOUT Tap About in the HF RFID Configuration option menu to display software version and copyright information. Information about the software...
Page 97: Read And Write Rfid Tags
Chapter 2 Data Capture 2.2.4. READ AND WRITE RFID TAGS To read an RFID tag: 1) Adjust the RFID reader settings first. For instance, specify how many bytes you would like to read from the tag, the start position to collect data, where and how to output data Data Output.
Page 98 CP55 Mobile Computer Reference Manual The decoded data will display in the test scan field below. Tap Back in the upper left corner to leave the test scan page. Set the block to start reading data from Shows the decoded data...
Page 99 Chapter 2 Data Capture To write data into an RFID tag: 1) Tap Write tab page. 2) Input the data you would like to write in the blank field below. 3) Press the scan key (or side trigger) on the mobile computer. If data failed to write into the RFID tag, an error message will display in the Response field below.
Page 100 CP55 Mobile Computer Reference Manual...
Page 101: Camera
Chapter 3 CAMERA The mobile computer is equipped with a 5.0 mega-pixel camera. The OS also has an integrated camera application for taking pictures and storing them on the mobile computer’s storage where they can be viewed, edited and output. The camera application provides users with customization that allows better image documentation.
Page 102: Launch Camera
CP55 Mobile Computer Reference Manual 3.1. LAUNCH CAMERA To launch the camera: 1) Tap Start | Pictures & Videos | Camera Camera application opens and is ready to take pictures. 3.1.1. CAMERA SCREEN Camera opens showing a subject area on the screen, and a toolbar at the top, which you may use to open Photo Viewer, take pictures, adjust camera settings, or exit the camera application.
Page 103: Take Pictures
Chapter 3 Camera 3.2. TAKE PICTURES To take a picture: 1) Open camera as described in Launch Camera. 2) Enable/disable camera flash and adjust picture quality or other settings according to your preferences. See Camera Settings. 3) Frame your object on the screen. 4) Press the Camera shutter button on the right side of the mobile computer to take the...
Page 104: Camera Settings
CP55 Mobile Computer Reference Manual 3.2.1. CAMERA SETTINGS The camera supports changing resolution, flash light mode, camera effect, brightness, and default file storage format and location. To access camera settings: 1) Open camera as described in Launch Camera. 2) Tap Menu button in the toolbar.
Page 105 Chapter 3 Camera Options… Opens Pictures & Videos settings page showing four tab pages: Camera, Video, General, and Slide Show. Camera tab page: Video tab page: Sets the file prefix, storage destination Selects whether to include audio data and compression level of the stored when recording videos, and the time image.
Page 106: Launch Video Camera
CP55 Mobile Computer Reference Manual 3.3. LAUNCH VIDEO CAMERA To launch the video camera: 1) Launch camera as described in Launch Camera. 2) Tap Menu command on the softkey bar 3) Tap Video in the option menu. Video camera is readied to begin shooting.
Page 107: Shoot Videos
Chapter 3 Camera 3.4. SHOOT VIDEOS By default, videos are shot in WMV format and are saved to the mobile computer’s internal storage under My Device\My Documents\My Pictures. To change the default storage path, see Camera Settings. To shoot a video: 1) Open video camera as described in Launch Camera.
Page 108: Video Camera Settings
CP55 Mobile Computer Reference Manual 3.4.1. VIDEO CAMERA SETTINGS The video camera supports changing brightness and quality. Users can also enable full screen shooting mode which leaves the screen clean of option buttons and picture information. To access video camera settings:...
Page 109: View Pictures
Chapter 3 Camera 3.5. VIEW PICTURES Pictures & Videos is an application that views and edits the pictures taken and videos shot, or those copied or downloaded. It also sets the background picture for Today Screen Start Screen, and sets avatars for your contacts. It can also be used to email pictures and videos.
Page 110 CP55 Mobile Computer Reference Manual VIEW A PICTURE OR VIDEO To view a picture or video: 1) Open Pictures & Video as described in Launch Pictures & Videos. 2) Tap the thumbnail of the picture or video to view. The picture displays or the video starts to play onscreen.
Page 111: Operating System
Chapter 4 OPERATING SYSTEM The mobile computer is powered by Windows Embedded Handheld 6.5, a member of Windows Embedded family. Windows Embedded Handheld 6.5 bears much similarity to desktop OS, and users rely only on a few basic gestures such as tap, double-tap and drag to navigate within the OS.
Page 112: St Startup
Chapter 4 Operating System 4.1. 1 STARTUP Finished with the setup as described in Main Battery Setup Insert SD Card, proceed to power on the mobile computer as described in Power Without a SIM card installed, the mobile computer is still able to connect to an available Wi-Fi hotspot for data.
Page 113: Today Screen
Chapter 4 Operating System 4.2. TODAY SCREEN It is the Today screen that first shows oncscreen when the mobile computer powers on or is unlocked. Today screen shows a scrollable list of applications such as pictures, music, clock & time and so on, and the application in the center is always the active one. When an application is active, today sceen displays additional information, and command buttons appear on the softkey bar to take actions to the application.
Page 114: Customize Today Screen
CP55 Mobile Computer Reference Manual 4.2.1. CUSTOMIZE TODAY SCREEN Customize Today screen to change its appearance and items presented. To customize Today screen: 1) Tap Windows icon on the softkey bar. 2) Tap Settings | Home. Home settings open. 3) Select between Appearance and Items tabs.
Page 115: Start Screen
Chapter 4 Operating System 4.3. START SCREEN Start screen is where all features on the mobile computer are accessed from. This screen lays out the application icons, shortcuts and so on in a staggered manner so icons are more touchable and the number of icons allowed onscreen are increased. Basic operations on Start screen: If you see the icon of the application you want to open, tap it.
Page 116: Return To Start Screen
CP55 Mobile Computer Reference Manual 4.3.1. RETURN TO START SCREEN Tap Windows icon on the softkey bar or press the physical Windows key to return to Start screen. 4.3.2. TITLE BAR At the top of almost every screen is Title bar. It shows a title on the left and a notification area on the right.
Page 117 Chapter 4 Operating System 3G network available 3G network connected HSDPA network available HSDPA connected EDGE network available EDGE connected GPRS network available GPRS connected Phone off SIM card locked. PIN code required to turn on phone Phone on with signal strength Connection is active Connection is inactive Wi-Fi on but not connected...
Page 118: Manage Notofications
CP55 Mobile Computer Reference Manual 4.3.3. MANAGE NOTOFICATIONS Status/notification icons are relatively small, however by tapping the Title bar, a drop-down bar will appear to provide larger icons for managing notifications. Tap Title bar to open a drop-down bar. Drop-down bar opens.
Page 119 Chapter 4 Operating System Reports customer feedback to Microsoft for improving Windows Embedded Handheld software. Opens the reminder for an alarm or appointment. Bluetooth A2DP profile in use. Tap it to access Bluetooth devices list. Checks a new e-mail. Opens Text application. Roaming on RESPOND TO NOTIFICATIONS 1) Tap Title bar to open Drop-down bar.
Page 120: Customize Start Screen
CP55 Mobile Computer Reference Manual 4.3.4. CUSTOMIZE START SCREEN Customize Start screen by changing the background, application shortcuts, and so on. Rearrange the application shortcuts to make the applications that you use most often easiest to access. CHANGE BACKGROUND Craft your Start screen and Today screen with any of your own pictures or a number of designer themes bundled with the OS.
Page 121 Chapter 4 Operating System File Explorer opens. 2) Browse to the executable file of the application to add shortcut for. 3) Tap and hold the executable file. A context menu comes up. 4) Tap Copy. 5) Browse to My Device\Windows\Start Menu\Programs. Programs folder opens.
Page 122 CP55 Mobile Computer Reference Manual REMOVE ITEMS FROM START SCREEN The mobile computer relies on File Explorer to remove an application shortcut from Start screen: 1) On Start screen, tap File Explorer File Explorer opens. 2) Browse to My Device\Windows\Start Menu\Programs.
Page 123: Start Screen Icons
Chapter 4 Operating System 4.3.5. START SCREEN ICONS Start screen presents a number of icons in a staggered pattern that makes them easily touchable. Each icon opens an application, folder or a group of settings when it is tapped. This section will give an overview of these icons. Icon Name Description...
Page 124 Searches contacts, files and other data on the mobile computer. Phone Help Accesses OS online help. CipherLab This folder contains more CipherLab-developed applications that are Utilities preinstalled on the mobile computer and which strengthen the user’s system management. Office Opens Microsoft Office suite applications including Excel Mobile, SharePoint Mobile 2000 WorkSpace Mobile, OneNote Mobile, Word Mobile, and PowerPoint Mobile.
Page 125: Set Screen Lock
Chapter 4 Operating System 4.4. SET SCREEN LOCK For the sake of security, you may want to restrict the access to the mobile computer by a self-set password. The OS supports setting up a password to recover the access to the mobile computer.
Page 126: Manage Applications
CP55 Mobile Computer Reference Manual 4.5. MANAGE APPLICATIONS On Windows Embedded Handheld 6.5, Start screen is where all inherent applications of the OS are accessed from. In the OS, when you run an application, the other applications that have been running don’t shut down but keep on running whether it is music that is being played or a webpage that is being browsed.
Page 127 Chapter 4 Operating System MONITOR OPENED APPLICATIONS Upon launch, Task Manager shows a list of all opened applications which are under monitoring: Delivers the application’s memory usage. Tap to ascend/descend the “Application” shows a entries list of opened applications which are being monitored Deliver the application’s CPU usage.
Page 128 CP55 Mobile Computer Reference Manual Tap and hold an entry to pop up the context menu. Context menu opens. SWITCH TO ANOTHER OPENED APPLICATION To switch to another opened application: 1) Launch Task Manager as described in Launch Task Manager.
Page 129 Chapter 4 Operating System Task Manager shifts to monitor processes. Task Manager monitors cached processes. Note: Stopping an application or process or service may interrupt one or more dependant functions on the mobile computer. You may need to restart the mobile computer to recover full functionality.
Page 130 CP55 Mobile Computer Reference Manual This screenshot shows downloading an Download starts and proceeds. application program to the mobile computer. When asked to confirm the download, tap the “Yes” command on the softkey bar. If the mobile computer is equipped with Installation begins.
Page 131 Chapter 4 Operating System nstallation complete. “OK” command to finish and quit installation. UNINSTALL APPLICATIONS On the mobile computer, the acquired (non-inherent) applications are subject to your manual uninstallation. To uninstall an application: 1) On Start screen, tap Settings | System | Remove Programs Remove Programs opens showing the applications downloaded and installed from external sources.
Page 132: Suspend & Reset Mobile Computer
CP55 Mobile Computer Reference Manual 4.6. SUSPEND & RESET MOBILE COMPUTER To save from repeatedly charging and replacing batteries, suspend the mobile computer when you are not actively using it. Suspending (or “turning off”) the mobile computer holds the device from running without cutting off power. It is a “soft-off” state which enables less power consumption, and also a state which the device can quickly awake from since there is no need to restart the OS and applications.
Page 133: Wake Up Mobile Computer
Chapter 4 Operating System 4.6.2. WAKE UP MOBILE COMPUTER “Waking up” refers to restoring the suspended device to its previous working state. The mobile computer can be awoken both manually and automatically. MANUAL AWAKENING Press (without holding) the power button or central scan key to wake up the mobile computer.
Page 134: Reset Mobile Comptuer
CP55 Mobile Computer Reference Manual 4.6.3. RESET MOBILE COMPTUER Resetting the mobile computer helps resolve certain problems within the OS and applications. Once the mobile computer is reset, DRAM will be initialized, and all data cached in DRAM will be gone after system reset. However all flash memory, system settings and clock/calendar time will be preserved.
Page 135: Update Os Image
DownloadTool, or with the use of an SD card. 4.7.1. OS UPDATE VIA DOWNLOAD TOOL The CipherLab Image Download Tool utility will load the selected OS image onto the mobile computer. This utility and the OS image file (.nb0 format) of the latest version are required for the OS update.
Page 136 CP55 Mobile Computer Reference Manual 4) Tap the yellow Browse button to select the image file you wish to update with. Drag the image file to the blue section. The selected image file will appear on the screen.
Page 137 Chapter 4 Operating System 5) Click Next to start the update process. The tool will download the image file to the mobile computer and start installation. Installation progress will be displayed on the screen in terms of percentage. 6) After update is complete, the mobile computer will restart to show the calibration screen. Complete the calibration steps to display the desktop.
Page 138: Os Update With Memory Card
CP55 Mobile Computer Reference Manual 4.7.2. OS UPDATE WITH MEMORY CARD You may also upgrade the OS image with the use of an SD card and an .nb0 OS image file. 1) On your PC, copy the latest OS image file to a microSD card.
Page 139: Radios
Chapter 5 RADIOS The mobile computer is a versatile networker. It integrates Wi-Fi and Bluetooth for wireless data, and optionally an HSPA (3.75G) module for mobile data. It also includes a GPS receiver which can detect your locations on earth with street-level accuracy. With the help of these radios, the mobile computer keeps users online all the time.
Page 140: Use Wi-Fi
CP55 Mobile Computer Reference Manual 5.1. USE WI-FI The mobile computer is capable of Wi-Fi, a wireless networking technology making use of an access point, also known as “hotspot”, to connect to a wireless local area network. To use Wi-Fi, the mobile computer has to connect to a hotspot. Some hotspots are open for connection while others request a key to authenticate access.
Page 141 Chapter 5 Radios Note: Wi-Fi settings under Wireless Manager will be kept through suspension and reboot. After the mobile computer resumes from suspension or restarts, Wi-Fi power status will be maintained, and the mobile computer will attempt to reconnect to the previous connection.
Page 142: Establish Wi-Fi Connection
CP55 Mobile Computer Reference Manual 5.1.2. ESTABLISH WI-FI CONNECTION To establish a Wi-Fi connection: 1) Turn on Wi-Fi power as in Power On/Off Wi-Fi. 2) Tap Menu | Wi-Fi Settings to configure related settings.. 3) On the Wireless tab, you will see a list of available Wi-Fi networks, including the signal...
Page 143 Chapter 5 Radios The icon next to the network name provides a visual status for the radio. It is only available when all of the following is true: Icon Indication The signal strength (RSSI) for the current AP (to which the radio (no-bar) is associated) is -91 dBm or weaker.
Page 144 CP55 Mobile Computer Reference Manual 5) Wait a few seconds for the mobile computer to connect to the preferred network you have configured. Then tap OK to close the current window. Note: Be sure to tap OK in order to store Wi-Fi settings and ensure Wi-Fi reconnection to...
Page 145 Chapter 5 Radios 6) Once connected successfully, the associated icon will appear on the title bar and the connected network name will be displayed for Wi-Fi status in Wireless Manager. Note: If the Wi-Fi power item disappears during the Wi-Fi connection, open ActiveSync on your PC, click File | Connection Settings.
Page 146: Configure Wi-Fi Settings
CP55 Mobile Computer Reference Manual 5.1.3. CONFIGURE WI-FI SETTINGS WI-FI POWER MODE To adjust the Wi-Fi power mode for Wi-Fi roaming: 1) Tap Start | Settings | Connection | Wi-Fi Settings. 2) Select the Wi-Fi module power mode between Auto or Active. Power consumption is lower in Auto mode, while Active mode provides higher Wi-Fi roaming performance and better roaming efficiency.
Page 147 Chapter 5 Radios WI-FI ROAMING When Wi-Fi roaming is enabled, the mobile computer auto-searches and switches to another network when the signal strength of the current network falls low. To enable Wi-Fi roaming: 1) Tap Start | Settings | Connection | Wi-Fi Settings | Roaming tab page. 2) Select the Activate Roaming checkbox to enable Wi-Fi roaming.
Page 148 CP55 Mobile Computer Reference Manual Threshold lower than the specified value. Set between -100 and -45. Low SNR Threshold Roam to another access point when SNR (Signal Noise Ratio) is higher than the specified value. Set between 0 and 255.
Page 149: Use Bluetooth
Chapter 5 Radios 5.2. USE BLUETOOTH The mobile computer is Bluetooth-enabled to synchronize data with other devices such as PCs, car hands-free kits, headsets, printers, PDAs, and cell phones. Class II Bluetooth devices enable wireless connections over a short distance of around 10 meters.
Page 150 CP55 Mobile Computer Reference Manual 4) Tap the OK command on the softkey bar. Bluetooth powers on. To turn off Bluetooth power, simply deselect Turn on Bluetooth and tap OK to apply the change. Note: Bluetooth settings will be kept through suspension and reboot. After the mobile...
Page 151: Change Blutooth Name
Chapter 5 Radios 5.2.3. CHANGE BLUTOOTH NAME By default, the mobile computer uses the device name for its Bluetooth name. Change the device name to make it more recognizable. To change the mobile computer’s device name: 1) On Start screen, tap Settings | System | About About screen opens showing Version tab page.
Page 152: Set Bluetooth Visibility
CP55 Mobile Computer Reference Manual 5.2.4. SET BLUETOOTH VISIBILITY By opening or closing Bluetooth visibility, you can control whether or not other Bluetooth devices can discover the mobile computer. To enable Bluetooth visibility on the mobile computer: 1) On Start screen, tap Settings | Bluetooth Bluetooth settings open showing Devices tab page.
Page 153: Pair & Connect Bluetooth Devices
Chapter 5 Radios 5.2.5. PAIR & CONNECT BLUETOOTH DEVICES Prior to connecting to another Bluetooth device, the mobile computer needs to pair with that device. Once they are paired, the two devices will stay paired unless they are unpaired. To pair with and connect to a Bluetooth device: 1) On the mobile computer, turn on Bluetooth as described in Power On/Off Bluetooth.
Page 154 CP55 Mobile Computer Reference Manual If the device to pair with is not displayed, make sure it is currently set as discoverable. If the mobile computer stops scanning before that device becomes discoverable, tap Refresh to repeat the scan 4) Tap the name of the found device that you wish to connect. Tap Next.
Page 155 Chapter 5 Radios Devices tab page re-opens listing the newly connected Bluetooth device among others. A connected device is listed under Connected label. A paired but unconnected device is listed under Disconnected label. Devices tab page A Bluetooth device connected. A Bluetooth device paired but disconnected.
Page 156 CP55 Mobile Computer Reference Manual DISCONNECT BLUETOOTH DEVICES To disconnect the mobile computer from a Bluetooth device, there are two approaches: Simply turn off the Bluetooth as described in Power On/Off Bluetooth. The mobile computer is disconnected from all connected Bluetooth devices.
Page 157: Edit Bluetooth Features To Use
Chapter 5 Radios 5.2.6. EDIT BLUETOOTH FEATURES TO USE A Bluetooth profile defines the features and communications supported by a Bluetooth device. For two Bluetooth devices to share files with each other, they need to both support the due profiles. Some Bluetooth devices have multiple profiles. Profiles can cover the ability to play music in stereo, to transfer files or other data and more.
Page 158: Bluetooth File Exchange
CP55 Mobile Computer Reference Manual 5.2.7. BLUETOOTH FILE EXCHANGE Once connected with other devices using Bluetooth, the mobile computer can offload or download files to/from them. Basically it relies on File Explorer to get it done. OFFLOAD FILES 1) On the mobile computer, turn on Bluetooth as described in Power On/Off Bluetooth.
Page 159: Bluetooth Activesync
Chapter 5 Radios DOWNLOAD FILES For the mobile computer to download files from other devices using Bluetooth, “Beam mode” must be enabled first: To enable Beam mode: 1) On Start screen, tap Settings | Connections | Beam 2) Select Receive all incoming beams. To download files from other devices using Bluetooth: 3) Enable the mobile computer’s “Beam”...
Page 160 CP55 Mobile Computer Reference Manual Bluetooth’s Device tab page open. 12) For the 1 setup, tap Add new device and complete through pairing and connection as described in Pair & Connect Bluetooth Devices. Select the name of your PC if it is connected before.
Page 161: Bluetooth Internet Sharing
Chapter 5 Radios 5.2.9. BLUETOOTH INTERNET SHARING “Internet Sharing” or “Internet Tethering” enables a Windows-based PC to connect to Internet using the mobile computer’s mobile data (or other dial-up). Well “Internet Sharing” is supported by Bluetooth too. To tether to Internet using Bluetooth, make the follow setting: 1) Set up Bluetooth connection between the mobile computer and your PC as described in Pair &...
Page 162: Bluetooth Pass-Through Networking
CP55 Mobile Computer Reference Manual Internet Sharing “Connected” prompted. Tap to stop Bluetooth Internet Sharing Tap the “Discon…” command on the softkey bar to stop. 5.2.10. BLUETOOTH PASS-THROUGH NETWORKING “Pass-Through Networking” enables the mobile computer to network using your PC’s data connection, courtesy that two computers are synced, whether by a hardwired USB approach or wirelessly by Bluetooth.
Page 163: Using The Phone
Chapter 6 USING THE PHONE The CP55 Mobile Computer allows making phone calls and connecting to the network over General Packet Radio Service (GPRS). Insert the SIM card before turning on the power. Refer to Install SIM Card. Note: If the SIM card is not in position, you may make emergency calls if the service is supported.
Page 164: Install Sim Card
CP55 Mobile Computer Reference Manual 6.1. INSTALL SIM CARD To use the mobile computer’s phone, first obtain a SIM card from your mobile carrier. Activate the SIM card and assemble it to the mobile computer. To insert a SIM card, follow the steps below: Power off the mobile computer.
Page 165: Phone Power
Chapter 6 Using the Phone 6.2. PHONE POWER 6.2.1. POWER ON PHONE VIA WIRELESS MANAGER 1) Tap Start | Settings | Connections | Wireless Manager. 2) Make sure the phone power is turned “on”. If not, tap All or Phone label to turn on the power.
Page 166 CP55 Mobile Computer Reference Manual 3) Tap Menu | Phone Settings to configure related settings if necessary. Note: Phone Settings are only available when the phone power has been turned on. You can check the security settings, change the PIN code on your SIM card and so on if...
Page 167: Sim Card Missing
Chapter 6 Using the Phone 6.2.2. SIM CARD MISSING 1) On the Home Screen, the notification icon on the title bar shows that the SIM card is missing. 2) If supported by your service provider, emergency calls are allowed when a SIM card is absent.
Page 168: Phone Application
CP55 Mobile Computer Reference Manual 6.3. PHONE APPLICATION 6.3.1. PHONE INTERFACE To access the phone application, tap Phone on the Start Screen, or press the [SEND] button on the physical keypad. The display panel on the top half of the screen is used to show your service provider’s name and the contact name and/or phone number when...
Page 169: Buttons
Chapter 6 Using the Phone 6.3.2. BUTTONS The phone keypad features the following buttons: Button Description [Backspace] button allows you to delete the last input. [Speed Dial] button allows you to view, edit the speed dial list and pick the number you want to call.
Page 170 CP55 Mobile Computer Reference Manual IN-CALL VOLUME During a call, you can adjust the in-call volume by tapping the speaker icon in the title bar drop-down list, or by pressing the volume buttons on the right side of the mobile computer.
Page 171: Phone Settings
Chapter 6 Using the Phone 6.4. PHONE SETTINGS Menu | Options to configure phone settings if necessary. SOUNDS TAB PAGE Tap the Sounds tab to adjust phone ring type, ring tone, and keypad sound.
Page 172 CP55 Mobile Computer Reference Manual SECURITY TAB PAGE Tap the Security tab to change SIM card security and PIN code setting. Note: The PIN verification on the mobile computer allows three chances to input the correct PIN code. If input fails three times, the SIM card will be locked, and you will need to...
Page 173 Chapter 6 Using the Phone NETWORK TAB PAGE Tap the Network tab to change phone network settings and edit your preferred networks. OTHERS TAB PAGE Tap the Others tab to configure GPRS authentication type, broadcast channels, and SMS transmission settings.
Page 174 CP55 Mobile Computer Reference Manual BAND TAB PAGE Tap the Band tab to change the band type and the local band in your geographic region.
Page 175: Making Phone Calls
Chapter 6 Using the Phone 6.5. MAKING PHONE CALLS The phone features allow you to make or receive phone calls and assign a Speed Dial number to a contact. “1” indicates the reserved Speed Dial number for the contact (or Voicemail)
Page 176: Dial A Number
CP55 Mobile Computer Reference Manual 6.5.1. DIAL A NUMBER You can dial a number by any of the following ways: Direct dialing: Use the dial pad on the screen or the physical keypad – simply enter the number you want to call.
Page 177 Chapter 6 Using the Phone HANGING UP Tap the red [End] button on the phone keypad, or press [END] from the physical keypad. DURING A CALL During a call, you may select to turn on the speaker, mute the receiver, or hold the line by tapping the respective on-screen buttons.
Page 178: Answer A Call
CP55 Mobile Computer Reference Manual 6.5.3. ANSWER A CALL ANSWERING A CALL Tap the Answer button or press [SEND] from the physical keypad. IGNORING A CALL Tap Ignore button or press [END] from the physical keypad.
Page 179 Chapter 6 Using the Phone VIEWING A MISSED CALL When you have a missed call, will be displayed on the title bar. Tapping it will reveal a missed call icon . Tap it to open the Call History page to identify the missed call. On the Today Screen, an uppercase number “1”...
Page 180: Configuring Cellular Network
CP55 Mobile Computer Reference Manual Note: The right LED on top of the mobile computer will also flash red to notify there is a missed call. 6.6. CONFIGURING CELLULAR NETWORK AUTOMATIC CONNECTION The mobile computer features Mobile Network Wizard, which automatically configures your network provider and APN when a SIM card is installed.
Page 181 Chapter 6 Using the Phone Tap OK on the softkey bar, and Yes in the pop-up dialog to confirm. The mobile computer will proceed to reboot 5) A new GPRS connection based on your ISP will be automatically created under Settings | Connections | Connections.
Page 182 CP55 Mobile Computer Reference Manual MANUAL CONNECTION If you would like to manually enter your own network settings, follow the steps below. 1) Tap Start | Settings | Connections and select Connections. 2) Tap Add a new modem connection and follow the on-screen instructions to enter the connection name and modem types.
Page 183 Chapter 6 Using the Phone 4) Specify the AP name from your service provider, for example, “internet”. Tap Next. 5) Enter user name, password and domain information as necessary. Tap Advanced to access TCP/IP and server settings. When all settings are completed, tap Finish.
Page 184 CP55 Mobile Computer Reference Manual Note: You must connect to the GPRS modem specified by the mobile phone service provider. Performing hardware reset will not affect the wireless connection settings made under Wireless Manager. On the next system startup, the mobile computer will reflect the...
Page 185: Voip
Chapter 6 Using the Phone 6.7. VOIP The mobile computer supports VoIP (Voice over Internet Protocol) through connection to a SIP server. VoIP transforms analog voice signals into digital data and transmits them over the Internet in the form of data packets. This allows instant audio communication while maintaining device portability.
Page 186: Create Voip Profile
CP55 Mobile Computer Reference Manual 6.7.2. CREATE VOIP PROFILE To use VoIP for internet-based mobile communication, you must create a VoIP profile that contains the settings for connecting to a SIP server. 1) Open the VoIP Configuration tool as described in Launch VoIP.
Page 187 Chapter 6 Using the Phone The created profile will be listed on the profile list page, with a tick ✓in front of it to indicate it is the active profile. To take more actions to the profile, see Edit Profile List.
Page 188: Voip Menu
CP55 Mobile Computer Reference Manual 6.7.3. VOIP MENU The VoIP configuration page features a menu list for managing profiles, activating VoIP, viewing software information and exiting the configuration tool. Option Description Profile list Opens Profile list page which shows all the existing VoIP profiles created or imported into the VoIP Configuration tool.
Page 189 Chapter 6 Using the Phone New profile Opens a new page with empty fields for you to create a new profile. Enter profile settings and tap Save in the lower right corner. Two possible actions will follow: If there is no existing profile in the Profile list, the new profile created will be automatically assigned as the active...
Page 190: Activate Voip
CP55 Mobile Computer Reference Manual 6.7.4. ACTIVATE VOIP Follow the steps below to activate VoIP: 1) Create or import a VoIP profile. 2) Tap Menu on the softkey bar and select Internet Calling in the pop-up menu. 3) On the Internet Calling page, select when to activate VoIP in the drop-down list.
Page 191 Chapter 6 Using the Phone 4) If VoIP is available, an icon for phone power appears on the title bar, with bars indicating the signal strength. 5) Press the [SEND] button on the physical keypad, or tap Start | Phone to open the phone dialing page.
Page 192: Edit Profile List
CP55 Mobile Computer Reference Manual 6.7.5. EDIT PROFILE LIST On the Profile list, tap the Menu icon on the softkey bar to edit the profile. Menu options include: Activate, Delete, Import and Export. Option Description Activate Activates the selected profile. If multiple profiles exist in the Profile list, you may use this to change the active VoIP profile.
Page 193: More Applications
Chapter 7 MORE APPLICATIONS Additional applications include: Applications Description Button Assignment Assigns new functions to some physical keys. GPS Viewer Discovers your location on earth. Signature Utility Captures, views, edits signatures. Backup Utility Performs backup and restoration of registry and system files. Push to Talk Transmits real-time audio content through wireless connection.
Page 194: Button Assignment
CP55 Mobile Computer Reference Manual 7.1. BUTTON ASSIGNMENT Button Assignment can re-define the functions of physical keys so that they trigger different actions. Settings made to one or more keys can be saved as a profile, allowing users to switch conveniently in between different sets of settings. Key functions under Function...
Page 195: Redefine Keys
Chapter 7 More Applications TOOLBAR Toolbar icon Description Opens Button Assignment main menu which can be used to manage profiles, reset settings to default, obtain version information, or exit the application. Saves current settings as a new profile, or saves changes made to the profile currently opened.
Page 196 CP55 Mobile Computer Reference Manual Item Value Default Sets the key function back to factory default. Custom Provides a drop-down list to select the preferred function for the specific key. (Options available differ with the key.) Either select a pre-defined function, or select “”User define” and enter a valid ASCII key code (0x00~0xFF) in the text box.
Page 197 Chapter 7 More Applications DISABLE/ENABLE KEY FUNCTION The last column in the Device Setting list gives an overview of key status. Users can disable or enable a key by giving a single tap on this column. By disabling keys, keys are “locked” as no actual function will take place when they are pressed.
Page 198: Main Menu
CP55 Mobile Computer Reference Manual 7.1.3. MAIN MENU When the main menu button is tapped, an option menu opens providing the following functions: Item Description User Profile Displays the existing profiles (not including default settings), and a toolbar to manage profiles:...
Page 199 Chapter 7 More Applications MANAGE PROFILES CREATE PROFILE To create a new profile: 1) Load factory default settings, or read current settings from device first. 2) Modify the settings directly according to your needs, then tap to open a page where you can enter a name for the new profile.
Page 200 CP55 Mobile Computer Reference Manual Specify the directory where the profile is stored Tap a profile to import it Select the profile you wish to export, then tap to enter 01export settings. Enter a name for the profile to export...
Page 201 Chapter 7 More Applications READ/WRITE SETTINGS Use Read from device and Write to device to read the current settings on the device, or write the newly changed settings to the device in order for them to take effect. See Main Menu for when to use these options.
Page 202: Keypad Modes
CP55 Mobile Computer Reference Manual 7.1.4. KEYPAD MODES Both the numeric and QWERTY keypad provide two different modes, normal mode and function mode. To enable the function mode, simply press the Function key . For behaviors of the Function key, see Function Key.
Page 203 Chapter 7 More Applications F1-24 Backspace Backspace User Define [*] Asterisk [#] Number 1, 2, 3.….9, 0 F3…..F9, F10 Shift Shift...
Page 204 CP55 Mobile Computer Reference Manual QWERTY KEYPAD Special Options Normal (Normal Mode Button Mode Fn Mode General Options Only) Send Start Send screen Start screen Home Home Left Backlight Right Scan Camera Down Scan + User Page Up Define Page Down...
Page 205 Chapter 7 More Applications Enter Enter & ABC…..Z F1-F9 Shift Shift Ctrl Ctrl Note: (1) Direct keys (scan key, side trigger keys, volume up/down keys, Application key) on the mobile computer are available for re-assigning only under normal mode. (2) Several of the direct keys provide special functions under normal mode. These special functions include Camera and Scan + User Define.
Page 206: Gps Viewer
GPS software to work with. The GPS module turns on automatically once GPS software launches on the mobile computer. For CP55 mobile computers equipped with GPRS, GPS Viewer comes as preinstalled GPS software. To launch GPS Viewer: 1) Turn on Cellular data/GPS power as in Power On Phone via Wireless Manager.
Page 207 Chapter 7 More Applications Item Description Date, Time Current date and time. Longitude, Latitude, Altitude Together they deliver the user’s location on earth. PDOP Positional (3D) Dilution of Precision, an indicator about the relationship between the error in user position and the error in satellite position. Small PDOP value indicates good positioning.
Page 208: Signature Utility
CP55 Mobile Computer Reference Manual 7.3. SIGNATURE UTILITY Signature utility captures, views and edits signature files. If you need to manage signatures, install signature utility according to the following steps. 7.3.1. INSTALL SIGNATURE UTILITY INSTALL WITH .CAB FILE 1) Insert the product CD into your CD-ROM.
Page 209 Chapter 7 More Applications 6) Signature utility is installed on the mobile computer’s Start Screen.
Page 210 CP55 Mobile Computer Reference Manual INSTALL WITH .EXE FILE 1) Insert the product CD into your CD-ROM. 2) Connect the mobile computer to your PC via ActiceSync. 3) On your PC, double-click the Signature utility executable file (.EXE) to begin the...
Page 211 Chapter 7 More Applications 4) On the mobile computer, select where to install the utility, either in one of the device’s storage spaces, or on the storage card. 5) Signature utility is installed on the mobile computer’s Start Screen.
Page 212: Launch Signature Utility
CP55 Mobile Computer Reference Manual 7.3.2. LAUNCH SIGNATURE UTILITY To launch Signature utility: 1) Tap Start | Programs | Signature Signature utility opens showing a toolbar along the top and a signing area within its window. Toolbar Signing area TOOLBAR & SIGNING AREA Toolbar features a few icons to launch actions from the utility.
Page 213: Capture Signature
Chapter 7 More Applications 7.3.3. CAPTURE SIGNATURE To capture a signature: 1) Launch Signature utility as described in Launch Signature Utility. 2) Use the stylus to sign a name in the signing area. 3) Tap icon to save the signature as an image in BMP, JPG or Locus format. icon to discard the signature and sign again.
Page 214: View Or Edit Existing Signatures
CP55 Mobile Computer Reference Manual 7.3.4. VIEW OR EDIT EXISTING SIGNATURES To view the existing signature(s) on the storage of the mobile computer: 1) Launch Signature utility as described in Launch Signature Utility. 2) Tap icon on toolbar. The utility opens a screen allowing users to select the location and file type of the signature to view.
Page 215: Preferences
Chapter 7 More Applications 7.3.5. PREFERENCES The utility supports preferences settings which change the utility’s behaviors when it is used. Users are able to change the size and color of the signing pen stroke, and customize the background color of the signing area. To access the utility’s preferences settings: 1) Launch Signature utility as described in Launch Signature...
Page 216: Backup Utility
Reference Manual 7.4. BACKUP UTILITY CipherLab’s Backup Utility performs backup and restoration, a process of copying files and putting them back to system. They are very important for a computer or database once it is rendered unusable by any software or hardware error.
Page 217: Registry Backup And Restoration
Chapter 7 More Applications 7.4.2. REGISTRY BACKUP AND RESTORATION The registry is a database of the information about system configuration and application settings that form the basis of operating system. You may back up and restore the system registry to keep the mobile computer at a stable condition. REGISTRY BACKUP You may use registry backup to reserve the system configuration and application settings at a checkpoint when the condition is stable, which can come to rescue when the system...
Page 218 CP55 Mobile Computer Reference Manual Registry backup is completed within a few seconds. Tap OK to close the window. Warning: Whenever changes are made to the system configurations and settings, remember to perform registry backup again to update the system registry.
Page 219 Chapter 7 More Applications 3) Tap OK to proceed, or tap Cancel to abort. The mobile computer proceeds to restore the registry. When completed, a dialog pops up confirming that system reboot (warm boot) must be performed for the changes to take effect.
Page 220: Device Data Backup And Restoration
CP55 Mobile Computer Reference Manual 7.4.3. DEVICE DATA BACKUP AND RESTORATION DEVICE DATA BACKUP The Backup tab page can be applied for backup of system files and user data. To back up system file(s): 1) Launch Backup Utility as described in Launch Backup Utility.
Page 221 Chapter 7 More Applications 4) The file system is revealed as a tree-like structure in hierarchical order. Each plus sign (+) is a node to expand an item or sub-item. Each item comes with a check box for selection. Select the items you would like to back up. File system is revealed If the items “Machine Registry”...
Page 222 CP55 Mobile Computer Reference Manual 6) Tap Start to proceed. Backup utility proceeds to generate a backup file for system data. Results are displayed on the screen. Click to view a Closes the backup process report of the backup 7) Tap OK to finish and quit backup, or tap Report to view the details of the generation.
Page 223 Chapter 7 More Applications DEVICE DATA RESTORATION You may restore system files and user data as long as any backup file is found in the storage, whether internal or external. To restore device data: 1) Launch Backup Utility as described in Launch Backup Utility.
Page 224 CP55 Mobile Computer Reference Manual Estimation of required storage Starts restoration by Quits restoration putting the selected backup file back to system 4) Tap the bottom-left Start button. Restoration begins, and the selected backup file is placed back to the system.
Page 225: Push To Talk
Chapter 7 More Applications 7.5. PUSH TO TALK CipherLab Push to Talk is a walkie-talkie service that allows users of an active talk group to communicate with all other members of the group instantaneously with a simple push of a button.
Page 226: Communicate With Group Members
CP55 Mobile Computer Reference Manual 7.5.2. COMMUNICATE WITH GROUP MEMBERS Push to Talk functions through group communication, meaning that when an audio transmission is initiated on one device, all other devices in that group will receive the audio message. Groups are established by Wi-Fi connection under a specific subnetwork (subnet).
Page 227 Chapter 7 More Applications “Transmitting” status indicates the device is in transmit mode When tapped and held, PUSH button turns red When finished transmitting the audio message, let go of the PUSH button. The button will return to gray and the mobile computer will switch back to voice reception mode.
Page 228 CP55 Mobile Computer Reference Manual RECEIVING AUDIO CONTENT To receive audio content from group members: 1) Have all devices you would like to communicate with connect to a specific (or several specific) access point(s) as described in Wi-Fi. Make sure these access points belong to the same subnet.
Page 229 Chapter 7 More Applications MANAGING MEMBER LIST The Member List will show all other devices (not including the device under operation) that have connected to the wireless subnet and are currently running the Push to Talk application. OPEN MEMBER LIST 1) Launch Push to Talk as described in Launch Push to Talk.
Page 230 CP55 Mobile Computer Reference Manual VOICE RECEPTION MODE When Push to Talk is opened, devices will be in voice reception mode and are ready to receive audio content. The status bar before the device name appears in green. Green indicates a device is in voice...
Page 231 Chapter 7 More Applications DEVICE DISCONNECTED When one or more of the devices in the group is disconnected, the status bar before the device name will change to gray. The Member List label will be updated to reflect the remaining number of connected devices. When this occurs, check the Wi-Fi connection status on that specific device, make sure the mobile computer is powered on and not in suspension, and the Push to Talk application is currently running.
Page 232 CP55 Mobile Computer Reference Manual...
Page 233: Manage Mobile Computer
Chapter 8 MANAGE MOBILE COMPUTER This chapter guides you to the system settings featured by the OS. Access these settings to define how the mobile computer looks, sounds, stores/secures your data, manages the applications, or exchanges data with your networks or other devices. This chapter also includes the process for updating the OS image.
Page 234: System Settings
CP55 Mobile Computer Reference Manual 8.1. SYSTEM SETTINGS This section guides to Windows Embedded Handheld 6.5 system settings. Access these settings to define how the mobile computer looks, sounds, stores/secures data, manages applications, or exchanges data with networks or other devices.
Page 235 Chapter 8 Manage Mobile Computer specific period of time, either on battery or external power. SOUNDS & NOTIFICATIONS Configures the mobile computer’s sound upon tapping onscreen commands or physical buttons, how a notification or system event is received, how an alarm sounds, and related settings.
Page 236: Connections Folder
CP55 Mobile Computer Reference Manual 8.1.1. CONNECTIONS FOLDER This section guides to applications available in Connections Folder under System Settings. Open Start screen, tap Settings | Connections Connections folder opens: Connections folder BEAM For Windows Mobile and Windows Embedded Handheld, “beam” is typically known as data sharing between handheld devices through infrared or Bluetooth.
Page 237 Chapter 8 Manage Mobile Computer Manage existing connections Edits existing mobile data connection to Internet. My Work Creates mobile data connection to an internal network Network (intranet) or a VPN. For enterprise network to access Internet, proxy server setting which is usually required is supported.
Page 238 CP55 Mobile Computer Reference Manual Sharing. WI-FI Refer to Wi-Fi. WI-FI SETTINGS Enables Wi-Fi roaming on the mobile computer and manages roaming settings. See Configure Wi-Fi Settings. WIRELESS MANAGER The Wireless Manager page shows the following items: All: Turns on/off all the radios on the mobile computer.
Page 239 Chapter 8 Manage Mobile Computer Edits an existing port. Phone Settings Phone settings are only available when a SIM card is assembled and the phone is turned on. Phone settings features four tabs – Sounds, Security, Services, Network. Sounds tab page: Configures phone ring type.
Page 240: Personal Folder
CP55 Mobile Computer Reference Manual 8.1.2. PERSONAL FOLDER This section guides to Personal Folder Open Start screen, tap Settings | Personal. Personal folder opens: Personal folder opens BUTTONS Provides two tabs – Program Buttons and Up/Down Control. Tab Page Description Program Buttons Assigns a button to quick launch an application.
Page 241: System Folder
Chapter 8 Manage Mobile Computer 8.1.3. SYSTEM FOLDER This section guides to System Folder Open Start screen, tap Settings | System. System folder opens: System folder opens ABOUT Views OS information. It features three tabs – Version, Device ID and Copyright. Tab Page Description Version...
Page 242 CP55 Mobile Computer Reference Manual Battery Power Sets the screen backlight timeout on battery power and whether to trigger screen/keypad light-up upon pressing a key. Option Default Settings Turn off LCD backlight if device is not used Checked; for: 2 min Turn off keypad backlight if device is not Checked;...
Page 243 Chapter 8 Manage Mobile Computer CUSTOMER FEEDBACK Submits feedback about Windows Embedded Handheld 6.5 to help Microsoft improve the software for this platform. ENCRYPTION Encrypts the files placed on the storage card so the encrypted files are only readable on that specific mobile computer. ERROR REPORTING Enables/disables the mobile computer to auto-collect and report errors to Microsoft to help them improve products.
Page 244 CP55 Mobile Computer Reference Manual Tab Page Description Region Sets the region of your locale to display numbers, amount of money, time/date and other info. Number Sets how to display numbers. Currency Sets how to display currency symbols and amount of money.
Page 245 Chapter 8 Manage Mobile Computer SYSTEM INFORMATION Displays some of the mobile computer’s info such as manufacturer, firmware version, MAC address, memory capacity and so on. Tap each node to expand the tree structure list and view data about the given items. This page also displays the mobile computer’s Device ID, a sequence of digits that deliver information about the hardware integrated on the mobile computer.
Page 246 CP55 Mobile Computer Reference Manual TASK MANAGER Monitors the memory and CPU resources consumed by each running application and cached process. It also closes applications and switches the screen between opened applications. See also Task Manager. TIME SYNCHRONIZATION Synchronizes the mobile computer’s time with an NTP server, either automatically or manually.
Page 247: Specifications
SPECIFICATIONS PLATFORM, PROCESSOR & MEMORY Operating System & CPU OS Version Microsoft Windows Embedded Handheld 6.5 TI OMAP4430 1GHz Processor Memory 512MB DDR SDRAM Flash 4GB Flash ROM Expansion Slot One expansion slot, supports MicroSD from 256MB to 4GB, or MicroSDHC from 4GB to 32GB COMMUNICATIONS &...
Page 248: Electrical Characteristics
CP55 Mobile Computer Reference Manual ELECTRICAL CHARACTERISTICS Batteries Main Battery Pack 3.7V, 3300 mAh Rechargeable Li-ion battery Charging time: approximately 4 hours Backup Battery 15 mAh Rechargeable Lithium battery (via main battery or DC input) Data retention for 30 minutes...
Page 249: Physical Characteristics
Specifications PHYSICAL CHARACTERISTICS Color Tap Screen Display Display 3.5” Transflective TFT-LCD, 65K colors, sunlight readable Resolution QVGA 240 (W) x 320 (H), VGA Keypad Layout Numeric or QWERTY keypad Backlight White LED backlight for display and keypad Notifications Status LED Three LEDs for showing scanning good read, battery charging status and radio connection status Audio...
Page 250: Environmental Characteristics
IP65 per applicable IEC 60529 sealing specs Electrostatic Discharge ± 15 kV air discharge, ± 8 kV contact discharge Note: CipherLab will not be held responsible for the mobile computer’s malfunction incurred by the operation outside operating temperature range. PROGRAMMING SUPPORT Development Environment &...
Page 251: Accessories
Specifications Third-party software SOTI MobiControl for remote device control (downloadable from website) Naurtech CETerm – Terminal emulator (3270, 5250, VT) and industrial web browser (product CD) SYSDEV Kalipso (product CD) ACCESSORIES Accessory Options Snap-on Charging and Communication Cable (USB or RS-232) Charging &...
Page 252 CP55 Mobile Computer Reference Manual...
Page 253: Scan Engine Settings
CipherLab HF RFID Configuration configures the RFID reader onboard. With the RFID reader enabled, press the scan key to read an RFID tag in position.
Page 254: Symbologies Supported
CP55 Mobile Computer Reference Manual SYMBOLOGIES SUPPORTED Depending on the scan engine integrated on the mobile computer, supported symbologies will differ as listed below. For details on configuring associated settings, refer to Appendix II and III. Laser Codabar Code 11...
Page 255 Scan Engine Settings US Postnet US Planet UK Postal EAN/UPC EAN-8 EAN-8 Extend EAN-13 Bookland EAN (ISBN) ISSN EAN UPC-A UPC-E Convert UPC-E to UPC-A UPC-E1 Convert UPC-E1 to UPC-A 2D Symbologies Aztec Data Matrix Maxicode MicroPDF417 MicroQR PDF417 QR Code...
Page 256: Rfid Tags Supported
CP55 Mobile Computer Reference Manual RFID TAGS SUPPORTED The RFID reader supports both reading and writing RFID data. Supported labels include ISO 15693, ISO 14443A and ISO 14443B. Supported RFID tags include: ID_MOD_RFID UID Only Read Page Write Page ISO 14443A...
Page 257: Ccd (Sm1)
Appendix II CCD (SM1) The tables below list the symbologies settings for the CCD reader (SM1). SYMBOLOGY SETTINGS CCD Engine Description Default CODABAR Codabar Enable Codabar Checkbox to enable Codabar decoding. Enable Length option Sets the length of the Codabar symbols to decode. Max / Min Length One Fixed length (Length 1)
Page 258 Length option Sets the length of the Code 39 symbols to decode. Max / Min Length One Fixed length (Length 1) (4-55) Two Fixed lengths (Length 1>Length 2) Max / Min Length (range: 0-55; Length 1<Length 2) Any Length CODE 93 Code 93 Enable Code 93...
Page 259 CCD (SM1) GS1 DATABAR GS1 DataBar-14 GS1 DataBar-14 Checkbox to enable GS1 DataBar-14 decoding. Enable GS1 DataBar Limited GS1 DataBar Limited Checkbox to enable GS1 DataBar Limited decoding. Enable GS1 DataBar Expanded GS1 DataBar Expanded Checkbox to enable GS1 DataBar Expanded decoding. Enable Checkbox to enable MSI decoding.
Page 260 CP55 Mobile Computer Reference Manual Preamble Decide whether include UPC-A/UPC-E/UPC-E1 Transmit preamble System Character (and Country Code) in the data System being transmitted. Character No transmit: transmits none of the above Transmit System Character: transmits system number only Transmit Sys. Character and Country Code: transmits...
Page 261 CCD (SM1) General Preference EAN Addon Option Decide whether to decode EAN-8, EAN-13 with addons Ignore Addon (including Addon 2 and 5). Ignore Addon Decode only with addons Auto-discriminate EAN Addon When “Auto-discriminate” is applied, decide the number of Redundancy times of supplementary decoding the same barcode to count as a valid read.
Page 262 CP55 Mobile Computer Reference Manual...
Page 263: Laser (Se955 & Se965Hp)
Appendix III LASER (SE955 & SE965HP) The tables below list the symbology settings for 1D laser scan engine (SE955) and 1D long range laser scan engine (SE965HP). SYMBOLOGY SETTINGS Symbology Description Default CODABAR CodaBar Codabar Checkbox to enable Codabar decoding. Enable Length option Sets the length of the Codabar symbols to decode.
Page 264 CP55 Mobile Computer Reference Manual CODE 39 Code 39 Code 39 Checkbox to enable Code 39 decoding. Enable Trioptic Code 39 Selects whether to decode Trioptic Code 39. Disable Trioptic Code 39 is a variant of Code 39 used in the marking of computer tape cartridges.
Page 265 Laser (SE955 & SE965HP) Discrete 25 Checkbox to enable Discrete 25 decoding. Enable Length option Sets the length of the Discrete 25 symbols to decode. Max / Min Length One Fixed length (Length 1) (4-55) Two Fixed lengths (Length 1>Length 2) Max / Min Length (range: 0-55;...
Page 266 CP55 Mobile Computer Reference Manual Convert to UPC/EAN This only applies to GS1 DataBar-14 and GS1 DataBar Disable Limited barcodes not decoded as part of a Composite barcode. Convert to EAN-13 Strips the leading “010” from barcodes. The barcode must be composed of a leading “01” as the application identifier (AI) and a first digit of zero.
Page 267 Laser (SE955 & SE965HP) UPC-A UPC-A Checkbox to enable UPC-A decoding. Enable Preamble Decide whether include UPC-A/UPC-E/UPC-E1 Transmit preamble System Character (and Country Code) in the data System being transmitted. Character No transmit: transmits none of the above Transmit System Character: transmits system number only Transmit Sys.
Page 268: Miscellaneous
CP55 Mobile Computer Reference Manual EAN Addon Option Decide whether to decode EAN-8, EAN-13 with addons Ignore Addon (including Addon 2 and 5). Ignore Addon Decode only with addons Auto-discriminate EAN Addon When “Auto-discriminate” is applied, decide the number of...
Page 269: Aim Code Id - Modifier Characters
Laser (SE955 & SE965HP) Code 128, Coupon (Code 128 portion) Data Matrix UPC/EAN, Coupon (UPC portion) GS1 DataBar (RSS) Codabar Code 93 Code 11 Interleaved 25 PDF417, Macro PDF417, Micro PDF417 QR Code, MicroQR Industrial 25 (Discrete 25), IATA 2 of 5 Maxicode Code 39 Trioptic, Bookland EAN, Matrix 25, US Postnet, US Planet, UK Postal, Japan Postal, Australian Postal, Dutch Postal...
Page 270 CP55 Mobile Computer Reference Manual UPC/EAN Standard data packet in full EAN country code format, which is 13 digits for UPC-A and UPC-E (not including addons). Standard data packet with two-digit or five-digit addons. EAN-8 data packet. A UPC-A with Addon 2 barcode, 012345678905-10, is transmitted to the host as a 18-character string, ]E3001234567890510.
Page 271 Laser (SE955 & SE965HP) Scan engine is set for Basic Channel operation (no escape character transmission protocol). Data characters 92 not doubled. When decoders are set to this mode, unbuffered Macro symbols and symbols requiring the decoder to convey ECI escape sequences cannot be transmitted.
Page 272 CP55 Mobile Computer Reference Manual...
Page 273: Imager (Se4500Dl)
Appendix IV 2D IMAGER (SE4500DL) The tables below list the symbology settings for 2D imager (SE4500DL). SYMBOLOGY SETTINGS 1D SYMBOLOGIES Symbology Description Default CODABAR CodaBar Codabar Checkbox to enable Codabar decoding. Enable Length option Sets the length of the Codabar symbols to decode. Max / Min Length One Fixed length (Length 1)
Page 274 CP55 Mobile Computer Reference Manual CODE 39 Code 39 Code 39 Checkbox to enable Code 39 decoding. Enable Trioptic Code 39 Selects whether to decode Trioptic Code 39. Disable Trioptic Code 39 is a variant of Code 39 used in the marking of computer tape cartridges.
Page 275 2D Imager (SE4500DL) Concatenation Sets whether to enable decoding ISBT-128 by performing Disable concatenation of ISBT data Disable: Does not perform concatenation Enable: Performs concatenation ISBT-128 barcodes. Auto-discriminate: Auto-discriminates between ISBT-128 barcodes which require concatenation and those which do not need concatenation. Redundancy Sets redundancy between 2-20.
Page 276 CP55 Mobile Computer Reference Manual Transmit Check Digit Decide whether to include the check digit in the data being Disable transmitted. COMPOSITE Composite CC-A/B Composite CC-A/B Checkbox to enable Composite CC-A/B decoding. Disable Composite CC-C Composite CC-C Checkbox to enable Composite CC-C decoding.
Page 277 2D Imager (SE4500DL) Convert to UPC/EAN This only applies to GS1 DataBar-14 and GS1 DataBar Disable Limited barcodes not decoded as part of a Composite barcode. Convert to EAN-13 Strips the leading “010” from barcodes. The barcode must be composed of a leading “01” as the application identifier (AI) and a first digit of zero.
Page 278 CP55 Mobile Computer Reference Manual Netherlands KIX Code Netherlands KIX Code Checkbox to enable Netherlands KIX Code decoding. Enable US Postnet US Postnet Checkbox to enable US Postnet decoding. Enable US Planet US Planet Checkbox to enable US Planet decoding.
Page 279 2D Imager (SE4500DL) Preamble Decide whether include UPC-A/UPC-E/UPC-E1 Transmit preamble System Character (and Country Code) in the data System being transmitted. Character No transmit: transmits none of the above Transmit System Character: transmits system number only Transmit Sys. Character and Country Code: transmits system number and country code Convert to UPC-A The UPC-E barcode will be expanded into UPC-A format, and...
Page 280: Symbologies
CP55 Mobile Computer Reference Manual UPC Addon Redundancy When “Auto-discriminate” is applied, decide the number of times of supplementary decoding the same barcode to count as a valid read. Configurable between 2 and 30. 2D SYMBOLOGIES Symbology Description Default Aztec Aztec Selects whether to enable Aztec decoding.
Page 281: Miscellaneous
2D Imager (SE4500DL) MicroPDF417 MicroPDF417 Selects whether to enable MicroPDF417 decoding. Disable Code 128 Emulation Transmit data from certain Micro PDF 417 barcodes as if it Disable was encoded in Code 128 barcodes. Transmit AIM code ID character in Miscellaneous options must be enabled first.
Page 282 CP55 Mobile Computer Reference Manual...
Page 283: Hf Rfid Reader
Appendix V HF RFID READER The HF RFID reader supports ISO14443A and B, 15693 and Secure Access Module (SAM). RFID TAG DEFAULT START BYTE Tag Type Standard Default Start Byte Mifare Classic S20/S50/S70 ISO 14443A Mifare UL ISO 14443A SLE 66R35 ISO 14443A SRI176 ISO 14443B...
Page 284 CP55 Mobile Computer Reference Manual...
Page 285: Physical Keypad Reference Table
Appendix VI PHYSICAL KEYPAD REFERENCE TABLE NUMERIC KEYPAD Numeric keypad layout: USING ALPHA, SHIFT & FN KEYS ] Mode Mode ] Mode α α Blank space Blank space pqrs PQRS wxyz WXYZ Home Backlight SEND Windows Under [ ] mode, pressing the Shift key twice triggers CAPS LOCK mode.
Page 286: Qwerty Keypad
CP55 Mobile Computer Reference Manual QWERTY KEYPAD QWERTY keypad layout: USING ALPHA, SHIFT & FN KEYS Mode ] Mode ] Mode α < > “ & & Home...
Page 287 Physical Keypad Reference Table Backlight SEND Windows Pressing the Shift key twice triggers CAPS LOCK mode.
