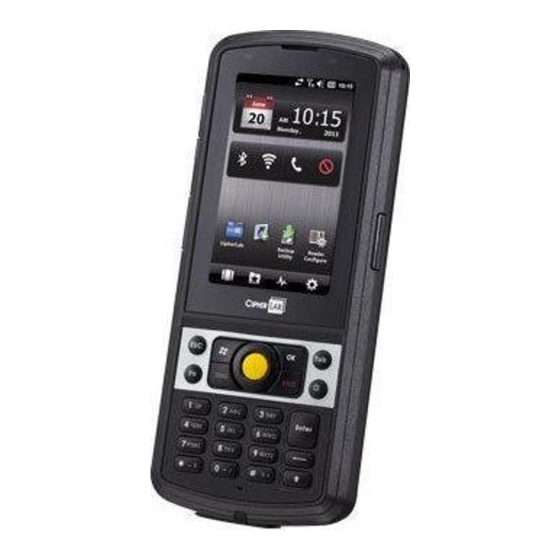

Windows Mobile 6.5 Computer
CP30
Version 1.16

Advertisement

Table of Contents
loading

Related Manuals for CipherLab CP30 Series

Summary of Contents for CipherLab CP30 Series

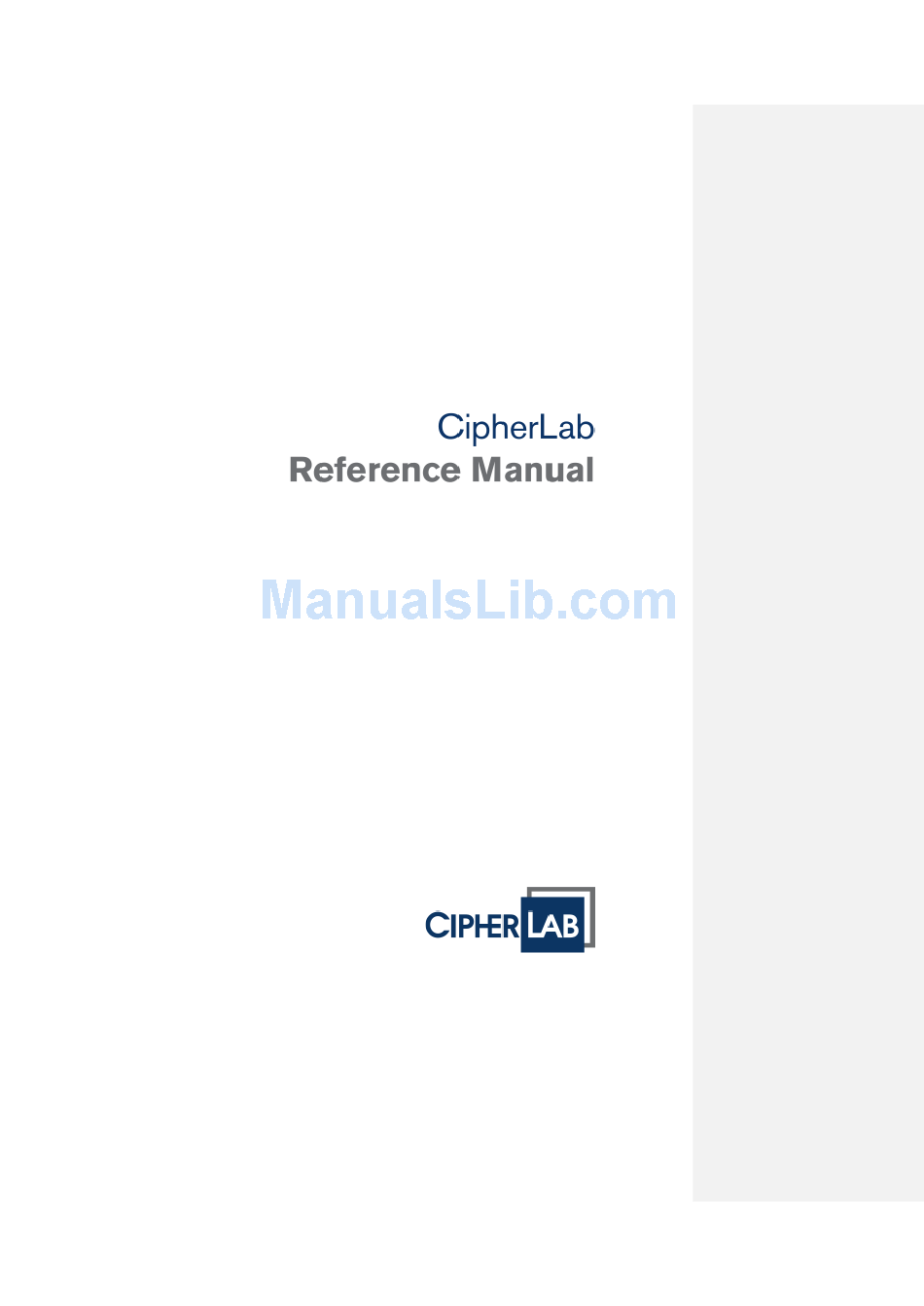

  • Page 1 Windows Mobile 6.5 Computer CP30 Version 1.16...
  • Page 2 Due to continued product development this information may change without notice. The information and intellectual property contained herein is confidential between CIPHERLAB and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find any problems in the documentation, please report them to us in writing.

  • Page 3: For Canada

    IMPORTANT NOTICES FOR USA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: For Product With Laser

    Radiation Protection (ICNIRP), which is 2 W/kg averaged over ten (10) gram of tissue (for example European Union ): The highest SAR value for this model when tested by CIPHERLAB for use at the body position is 1.02 W/kg (10g).
  • Page 5 For a liquid crystal display (LCD) or touch screen, use a clean, non-abrasive, lint-free  cloth to wipe dust off the screen. DO NOT use any pointed or sharp object to move against the surface. If you want to put away the mobile computer for a period of time, download the ...
  • Page 6 DECLARATION OF CONFORMITY Manufacturer European information CIPHERLAB Co., Ltd. CipherLab GmbH 12F., 333, Dunhua S. Rd., Sec. 2 Willicher Damm 145 Taipei, Taiwan 106, R.O.C. 41066 Mönchengladbach, Germany TEL: +886 2 8647 1166 TEL : +49 2161 56230 http://www.cipherlab.com http://www.cipherlab.de...

  • Page 7: Release Notes

    RELEASE NOTES Version Date Notes 1.16 Jul 22, 2015  Delete description relating to CD  Add Related Documentation to Introduction  Update Declaration of Conformity, copyright year 1.15 Dec 4, 2012  Add Specific Absorption Rate (SAR) information  Add: 1.1.1 Warning for low battery level ...

  • Page 9: Table Of Contents

    CONTENTS IMPORTANT NOTICES........................- 3 - For USA ............................- 3 - For Canada ............................ - 3 - For Product with Laser ........................- 4 - Safety Precautions ........................- 4 - Care & Maintenance ........................- 4 - RELEASE NOTES ..........................- 7 - INTRODUCTION ..........................
  • Page 10 CP30 Mobile Computer Reference Manual 1.5.3 Vibrator ..........................26 1.6 Data Capture ..........................27 1.6.1 Barcode Reader ....................... 27 1.6.2 Digital Camera ........................27 1.7 Cradle ............................28 LEARNING WINDOWS MOBILE BASICS ................... 29 2.1 Getting Started.......................... 30 2.1.1 Home Screen ........................30 2.1.2 Title Bar ..........................
  • Page 11 CP30 Mobile Computer Reference Manual 5.3 Pair Devices ..........................70 5.3.1 pair ............................ 70 5.3.2 Unpair..........................72 5.4 Serial Port Service ........................73 5.5 Object Push via Beam ......................77 5.5.1 Send a File ........................77 5.5.2 Receive a File ........................78 5.6 Active Sync via Bluetooth ......................
  • Page 12 CP30 Mobile Computer Reference Manual 9.2 Button Assignment Utility ....................... 128 9.3 Signature Utility ........................131 9.3.1 Capturing a Signature ....................132 9.3.2 Viewing a Signature ....................... 133 9.3.3 Changing Signature Settings ..................134 9.4 GPS Viewer ..........................136 9.4.1 Receiving GPS Information .................... 138 9.4.2 Data of NMEA Format ....................

  • Page 13: Introduction

    We recommend you to keep one copy of the manual at hand for quick reference or maintenance purposes. To avoid any improper disposal or operation, please read the manual thoroughly before use. Thank you for choosing CipherLab products!

  • Page 14: Features

    CP30 Mobile Computer Reference Manual FEATURES Built tough to survive drop test and sealed against moisture/dust to industrial  standard IP 42. Microsoft Windows Mobile 6.5 operating system with a powerful Qualcomm MSM7225  528 MHz processor. 512 MB NAND flash memory to store OS and software programs. ...

  • Page 15: Inside The Package

    RELATED DOCUMENTATION Log in to GoBetween to access related documentation about the CP30 mobile computer from the CipherLab Central Service (CCS) platform. Download the GoBetween desktop or mobile device application, or launch the GoBetween Lite web application from the following site: http://ccs.cipherlab.com/.
  • Page 16 CP30 Mobile Computer Reference Manual...

  • Page 17: Quick Start

    QUICK START OVERVIEW Description Description Receiver Status LEDs for Battery Charging / Good Read (left) and Messaging (right) Volume Buttons Side Triggers, user-definable Touch Screen Scan Key, user-definable Microphone Headset Jack I/O Connector & Memory Card Slot Power Key Digital Camera Scanning Window Stylus (to be tethered) Speaker...

  • Page 18: Installing Battery

    CP30 Mobile Computer Reference Manual INSTALLING BATTERY For shipping and storage purposes, the mobile computer and the main battery are saved in separate packages. Note: Any improper handling may reduce the battery life. Slide the battery cover latch to unlock the battery cover. Remove the battery cover.

  • Page 19: Inserting Sim Card

    Quick Start INSERTING SIM CARD Slide the battery cover latch to unlock the battery cover. Remove the battery cover as well as the battery. Insert the SIM card to the SIM card slot, following the card orientation as shown. Replace the battery and battery cover. Slide the battery cover latch to the end till you hear a “click”...

  • Page 20: Using Memory Card

    CP30 Mobile Computer Reference Manual USING MEMORY CARD The SD card slot is at the bottom of the mobile computer, which allows microSD card. Inserting Card Flip up the rubber cover. Insert the memory card to the SD card slot. Replace the rubber cover.

  • Page 21: Charging & Communications

    Quick Start CHARGING & COMMUNICATIONS The main and backup batteries may not be charged to full for shipment. When you first receive the package, you will need to charge the main battery to full before using the mobile computer. Instead of direct charging, you may use a cradle or charger to charge the mobile computer or backup batteries.

  • Page 22: Using Wireless Networks

    CP30 Mobile Computer Reference Manual USING WIRELESS NETWORKS The mobile computer supports state-of-the-art wireless technologies, Bluetooth and 802.11b/g, so that it is able to send/receive data in real time in an efficient way. You may choose to have the GSM/GPRS module embedded for a total wireless solution for data and voice communications.

  • Page 23: Using Cradle

    Quick Start USING CRADLE Charging via the Cradle Seat the mobile computer in the cradle. Connect the portable adaptor to the power receptacle on the cradle. Connect the other end of the power adaptor to a suitable power outlet. Connect the USB cable if data transmission is required. Refer to Using ActiveSync.
  • Page 24 CP30 Mobile Computer Reference Manual ActiveSync On Mode The mobile computer can transmit data via USB cable. The ActiveSync on your PC is enabled. Connect the USB cable from the cradle to your computer. Make sure the plastic bolt in front of the cradle has been pushed to upward for “ActiveSync On”...
  • Page 25 Quick Start...

  • Page 27: Using The Cp30 Mobile Computer

    Chapter 1 USING THE CP30 MOBILE COMPUTER This chapter explains the features and usage of the mobile computer. IN THIS CHAPTER 1.1 Battery ..............15 1.2 Memory ..............18 1.3 Keypad ..............19 1.4 Touch Screen ............. 23 1.5 Notifications ............... 25 1.6 Data Capture ..............

  • Page 28: Battery Status Indications

    CP30 Mobile Computer Reference Manual 1.1.1 BATTERY STATUS INDICATIONS The battery pack is the only power source for the mobile computer to work. Therefore, when the main battery charge goes low, you need to replace the battery pack with a charged one or charge it as soon as possible.

  • Page 29: Power Management

    Chapter 1 Using the CP30 Mobile Computer 1.1.2 POWER MANAGEMENT For any portable device, power management is a critical issue especially when you are on the road. Below are some tips to help you save battery power. Warning: Using backlight, keylight, wireless connectivity, and peripherals while on battery power will substantially reduce battery power.

  • Page 30: Memory

    CP30 Mobile Computer Reference Manual 1.2 MEMORY Flash Memory (ROM)  512 MB flash memory for storing OS (Windows Mobile 6.5) and custom application programs. Yet a portion of the memory is referred to as Flash Disk (folder), which can store data and programs that you wish to retain even after hardware reset.

  • Page 31: Keypad

    Chapter 1 Using the CP30 Mobile Computer 1.3 KEYPAD The Alphanumeric keypad includes alphanumeric, navigation, function keys, and so on. This keypad is set to numeric mode by default.

  • Page 32: Keypad Settings

    CP30 Mobile Computer Reference Manual 1.3.1 KEYPAD SETTINGS Go to Start | Settings | System, and tap Keypad to configure related settings. The LED backlight of keypad is turned off by default. It is suggested to turn on the keypad backlight while working in a dark area; however, using backlight while on battery power will substantially reduce battery power.

  • Page 33: Alpha Key

    Chapter 1 Using the CP30 Mobile Computer 1.3.2 ALPHA KEY This alphanumeric keypad is set to numeric mode by default. The Alpha key [α] serves as a switch key among numeric, alpha (lower-case alphabetic) input modes. Note: Press [α] key to switch the numeric and lower-case alphabetic modes. The alpha icon will appear on the status bar with a sequence as shown below.

  • Page 34: Function Key

    CP30 Mobile Computer Reference Manual 1.3.4 FUNCTION KEY The Function key [Fn] serves as a specified key, and the functionality of each key combination is application-dependent. 1) To enable this special key, press [Fn] on the keypad. Its icon will appear on the status bar.

  • Page 35: Touch Screen

    Chapter 1 Using the CP30 Mobile Computer 1.4 TOUCH SCREEN The mobile computer comes with a 3.2" TFT graphic LCD, 240 by 400 pixels resolution (WQVGA). The LED backlight of screen, which helps ease reading under dim environments, can be controlled manually and automatically. Warning: Using backlight while on battery power will substantially reduce battery power.

  • Page 36: Screen Settings

    CP30 Mobile Computer Reference Manual 1.4.2 SCREEN SETTINGS This LCD is also a touch screen that can be calibrated through screen alignment. Go to Start | Settings | System, and tap Screen to configure related settings. You may re-calibrate the touch screen, smooth the font edges or adjust the text size displayed on the screen if necessary.

  • Page 37: Notifications

    Chapter 1 Using the CP30 Mobile Computer 1.5 NOTIFICATIONS 1.5.1 STATUS LED The two LED indicators on top are used to provide information on the charging status, scanner "Good Read" while collecting data, and messages. LED Indicators Status Description Top left Charging Red, solid Charging the mobile computer...

  • Page 38: Vibrator

    CP30 Mobile Computer Reference Manual 1.5.3 VIBRATOR The mobile computer is integrated with a vibrator, which is software programmable for feedback. This can be helpful when working in noisy environments. Tap the top of the screen to invoke the title bar drop-down list, and then tap the volume setting icon to change the system volume or phone ring.

  • Page 39: Data Capture

    Chapter 1 Using the CP30 Mobile Computer 1.6 DATA CAPTURE 1.6.1 BARCODE READER A wide variety of scan engines is available for delivering flexibility to meet different requirements. Depending on the scan engine integrated, the mobile computer is capable of scanning barcodes of a number of symbologies that are enabled by default while running the ReaderConfig.exe utility.

  • Page 40: Cradle

    CP30 Mobile Computer Reference Manual 1.7 CRADLE A specified cradle is supported for CP30; it can transfer data or charging via a Micro USB 2.0 cable. There is also a LED indicator in front of the cradle to indicate the charging status of battery.

  • Page 41: Learning Windows Mobile Basics

    Chapter 2 LEARNING WINDOWS MOBILE BASICS This chapter mainly describes the basic skills to work with the CP30 Mobile Computer. add-on utilities for applications regarding data collection, processing, and transmission, are introduced in the following chapters. The mobile computer is specifically designed for real-time data collection in the Windows Mobile 6.5 environment.

  • Page 42: Getting Started

    CP30 Mobile Computer Reference Manual 2.1 GETTING STARTED 2.1.1 HOME SCREEN When the mobile computer is fully charged, press the Power key for three seconds to turn on the mobile computer and wait for the Home Screen to come up. Tap and hold the Home Screen up and down to highlight a desired application.

  • Page 43: Title Bar

    Chapter 2 Learning Windows Mobile Basics 2.1.2 TITLE BAR The icons at the top of the screen are explained below. Icon Description External power source is connected. Battery power remaining: The more the white bars, the more power in the main battery.

  • Page 44: Title Bar Drop-Down List

    CP30 Mobile Computer Reference Manual 2.1.3 TITLE BAR DROP-DOWN LIST The title bar drop-down list is hidden at the top of the screen be showed below: Tap the title bar to reveal the drop-down list. Drag the drop-down list to left or right to view all the icons.
  • Page 45 Chapter 2 Learning Windows Mobile Basics Icon Description Tap it to view the reminder for an alarm or appointment. Tap it to receive incoming Bluetooth beams. Bluetooth A2DP profile is in use. Tap it to access the Bluetooth devices list. Tap it to overlook a missed call.

  • Page 46: Start Menu

    CP30 Mobile Computer Reference Manual 2.1.4 START MENU to open the Start Menu. You can tap to access application programs, find useful utilities developed by CipherLab, or configure system settings.

  • Page 47: Device Lock

    Chapter 2 Learning Windows Mobile Basics 2.1.5 DEVICE LOCK By default, the device is unlocked. You may lock the mobile computer to prevent unintended operation. When locked, it will not respond to screen touch or keypad input until it is unlocked again. However, on the Lock screen you can still monitor the device status on the title bar.

  • Page 48: Input Methods

    Physical Keypad Type with the hardware keypad. Data Capture Scan barcode in applications, e.g. Notes, CipherLab's FORGE Application Generator, etc. Software Keypad Type or write using SIP (Soft Input Panel): Tap the SIP button on middle soft key bar to show or hide the input panel.

  • Page 49: Managing Programs

    Chapter 2 Learning Windows Mobile Basics 2.3 MANAGING PROGRAMS Tap the Start button to view the Start Menu. To quick launch a program, tap it. To add a new program or subfolder to the Start Menu, you can either use File Explorer or ActiveSync.

  • Page 50: End A Program

    CP30 Mobile Computer Reference Manual 2.3.4 END A PROGRAM In general, the system manages memory automatically, and there is no need to exit a program in order to open another or to conserve memory. However, random access memory (RAM) may be used up when running too many programs. As a result, it will slow down the operation or cause program errors.

  • Page 51: Find A File

    Chapter 2 Learning Windows Mobile Basics 2.3.5 FIND A FILE Tap Start | Search Phone. In the “Search for” box, enter the file name, word, or other information you want to search for. If you have looked for this item before, tap the drop-down list and select it. In the “Type”...

  • Page 52: Using Activesync

    CP30 Mobile Computer Reference Manual 2.4 USING ACTIVESYNC ActiveSync is used to synchronize information between the mobile computer and your desktop computer, to install programs on the mobile computer, and to backup and restore the mobile computer. The Microsoft ActiveSync program has to be installed on your desktop computer first. To download the up-to-date version of the program, you may need to go to ...

  • Page 53: Add/Remove Programs

    Chapter 2 Learning Windows Mobile Basics 2.4.2 ADD/REMOVE PROGRAMS Click [Add/Remove Programs] from the Tools Menu so that you can proceed to install a program that is designed to be used on a mobile device running Windows Mobile. If a user program is no longer desired, you may remove it from the system.

  • Page 54: Explore Device

    CP30 Mobile Computer Reference Manual 2.4.3 EXPLORE DEVICE Add a Program to Start Menu When connected, open the Microsoft ActiveSync window on your desktop computer. Click the Explorer button from the toolbar. Navigate through file folders to find the program you desire. Right-click the program and select [Create Shortcut] from the pop-up menu.

  • Page 55: Backup/Restore

    Chapter 2 Learning Windows Mobile Basics 2.4.4 BACKUP/RESTORE To best protect your work, you should regularly back up information on your mobile computer. You can perform a backup by during the ActiveSync operation. The backup file is stored on your desktop computer.

  • Page 56: Reset

    Files not stored in RAM will be erased after a reset. But you can restore data that is previously synchronized with your computer by performing an ActiveSync operation, or backed up by using CipherLab Backup Utility. After performing a reset, the recalibration and setup process is required to ensure touch screen accuracy and set up user settings for initial use.

  • Page 57: Hardware Reset (Cold Boot)

    Chapter 2 Learning Windows Mobile Basics 2.5.3 HARDWARE RESET (COLD BOOT) Hardware reset, also known as a cold boot, will restart the mobile computer and initialize RAM. Perform a hardware reset if software reset cannot be properly operated. Hardware Reset (= Cold Boot) Remove the battery cover and the main battery.
  • Page 58 CP30 Mobile Computer Reference Manual...

  • Page 59: Configuring Cp30 Mobile Computer

    Chapter 3 CONFIGURING CP30 MOBILE COMPUTER In this chapter, a brief on the system settings is provided for your reference. IN THIS CHAPTER 3.1 smart shell ..............48 3.2 Settings ..............50 3.3 Device Name & Configuration ........57 to open the Start Menu, and tap Settings to configure related settings.

  • Page 60: Smart Shell

    Reference Manual 3.1 SMART SHELL CipherLab Smart Shell is a utility allows you to customize some settings and behavior(s). You can easy to employ and control the programs installed via Smart Shell utility. For more information, please refer to the CipherLab Smart Shell User Guide.
  • Page 61 Chapter 3 Configuring CP30 Mobile Computer Icon Description Tap it for a 3D carousel View. Provide a fast and convenient way to access your favorite or recently used items and services. Tap it to activate or close any listed program or enable any running programs.

  • Page 62: Settings

    CP30 Mobile Computer Reference Manual 3.2 SETTINGS Bluetooth Refer to Using Bluetooth. Clock & Alarms  Time tab: Change the date, time and time zone settings. By default, the time zone settings will be automatically synchronized and updated by notification. ...
  • Page 63 Chapter 3 Configuring CP30 Mobile Computer Sounds & Notifications Refer to 1.5.2 Audio.  Sounds tab: Configure sounds for specific actions, events, programs, etc.  Notifications tab: Select to play sounds as notifications for some events. Connections Refer to 3.2.1 Connections. Personal Refer to 3.2.2 Personal.

  • Page 64: Connections

    CP30 Mobile Computer Reference Manual 3.2.1 CONNECTIONS Go to Start | Settings | Connections. Beam Tap it to receive incoming Bluetooth beams. Connections Refer to 6.5 Configuring GPRS Network. Domain Enroll Tap it to connect to a SCMDM server with an enrollment ID and password, allowing company deployment on multiple mobile computers.

  • Page 65: Personal

    Chapter 3 Configuring CP30 Mobile Computer Wi-Fi Refer to Using 802.11 Radio. Wireless Manager Tap it to enable/disable the Wi-Fi, Bluetooth or Phone Power, related information refer to 4.1.1 Power On via Wireless Manager and 6.1.1 Wireless Manager (Phone). 3.2.2 PERSONAL Go to Start | Settings | Personal.

  • Page 66: System

    CP30 Mobile Computer Reference Manual 3.2.3 SYSTEM Go to Start | Settings | System. About  Version tab: It displays information of OS software, processor, etc.  Device ID tab: You may enter a name and description for identifying the mobile computer.
  • Page 67 Chapter 3 Configuring CP30 Mobile Computer Encryption You may encrypt files stored in the SD card. The encrypted files are read only on the mobile computer. Error Reporting You may determine whether to enable error reporting to help Microsoft improve Windows Mobile software.
  • Page 68 CP30 Mobile Computer Reference Manual Remove Programs You may remove programs that are stored in RAM. Screen  Alignment tab: You may align the screen for calibration.  ClearType tab: You may apply Clear Type fonts.  Text Size tab: You may use the slider to adjust the text size. Task Manager You may have a list of all applications which are currently running on the mobile computer.

  • Page 69: Device Name & Configuration

    Chapter 3 Configuring CP30 Mobile Computer 3.3 DEVICE NAME & CONFIGURATION 3.3.1 CHANGE DEVICE NAME Go to Start | Settings | System, and tap About to change the device name on the Device ID tab if necessary.

  • Page 70: Understand Device Configuration

    CP30 Mobile Computer Reference Manual 3.3.2 UNDERSTAND DEVICE CONFIGURATION Go to Start | Settings | System, and tap Device Information to view the device information. The device configuration of CP30 Mobile Computer is displayed in 7 digits: xxxxxxx Take the screenshot for example. Its device ID is “2057601”;...

  • Page 71: Using 802.11 Radio

    Chapter 4 USING 802.11 RADIO The Wi-Fi module integrated on the mobile computer lets you configure and connect to network wirelessly. IN THIS CHAPTER 4.1 Wi-Fi Power ..............60...

  • Page 72: Wi-Fi Power

    CP30 Mobile Computer Reference Manual 4.1 WI-FI POWER 4.1.1 POWER ON VIA WIRELESS MANAGER Go to Start | Wireless Manager as shown below. Tap [All] or [Wi-Fi] to turn on the power.

  • Page 73: Wlan Connection

    Chapter 4 Using 802.11 Radio When the Wi-Fi status is “Available”, it means it is turned on and Wi-Fi networks are available. 4.1.2 WLAN CONNECTION Tap Menu | Wi-Fi Settings to configure related settings.
  • Page 74 CP30 Mobile Computer Reference Manual On the Wireless tab, you may have a list of available Wi-Fi networks. Select one or tap [Add New…] and follow the on-screen instructions to configure related settings, such as the network name, authentication and encryption type, etc. The icon next to the network name provides a visual status for the radio.
  • Page 75 Chapter 4 Using 802.11 Radio Wait a few seconds for the mobile computer to connect to the preferred network you have configured. Tap [OK] to close the current window. Once connected successfully, the associated icon will appear on the title bar and the connected network name will be displayed for Wi-Fi status in Wireless Manager.
  • Page 76 CP30 Mobile Computer Reference Manual...

  • Page 77: Using Bluetooth

    Chapter 5 USING BLUETOOTH The CP30 Mobile Computer lets you configure Bluetooth settings and manage Bluetooth services provided on the remote devices. Bluetooth Profiles Supported Serial Port Profile (SPP) supports Server/Client Object Push Profile (OPP) supports Server/Client Dial-Up Networking Profile (DUN) supports Client only Personal Area Networking Profile...

  • Page 78: Bluetooth Power

    CP30 Mobile Computer Reference Manual 5.1 BLUETOOTH POWER 5.1.1 POWER ON VIA WIRELESS MANAGER Go to Start | Wireless Manager as shown below. Tap [All] or [Bluetooth] to turn on the power.

  • Page 79: Changing Bluetooth Settings

    Chapter 5 Using Bluetooth When the Bluetooth status is “Visible”, it means it is turned on and deployment is enabled. 5.1.2 CHANGING BLUETOOTH SETTINGS Tap Menu | Bluetooth Settings to configure related settings. On the Mode tab, you may select to enable/disable Bluetooth function or whether hide the mobile computer from other Bluetooth devices.

  • Page 80: Search Devices

    CP30 Mobile Computer Reference Manual 5.2 SEARCH DEVICES In the Bluetooth configurations screen, on the Devices mode tab you can search for other Bluetooth device or go to Start | Settings | Bluetooth for the same settings. Tap [Add new device…] or Add on the soft key bar to search for other Bluetooth devices.
  • Page 81 Chapter 5 Using Bluetooth Wait for a few seconds, and it will list the discovered devices. If you do not see the devices that want to be connected, make sure it is set discoverable. Tap Refresh to search again.

  • Page 82: Pair Devices

    CP30 Mobile Computer Reference Manual 5.3 PAIR DEVICES 5.3.1 PAIR Select a connected device and tap Next. If necessary, please enter the password that is specified on the remote device. Tap Next.
  • Page 83 Chapter 5 Using Bluetooth Tap Done. Once paired successfully, the device will appear in the device list. Tap it to view available Bluetooth services or modify its display name.

  • Page 84: Unpair

    CP30 Mobile Computer Reference Manual 5.3.2 UNPAIR On the Devices tab, tap and hold the desired device to select [Delete] from the pop-up menu. Note: The mobile computer must be unpaired on the remote device as well. For example, also remove it from the device list on the remote device. (Both devices must be unpaired and removed!)

  • Page 85: Serial Port Service

    Chapter 5 Using Bluetooth 5.4 SERIAL PORT SERVICE On the Devices tab, tap and hold the desired device to select [Edit] from the pop-up menu. Make sure the Serial Port service is enabled for use on the remote Bluetooth device. For PC example, you can launch the Bluetooth Device configuration utility and in the Bluetooth Device configuration screen, tap COM Ports tab, tap [Add] as below.
  • Page 86 CP30 Mobile Computer Reference Manual The searched COM port will be showed on the screen, select the connected COM port then tap [OK]. Note: For PC example, You can use just like Hyper Terminal application tool to confirm the connection between your PC and mobile computer. By the way, the Hyper Terminal COM port No.
  • Page 87 Chapter 5 Using Bluetooth On the COM Ports tab, tap [New Outgoing Port]. Select the remote device, and then tap Next.
  • Page 88 CP30 Mobile Computer Reference Manual Select a COM port, and then tap Finish. (For Bluetooth, please select COM0 or COM3 for connection. Tap OK.

  • Page 89: Object Push Via Beam

    Chapter 5 Using Bluetooth 5.5 OBJECT PUSH VIA BEAM 5.5.1 SEND A FILE Tap Start | File Explorer. Navigate through file folders to find the file you wish to send to the remote device. Tap and hold the file to select [Beam File] from the pop-up menu. Tap the required remote device to send the file via Bluetooth.

  • Page 90: Receive A File

    CP30 Mobile Computer Reference Manual 5.5.2 RECEIVE A FILE Tap Start | Settings | Connections | Beam, and make sure the Beam Mode is enabled in order to receive all incoming beams. On the remote device, send a desired file to the mobile computer via Bluetooth. When the “Receiving Data”...

  • Page 91: Active Sync Via Bluetooth

    Chapter 5 Using Bluetooth 5.6 ACTIVE SYNC VIA BLUETOOTH You must configure Bluetooth settings correctly on your computer first. Configure Bluetooth settings for your computer, such as “Turn discovery on”, adding a COM port (Incoming), the COM port value depend on your computer active etc. Allow connections to the specified COM port in ActiveSync.
  • Page 92 CP30 Mobile Computer Reference Manual Deploy the mobile computer to your computer. Make sure the ActiveSync service is enabled for use on the remote computer. For the Bluetooth connection via ActiveSync, you have to take off the USB cable between mobile computer and remote computer so that it can release the ActiveSync check box as below for connection.

  • Page 93: Using The Phone

    Chapter 6 USING THE PHONE The CP30 Mobile Computer allows making phone calls and connecting to network over General Packet Radio Service (GPRS). Insert the SIM card before turning on the power. Refer to Inserting SIM Card. Note: If the SIM card is not in position, you may make emergency calls if the service is supported.

  • Page 94: Phone Power

    CP30 Mobile Computer Reference Manual 6.1 PHONE POWER 6.1.1 WIRELESS MANAGER Phone power is turned on by default. If not, go to Start | Wireless Manager to access Wireless Manager. Wireless Manager Tap [All] or [Phone] to turn on the power.
  • Page 95 Chapter 6 Using the Phone When the power is turned on, the Phone status appears “On”, and an antenna signal icon will be displayed on the title bar. Tap Menu | Phone Settings to configure related settings if necessary. Note: Phone Settings is only available when the phone power has been turned on. You can find out the security setting, change PIN code on your SIM card and so on, if necessary.

  • Page 96: Sim Card Missing

    CP30 Mobile Computer Reference Manual 6.1.2 SIM CARD MISSING On the Home Screen, the notification icon on the title bar show that the SIM card is missing. Tap Phone or press the [SEND] button on the physical keypad to access the phone application.

  • Page 97: Phone Application

    Chapter 6 Using the Phone 6.2 PHONE APPLICATION 6.2.1 PHONE INTERFACE After the phone application is launched, the antenna signal icon the title bar indicates whether you are connected to your service provider’s network. As the strength of the signal diminishes, so will the number of bars be in the icon, ranging from no signal to excellence (four-bars).

  • Page 98: Buttons

    CP30 Mobile Computer Reference Manual 6.2.2 BUTTONS Buttons on the phone keypads are described as below: Button Description [Backspace] button allows you to delete the last input. [Speed Dial] button allows you to view, edit the speed dial list and pick the number you want to call.

  • Page 99: Phone Settings

    Chapter 6 Using the Phone 6.3 PHONE SETTINGS Menu | Options to configure phone settings if necessary. Sounds tab Tap the Sounds tab to adjust the ring type, ring tone, and the keypad sound.
  • Page 100 CP30 Mobile Computer Reference Manual Security tab Tap the Security tab to change SIM card security and PIN code setting. Note: The PIN verification on the mobile computer allows three chances to input the correct PIN code. If input fails three times, the PIN will be blocked, and you will need to obtain the PUK code from your network operator and unblock the SIM card on your cellular phone/mobile computer.
  • Page 101 Chapter 6 Using the Phone Network tab Tap the Network tab to change phone network settings and edit your preferred networks. Others tab Tap the Others tab to configure GPRS authentication type, broadcast channels, and SMS transmission settings.
  • Page 102 CP30 Mobile Computer Reference Manual Band tab Tap the Band tab to change the band type and the local band in your geographic region.

  • Page 103: Making Phone Calls

    Chapter 6 Using the Phone 6.4 MAKING PHONE CALLS The phone features allow you to make or receive phone calls and assign a Speed Dial number to a contact. 1 means reserved Speed Dial number for Voicemail 6.4.1 DIAL A NUMBER You can dial a number in one of the following ways: Dialling Using the dial pad on the screen or the physical keypad –...

  • Page 104: Make A Call

    CP30 Mobile Computer Reference Manual 6.4.2 MAKE A CALL Dialling Out Tap the green [Talk] button on the phone keypad, or press [SEND] from the physical keypad. Hanging up Tap the red [End] button on the phone keypad, or press [END] from the physical keypad.

  • Page 105: Answer A Call

    Chapter 6 Using the Phone During a Call Tap the call status button on the soft key bar, and you may select to turn on the speaker, mute the receiver, or hold the line. 6.4.3 ANSWER A CALL Answering a Call Tap the Answer button or press [SEND] from the physical keypad.
  • Page 106 CP30 Mobile Computer Reference Manual Ignoring a Call Tap Ignore button or press [END] from the physical keypad. Viewing a Missing Call When the status icon is displayed on the title bar and tap it will see a missing call icon appears.

  • Page 107: Configuring Gprs Network

    Chapter 6 Using the Phone 6.5 CONFIGURING GPRS NETWORK Tap Start | Settings | Connections and select Connections. Initially, you have to configure the GPRS settings. Tap [Add a new modem connection] and follow the on-screen instructions to enter the connection name and modem types.
  • Page 108 CP30 Mobile Computer Reference Manual Enter the connection name and select [Cellular Line (GPRS, 3G)] from the drop-down list. Tap Next. Specify the GPRS AP name for the mobile computer to connect to, for example, “internet”. Tap Next.
  • Page 109 Chapter 6 Using the Phone Tap Finish. Note: You must connect to the GPRS modem specified by the mobile phone operator.
  • Page 110 CP30 Mobile Computer Reference Manual...

  • Page 111: Using Reader Configuration Utility

    Chapter 7 USING READER CONFIGURATION UTILITY Reader Configuration Utility is the tool that lets you manage the barcode reader integrated on the mobile computer. IN THIS CHAPTER 7.1 Run ReaderConfig.exe ..........100 7.2 Barcode Reader Settings ..........101 7.3 Data Output ............. 102 7.4 Notifications (for Good Read) ........

  • Page 112: Run Readerconfig.exe

    CP30 Mobile Computer Reference Manual 7.1 RUN READERCONFIG.EXE Go to Start | CipherLab Utilities| Reader Configuration to open the Reader Configuration Utility. Test the reader if necessary. You can view the barcode type and decoded data in the content field.

  • Page 113: Barcode Reader Settings

    Chapter 7 Using Reader Configuration Utility 7.2 BARCODE READER SETTINGS The barcode reader configurations depend on the scan engine(s) installed. You can detect which barcode type for scan currently in use and make necessary settings on the General tab. Barcode Reader Description Laser Reader If installed, tap the [Barcode Reader] button to configure the reader...

  • Page 114: Data Output

    CP30 Mobile Computer Reference Manual 7.3 DATA OUTPUT Tap the [Data Output] button in the General tab configuration to choose from the three options for data output after decoding as well as configure associated settings. Data Output Default Keyboard Data is emulated as typed text and sent to the active Window. Local machine Emulation ...
  • Page 115 Chapter 7 Using Reader Configuration Utility Note: (1) Refer to CP30 .NET or C/C++ Programming Guide for details on Windows Message and Windows Event. Sample programs are provided by request. (2) For the use of a different program rather than ReaderConfig.exe, a dynamic-link library (DLL) file is provided.

  • Page 116: Notifications (For Good Read)

    CP30 Mobile Computer Reference Manual 7.4 NOTIFICATIONS (FOR GOOD READ) Tap the [Notifications] button in the General tab configuration to configure how you want to be notified of a successful decoding. Maximize the screen to fill the window Sound / Vibration Default Good Read via Mute, or Sound 1~9...

  • Page 117: Symbology Settings

    Chapter 7 Using Reader Configuration Utility 7.5 SYMBOLOGY SETTINGS On the Symbologies tab, determine whether to enable or disable a specific symbology. Note: The symbology settings vary by the scan engine installed. Refer to Appendix I - Scan Engine Settings for the symbologies supported by a scan ...
  • Page 118 CP30 Mobile Computer Reference Manual...

  • Page 119: Using Camera

    Chapter 8 USING CAMERA The Camera utility allows acquiring still or continuous images from the built-in camera. Go to Start and tap Camera to open the image capture program. IN THIS CHAPTER 8.1 Camera Interface ............108 8.2 Taking an Image ............109 8.3 Shooting a Video ............

  • Page 120: Camera Interface

    CP30 Mobile Computer Reference Manual 8.1 CAMERA INTERFACE Still Mode Video Mode The icons on top of the screen are for camera status and image properties. Icon Description In Still mode: number of pictures can be taken In Video mode: available recording time Camera status and information of image resolution ...

  • Page 121: Taking An Image

    Chapter 8 Using Camera 8.2 TAKING AN IMAGE By default, the camera is set to Still mode for taking pictures, and a preview screen is displayed. Hold still and take aim at the object you want to take a still picture. You may drag the slider to zoom in (+) or zoom out (-) an image.
  • Page 122 CP30 Mobile Computer Reference Manual Before the camera utility is back to the preview screen, you may tap the advanced buttons at bottom of the review screen, which will be retained for five seconds by default.  to return to the preview screen. ...

  • Page 123: Shooting A Video

    Chapter 8 Using Camera 8.3 SHOOTING A VIDEO Switching to the Video mode, a preview screen will be displayed. Hold still and take aim at the object you want to take a moving picture. Available recording time Press [Scan] or [Enter] on the physical keypad to record a video. Each recording will be automatically saved under the directory “\My Device\My documents\My Videos\YYMMDD”...

  • Page 124: Pictures & Videos

    CP30 Mobile Computer Reference Manual 8.4 PICTURES & VIDEOS Go to Start and tap Pictures & Videos to open the default image folder “\My Device\My Documents\My Pictures”. 8.4.1 VIEW AN IMAGE Locate the target folder and the desired picture. The subfolders are named with the date YYMMDD (2-digit year, 2-digit month and 2-digit date) when images were taken.
  • Page 125 Chapter 8 Using Camera Select a desired picture and tap [View] on bottom of the screen. Tap Menu on the soft key bar right, you may adjust the zoom, start a slide show, beam pictures, edit or rotate pictures, etc. Refer to 8.4.3 Advanced Editing Settings.

  • Page 126: Playback A Video

    CP30 Mobile Computer Reference Manual 8.4.2 PLAYBACK A VIDEO Locate the target folder and the desired videos. The subfolders are named with the date YYMMDD (2-digit year, 2-digit month and 2-digit date) when videos were recorded. Subfolders in date format Select a desired video and tap [Play] on bottom of the screen.

  • Page 127: Advanced Editing Settings

    Chapter 8 Using Camera 8.4.3 ADVANCED EDITING SETTINGS In My Video Configuration screen, tap Menu | Tools | Options; you may have more editing options. General tab When sending a picture by e-mail, it can be resized in favor of the transfer speed. You may tap the drop-down list to select a desired picture size if necessary.
  • Page 128 CP30 Mobile Computer Reference Manual Slide Show tab By default, slide shows are played in a Portrait view. You may change to use landscape view instead to make pictures properly fit the screen. If you select “Play screensaver when connected to my PC and idle for 2minutes”, pictures stored in the default image folder “\My Device\My Documents\My Pictures”...
  • Page 129 Chapter 8 Using Camera Video tab While recording a video, audio will be included. You may disable the check box or set time limit for videos so that the file size can be reduced. Tap [OK] to save the current settings and return to the previous window.

  • Page 130: Camera Settings

    CP30 Mobile Computer Reference Manual 8.5 CAMERA SETTINGS On the soft key bar, tap the button to configure camera settings if necessary. Mode By default, no special mode is applied. Icon Description Night mode Low light Backlight Outdoor Stabilize Effect By default, no special effect is applied.
  • Page 131 Chapter 8 Using Camera Timer By default, timer is disabled. You have to manually press [Scan] or [Enter] to take one picture at a time.  “3 seconds” and “10 seconds” are supported to activate the timer and take one picture. ...
  • Page 132 CP30 Mobile Computer Reference Manual...

  • Page 133: More Applications

    Chapter 9 MORE APPLICATIONS The CP30 Mobile Computer provides more utilities and applications which are made accessible from Start | CipherLab Utilities. Backup Utility lets you manipulate the way to backup programs and data.  Button Assignment Utility lets you assign a specific button as a hot key for ...

  • Page 134: Backup Utility

    9.1.1 MANAGING THE REGISTRY Go to Start | CipherLab Utilities | BackupUtility to open the Backup Utility. If you are using this backup utility for the first time, you must save the system registry as a first step.

  • Page 135: Preparing For Backup

    Chapter 9 More Applications 9.1.2 PREPARING FOR BACKUP Tap the Backup tab and it will automatically start scanning the file system. Within a few minutes, it will generate a list for the backup operation. If the items "Machine Registry" and "User Registry" are not listed, it means no registry backup procedure has been performed.
  • Page 136 CP30 Mobile Computer Reference Manual 3) Tap [Start] to pack all the selected items into one .bkp file. 4) Once the backup process is completed, tap [Report] to view the log file if necessary. 5) Tap [OK] to close the current window.
  • Page 137 Chapter 9 More Applications Note: If you wish to backup files to this new root or file name in future runs, you must tap [OK] to save the current settings and exit the application.

  • Page 138: Using Backups For Restore

    CP30 Mobile Computer Reference Manual 9.1.4 USING BACKUPS FOR RESTORE After the backup operation, tap the Restore tab and it will automatically start scanning for any .bkp files. Select the backup file to be used for restore operation. File Manipulation ...
  • Page 139 Chapter 9 More Applications Full Restore Operation 2.1. Select a desired backup file from the list. 格式化: 項目符號及編號 3.2. Tap [Restore]. 4.3. Tap [Start] to run the restore process. Once the restore process is completed, you will be asked to perform a warm boot. Tap [OK] to reboot the mobile computer.

  • Page 140: Button Assignment Utility

     Note: By default, the two side triggers are programmed to serve as Scan keys. Go to Start | CipherLab Utilities to open the Button Assignment Utility. 1) Tap the label of one of these keys. For example, tap [L. Key] to configure the side trigger on the left.
  • Page 141 Chapter 9 More Applications Backspace Space F1 ~ F12 Start Menu OEM_Key1 (0xE9) OEM_Key2 (0xEA) OEM_Key3 (0xEB) OEM_Key4 (0xEC) OEM_Key5 (0xED) OEM_Key6 (0xEE) OEM_Key7 (0xEF) OEM_Key8 (0xF0) OEM_Key9 (0xF1) OEM_Key10 (0x2A) Launch a program: Defines a key to quick-launch an application. ...
  • Page 142 CP30 Mobile Computer Reference Manual User-defined key code: Allows users to change key function as desired by entering  the hex value of the target key. 3) Tap [OK] on the soft key bar for the change to take effect and save the current settings.

  • Page 143: Signature Utility

    Chapter 9 More Applications 9.3 SIGNATURE UTILITY The Signature utility allows acquiring signatures and viewing signatures stored on the mobile computer. Go to Start | CipherLab Utilities | CipherlabSignature to open the signature capture program. Toolbar Signature Area The icons on the toolbar, from left to right, are for these functions —...

  • Page 144: Capturing A Signature

    CP30 Mobile Computer Reference Manual 9.3.1 CAPTURING A SIGNATURE In the signature area, use the stylus to write a signature. 格式化: 項目符號及編號 1)5) 格式化: 項目符號及編號 to clear the entire signature and write a new one if necessary. 2)6) to save the signature as an image file in BMP or JPEG format. 3)7) Tap [ ] to exit the program.

  • Page 145: Viewing A Signature

    Chapter 9 More Applications 9.3.2 VIEWING A SIGNATURE 格式化: 項目符號及編號 to load a signature image and it will be displayed along with a message 5)9) asking whether you want to modify the signature. 格式化: 項目符號及編號 Tap [Yes] to change the signature image if necessary. 6)10) Note: The maximum resolution of an image is 640 x 480 pixels.

  • Page 146: Changing Signature Settings

    CP30 Mobile Computer Reference Manual 9.3.3 CHANGING SIGNATURE SETTINGS to configure signature settings if necessary. Pen Width tab Set the pen width (1~5) in pixels for the signature writing. Pen Colors tab Set the pen color from the available samples or entering the RGB values (0~255) for your color.
  • Page 147 Chapter 9 More Applications Background Colors tab Set the background color from the available samples or entering the RGB values (0~255) for your color.  Changing the background color will erase the signature you have captured in this file. ...

  • Page 148: Gps Viewer

    Go to Start | CipherLab Utilities | GPS Viewer to open the Cipherlab GPS Viewer. The GPS receiver hosted on the mobile computer uses COM 7 to output NMEA messages, as long as the COM port is opened.
  • Page 149 Chapter 9 More Applications Note: Time To First Fix (TTFF) relies on environmental factors. Normally, it takes approximately 40 seconds for the receiver to locate the first satellite. However, it may take longer when satellite signals are blocked by tall vertical objects, such as buildings or trees.

  • Page 150: Receiving Gps Information

    CP30 Mobile Computer Reference Manual 9.4.1 RECEIVING GPS INFORMATION The receiver will automatically start to scan available satellites, synchronize time, and get the current location. Information on time, location, the quality of the signal, and so on, will be displayed if available. On the satellite position graph (= the earth marked with N, E, S, W indicators for North, East, South and West), satellites in view are displayed in red and flash to get signal.

  • Page 151: Data Of Nmea Format

    Chapter 9 More Applications 9.4.2 DATA OF NMEA FORMAT The serial interface protocol is based on the national Marine Electronics Association’s NMEA 0183 ASCII interface specification. For details, please refer to NMEA 0183 Version 3.01, which may be obtained from NMEA, www.nmea.org. You may save the NMEA codes as a text file and import it in a third-party application.

  • Page 153: Specifications

    SPECIFICATIONS PLATFORM, PROCESSOR & MEMORY Operating System & CPU Windows Version Microsoft Windows Mobile 6.5 Professional Qualcomm MSM7225 at 528 MHz Memory 512 MB NAND flash memory 256 MB DDR Expansion Slot One microSD card slot  SDHC supported COMMUNICATIONS & DATA CAPTURE Communications USB Client USB Client 2.0 Specification...

  • Page 154: Electrical Characteristics

    CP30 Mobile Computer Reference Manual ELECTRICAL CHARACTERISTICS Batteries Main Battery Pack Rechargeable Li-ion battery – 3.7 V, 2200 mAh Power Adaptor Power Supply Cord with Input AC 100~240 V, 50/60 Hz Universal Power Adaptor Output DC 5 V, 1 A Charging &...

  • Page 155: Environmental Characteristics

    Software Development Kit Microsoft SDK System API (DLL) for system configuration Reader API (DLL) for reader configuration Software & Utilities  Reader Configuration Utility Cipherlab software package  FORGE Application Generator  MIRROR Browser for web application  Navigation software Third-party software ...

  • Page 156: Accessories

    CP30 Mobile Computer Reference Manual ACCESSORIES Accessory Options  Protective Cover  LCD Protective Film  Spare rechargeable battery pack  Charging Cradle...

  • Page 157: Scan Engine Settings

    Appendix I SCAN ENGINE SETTINGS The Reader Configuration Utility (ReaderConfig.exe) allows configuring the following reader types, depending on the module equipped on your mobile computer: 1D Laser (SE955)  2D Imager (SE4500)  Note: (1) You cannot have 1D+2D scan engines installed on the mobile computer because they are both barcode readers! (2) You can run only one utility or application at a time to control the reader.

  • Page 158: Symbologies Supported

    CP30 Mobile Computer Reference Manual SYMBOLOGIES SUPPORTED Varying by the scan engine installed, the supported symbologies are listed below. For details on configuring associated settings, please refer to each Appendix separately. Laser Codabar   Code 11   Code 93 ...
  • Page 159 Appendix I Laser (SE955) GS1 DataBar Limited (RSS Limited)   GS1 DataBar Expanded (RSS Expanded)   GS1 DataBar Expanded Stacked   2D Symbologies PDF417   MicroPDF417   Data Matrix   Maxicode   QR Code ...

  • Page 161: Laser (Se955)

    Appendix II LASER (SE955) The tables below list reader settings as well as symbology settings for the Laser (SE955) scan engine. READER SETTINGS TABLE Laser Engine Description Default  3 sec. Decode Time-out Set the maximum time for decoding to continue during a scan attempt.
  • Page 162 CP30 Mobile Computer Reference Manual Laser Mode Hold down the scan trigger to start with scanning.  The scanning won’t stop until (a) a barcode is read, (b) the preset timeout expires, or (c) you release the trigger.

  • Page 163: Symbology Settings Table

    Appendix II Laser (SE955) Timeout between same When in Continuous mode, set the minimum time that 1.0 sec. symbols must stop detect before the scan engine decodes a second same barcode. This reduces the risk of accidentally scanning the same barcode twice. ...
  • Page 164 CP30 Mobile Computer Reference Manual Interleaved 25 Enable Convert to EAN-13 Convert a 14-character barcode into EAN-13 if the following requirements are met:  The barcode must have a leading 0 and a valid EAN-13 check digit.  “Check digit verification” must be disabled. Check digit verification Decide whether to verify the check digit.
  • Page 165 Appendix II Laser (SE955) Enable Check digit verification If Two Check Digits option is selected, an additional Single Modulo verification is required to ensure integrity. Select one of the algorithms below. If the check digit is incorrect, the barcode will not be accepted. Check digit algorithm: One Check Digit Single Modulo 10...

  • Page 166: Miscellaneous

    CP30 Mobile Computer Reference Manual Addons redundancy When “Auto-discriminate” is applied, decide the number of 10 times times (2~30) of supplementary decoding the same barcode that makes a valid reading. EAN-8 extend UCC coupon extended Read UPC-A barcodes starting with digit "5", EAN-13 code barcodes starting with digits "99", and UPC-A/GS1-128 Coupon Codes.

  • Page 167: Aim Code Id – Code Characters

    Appendix II Laser (SE955) Transmit Code ID Decide whether to include AIM Code ID in the beginning of none data.  none  AIM code ID character Each AIM Code ID contains the three-character string “]cm” –  ] = Flag Character (ASCII 93) ...
  • Page 168 CP30 Mobile Computer Reference Manual Code 128 Standard data packet. No Function Code 1“FNC1” in the first character position. Function Code 1“FNC1” in the first character position. Function Code 1“FNC1” in the second character position. Interleaved 25 No check digit processing. Check digit has been verified.
  • Page 169 Appendix II Laser (SE955) Data packet is a GS1-128 barcode (= data is preceded with “]JC1”). Note: UPC portion of composite is transmitted using UPC rules. PDF417, Scan engine is set to conform to protocol defined in 1994 PDF417 symbology specifications. Micro PDF417 ...
  • Page 170 CP30 Mobile Computer Reference Manual QR Code Model 1 Model 2, ECI protocol not implemented. Model 2, ECI protocol implemented. Model 2, ECI protocol not implemented, FNC1 implied in first position. Model 2, ECI protocol implemented, FNC1 implied in first position.
  • Page 171 Appendix II Laser (SE955)

  • Page 173: D Imager (Se4500)

    Appendix III 2D IMAGER (SE4500) READER SETTINGS TABLE The tables below list reader settings as well as symbology settings for the 2D scan engine. 2D Engine Description Default Decode Time-out Set the maximum time for decoding to continue during a 3 sec.
  • Page 174 CP30 Mobile Computer Reference Manual Level 4 All barcodes must be successfully read three times before being decoded. Security Level Select a decode security level appropriate for the barcode Level 0 quality when reading delta barcodes such as Code 128, Code 93, UPC/EAN.

  • Page 175: Symbology Settings Table

    Appendix III 2D Imager (SE4500) SYMBOLOGY SETTINGS TABLE 1D SYMBOLOGIES 2D Engine Description Default Codabar Enable CLSI Editing When applied, the CLSI editing strips the start/stop characters and inserts a space after the first, fifth, and tenth characters of a 14-character Codabar barcode. ...
  • Page 176 CP30 Mobile Computer Reference Manual ISBT Concatenation When “Auto-discriminate” applied, decide 10 times Redundancy concatenation redundancy (2~20 times). Industrial 25 (Discrete 25) Enable  One or two fixed lengths Select Length 4~55 (min/max)  Range (1~55) Interleaved 25 Enable Convert to EAN-13 Convert a 14-character barcode into EAN-13 if the following requirements are met: ...
  • Page 177 Appendix III 2D Imager (SE4500) Trioptic Code 39 Decide whether to decode Trioptic Code 39.  Trioptic Code 39 is a variant of Code 39 used in the marking of computer tape cartridges. It always contains six characters.  One or two fixed lengths Select Length 4~55...
  • Page 178 CP30 Mobile Computer Reference Manual Convert "Convert to UPC/EAN" only applies to GS1 Databar-14 and UPC/EAN GS1 Databar Limited barcodes not decoded as part of a Composite barcode. Convert to EAN-13 Strip the leading "010" from barcodes.  "01" is the Application ID and must be followed by a single zero (the first digit encoded) Convert to UPC-A Strip the leading "0100"...
  • Page 179 Appendix III 2D Imager (SE4500) Transmit Check Digit Decide whether to include the UPC-A/UPC-E/UPC-E1 check digit in the data being transmitted. Convert to UPC-A The UPC-E0/UPC-E1 barcode will be expanded into UPC-A, and the next processing will follow the settings configured for UPC-A.
  • Page 180 CP30 Mobile Computer Reference Manual Composite Codes Composite CC-C Enable Composite CC-A/B Disable Composite TLC-39 Disable GS1-128 Emulation Transmit UCC/EAN Composite Code data as if it was Disable Mode UCC/EAN encoded in GS1-128 barcodes. Composite Codes UPC Composite Mode UPC barcodes can be "linked" with a 2D barcode during Always transmission as if they were one barcode.

  • Page 181: D Symbologies

    Appendix III 2D Imager (SE4500) 2D SYMBOLOGIES 2D Engine Description Default 2D Symbologies PDF417 Decide whether to use PDF417 barcode symbol format. Enable MicroPDF417 Decide whether to use MicroPDF417 barcode symbol Disable format. MicroPDF417 Code 128 Transmit data from certain MicroPDF417 barcodes as if it Disable Emulation was encoded in Code 128 barcodes.
  • Page 182 CP30 Mobile Computer Reference Manual Autodetect Decode both regular and inverse QR Code. MicroQR Decide whether to use MicroQR symbol format. Enable Aztec Decide whether to use Aztec symbol format. Enable Aztec Inverse Decide whether to decode Aztec Inverse. Regular Only Regular Only Decode regular Aztec barcodes only.

  • Page 183: Miscellaneous

    Appendix III 2D Imager (SE4500) Note: When printing barcodes, keep each Macro PDF sequence separate, as each has a unique identifier. Do not mix barcodes from several Macro PDF sequences, even if they encode the same data. When you scan Macro PDF sequences, scan the entire Macro PDF sequence without interruption! MISCELLANEOUS 2D Engine...
  • Page 184 CP30 Mobile Computer Reference Manual...

  • Page 185: Key Reference Tables

    Appendix IV KEY REFERENCE TABLES 28-KEY KEYPAD...

  • Page 186: Use Of Alpha (Α) & Shift ()

    CP30 Mobile Computer Reference Manual USE OF ALPHA (α) & SHIFT () Alpha Mode Alpha Alpha Shift Shift pressed once pressed pressed once pressed twice twice pqrs Pqrs PQRS wxyz Wxyz WXYZ...

  • Page 187: Use Of Function (Fn)

    Appendix IV Key Reference Tables USE OF FUNCTION (Fn) Function key pressed once...

Table of Contents
