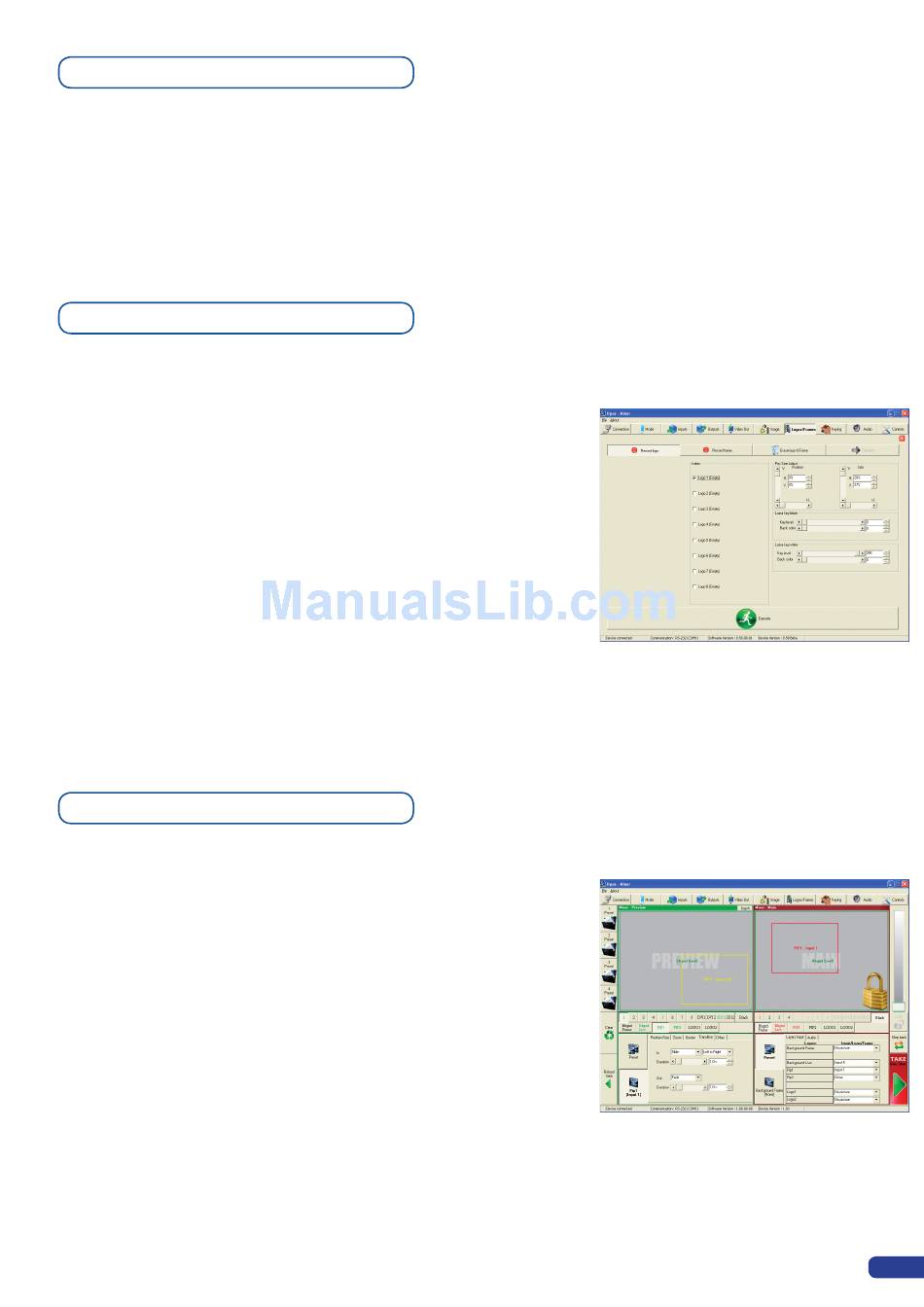

Working with logos

It is possible to store up to 8 logos in the
memory. Logos work in much the same way as frames, and can be
recorded from any of the OPS200' 11 sources. Logos have more
attributes than frames. They can be sized, positionned, but also
keyed via color cutout selection or luma key.

Memorizing logos

1/ In the Input Selection section, click the source button (#1 to #11)
of the source you wish to record as a logo.
2/ In the Logos/Frames tab, click Record Logo, then select an empty
logo memory slot (#1 to #7) to record your logo into.
3/ Adjust position, size and keying attributes for your logo.
4/ Click Execute to record your logo into the selected memory slot.
The OPS200 RCS will display a progress bar while recording the
logo.
5/ In the Input Selection section, click the
logo number (#1 to #7) you wish to use. Your logo will appear on
the preview screen above any existing layer on screen.
6/ Click the [TAKE] button. Your logo will appear on the main display.
Layer transitions & effects
The OPS200 offers a wide variety of transitions between the scenes
you create for your shows and events. It allows for live recall of
4 user presets, each of which you can edit at any given time.
1/ In the Layer Selection section, click the PIP#1 button. On your
Preview screen, PIP#1 will appear as a color rectangle. The
parameters of the layer will automatically appear in the RCS
Preview section.
2/ At the bottom of the Preview section, click on the Transition tab,
then select the transition type from the left dropdown menu, and
the effect behaviour from the right dropdown menu.
3/ Determine effect duration by sliding the duration bar left (shorter)
or right (longer), or by manualy setting the value in the duration
value box.
4/ Repeat the procedure in the Closing Effect tab to determine the
way your layer will close.
OPS200 non volatile
[LOGO1] button, and select
47
