Main Outputs

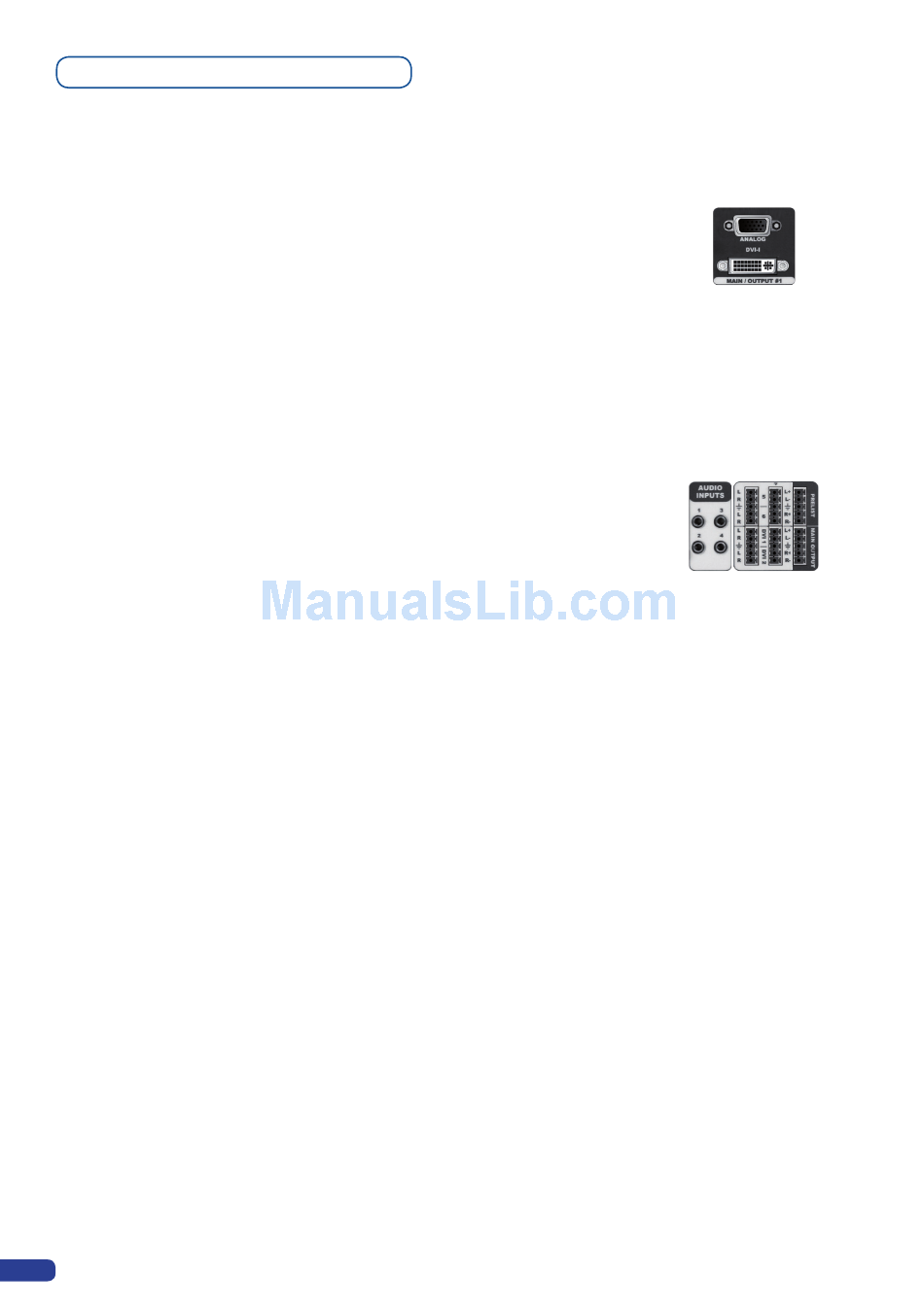

MAIN OUTPUT:
ANALOG: 1 x analog output for the main display device on
female HD15 connector.
DIGITAL/ANALOG:
AUDIO SWITCHER:
Audio Stereo Switcher card features 11 inputs and 2 outputs. An
additional auxiliary input can be mixed with any other input. Master
Volume and individual input level can be adjusted. Each input and
output offers balanced or unbalanced connections. It should be
noted that the management of the audio output follows the position
of video layers.
Two modes are available: Top Follow or Breakaway.
- In Top Follow Mode, the audio follows the topmost video layer
(after having pressed [TAKE]).
- In Breakaway Mode it is the selected audio layer input that is
permanently diffused.
22
1 x main output on female DVI-I connector
(simultaneous analog and digital).
