RGBS VIDEO SOURCES:
This signal is widely used in broadcasting and is available on
European DVD player. The RGB/S signal is transmitted with 4 coaxial
cables, and also has a better picture quality than COMPOSITE
and S.VIDEO signals. The RGB/S connectors are usually BNC
connectors for Broadcasting equipment, and SCART connector for
DVD players.

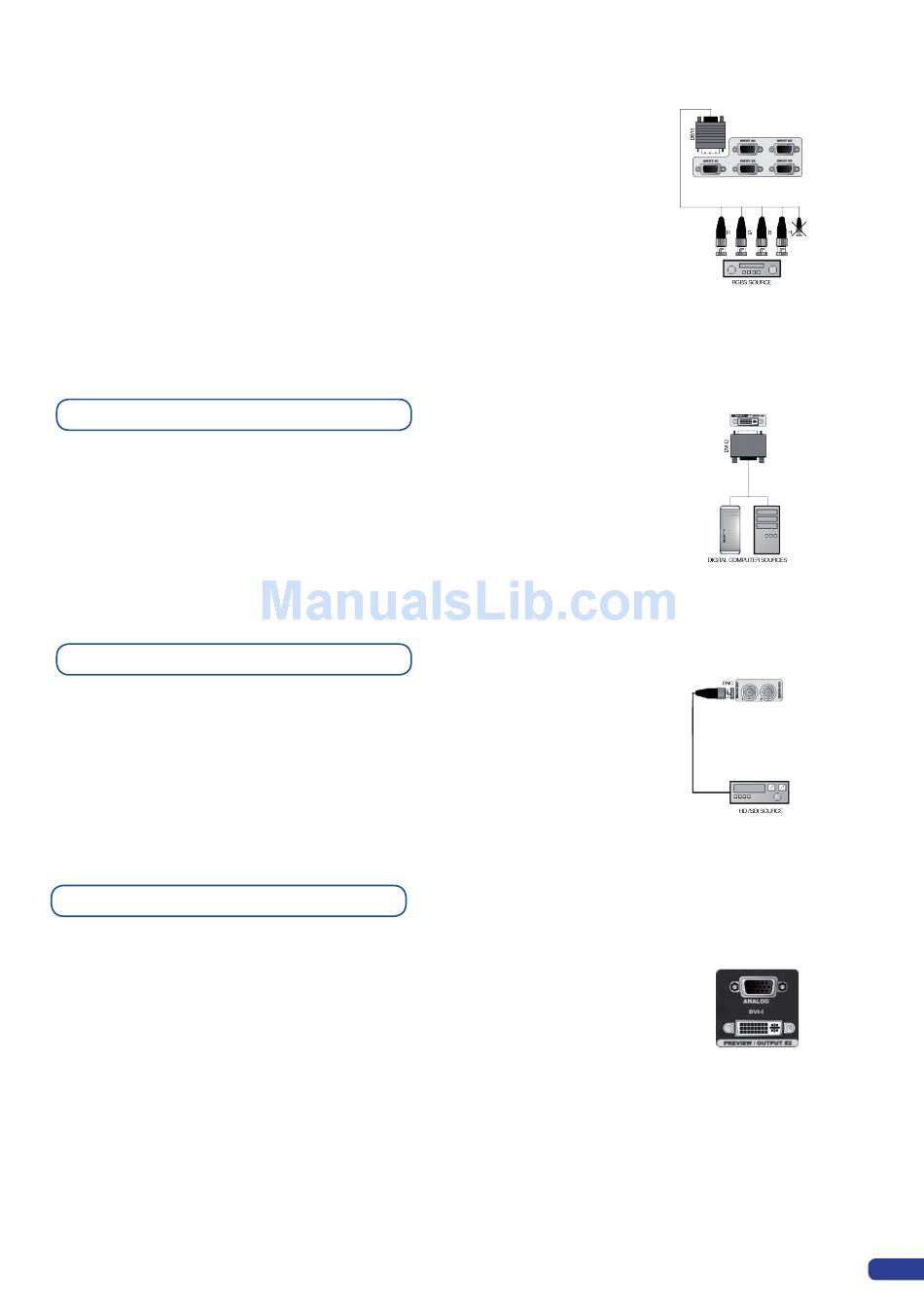

For inputs #1 to #5: connect an HD15 to 4 x BNC cable between the
HD15 connector of the device and your RGB/S source.
DVI Inputs #1 & #2
DVI AND ANALOG SOURCES:
DVI Inputs #1 & #2 on the
Digital format.
DVI-I: 1 x digital (DVI) and 1 x analog input on female DVI-I
universal connector.
SD/HD-SDI Inputs #1 & #2
SD/HD-SDI SOURCES:
SD/HD-SDI Inputs #1 & #2 on the
SD/HD-SDI:

Preview Outputs

PREVIEW OUTPUT:
ANALOG: 1 x analog output for the main display device on
female HD15 connector.
DIGITAL/ANALOG:
OPS200 accept up to 2 live sources in
OPS200 accept up to 2 live
sources in Digital formats.
1 x digital input on female BNC connector.
1 x main output on female DVI-I connector
(simultaneous analog and digital).
21
