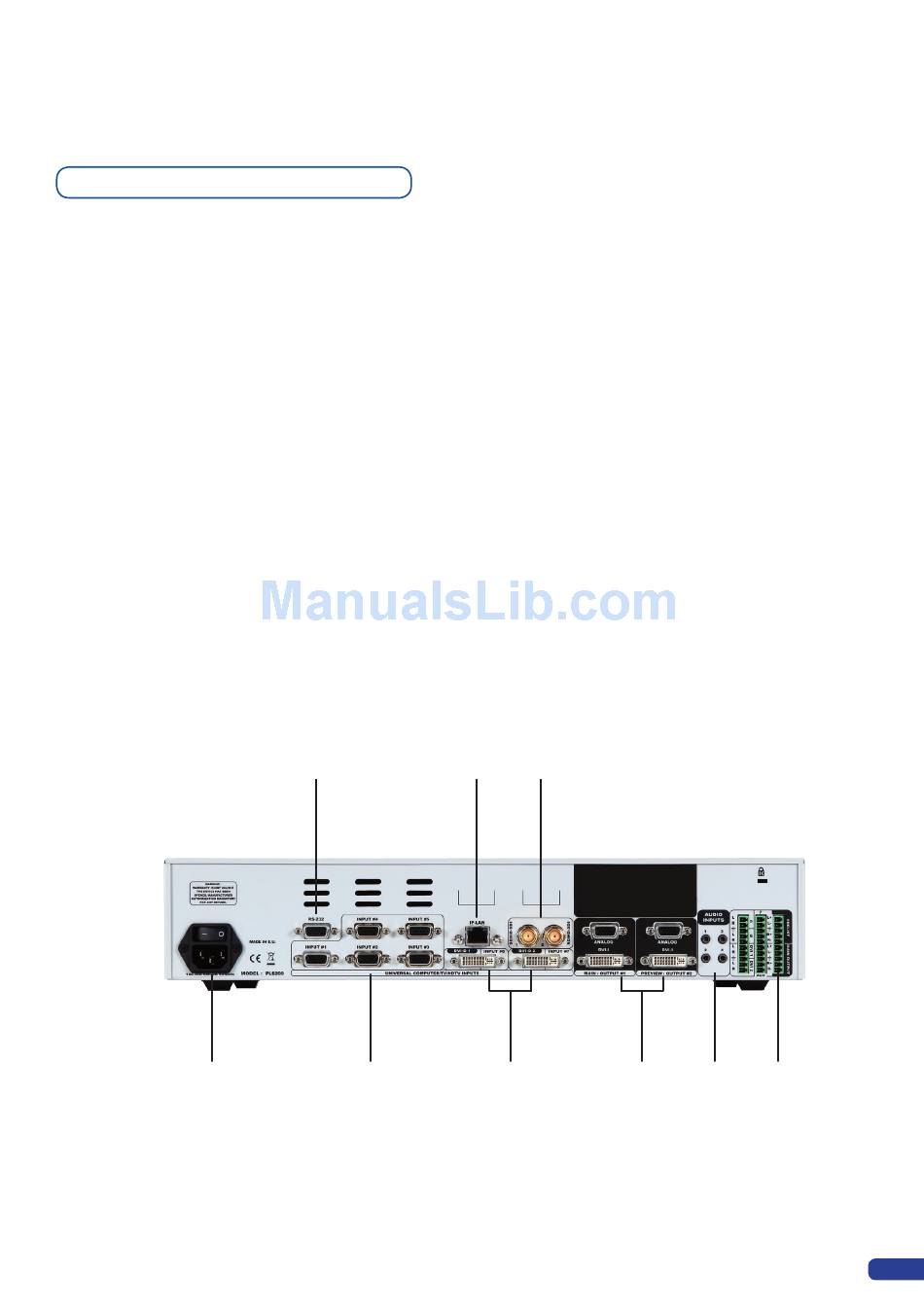

3-2. THE OPS200 REAR PANEL
Overview
The
OPS200
rear panel is equipped with 11 universal digital and analog inputs. Inputs #1 through #5 (3) are
universal analog inputs. Inputs #6 & #7 (4) share a DVI-D signal and a universal analog signal (plug the
shipped Analog Way DVI/HD15 adaptor cable to use DVI-D and analog signals simultaneously). Inputs #10
and #11 (5) are the HD/SD-SDI inputs of the OPS200.
The Main and Preview (6) outputs will allow for the
OPS200
high resolution digital and analog signals to be
viewed on screen and/or on a preview monitor (see also Output Specifications in this chapter).
Finally, the audio in and output card will let users trigger audio with any source, accurately balance or tweak
sound sources and outputs.
1 : AC outlet and On/off switch
2 : IP-LAN connector
3 : Universal Analog inputs
4 : DVI-D inputs
5 : HD-SDI inputs
6 : Main and Preview outputs
7 : Audio inputs
8 : Audio outputs
9 : RS232 connector
9
2
5
1
4
3
6
7
8
19
