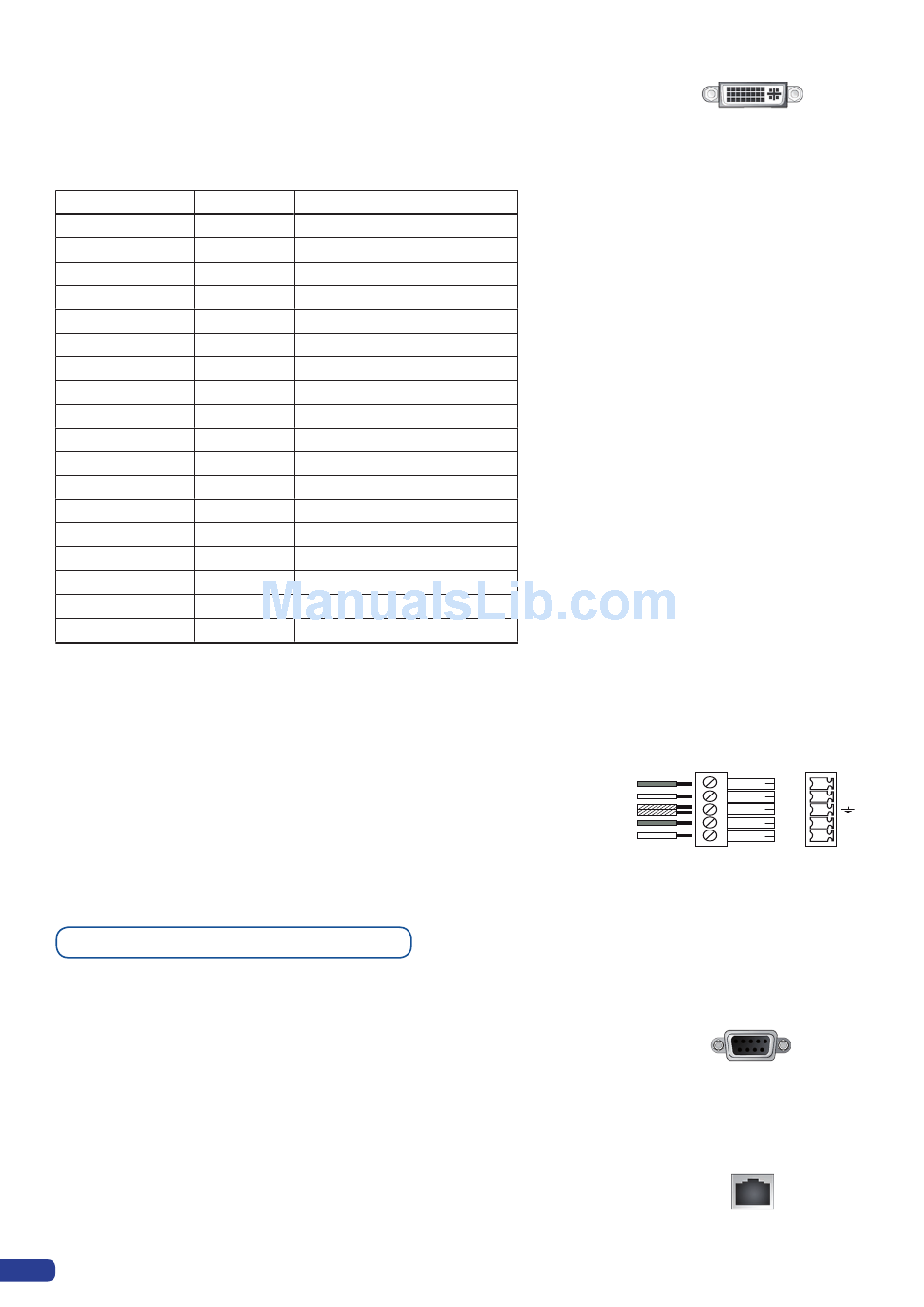

• DVI (Digital Video Interface) OUTPUTS:
Connector: Outputs #1 (Main) & #2 (Preview): female DVI-I
(digital pins).
Signal: Digital Visual Interface (DVI)-TMDS single link.
Resolutions:
Format
640 x 480
800 x 600
848 x 480
1024 x 768
1280 x 720
1280 x 768
1280 x 800
1280 x 1024
1360 x 768
1366 x 800
1400 x 1050
1440 x 900
1600 x 1200
1680 x 1050
1920 x 1080
1920 x 1080 B
1920 x 1200
2048 x 1080
• AUDIO OUTPUT:
Connector: Outputs #1 (Main) and #2 (Prelist):
2 Balanced or unbalanced mono/stereo outputs
(on 5-pin MCO male connector).
Vo max: Unbalanced = +15dBu (at 300Ω load).
Balanced = +21 dBu (at 600Ω load).
Zo = 600 Ω balanced.
Zo = 300 Ω unbalanced.
G = 0 dB nominal.

Communication specifications

• COMMUNICATION PORTS:
REMOTE RS232
Connector: DB 9 female
Level: RS232.
Data Rate: 9600 Bauds, 8 data bits, 1 stop bit, no parity bit,
no flow control for normal. DTR & RTS needed for
upgrade.
• LAN:
Connector : RJ45
Protocol: TCP (Transmission Control Protocol) or UDP
(User Datagram Protocol).
Ethernet: Base 10/100
14
Ratio
4 : 3 50Hz 60Hz 72Hz 75Hz
4 : 3 50Hz 60Hz 72Hz 75Hz
16 : 9 50Hz 60Hz 72Hz 75Hz
4 : 3 50Hz 60Hz 72Hz 75Hz
16 : 9
15 : 9 50Hz 60Hz 72Hz 75Hz
16 : 10 50Hz 60Hz 72Hz 75Hz
5 : 4 50Hz 60Hz 72Hz 75Hz
16 : 9 50Hz 60Hz 72Hz 75Hz
15 : 9 50Hz 60Hz 72Hz 75Hz
4 : 3 50Hz 60Hz 72Hz 75Hz
16 : 10 50Hz 60Hz 72Hz 75Hz
4 : 3
16 : 10
16 : 9 50Hz 60Hz 72Hz 75Hz
16 : 9
16 : 10
19 : 10
Refresh Rate
50Hz 60Hz
50Hz 60Hz
50Hz 60Hz
50Hz 60Hz
50Hz 60Hz
50Hz 60Hz
GROUND(S)
Balanced connection
L+
L-
R+
R-
BALANCED
4
L+
L-
R+
R-
