LIMIT THERMOSTAT

15
The limit thermostat used is bimetal type. When water CH from the heat-exchanger exceeds 105°C,
the limit thermostat opens and cuts the signal sent to the main board and ensures safety. When the
water temperature is below 75 °C, the limit thermostat closes enabling the boiler to operate again
after the reset. In bithermic types, limit thermostat is mounted on the heat-exchanger with a metal
clip while in monothermic types it is mounted using two screws.

EXPANSION VESSEL

16
Expansion vessel covers the expansion of water in the central heating circuit which is a closed
circuit.
Table 15 Expansion Vessel
Expansion Vesssel Volume
Water Inlet Connection

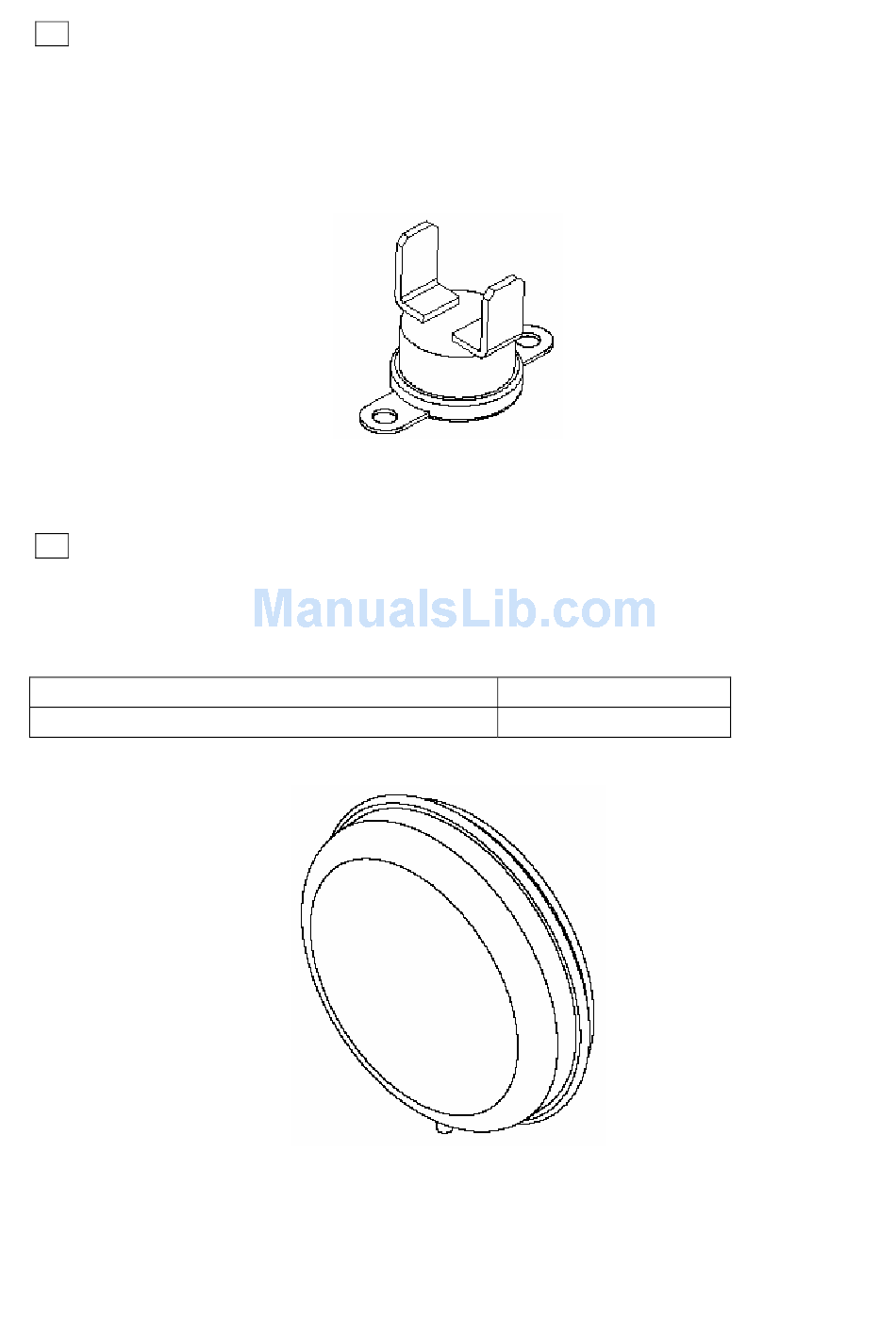

fig. 14 Limit Thermostat
8 liters
G ½" (external thread)
fig. 15 Expansion Vessel
