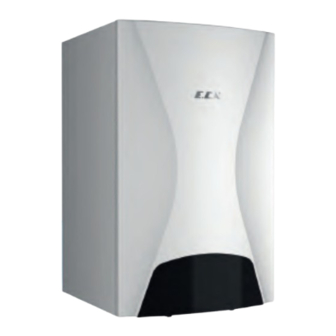

Wall hung condensing boiler
Hide thumbs Also See for FELIS FL 50 HM:
Table of Contents

Advertisement

Quick Links

Download this manual
FELIS
WALL HUNG CONDENSING BOILER
FELIS FL 50/65/100/125/150 HM
INSTALLATION AND
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FELIS FL 50 HM and is the answer not in the manual?

Questions and answers

Related Manuals for E.C.A. FELIS FL 50 HM

Summary of Contents for E.C.A. FELIS FL 50 HM

  • Page 1 FELIS WALL HUNG CONDENSING BOILER FELIS FL 50/65/100/125/150 HM INSTALLATION AND USER MANUAL...

  • Page 3: Table Of Contents

    CONTENTS • • • INTRODUCTION..................... 4 • WARRANTY AND SERVICE................... 4 • SYMBOLS....................... 4 • SAFETY RULES AND WARNINGS................ 5 • Safety Rules......................5 • Fittings........................5 • Cascading Applications................... 6 • Installation....................... 6 • Commissioning......................6 • Gas Conversion....................... 6 •...

  • Page 4: Introduction

    INTRODUCTION First of all, we would like to thank you for choosing an E.C.A. boiler. E.C.A. Felis condensing boilers are designed to accomodate the central heating needs in a safe and comfortable way. Felis boilers must be installed to a central heating plumbing and sanitary water system selected suitably for the boiler’s capacity and performance.

  • Page 5: Safety Rules And Warnings

    SAFETY RULES AND WARNINGS SAFETY RULES If there is a gas smell; - Shut off the gas valve of the appliance and all of your gas burning appliance - Shut off and put out your oven, stove, cooker etc. - Do not light matches, lighters etc, put out your cigare�es. - Open all your windows and door and ven�late the room.

  • Page 6: Cascading Applications

    It is recommended to use plate heat exchangers in conversion installations or INFORMATION old installations. Cascading Applications While E.C.A. Felis boilers can be used as a single boiler, it can be used as a part of a cascading system. Cascading system allows up to 16 boilers to work in coordination to reach capacities up to 2400 Appliances in a cascading system are separated into two categories as master appliance and slave appliances.

  • Page 7: Product

    - Cleaning of the external surfaces of the device should be done only with a damp cloth, without using detergent or any chemicals. Detergent etc. Use of chemicals may cause rust and scratches on your device. CAUTION: This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.

  • Page 8: Product Notation

    Technical Dimensions Figure 1. Technical Dimensions Dimensions Ø F Ø G Ø H Ø I Felis FL 50 HM 501 mm 835 mm 525 mm 145 mm 304 mm 80/125 mm 1 1/4" 1 1/4" 3/4" Felis FL 65 HM...

  • Page 9: Detailed Drawings And List Of Components

    Detailed Drawings and List of Components Felis 50 Figure 2a. Felis 50 Detailed Drawings No Description No Description 1 GAS VALVE 11 PRESSURE SENSOR 2 SAFETY LIMIT THERMOSTAT 12 SIPHON COVER 3 NTC TEMP. SENSOR (OUTLET) 13 CONDENSATION HOSE 4 IGNITION TRANSFORMER 14 BOILER OUTLET PIPE (HOT) 5 HEAT EXCHANGER 15 BOILER INLET PIPE (COLD)
  • Page 10 Felis 65 Figure 2b. Felis 65 Detailed Drawings...
  • Page 11 Felis 100 / 125 / 150 Figure 2c. Felis 100 / 125 / 150 Detailed Drawings...
  • Page 12 Electrical Board Circuit Diagram Figure 3. Electronic Board Circuit Diagram...

  • Page 13: Packaging

    Packaging CAUTION: Warnings on the packaging must be followed during transportation and storage. The appliance is delivered in a 1055 x 665 mm cardboard box with 4 pieces of edge styrofoams supporting the appliance. Figure 4. Product Packaging Concept Parts required for the installation of the product (Wall hanging bracket, 3 gaskets for water and gas connection, 5 wall plugs for screws) is provided in the package.
  • Page 14 Figure 5. Required Spaces Around the Appliance Hanging the Appliance to the Wall E.C.A. Felis condensing boiler must be hung to a brick wall with the supplied hanging bracket. For installation: • Take measurement from the back side of the boiler to make sure that the holes are in line and horizontal.

  • Page 15: Condensate Water Connection

    Condensate Water Connection The condensate water formed during normal operation of E.C.A. Felis boiler should be discharged according to the instructions. In gas burning condensing boilers condensate water is an acidid fluid with a pH value between 4-5. Burning 1 m natural gas forms approx.
  • Page 16 Distances for Placement of Chimney Outlets PLACEMENT Distance (cm) PLACEMENT Distance (cm) A- Under a window G- Side of a horz. or vert. pipe B- Under an air vent H- Dist. from an outer corne C- Under rain shield I- Dist. from an inner corner D- Under a balcony L- From floor or pavement M- Vert.
  • Page 17 Figure 7. Flue Types...

  • Page 18: Room Thermostat (Optional)

    Room Thermostat (Optional) A selection of compatible room thermostats can be used for heating control of the system. AF17 Digital Room Unit AF18 Room Unit 7006721435 7006721436 E.C.A. On-Off Room Thermostat Wireless 7006907522 Figure 8...
  • Page 19 Outdoor Air Sensor The outdoor air sensor compatible with your device detects the air temperature of the outdoor environment and transmits this information to the primary (master) device in the cascade installation. The heating system modulates its operation to create the water temperature that will provide the requested comfort temperature, taking into account the outside air temperature.

  • Page 20: Operating

    OPERATING First time operation of the appliance must be made by an authorized service. Before first time opera- tion, required parameter changes must be made by the service according to the components used in the heating application. Please inform the authorized service about the additional components (storage tank, 3-way valve, pool heating etc.) in your installation, so required INFORMATION parameter settings can be done.
  • Page 21 Slave appliances in a cascading application will have a user interface without the screen and keypads. LEDs on the slave appliances indicate error states and burning statuses. Possible errors can be detected on the screen of the master appliance and can be manually reset from the reset button on the slave appliances.

  • Page 22: Date/ Time Settings

    DATE / TIME SETTINGS Ensuring that the date and time setting of your appliance is right is essential for time programs and summer/winter changeovers to work correctly. When in the main screen press OK to enter the menu, and enter the “Time of day and date” submenu to change the date / time setting and summer/winter changeover dates.

  • Page 23: Automatic Mode

    Automatic Mode Automatic mode controls the room temperature according to the time program. Characteristics of automatic mode: - Heating mode according to the time program - Temperature setpoints according to the heating program “Comfort setpoint” or “Reduced setpoint” - Protective functipns active - Automatic summer / winter changeover (ECO functions) Continuous operation Continuous operation maintains the room temperature at the selected operating level.

  • Page 24: Manual Operation

    Heating curve are used for creating a water temperature set point according to the current outside temperature conditions. It can be changed according to local conditions, so heat demand can be changed due to user preferances. If the heating curve slope is higher; water temperature is higher at lower outside temperatures. If you can't achieve desired room temperature, heating curve slope must be adjusted.
  • Page 25 Figure 18. DHW mode Nominal setpoint max: Only used for limiting the nominal Description DHW setpoint value P. No Nominal setpoint: DHW setpoint value of actual usage 1610 DHW Nominal setpoint DHW Reduced setpoint 1612 Reduced setpoint: DHW setpoint value outside of actual 1620 Usage usage...

  • Page 26: Dhw Priority

    - Time program 4/DHW When using this setting, a specific time program is available for DHW heating. For every weekday, a time program with a maximum of 3 on phases can be set. During the release time, the Nominal DHW setpoint applies, outside the release time, the Reduced DHW setpoint.

  • Page 27: Stand-By And Holiday Function

    Storage tank Dwelling time temperature 80 °C A few seconds 70 °C 1 minute 66 °C 2 minutes 60 °C 32 minutes 55 °C 6 hours No killing of viruses 50 °C Ideal conditions for viruses 45 °C Stand-by and Holiday Function CAUTION: Do not cut the supply power even if the boiler is not in use.

  • Page 28: Error/ Fault Codes

    ERROR / FAULT CODES There are several control mechanisms adapted in the boiler control to ensure a safe operation. Inconsistencies occured during these controls will be shown as error and fault codes on the LCD screen and will be indicated with a bell sign on the upper left. Some detailed information for the possible error / fault codes is provided in the following table.

  • Page 32: Maintenance

    MAINTENANCE Appliance must go under maintenance at the start of every heating season. Please refer to E.C.A. authorized services for maintenance. Outer surfaces of the appliance must be cleaned with a damp cloth without using any chemical substances. Usage of chemicals like detergents etc. could cause rust and scratches. ALL RIGHTS RESERVED.

  • Page 33: Circuit And Flue Connections

    FELIS 50 kW CIRCUIT AND FLUE CONNECTIONS 145 mm 220 mm 65 mm 240 mm 330 mm 435 mm 105 mm 235 mm SIPHON ¼" CH RETURN 1 ¼" CH FLOW 1 ¾" Ø FLUE 80/125mm...
  • Page 34 FELIS 65 kW CIRCUIT AND FLUE CONNECTIONS 145 mm 220 mm 65 mm 240 mm 435 mm 445 mm 105 mm 260 mm SIPHON ¼" CH RETURN 1 ¼" CH FLOW1 ¾" Ø FLUE 80/125mm...
  • Page 35 FELIS 100 kW CIRCUIT AND FLUE CONNECTIONS 236 mm 145 mm 71 mm 93 mm 280 mm 405 mm 98 mm 130 mm SIPHON ¼" 185 mm CH RETURN 1 ¼" CH FLOW 1 290 mm " Ø FLUE 100/150mm...
  • Page 36 FELIS 125 kW CIRCUIT AND FLUE CONNECTIONS 236 mm 145 mm 71 mm 93 mm 280 mm 405 mm 98 mm 130 mm SIPHON ¼" 185 mm CH RETURN 1 ¼" CH FLOW 1 365 mm " Ø FLUE 100/150mm...
  • Page 37 FELIS 150 kW CIRCUIT AND FLUE CONNECTIONS 236 mm 145 mm 71 mm 93 mm 270 mm 98 mm 405 mm 210 mm SIPHON ¼" CH RETURN 1 ¼" CH FLOW 1 437 mm " Ø FLUE 100/150mm...

  • Page 38: Erp Guide

    ERP GUIDE Technical Specifications Table Product Type Unit FELIS FL 50 HM FELIS FL 65 HM FELIS FL 100 HM FELIS FL 125 HM FELIS FL 150 HM Category I2H, I2E II2H3B/P I2H, I2E II2H3B/P I2H, I2E Flue Type C13(x), C33(x), C43(x), C63(x), C93(x), B23P...

  • Page 39: Ce Marking

    813/2013 to supplement directives 92/42/EU and 92/42/EEC. CE PIN Number: 0085CS0419 Product Data Symbol Unit FELIS FL 50 HM FELIS FL 65 HM FELIS FL 100 HM FELIS FL 125 HM FELIS FL 150 HM Condensing boiler Low-temperature boiler(*b) B1 boiler Cogenera�on Space Heater Combina�on Heater...

  • Page 40: Package Label Calculation

    PACKAGE LABEL CALCULATION PACKAGE FISCHE BOILER Seasonal Space Heating Energy Efficiency of Boiler “I” 'I': The value of the seasonal heating efficiency of the primary central heater, expressed in %. Temperature Control Class I = 1%, Class II = 2%, Class III = 1.5%, (Room Thermostat –...
  • Page 41 Weighting of boilers For Table 7 of this Annex, weighting of primary boiler space heater or boiler combination heater and auxiliary heater. (*) (1)(2) Psup / (Prated+Psup) II, Package without hot water storage tank II, Package with hot water storage tank 0.37 0.55 0.70...

  • Page 42: Removal Information

    REMOVAL INFORMATION Unpacking the New Device Packaging protects your device against transport damage. All materials used in packaging are environmentally friendly and can be reused. Please help: Dispose of the packaging in a way that will not harm the environment. To obtain information about current troubleshooting methods and methods, please contact your authorized dealer or your municipality.
  • Page 44 PRODUCTION PRODUCTION EMAS MAKINA SANAYI A.S Organize Sanayi Bölgesi 3. Kısım Organize Sanayi Bölgesi 3. Kısım Mustafa Kemal Bulvarı No: 13 45030 MANİSA / TÜRKİYE Tel: +90 236 213 00 21 Fax : +90 236 213 08 59 email: emas@emas.com.tr www.emas.com.tr...
