E.C.A. Fortius Service Manual page 18

24 kw open flued gas combination boiler (bithermic type) 24 kw room sealed fan assisted gas combination boiler (bithermic type) 24 kw room sealed fan assisted gas combination boiler (monothermic type) 28 kw room sealed fan assisted gas combination boil
Hide thumbs
Table of Contents

Advertisement

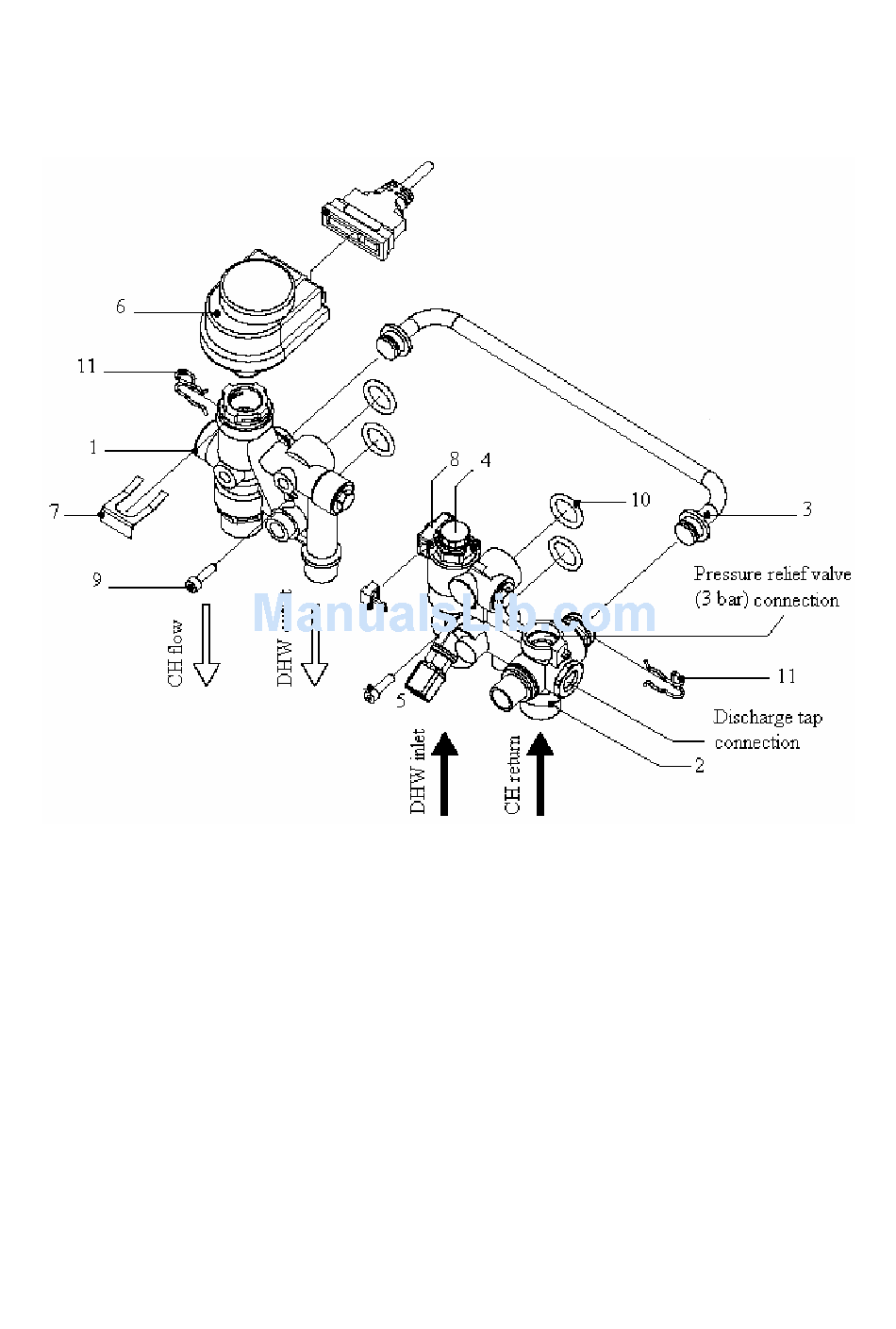

fig. 5b Monothermic Hydroblock
1 3 way electric valve
2 Inlet manifold
3 By-pass pipe
4 Water flow sensor
5 Filling tap
6 Valve motor
7 Valve motor clip
8 Hall effect sensor
9 Bolt
10 Oring
11 By-pass pipe clip
17
