E.C.A. Fortius Service Manual page 17

24 kw open flued gas combination boiler (bithermic type) 24 kw room sealed fan assisted gas combination boiler (bithermic type) 24 kw room sealed fan assisted gas combination boiler (monothermic type) 28 kw room sealed fan assisted gas combination boil
Hide thumbs
Table of Contents

Advertisement

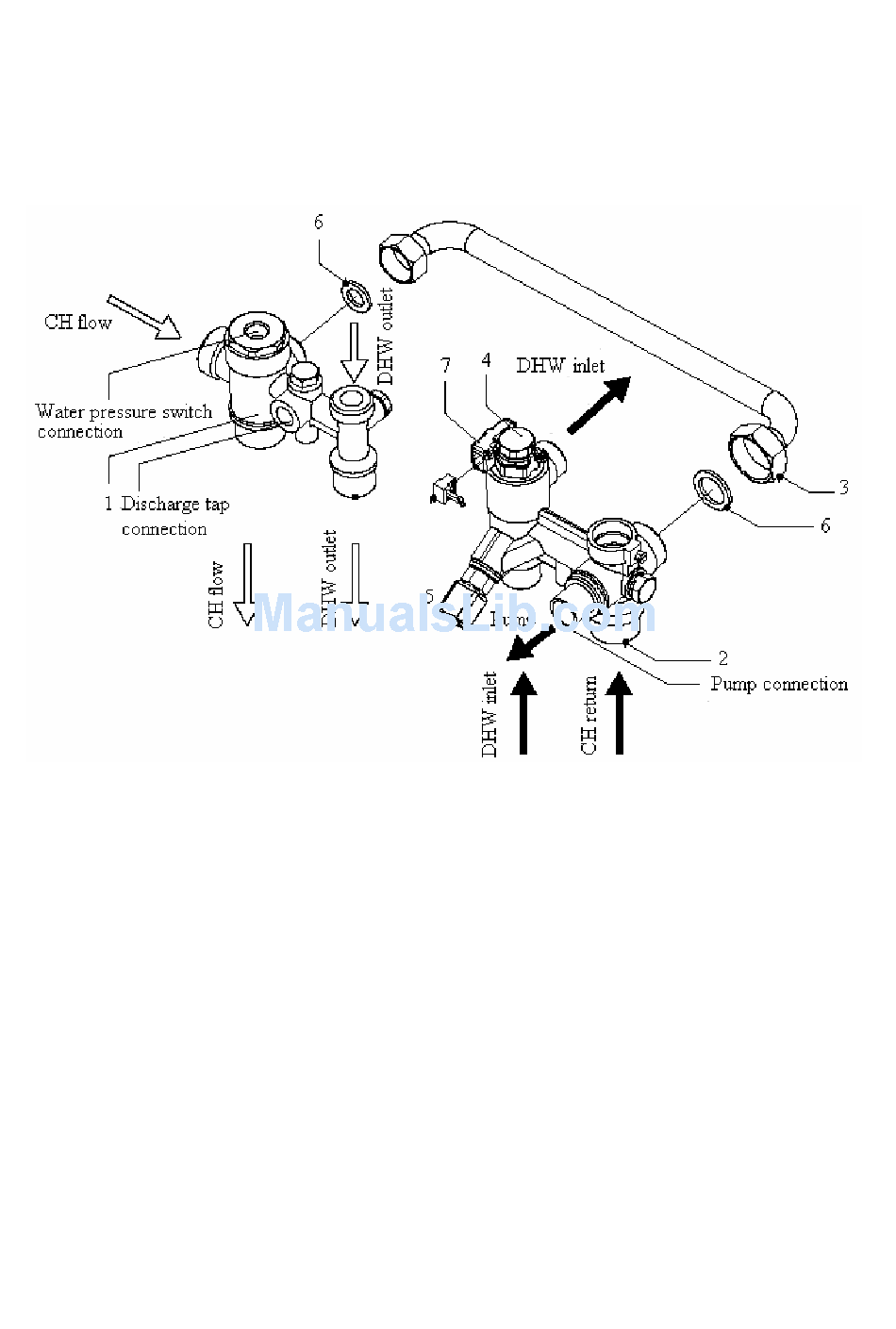

fig. 5a Bithermic Hydroblock
1 Outlet manifold
2 Inlet manifold
3 By-pass pipe
4 Water flow sensor
5 Filling tap
6 Gasket (G3/4" & G1/2")
7 Hall effect sensor
16
