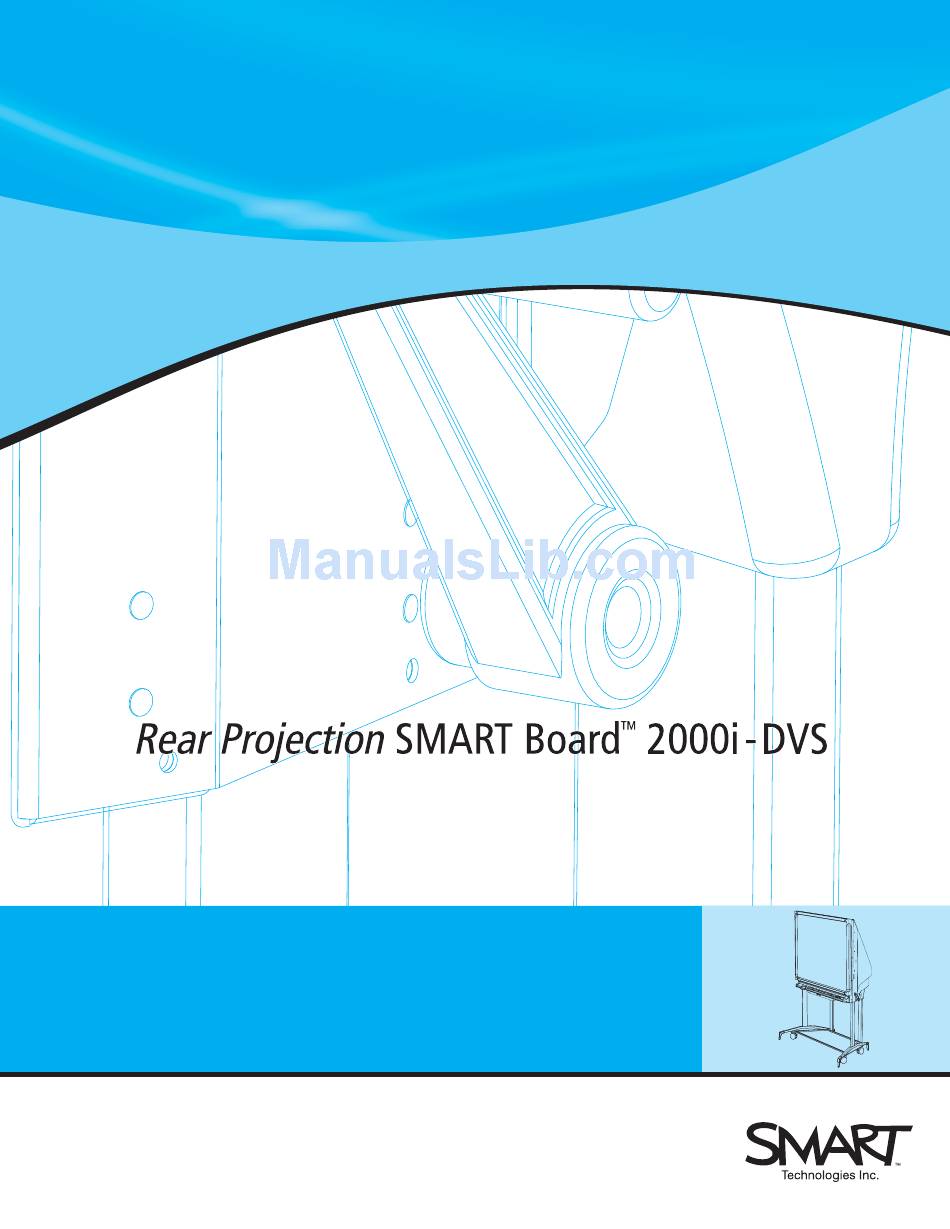

- Page 1 Installation Guide Interactive Whiteboard...
-
Page 2: Technical Support
SMART. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART. -
Page 3: Important Information
Important Information Please read this manual carefully before setting up and using the Rear Projection SMART Board 2000i interactive whiteboard. With proper care, your 2000i should provide years of trouble-free service. The projector inside the unit is a high brightness light source. Do not look directly WARNING into the beam of light. - Page 4 To reduce the risk of fire or electric shock, do not expose this product to rain or WARNING moisture. Pour réduire le risque d'incendie ou de choc électrique, évitez d'exposer ce produit à la pluie ou à l'humidité. Para reducir el riesgo de incendio o de descarga, no exponga este producto a la lluvia o la humedad.
-
Page 5: Other Warnings And Safety Precautions
Das 2000i darf nur mit europäischen TN- und TT-Netzverteilern verwendet WARNUNG für werden. europäische Kunden Das 2000i eignet sich nicht für ältere Netzverteiler vom Typ IT, die in manchen europäischen Ländern zu finden sind. “Dieses System (IT-Typ) wird, von der Erdung isoliert, in einigen Installationen in Frankreich mit Impedanz zu Erde bei 230/400 V und in Norwegen mit Spannungsbegrenzer, neutral, nicht verteilt, bei 230 V Leitung zu Leitung verwendet.“... - Page 6 Do not modify the power cord. 13. If you require replacement parts, ensure the service technician uses replacement parts that are specified by SMART Technologies Inc., or parts with the same characteristics as the original. Important Information...
-
Page 7: Table Of Contents
Adjusting the Height of the Interactive Whiteboard ..............30 Adjusting the Volume ....................... 31 Changing the Display Source for the Internal Projector ............32 Using the SMART Board Interactive Whiteboard ..............33 Enabling/Disabling Multipointer Mode (DViT Technology) ............35 Maintenance ......................36 Cleaning the Interactive Whiteboard and other Components ........... -
Page 9: About The 2000I-Dvs
About the 2000i-DVS The Rear Projection SMART Board 2000i interactive whiteboard is a height adjustable, rear projection system with an integrated LCD projector and a 67" (170.2 cm) diagonal interactive SMART Super Screen. To enable rear projection capability, a mirror system redirects the projected image from your computer, VCR, DVD player or guest laptop onto the back of the interactive whiteboard screen, eliminating the distracting shadows that sometimes occur with a front projection system. -
Page 10: Getting To Know Your 2000I
Getting to Know Your 2000i Removable View Port Projector SMART Pen Tray Lockable Casters (x 4) Control Panel Laptop Shelf Height Adjustment Handle Your Computer Storage Tray Projector Extendable Anti-Tip Feet (x 4) Major Components of the 2000i 2000i-DVS Installation Guide... -
Page 11: Pen Tray Features
Press the bottom button to make the next contact with the You can use SMART Board software to change interactive whiteboard a right click. any or all of these styluses to highlighters,... -
Page 12: The Nec Vt465 Projector
The blue ring no longer adjusts focus, and you should not move it under any circumstances. Moving this ring may cause the lenses to separate. Adjust focus with this lever Bottom View (Upside-Down) Do not move this ring! Side View 2000i-DVS Installation Guide... -
Page 13: Projector Settings
NOTE: All other settings are the NEC factory default settings. See pages E-26 to E29 of the VT465 User’s Manual for a full description of all default settings. For information on projector maintenance and complete instructions on replacing the projector lamp and filter, turn to page 36. 2000i-DVS Installation Guide... -
Page 14: Control Panel
Lamp Status Flashing moderately quickly Lamp is powering up. During this 60-second period, the Lamp On and Off buttons are disabled. Solid Lamp is fully powered up. Flashing occasionally (short Lamp is off. flashes followed by long pauses) 2000i-DVS Installation Guide... - Page 15 Press this button and hold it down for three seconds to open the Floating Tools. For information on using the Floating Tools, see page 34. Guest laptop NOTE: You can only switch to a connected guest laptop if your system includes the optional X-Port 20 switch option. 2000i-DVS Installation Guide...
-
Page 16: Installing Your 2000I
(page 10) • adjust the projected image (page 13) • connect the videoconferencing/laptop shelf (page 19) • install SMART Board software (page 21) • connect a guest laptop (page 23) • connect a VCR or DVD player (page 24) •... - Page 17 Sichern Sie die Rollenbremsen und fahren Sie die Sicherheitsstützen aus, bevor Sie das Gerät verwenden. Andernfalls könnte das 2000i umkippen. ユニットをご使用になる前に、キャスターをロックして、脚を伸ばしてください。それ 以外の場合は、2000i がひっくり返る可能性があります。 5. Remove the bag that surrounds the projector. 6. Remove the locking pins from either side of the 2000i. Removing the Locking Pins 2000i-DVS Installation Guide...
-
Page 18: Installing A Computer
5. Connect the Computer 1 Serial cable to an available COM port. NOTE: To connect a computer that has no available serial port, connect the SMART USB adapter between the Computer 1 Serial cable and the USB port on the computer. -
Page 19: Powering Up The 2000I
When an image displays, adjust the computer power settings and the image alignment on the interactive screen. Then install the SMART Board software CD, configure the COM port, and perform a brief orientation procedure. To do this, complete the procedures on the pages that follow. - Page 20 NOTE: To immediately restore the input signal from the computer during this three-minute projector shutdown period, touch the blue screen (or press a keyboard key). This function is especially handy when you're a passive participant in a lengthy data conference. 2000i-DVS Installation Guide...
-
Page 21: Adjusting The Projected Image
1. Grasp the view port cover in the middle of each short edge, and pull it away from the unit. Lift from here Lift from here Removing the View Port Cover You can now access the top of the projector to perform the following image-adjustment procedures. 2000i-DVS Installation Guide... - Page 22 2. While carefully observing the bottom edge of the image at the right side, use the supplied 7/16" nut driver to loosen or tighten the nut that’s located on the right side of the projector plate, as required (see the following figure). Using the Nut Driver to Adjust Roll 2000i-DVS Installation Guide...
- Page 23 2. Using the supplied 7/16" nut driver, loosen the two nuts that are located on the left side of the projector plate. Using the Nut Driver to Adjust the Image Laterally 3. Slide the projector plate to the right or left, and then tighten the two nuts. 2000i-DVS Installation Guide...
- Page 24 To access the single screw at the front of the projector, you must reach through the view port to the front of the projector, and maneuver the security key through the center access hole in the projector cover (see the following figure). 2000i-DVS Installation Guide...
- Page 25 NOTE: As you maneuver the security key through the access hole, watch it from the back to see when it engages with the screw. 3. Slide the projector backward or forward to alter the image size. 4. When the image is a good size, tighten all three screws that you previously loosened. 2000i-DVS Installation Guide...
- Page 26 4. Loosen and tighten the bolt inside the access hole with the supplied 7/16" nut driver to adjust the image vertically. 5. Replace the plastic cap you removed in step 3. 2000i-DVS Installation Guide...
-
Page 27: Installing The Videoconferencing/Laptop Shelf
Videoconferencing Height Laptop Height Shelf Height Option To install the videoconferencing/laptop shelf 1. Remove the plastic hole covers at the location where you want to mount the shelf. Removing the Hole Covers 2000i-DVS Installation Guide... -
Page 28: Matching The Computer Resolution To The Projector Resolution
• This procedure may vary, depending on which version of the Windows operating system you’re running. 1. Click the Start button and then select Settings > Control Panel. The Control Panel window appears. 2. Double-click Display. 2000i-DVS Installation Guide... -
Page 29: Installing Smart Board Software
SMART Board software. At the end of the installation, you can choose to put a shortcut to SMART Board software in your Startup Folder. We recommend that you do so. Then the SMART Board tools will always be open, and your interactive whiteboard will be fully functional whenever you start up your system. - Page 30 To orient the interactive whiteboard Click the SMART Board icon and select Orient, and then follow the on-screen instructions. You can also access this feature by clicking the Orient button on the Boards tab of the SMART Board Control Panel.
-
Page 31: Calibrating The Cameras (Dvit Technology)
To calibrate the cameras and orient the screen, access the Advanced settings of the SMART Board Control Panel on a computer running the Windows 98, 2000, ME, XP or Windows NT operating system, as described in the following procedure. -
Page 32: Connecting A Vcr Or Dvd Player
Audio In C om pu A ud A ux A ud i l i a r y i o I n A ud O ut Connect red and white RCA audio cables here Connecting the Audio Cables 2000i-DVS Installation Guide... -
Page 33: Connecting An External Sound System
A u d i o I n A u d O u t Connect red and white RCA audio cables to external sound system here Connecting Audio Cables from an External Sound System 2000i-DVS Installation Guide... -
Page 34: Connecting An External Monitor Or Projector
To direct the RGB output from the host computer or guest laptop to an external projector or monitor Connect an HD DB15 video cable (not provided) from the external projector or monitor to the RGB OUT port on the back of the projector. This connection is for RGB output only. 2000i-DVS Installation Guide... -
Page 35: Basic Operations
If the screen turns from black to blue – and no logon screen appears – you may need to power up the computer or restore it from a standby setting. Turn the computer on, or press the reset button (if required). See the next page for possible startup scenarios. 2000i-DVS Installation Guide... -
Page 36: Startup Scenarios
• The Off and On The system can’t detect a projector. Check the NEC VT465 User's Manual to make sure the projector is connected properly. LEDs are both flashing constantly 2000i-DVS Installation Guide... -
Page 37: Putting The 2000I On Standby
Press and hold the Lamp Off button for three seconds. The lamp immediately powers down and enters a 60-second cool-down period. 3. When the cooling fan stops, flip the power switch on the back of the projector. 4. Disconnect the 2000i power cable from the wall power outlet. 2000i-DVS Installation Guide... -
Page 38: Adjusting The Height Of The Interactive Whiteboard
NOTE: If the computer on the storage tray is unusually tall, be careful not to lower the interactive whiteboard on top of it. To raise the screen Turn the height adjustment handle in a clockwise motion to raise the screen. The maximum height is 83" (210.8 cm). 2000i-DVS Installation Guide... -
Page 39: Adjusting The Volume
(for when you switch back). Volume Up Volume Down To adjust the volume 1. Press and hold the Volume Up ( ) button on the Control Panel to increase the volume for the current source. 2000i-DVS Installation Guide... -
Page 40: Changing The Display Source For The Internal Projector
(X-Port 20 option only) and a VCR or DVD player. When the internal computer source is active, you can also make Notebook software and the SMART Board tools instantly appear by pressing the Notebook software button on the Control Panel. -
Page 41: Using The Smart Board Interactive Whiteboard
It's important to note that the SMART Board tools must be running to use the pen tray styluses and eraser. In other words, if you want to write on your interactive whiteboard with a pen tray stylus, make sure the SMART Board icon appears in the system tray (Windows operating system) or menu bar (Macintosh computer). - Page 42 Screen Capture toolbar will float on top of all your applications. You can now capture your annotation with a press of a button. Macintosh computer users can access the same annotation- capture capability from the SMART Board Tools menu. The captured image is automatically placed on a new page of the current Notebook file.
-
Page 43: Enabling/Disabling Multipointer Mode (Dvit Technology)
After the first person picks up a pen tray stylus, the other person can use their finger to write in the same color. To enable/disable Multipointer Mode 1. Press the SMART Board icon in the system tray and select Control Panel. The SMART Board Control Panel opens. 2. In the Boards tab, press the Advanced button. -
Page 44: Maintenance
Periodically clean the projector casing with a damp cloth. If it is heavily soiled you can use a mild detergent, but don't use strong detergent or a solvent, such as alcohol or thinner. Use a blower or lens paper to clean the lens, being careful not to scratch or mar the lens. 2000i-DVS Installation Guide... -
Page 45: Replacing The Projector Lamp And Filter
Please replace the lamp." To do this, order the NEC VT60LP standard lamp, which is available from NEC or SMART. Do not use any other lamps. In general, you should replace your projector lamp after 2000 hours of normal mode operation or 3000 hours of eco-mode operation, as the projector will turn off automatically and go into standby mode after 2100 hours (normal mode) or 3100 hours (eco mode). - Page 46 Para evitar descargas eléctricas, no quite ningún tornillo excepto los de las dos lámparas. Um einen elektrischen Schlag zu vermeiden, dürfen Sie mit Ausnahme der beiden Lampengehäuseschrauben keine Schrauben entfernen. 感電の恐れがありますので、ランプ ケースの 2 つのねじ以外に、ねじは取り外さないようにしてください。 2000i-DVS Installation Guide...
-
Page 47: Customer Support
Customer Support Contacting SMART Technical Support SMART’s Technical Support team welcomes your call. However, you may first want to contact your local reseller if you experience any difficulty with your 2000i, as they may be able to solve the problem without delay. -
Page 48: Registration
NOTE: After the warranty period, you are responsible for transporting the product to and from the service center. Registration A User Registration card was included with your 2000i. To help us serve you, fill in and mail this card to SMART Technologies Inc. or register online at www.smarttech.com/registration. 2000i-DVS Installation Guide... -
Page 49: Index
Videoconferencing/Laptop Shelf, 19 Clear Annotations Button, 34 Introduction, 1 Clearing the Filter-Cleaning Message, 37 Computer Power Settings, 11 Configuring and Orienting the SMART Board, 21 Connecting Lamp On and Lamp Off Buttons, 6 External Monitor or Projector, 26 Locking Pins, 9... - Page 50 Using the SMART Board, 33 Replacing the Projector Lamp and Filter, 37 VCR or DVD Connecting a, 24 View-port Cover Selecting a COM Port for the SMART Board, 22 Removing, 13 Setting Up the 2000i, 8 Volume Control, 7 Shutting Down the 2000i, 29...
- Page 51 Suite 600, 1177 – 11th Avenue SW Calgary, AB CANADA T2R 1K9 Main Switchboard: 1.888.42.SMART (Canada/U.S.) or +1.403.245.0333 (all other countries) Support Tel: 1.866.518.6791 (Canada/U.S.) or +1.403.228.5940 (all other countries) Support Fax: +1.403.806.1256 support@smarttech.com www.smarttech.com 99-00530-00 REV A0...
