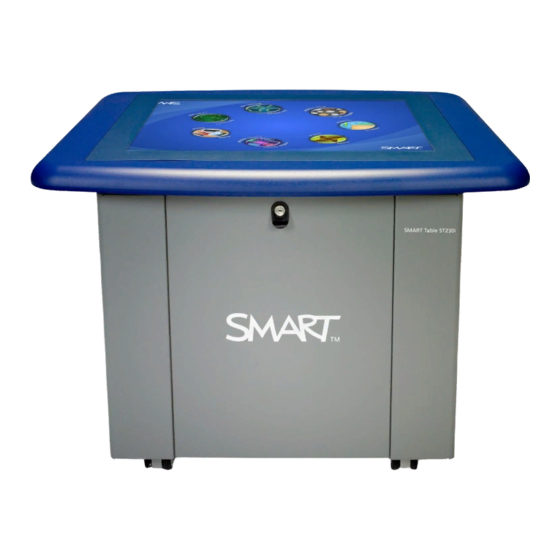

SMART Table 230i Hardware User's Manual
  1. Manuals
  2. Brands
  3. SMART Manuals
  4. Interactive whiteboard
  5. Table 230i
  6. Hardware user's manual

SMART Table 230i Hardware User's Manual

Interactive learning center
Hide thumbs Also See for Table 230i:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
SMART Table™ 230i
interactive learning center
Hardware user's guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Table 230i and is the answer not in the manual?

Questions and answers

Related Manuals for SMART Table 230i

Summary of Contents for SMART Table 230i

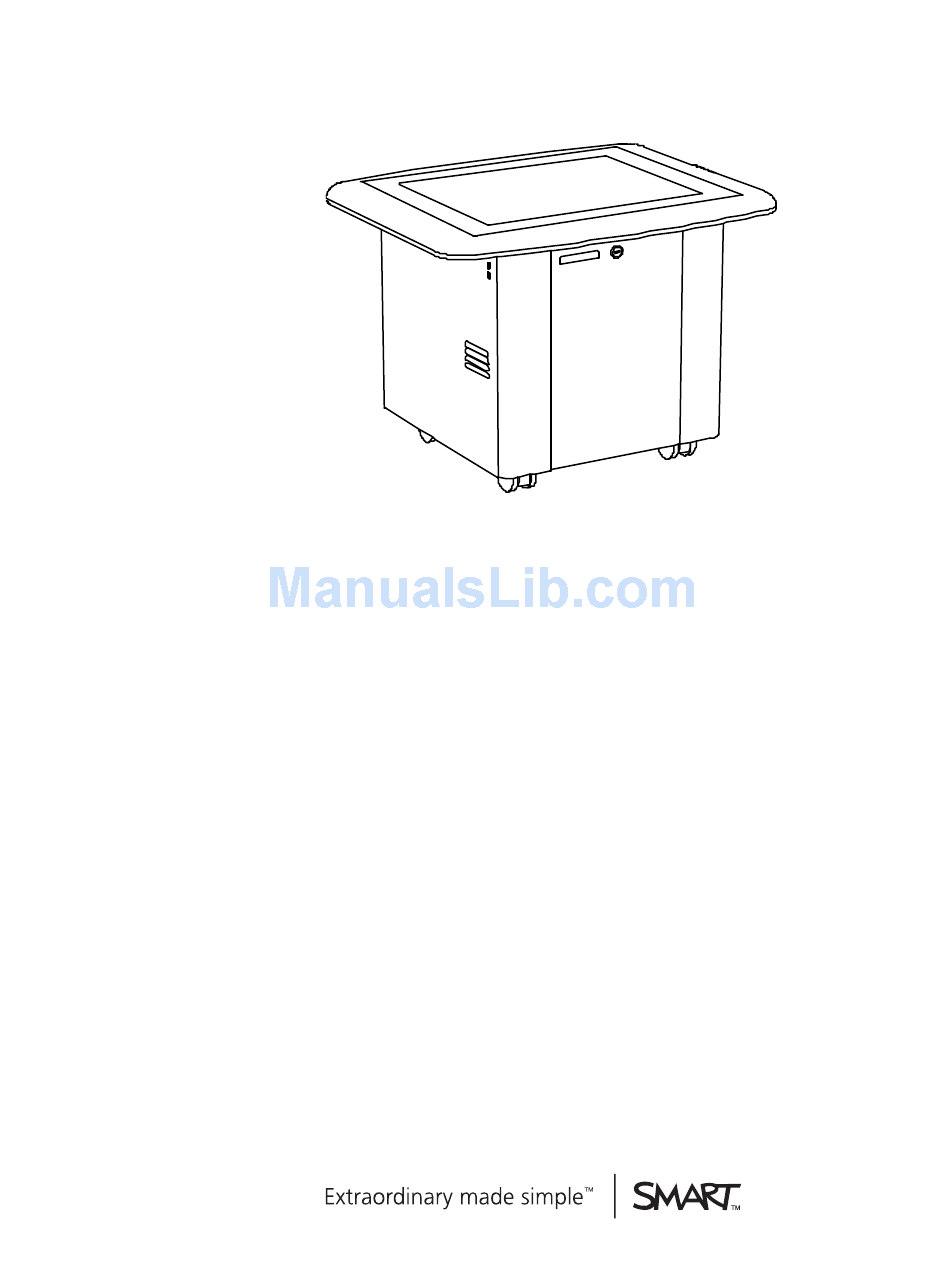

  • Page 1 SMART Table™ 230i interactive learning center Hardware user’s guide...

  • Page 2: Product Registration

    © 2011 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.

  • Page 3: Important Information

    Do not climb (or allow children to climb) on your table. Climbing on your table could result in personal injury and product damage. To reduce the risk of fire or electric shock, do not expose your SMART product to rain or moisture.
  • Page 4 Do not operate your table’s projector in environments that are higher than 10,000' (3,000 m) above sea level. Your SMART Table is sensitive to infrared radiation and can interpret bright light as touches. It could be necessary to turn off or remove any pot lights or other incandescent lighting in the room and move your table away from bright windows, or close any open blinds or curtains before using your SMART Table.

  • Page 5: Table Of Contents

    Chapter 1: Getting started About your SMART Table How your SMART Table works What’s included with your SMART Table Using your SMART Table with other SMART products Chapter 2: Using your SMART Table Turning your SMART Table on or off Using SMART Table software Using your SMART Document Camera with your table Chapter 3: Maintaining your SMART Table...

  • Page 7: Chapter 1: Getting Started

    UPS installation instructions Warranty information Using your SMART Table with other SMART products This guide is intended for teachers and application developers. It introduces you to SMART Table software and explains how to use, maintain and troubleshoot your table.   N O T E For information on setting up your SMART Table interactive learning center or its accessories, see...

  • Page 8: How Your Smart Table Works

    SMART Notebook™ collaborative learning software, as part of an overall learning solution. For example, you can introduce a new concept to students on a SMART Board™ interactive whiteboard, and then ask the students to explore the idea in detail using the SMART Table interactive learning center.

  • Page 9: What's Included With Your Smart Table

    If you lose your SMART Table USB drive, you can order a new one from your reseller, or you can use another USB drive to transfer files to your table. The USB drive you use must be formatted for use with Windows operating systems.

  • Page 10: Keys

    The projector remote control is stored on the inside of the cabinet. You don’t need the remote control while using the table, but SMART recommends that you keep it inside the cabinet so you can easily locate it when you need to turn the projector on or off or to adjust the projector’s settings while servicing the table.

  • Page 11: Using Your Smart Table With Other Smart Products

    C H A P T E R 1 Getting started Warranty information Retain the warranty information in case an issue occurs with your SMART Table during the warranty period. Using your SMART Table with other SMART products The SMART Table complements several SMART products including SMART Board interactive whiteboards, SMART Sync software and SMART Document Cameras.

  • Page 13: Chapter 2: Using Your Smart Table

    SMART Table. Turning your SMART Table on or off After you set up your SMART Table, you can turn it on or off by following these procedures.

  • Page 14: Turning On Your Smart Table

    SMART recommends connecting the power cable to a power bar. 2. Push the Reset button located on the side your table. Your SMART Table computer and projector turn on. The computer completes its startup process, and the SMART Table Activities menu appears.

  • Page 15: Turning Off Your Smart Table

    If you press the Reset button for more than 30 seconds, the computer resets but the projector turns off. The following procedure shows the correct way to turn off your SMART Table. To turn off your table 1. From the SMART Table Activities menu, press button moves to another corner.

  • Page 16: Using Smart Table Software

    Using your SMART Table Power loss to your table If the power cable is disconnected or a power bar is turned off while the SMART Table is turned on, the projector turns off immediately and an audible warning signifies that the SMART Table computer is running on the uninterruptible power supply’s (UPS) battery power.

  • Page 17: Teacher Mode

    For more information on SMART Table activities, see the SMART Table Software and SMART Table Toolkit User’s Guide (smarttech.com/kb/155136). Switching modes without inserting a USB drive You can also switch from Student mode to Teacher mode without inserting a USB drive.

  • Page 18: Using Your Smart Document Camera With Your Table

    2. Connect your USB cable’s USB B plug to your document camera, and then connect the USB A plug to one of your SMART Table USB connectors. 3. Select an application such as Media or SMART Notebook software that supports the use of the document camera.

  • Page 19: Chapter 3: Maintaining Your Smart Table

    You can also use a vinegar and water or a bleach and water solution to clean and disinfect your table.   N O T E Before you clean your SMART Table, turn it off so you don’t inadvertently start applications when you wipe the surface. Updating the software Installing software updates  ...

  • Page 20: Orienting The Image

    C H A P T E R 3 Maintaining your SMART Table your table computer against the latest version available on the downloads page of the SMART website (smarttech.com/downloads). Orienting the image Whenever you or a student touch the table’s surface, a small × or • should appear directly below the touch point.
  • Page 21 5. Use your finger to drag the highlighted arrow to the edge of the screen. The arrow changes to a + symbol and the next arrow is highlighted. 6. Repeat step 5 for all remaining arrows. When you complete the orientation procedure, the Teacher mode SMART Table Activities menu appears.

  • Page 22: Replacing The Projector Lamp

    The average life of a projector lamp is 2,000 hours. When the projector lamp has been used for 2,000 hours or more, the following message appears on the SMART Table surface: It is time to replace the lamp. Use the procedure in the User’s Guide to replace the lamp as soon as possible.

  • Page 23: Chapter 4: Using The Remote Control

    Replacing the remote control battery Your SMART Table includes a remote control for the projector. SMART Technologies configures the projector for your SMART Table and you need to use the remote control in only the following situations: Setting the projector for high altitude use Resetting the projector lamp time after replacing the projector lamp  ...

  • Page 24: Locating The Remote Control

    Setting the projector for high altitudes If you’re using your SMART Table at 5,000' to 10,000' (1,500 m to 3,000 m) above sea level, set the projector for high altitude use. This increases the cooling efficiency of the projector’s fans.

  • Page 25: Replacing The Remote Control Battery

    C H A P T E R 4 Using the remote control Replacing the remote control battery The remote control uses a CR2025 battery, which you can purchase from a retail store or supplier.   W A R N I N G Install only a CR2025 battery in the remote control.

  • Page 27: Appendix A Troubleshooting

    Diagnosing basic problems with touch Remodeling the background If you set up your SMART Table following the procedures in the SMART Table 230i textless installation instructions (smarttech.com/kb/141081) included with your SMART Table, touch should work without any problems. However, if problems occur, follow the procedures in this chapter to resolve them.

  • Page 28: Setting Up Your Table For Troubleshooting Touch Issues

    4. Verify that the USB cable is properly connected to the camera by disconnecting and connecting the cable. Setting up your table for troubleshooting touch issues The troubleshooting procedures in the following sections require you to close SMART Table Activities, and then connect a keyboard and mouse.

  • Page 29: Restarting Smart Table Activities

    A P P E N D I X Troubleshooting You can connect to your SMART Table any keyboard and mouse that have USB connectors using the two USB receptacles on the side of the unit. To set up your SMART Table for troubleshooting 1.

  • Page 30: Diagnosing Basic Problems With Touch

    Issue Solution SMART Table software isn’t installed, or the software isn’t Touch isn’t working, and the running. Click the SMART Table icon on the desktop to start the Windows desktop is visible. software. The camera may have disconnected from the computer during Touch isn’t working, and a...
  • Page 31 1. Set up your table for troubleshooting. (See Setting up your appears. table for troubleshooting touch issues on page 22.) 2. Click SMART Touch Service, and then select Options > Settings. The SMART Touch Options dialog box appears. 3. Press Restore Defaults, and then check to see if touch is working properly.

  • Page 32: Remodeling The Background

    Calibration > Model Background. The SMART Table software models the background. When you move your fingers across the touch surface, a set of red markers appears in the bottom-left quadrant of the SMART Touch Service window. 4. If touch is working correctly, restart the SMART Table applications.

  • Page 33: Appendix B: Hardware Environmental Compliance

    When you dispose of any electrical or electronic equipment, including SMART Technologies products, we strongly encourage you to properly recycle the electronic product when it has reached end of its life. If you require further information, please contact your reseller or SMART Technologies for information on which recycling agency to contact.

  • Page 34: Packaging

    SMART Technologies products fall under this classification and meet the requirements for China’s EIP regulations. U.S. Consumer Product Safety Improvement Act The United States has enacted the Consumer Product Safety Improvement Act which limits the lead (Pb) content in products used by children. SMART Technologies is committed to complying with this initiative.
  • Page 36 SMART Technologies smarttech.com/support smarttech.com/contactsupport...
