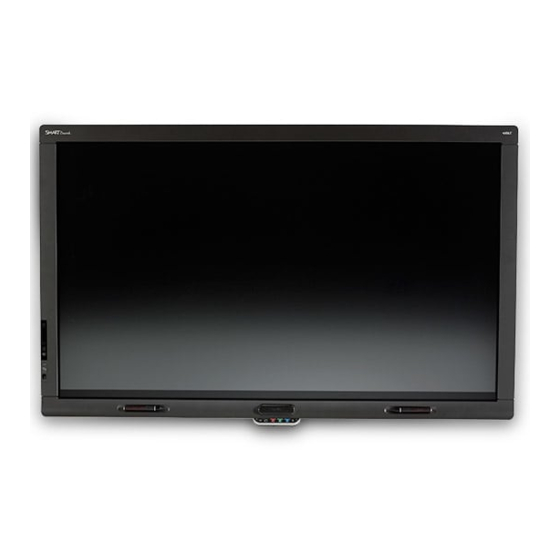

SMART Board 8070i Installation Manual
Hide thumbs
Also See for SMART Board 8070i:
- Getting started (2 pages) ,
- User manual (98 pages) ,
- Reference manual (32 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for SMART SMART Board 8070i
Summary of Contents for SMART SMART Board 8070i
- Page 1 SMART Board™ 8070i Interactive Display Installation Guide...
- Page 2 SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.
-
Page 3: Table Of Contents
Installing a guest laptop connection Connecting external equipment to the bottom terminal panel Turning on and turning off your interactive display Installing SMART software Hardware environmental compliance Waste Electrical and Electronic Equipment regulations (WEEE directive) Restriction of Certain Hazardous Substances (RoHS directive) -
Page 5: Installing Your Interactive Display
I N S T A L L I N G Y O U R I N T E R A C T I V E D I S P L A Y Installing your interactive display Components of your interactive display The following images identify the components of your interactive display. -
Page 6: Wall-Mounting Your Interactive Display
Save all product packaging so that it is available if you need to transport your interactive display. If your original packaging is not available, you can purchase new product packaging from your authorised SMART reseller. Important mounting considerations for trained installers... - Page 7 I N S T A L L I N G Y O U R I N T E R A C T I V E D I S P L A Y Attach the M12 eyebolts and washers included to assist in mounting. ...
- Page 8 I N S T A L L I N G Y O U R I N T E R A C T I V E D I S P L A Y Do not install your interactive display where people can easily grab and hang onto it or the mounting apparatus.
-
Page 9: Installing The Interactive Display Speakers
I N S T A L L I N G Y O U R I N T E R A C T I V E D I S P L A Y Installing the interactive display speakers Your interactive display comes with two 15 W speakers. ... -
Page 10: Connecting To Power And To Your Room Computer
A wire bundle of these two connectors is not included with your interactive display, but is available from your authorised SMART reseller. Refer to the interactive display specifications document for ordering information. You can switch inputs between your room computer and the guest laptop connection with the input button in the front control panel or with the input button on the infrared remote control. -
Page 11: Installing A Guest Laptop Connection
Refer to the interactive display specifications document for ordering information. W A R N I N G Ensure that any cables extending across the floor to your SMART product are properly bundled and marked to avoid a trip hazard. - Page 12 T I P A wire bundle that includes a USB cable and an RGB/HV to VGA cable is available from your authorised SMART reseller. Refer to the interactive display specifications document for ordering information. 1. Connect a USB cable to the USB #2 port on the inside connection panel of the interactive display and then run the cable to the laptop location, such as beside the interactive display or on a conference table.
-
Page 13: Connecting External Equipment To The Bottom Terminal Panel
I N S T A L L I N G Y O U R I N T E R A C T I V E D I S P L A Y N O T E When using a guest laptop, connecting your laptop to a power socket is optional. To connect a laptop to the guest laptop connection location 1. -
Page 14: Bottom Terminal Panel
C A U T I O N The bottom terminal panel has an AC power socket for a SMART product that is not yet released. To prevent damage to your interactive display, do not connect other items to this... -
Page 15: Turning On And Turning Off Your Interactive Display
Installing SMART software To use your interactive display, you need to install SMART software on the computer connected to the interactive display. SMART software includes: SMART Product Drivers, which enable touch interactivity and digital ink SMART Notebook™... - Page 16 Dock (Mac operating system software) and then select Check for Updates. The SMART Product Update screen appears. 4. Follow the on- s creen instructions to update your SMART Notebook software and SMART Product Drivers to their most recent versions.
- Page 17 You can open files, move icons, write in digital ink using the pens included and erase digital ink using the eraser included . If you are unable to complete these actions, see the SMART Board 8070i Interactive Display User's Guide for more troubleshooting information.
-
Page 19: Hardware Environmental Compliance
When you dispose of any electrical or electronic equipment, including SMART Technologies products, we strongly encourage you to properly recycle the electronic product when it has reached end of its life. If you require further information, please contact your reseller or SMART Technologies for information on which recycling agency to contact. -
Page 20: Packaging
There are special regulations that must be met when shipping a product that has a lithium ion battery packaged with the product or shipping a lithium ion battery. When returning a SMART Technologies product which contains a lithium ion battery or returning a lithium ion battery, call... -
Page 21: Restriction Of Certain Chemicals (Reach Directive)
A P P E N D I X Hardware environmental compliance Restriction of Certain Chemicals (REACH directive) The European Union has enacted the REACH directive which restricts the use of certain chemicals in products.SMART Technologiesis committed to complying with this initiative. -
Page 23: Customer Support
Technical support If you experience difficulty with your SMART product, please contact your local reseller before contacting SMART Support. Your local reseller can resolve most issues without delay. N O T E To locate your local reseller, visit www.smarttech.com/wheretobuy. -
Page 24: General Inquiries
+1 403 228 2500 Email info@smarttech.com Warranty Product warranty is governed by the terms and conditions of SMART’s “Limited Equipment Warranty” that was dispatched with the SMART product at the time of purchase. Registration To help us serve you, register online at www.smarttech.com/registration. - Page 26 Toll Free 1.866.518.6791 (U.S./Canada) or +1.403.228.5940 www.smarttech.com...
