2. Camera Installation

2.1 Installing the Lens

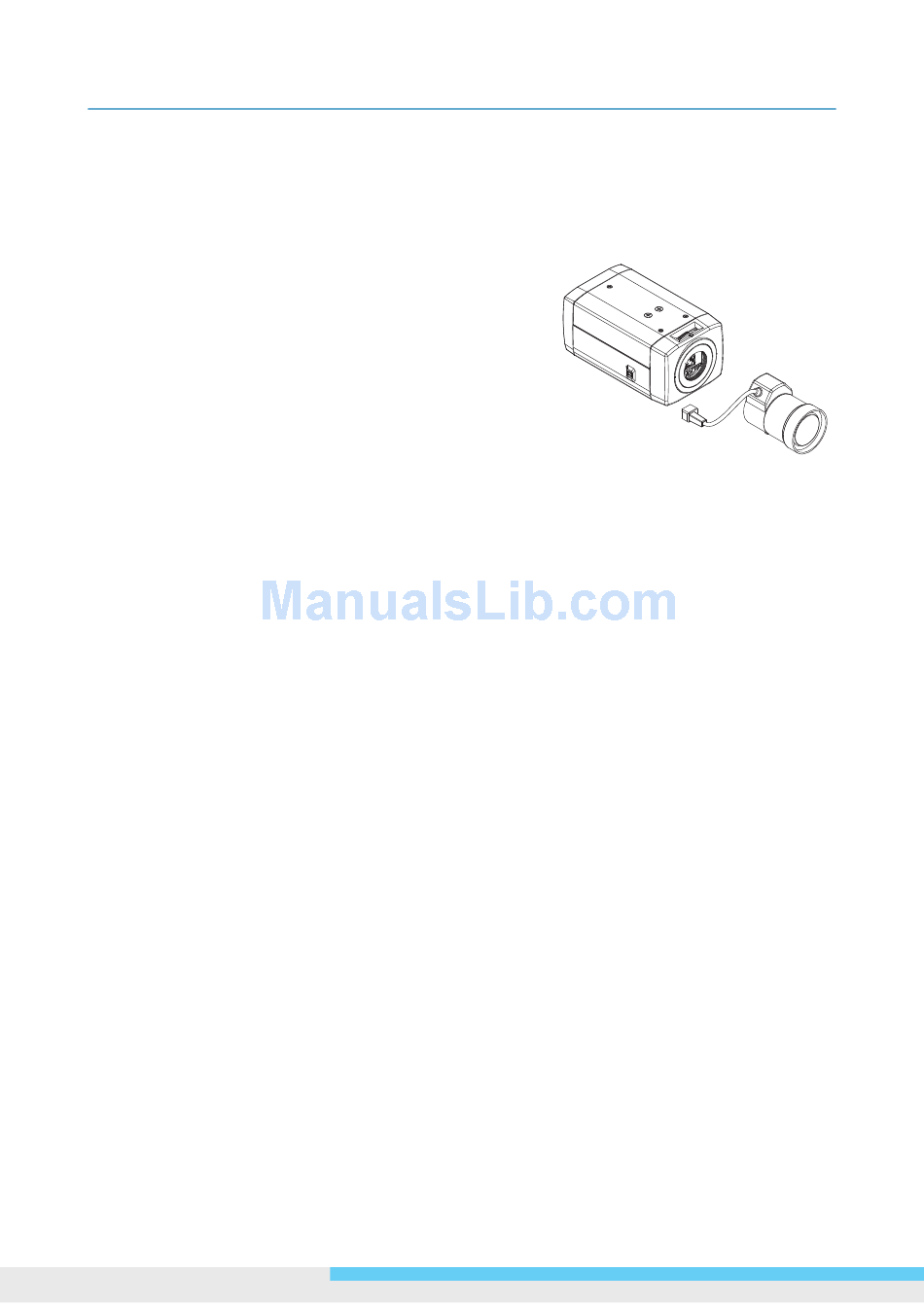

Attach your lens onto the camera's lens mounting ring.
Attach the lens to the camera directly.
CS-Mount lens:
„
You must mount the supplied CS-C mount
C-Mount lens:
„
adapter ring first and then attach the C-Mount lens.
If you are using an auto-iris lens, connect the auto-iris cable
to the IRIS connector on the camera.

2.2 Mounting the Camera

Attach a stand (not provided) to the camera and mount the camera to your intended location.
Make sure to firmly attach the camera to a suitable flat surface.

2.3 Connecting the Cables

1. Optionally connect external input/output devices to the camera.
2. Optionally connect a speaker and microphone to the camera.
3. Connect the camera to a power source, using one of these options:
•
DC 12V or AC 24V:
supply, make sure to connect to correct polarities (Red+/White–).
• Using a Cat. 5/5e or above UTP/STP cable, connect the LAN port to a PoE-capable
PoE:
network device. Power will be supplied through the Ethernet cable.
4. Optionally connect a video monitor if you want to perform focus adjustments during the
installation.

2.4 Adjusting the View and Focus

Adjust the focus controller, and zoom controller of the lens to get the best resolution. If needed,
adjust the back focus to achieve the focus.
