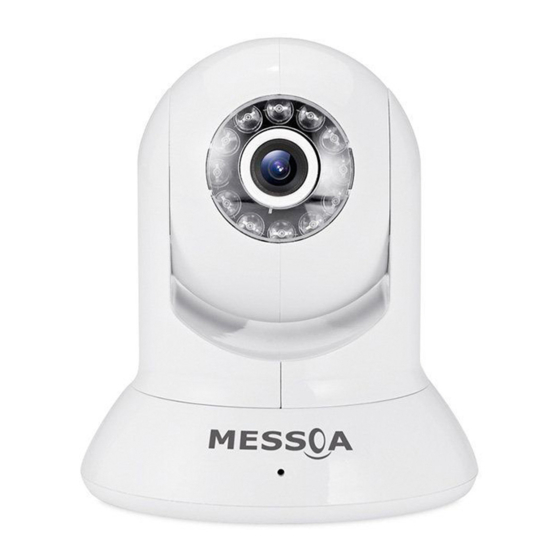

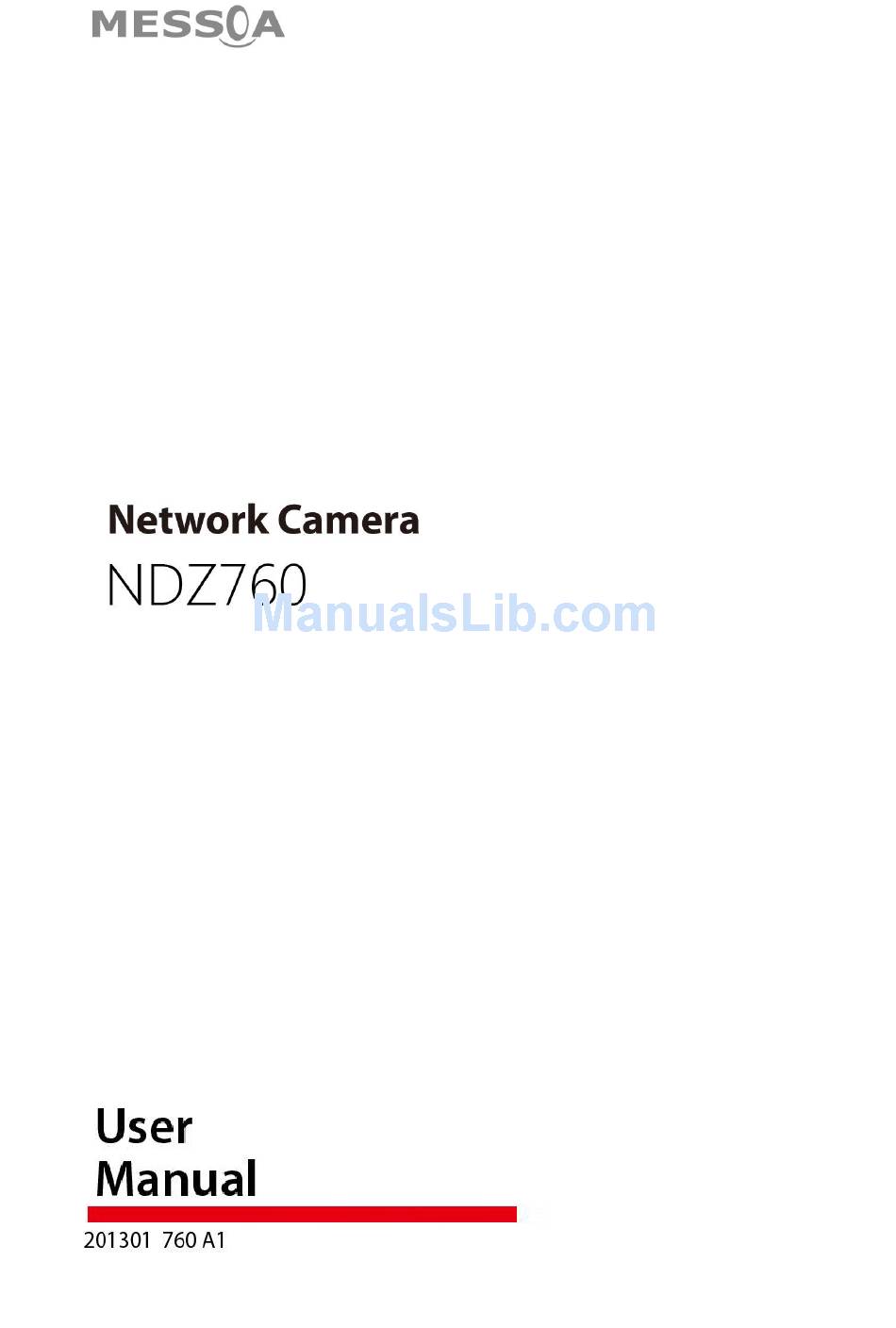

Messoa NDZ760 User Manual

Network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NDZ760 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Messoa NDZ760

Summary of Contents for Messoa NDZ760

  • Page 2 Network Camera User’s Guide To prevent fire or shock hazard, do not expose the unit to rain or moisture. For AC Adaptor to avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 3 Network Camera User’s Guide Declaration of Conformity This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    Network Camera User’s Guide Table of Contents Overview ........................6 Introduction ......................6 Features ........................6 Minimum System Requirements................6 1. Package Contents ....................... 7 2. Physical Description ....................8 Front View ....................8 Rear View ....................9 3. Mounting the Camera ....................11 Ceiling Mount ...................
  • Page 5 Network Camera User’s Guide 7.1.1.8 UPnP ..................39 7.1.1.9 Bonjour ..................40 7.1.1.10 ONVIF ................... 40 7.1.1.11 IP Filter ................... 41 7.1.1.12 IP Notification ................ 42 7.1.2 Camera: Adjust Camera parameters............ 44 7.1.2.1 Picture ..................44 7.1.2.2 Privacy Mask ................45 7.1.2.3 Preset Setting ................

  • Page 6: Overview

    Network Camera User’s Guide Overview The user’s guide explains how to operate this camera from a computer. User should read this manual completely and carefully before you operate the device. Introduction The device is accessible via the LAN or Internet connection. Connect your device directly to a local area network or xDSL modem, and with Microsoft®...

  • Page 7: Package Contents

    Network Camera User’s Guide 1. Package Contents ■ Pan/ Tilt Network Camera ■ CD-ROM (User manual and IP utility) ■ Quick Start Guide ■ Camera mounting kit ■ Power adapter (DC12V) ■ Detachable WLAN antenna (for WLAN model only) If any of the above items are missing, please contact your dealer immediately. Note: Using a power supply with a different voltage than the one included with the Network Camera will cause damage and void the warranty for this product.

  • Page 8: Physical Description

    Network Camera User’s Guide 2. Physical Description 2.1 Front View Lens & focus ring High-light IR LEDs Microphone High-light IR LEDs These LEDs are white-light type. It’s very useful for low-lux environment to provide supplementary light source for image sensor. Lens &...

  • Page 9: Rear View

    Network Camera User’s Guide 2.2 Rear View Audio Output Jack Audio-out Jack allows this device to output audio or alerting sound. DC Power Jack The input power is 12VDC. Note that supply the power to the Camera with the power adapter included in package.
  • Page 10 Network Camera User’s Guide Network Camera to a 100Mbps Fast Ethernet network switch or hub. LAN LED (green color) This LED will be flashing while network accessing via Ethernet. System / Wireless LED (orange color) This LED is used to indicate whether the Camera is ready or not. In addition, this LED will be flashing while the wireless accessing of the Camera (WLAN model only).

  • Page 11: Mounting The Camera

    Network Camera User’s Guide 3. Mounting the Camera 3.1 Ceiling Mount 1. Fix the camera to L-type bracket with the two supplied screws 2. Fix the bracket and camera to the ceiling using two holly wall anchors and screws 11/80...

  • Page 12: Wall Mount

    Network Camera User’s Guide 3.2 Wall Mount Fix the L-type bracket to the wall using two holly wall anchors and screws Fix the camera to L-type bracket with the two supplied screws 12/80...

  • Page 13: Install The Camera In Lan

    Network Camera User’s Guide 4. Install the Camera in LAN Plug an Ethernet cable into the Camera Connect an Ethernet cable to the LAN socket located on the camera’s rear and attach it to the network. Ethernet Cable Connect the external power supply to Camera Connect the attached power adapter to the DC power jack of the camera.

  • Page 14: Preparation

    Network Camera User’s Guide 5. Preparation 5.1 Search and Set up by IPWizard II When you installed the Camera on a LAN environment, you have two easy ways to search your Cameras by IPWizard II or UPnP™ discovery. Here is the way to execute IPWizard II to discover Camera’s IP address and set up related parameter in a Camera.
  • Page 15 Network Camera User’s Guide device by browser. 15/80...

  • Page 16: Lan

    Network Camera User’s Guide 5.1.3 LAN In case you want to change the IP related parameters of wired interface, please select the device you want to configure and click the LAN button. Relative settings will be carried out as below. You could modify the relative settings of the selected device.

  • Page 17: Wireless (For Wireless Model Only)

    Network Camera User’s Guide After keying in new username and password, click “Submit” button to perform your setting accordingly. Click “<<” button will go back to previous page. 5.1.4 Wireless (for wireless model only) In case you want to change the IP related parameters of wireless interface, please select the device you want to configure and click the WIRELESS button.
  • Page 18 Network Camera User’s Guide Click >> to next step: Make sure wireless setting and then submit it. 18/80...
  • Page 19 Network Camera User’s Guide Default-R Click OK to confirm these parameters, then IPWizard II will start to configure this camera with specified information. Once this step finished, IPWizard II will prompt you to unplug the Ethernet cable to activate wireless access. Then IPWizard II will prompt you to test wireless setting or finish wireless procedure as below.
  • Page 20 Network Camera User’s Guide 20/80...

  • Page 21: Upnp Of Windows® Xp, Vista Or 7

    Network Camera User’s Guide 5.2 UPnP of Windows® XP, Vista or 7 UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This device is an UPnP enabled device. If the operating system, Windows XP, Vista or 7, of your PC is UPnP enabled, the Network Camera will be very easy to be found.

  • Page 22: Install The Device Behind A Nat Router

    Network Camera User’s Guide 5.3 Install the Device behind a NAT Router Once installed, the device is accessible on your LAN. To access the device from the Internet you must configure your broadband router to allow incoming data traffic to the device. If the device is installed on the LAN with a router, then it may get a dynamic IP address from the DHCP server.

  • Page 23: Access The Device From The Internet Explorer For The First Time

    Network Camera User’s Guide 5.4 Access the device from the Internet Explorer for the first time 1. Start the web browser on the computer and type the IP address of the Camera you want to monitor as below: The Login Window of the Camera is prompted: 2.

  • Page 24: Logging In As An User

    Network Camera User’s Guide 5.5 Logging in as an User If you log in the Camera as an ordinary User, “Setting” function will be not accessible. 5.6 Logging in as an Administrator If you log in the Camera as the Administrator, you can perform all the settings provided by the device.

  • Page 25: Operating The Network Camera

    Network Camera User’s Guide 6. Operating the Network Camera Start-up screen will be as follow no matter an ordinary users or an administrator. ActiveX Control Monitor Image Section Full 2-Way Screen Audio 6.1 Monitor Image Section The image shot by the device is shown here. The date and time are displayed at the top of the window.

  • Page 26: 2-Way Audio

    Network Camera User’s Guide 6.5 2-Way Audio The device supports 2-way audio function. User can chose to enable or disable this function by toggling the icon below. Disable audio uploading function. Enable audio uploading function. 6.6 Full Screen Enlarge video to full screen display. Enlarge video to full screen display.

  • Page 27: Activex Control

    Network Camera User’s Guide Execute the auto pan of camera. While auto pan is running, the camera will swing the camera automatically. Note that the speed of auto pan is fixed and can not be adjustable. 6.8 ActiveX Control The plug-in ActiveX control supports a lot of functions by clicking the left mouse button. Note that this feature only supports on the ActiveX control within Microsoft®...

  • Page 28: Snapshot

    Network Camera User’s Guide 6.8.2 Snapshot Click Snapshot to activate this function. Press Snapshot button to take a picture. The image file is saved as JPEG format into your local PC. Select Browser, the pop-up window to select the save path and file name prefix, select OK to continue. If you like to retrieve the saved image, select the file to display the saved image by using any one of graph editing tools.

  • Page 29: About

    Network Camera User’s Guide 6.8.5 About Click About to show this ActiveX information. 29/80...

  • Page 30: Administrating The Device

    Network Camera User’s Guide 7. Administrating the Device 7.1 System Setting This function is only available for user logged into Camera as administrator. Click on each menu name to display its setting page. Item Action Configure Network settings such as DHCP, DDNS, 3GPP, Network PPPoE and UPnP Camera...
  • Page 31 Network Camera User’s Guide MAC address: Displays the Ethernet MAC address of the device. Note that user can not modify it. Obtain IP address automatically (DHCP): DHCP: Stands for Dynamic Host Configuration Protocol. Enable this checked box when a DHCP server is installed on the network to issue IP address assignment.

  • Page 32: Wireless

    Network Camera User’s Guide Click “OK” to save and enable the setting. 7.1.1.2 Wireless If your device is a wireless model, you could assign the related parameters into wireless setting. Using a wired connection ensures greater secrecy while making these settings. These settings should always be made in the camera first and secondly in the wireless access point.
  • Page 33 Network Camera User’s Guide Setting (Easy Installation): Provides a 2-step procedure to configure wireless setting: Step 1: Select SSID of wireless router or access point (AP). Step 2: Key in security key of WEP or WPA. Then click “Submit” button to activate wireless setting.
  • Page 34 Network Camera User’s Guide In case, user wants to configure wireless settings manually, please follow the steps as below: MAC address: Displays the Ethernet MAC address of the WLAN card. Note that user cannot change it. Site survey: Click the “Refresh” button. It will refresh information window which list is the result of a network scan.

  • Page 35: Ipv6

    Network Camera User’s Guide Select “OK” to save and enable the setting. Note: To enable WLAN function, user must set these related parameters correctly at first. Then power off the device and remove Ethernet cable from device. Power on the device again and WLAN mode will be available accordingly.

  • Page 36: Ddns Service

    Network Camera User’s Guide 7.1.1.5 DDNS service DDNS: Stands for Dynamic Domain Name Server Your Internet Service Provider (ISP) provides you at least one IP address which you use to connect to the Internet. The address you get may be static, meaning it never changes, or dynamic, meaning it’s likely to change periodically.

  • Page 37: Pppoe

    Network Camera User’s Guide DDNS: To enable or disable the DDNS service here. Server name: Choose one of the built-in DDNS servers. DDNSHost: The domain name is applied of this device. User name: The user name is used to log into DDNS. Password: The password is used to log into DDNS.

  • Page 38: Streaming

    Network Camera User’s Guide PPPoE: To enable or disable the PPPoE service here. User name: Type the user name for the PPPoE service which is provided by the ISP. Password: Type the password for the PPPoE service which is provided by the ISP. IP address, Subnet mask, and Gateway (read only): Shows the IP information got from PPPoE server site.

  • Page 39: Upnp

    Network Camera User’s Guide 7.1.1.8 UPnP UPnP is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This device is an UPnP enabled Network Camera. If your operating system is UPnP enabled, the device will automatically be detected and a new icon will be added to “My Network Places.”...

  • Page 40: Bonjour

    Network Camera User’s Guide Friendly Name: To show the friendly name of this device here. UPnP NAT Traversal When enabled, the device will attempt to configure port mapping in a NAT router on your network, using UPnP™. Note that UPnP™ must be enabled in the NAT router first. Port Range: The port range will open in NAT router.

  • Page 41: Ip Filter

    Network Camera User’s Guide ONVIF: To enable or disable the ONVIF interface here. And select the ONVIF version to match client’s supported version. 7.1.1.11 IP Filter You can enter different user’s IP address which are allowing enter or denying by the device. IP Filter: To enable or disable the IP filter function here.

  • Page 42: Ip Notification

    Network Camera User’s Guide 7.1.1.12 IP Notification In case the IP address is changed, system is able to send out an email to alert someone if the function is enabled. SMTP Notification (e-mail): If enable this function, then the “Send to“ and “Subject” fields need to be filled. Send To: Type the receiver’s e-mail address.
  • Page 43 Network Camera User’s Guide Type the password for the HTTP server. Proxy Address: Type the server name or the IP address of the HTTP Proxy. Proxy Port: Set port number of Proxy. Proxy Login name: Type the user name for the HTTP Proxy. Proxy Login Password: Type the password for the HTTP Proxy.

  • Page 44: Camera: Adjust Camera Parameters

    Network Camera User’s Guide 7.1.2 Camera: Adjust Camera parameters Use this menu to set the functions of the camera parameters of the device. 7.1.2.1 Picture Rotation: Turn the “Mirror” and “Vertical Flip” On or OFF. The image will be overturned as below. White Balance: Auto: will adjust the white balance automatically.

  • Page 45: Privacy Mask

    Network Camera User’s Guide Set the Maximum Exposure Time. However, the real exposure time may be shorter if good light condition. Power Frequency: Frequency of power line: 50 or 60Hz. Exposure Value: Exposure value is AE target value. This value is to adjust the integration, analog gain and digital gain to achieve the target brightness value (Exposure Value).
  • Page 46 Network Camera User’s Guide Add and Delete: To add or delete the privacy mask windows, user can specify up to 7 windows to mask the video captured by this device. By dragging mouse on the image, you can change the position and size of the selected window accordingly.

  • Page 47: Preset Setting

    Network Camera User’s Guide 7.1.2.3 Preset Setting This page provides the edit tool to modify or delete the “Preset Setting” item by item. 7.1.2.4 Tour Setting Up to 128 positions can be preset, and the camera can be programming to move to the preset position sequentially.
  • Page 48 Network Camera User’s Guide To use the camera tour function, user must preset some camera positions first. 48/80...

  • Page 49: System: Configure And Maintain System

    Network Camera User’s Guide 7.1.3 System: Configure and maintain system Use this menu to perform the principal settings of the device. 7.1.3.1 System: DIPS (Dynamic IP Service): -Function Discarded- To enable or disable the DIPS® (Dynamic IP Service) function. Device ID (for DIPS): -Function Discarded- It’s a unique number of each device for identification and this ID is used for DIPS.

  • Page 50: Date & Time

    Network Camera User’s Guide Device Title: You can enter the name of this unit here. It’s very useful to identify the specific device from multiple units. The information will be shown on IPWizard II once the device is found. Software Version: This information shows the software version of the device.

  • Page 51: Maintenance

    Network Camera User’s Guide 7.1.3.3 Maintenance Hard Factory Default (Include the network setting): Recall the device hard factory default settings. Note that click this button will reset all device’s parameters to the factory settings (including the IP address). Factory Default (Except the network setting): The unit is restarted and most current settings are reset to factory default values.
  • Page 52 Network Camera User’s Guide Firmware Upgrade: The device supports new firmware upgrade (the software that controls the operation in the device). Please contact your dealer for the latest version if necessary. Download the latest firmware file from our website or your dealer. Unzip this firmware file to binary file and store it into your PC.
  • Page 53 Network Camera User’s Guide Warning!!! The download firmware procedure cannot be interrupted. If the power and/or network connection are broken during the download procedure, it WILL cause serious damage to the device. Strongly suggest that DO NOT upgrade firmware via Wireless LAN due to high error rate possibly and don't allow any other clients to access this unit during updating procedure.

  • Page 54: Video: Configure Profile

    Network Camera User’s Guide 7.1.4 Video: Configure profile This device provides 2 modes of video profile. The first one is 1.3 Mega mode which supports video resolution up to 1.3 Mega-pixel. Maximum frame rate of this mode is up to 30fps. The second one is 720p mode which supports video resolution up to 1280x720 but frame rate can be up to 30fps.

  • Page 55: Video Profile

    Network Camera User’s Guide 7.1.4.2 Video Profile Name: To assign a name to the selected profile. Video Type: Video codec of the selected profile. Resolution: Show the resolution of the selected profile. ROI: Assign the selected profile as a ROI stream or not. (Only available for the profiles with max resolution) Rate Control: Defines the rate control method of this profile.

  • Page 56: Roi

    Network Camera User’s Guide Defines the Intra/Inter-frame (I/P) ratio of this profile. For example, set the GOP to 30, then the video stream will have one Intra-frame every 30 frames. Multicast: Enable or disable the multicast function. Multicast Video: IP address and port for multicast video streaming of the selected profile. Multicast Audio: IP address and port for multicast audio streaming of the selected profile.

  • Page 57: Audio: Audio Parameters

    Network Camera User’s Guide 7.1.5 Audio: Audio parameters Audio: To enable or disable audio function Audio Type: To select audio codec Mute While PT: Mute the audio while pan and/or tilt motion Audio Mode: To select Simplex or Full duplex (2-way audio) mode Input Gain: To adjust gain of input audio Output Gain:...

  • Page 58: User: Manage User Name, Password And Login Privilege

    Network Camera User’s Guide 7.1.6 User: Manage user name, password and login privilege Use this menu to add, update, or remove the usernames and passwords of the Administrator and viewer. Access Right: Administrator can access every function in this device. However, Viewers only can view the video and access limited function.
  • Page 59 Network Camera User’s Guide SMTP Server: Type the SMTP server name or the IP address of the SMTP server. Test: Send a test mail to mail server to check this account is available or not. SMTP Port: Set port number of SMTP service. SSL: Enable SSL function or not.

  • Page 60: Motion Detection: Setup Motion Detection

    Network Camera User’s Guide 7.1.8 Motion detection: Setup motion detection Use this menu to specify motion detection window 1 to window 10 and set the conditions for detection while observing a captured image. Add and Del: To add or delete the motion windows. User can specify up to 10 Included and/or Excluded windows to monitor the video captured by this device.

  • Page 61: Audio Detection: Setup Audio Detection

    Network Camera User’s Guide 7.1.9 Audio detection: Setup audio detection Use this menu to specify audio alarm level. Event will be triggered if detected audio volume exceeds the alarm level. Audio Alarm Level: Move the slide to specify the audio alarm level. The level bar will change accordingly in the picture below and current detected volume is displayed in blue.
  • Page 62 Network Camera User’s Guide Enable automatic disk cleanup: Delete old recorded files while the conditions are reached as below. Remove recordings order than: Delete old files by days. Remove oldest recordings when disk is: Delete old files by left capacity. 62/80...

  • Page 63: Samba Server

    Network Camera User’s Guide 7.1.10.2 SAMBA Server This page shows the status of SAMAB server. You may setup related parameters to manage the remote SAMBA server. Host: Type the SAMBA server domain name or the IP address of the SMTP server. Share: Type the share folder of remote SAMBA server which the camera will upload files to this space.

  • Page 64: Continuous Recording

    Network Camera User’s Guide 7.1.11 Continuous Recording: The camera can continuously record video stream into files and save them to attached SD card or remote SAMBA server. Note that there are various factors affecting the recording results, such as the camera’s system loading, network condition, SD card performance, multiple client accessing, and so on.

  • Page 65: Recording List: Files List Inside The Sd Card

    Network Camera User’s Guide 7.1.12 Recording List: Files list inside the SD Card 7.1.12.1 Recording List This page only shows the event recording files which stored in SD card. User may play or delete the selected file. 7.1.12.2 Continuous Recording List This page only shows the continuous recording files which stored in SD card or remote SAMBA server.

  • Page 66: Event Server: Setup Ftp/Tcp/Http/Samba Server Configuration

    Network Camera User’s Guide 7.1.13 Event Server: Setup FTP/TCP/HTTP/SAMBA server configuration 7.1.13.1 FTP Server You may setup FTP parameters for further operation of Event Schedule. That’s, if users want to send the alarm message to an FTP server, it will need to configure parameters here and also add at least one event schedule to enable event triggering as SMTP.

  • Page 67: Tcp Server

    Network Camera User’s Guide 7.1.13.2 TCP Server In addition to send video file to FTP server, the device also can send event message to specified TCP server. Name: User can specify multiple TCP servers as wish. Therefore, user needs to specify a name for each TCP server setting.

  • Page 68: Http Server

    Network Camera User’s Guide 7.1.13.3 HTTP Server The device also can send event message to specified HTTP server. Name: User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting. URL: Type the server name or the IP address of the HTTP server.
  • Page 69 Network Camera User’s Guide Name: User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting. SAMBA Server: Type the server name or the IP address of the SAMBA server. Test: Check the SAMBA server whether this account is available or not.

  • Page 70: Event Schedule: Configure The Event Schedule

    Network Camera User’s Guide 7.1.14 Event Schedule: Configure the event schedule 7.1.14.1 Setting This menu is used to specify the schedule of Event or Schedule Trigger and activate the some actions provided by this device. Where the Schedule Trigger will be activated by user-define interval without event happened.
  • Page 71 Network Camera User’s Guide Example 2: Send file to E-Mail server by motion triggered from Friday 18:00 to Saturday 06:00 Select event trigger. Enable time: start from Friday 18:00 and keep work in 12 hous, so it will stop on Saturday 06:00. Trigger by : Motion Area (Added in Motion Detection page) Action : Send e-mail (Add in E-Mail page) i、...
  • Page 72 Network Camera User’s Guide Trigger by : You do not need to choose it, because this will be triggered every 10 minute Action : Voice Alert 72/80...

  • Page 73: Record

    Network Camera User’s Guide 7.1.14.2 Record User can choose the type of record file for event or schedule application. Record File Type: Choose a profile to record. Record File Prefix: Define the prefix of recorded filename. Pre-Trigger Duration: Define the maximum duration of pre-alarm. Best Effort Duration: Define the best effort duration of post-alarm.

  • Page 74: Port Status

    Network Camera User’s Guide 7.1.14.3 Port Status User can check the status of digital input and output (DIDO). Input Status: Show either inactive or active. Output Status: Show either inactive or active. 74/80...

  • Page 75: Using Vlc Player To Access Rtsp Streaming

    Network Camera User’s Guide 8. Using VLC Player to Access RTSP Streaming Note 1: This information is provided for convenience only. We will not provide support for the installation or use of VLC software. Note 2: The IP address used in the document are the default URLs and are provided for example purposes only.
  • Page 76 Network Camera User’s Guide 3GPP To use the 3GPP function, in addition to previous section, you might need more information or configuration to make this function work. Note that to use the 3GPP function, it strongly recommends to install the Networked Device with a public and fixed IP address without any firewall protection.

  • Page 77: Specification

    Network Camera User’s Guide 9. Specification Video Sensor Type 1/4" image sensor Active Pixels 1280 x 1024 (HxV) Compression H.264 / Motion JPEG Streaming Simultaneously multi-profile streaming SXGA, VGA, QVGA, 160x120 (1.3 Mega Mode); Resolution 720P, 640x360, 160x90 (720p Mode) Max.
  • Page 78 Network Camera User’s Guide AWB, AES Exposure Mode: Auto/ Hold/Manual; White Balance: Auto/ Hold; Image Settings Exposure Value, Sharpness, Color, Brightness, Contrast: 101 level sensitivity 3D Noise Reduction (De-Noise): Off/ On Privacy Zone Yes; customized threshold privacy zone (up to 8) Image Orientation Mirror, Flip Frequency Control...
  • Page 79 Network Camera User’s Guide Power Power Requirement DC 12V ± 10% Power Consumption (Max.) 6.5W Mechanism Dimensions(WxDxH) 86 x 81 x 97 mm (3.38” x 3.19” x 3.82”) Weight 185g Environment Operating Temperature 0ºC ~ 40ºC (32ºF ~ 104ºF) Operating Humidity 20~ 80% RH Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)

  • Page 80: Appendix A: Alarm I/O Connector

    Network Camera User’s Guide Appendix A: Alarm I/O Connector Some features of the Network Camera can be activated by the external sensor that senses physical changes in the area Network Camera is monitoring. These changes can include intrusion detection or certain physical change in the monitored area. For examples, the external sensor can be a door switch or an infrared motion detector.
