Summary of Contents for Messoa NCB855E

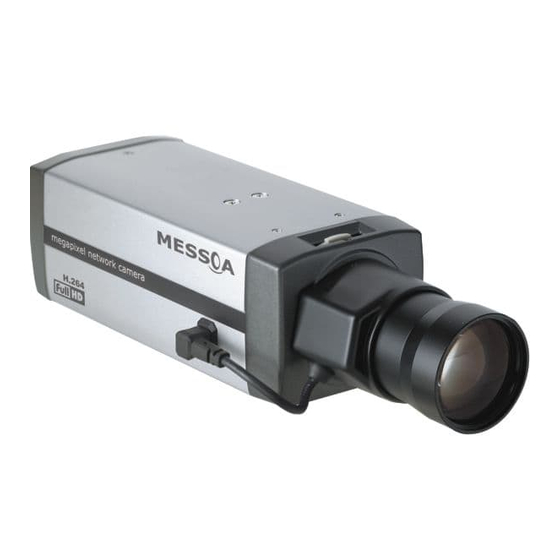

- Page 1 Fixed Network Camera NCB855E/NCB855PRO User Manual...
- Page 2 Extremely humid, dusty, hot/cold environments where the operating temperature is outside the recommended range of -10°C to +55°C. • Close to sources of powerful radio or TV transmitters. • Close to fluorescent lamps or objects reflecting light. • Under unstable light sources (may cause flickering). NCB855E/NCB855PRO User Manual...
-
Page 3: Ce Compliance Statement
European countries with separate collection systems). This product should be disposed of, at the end of its useful life, as per applicalbe local lows, regulations and procedures. The specifications or appearance of this product are subject to change without a prior notice. NCB855E/NCB855PRO User Manual... -
Page 4: Table Of Contents
4.2 Image Settings ..................... 19 4.2.1 Codec ......................19 4.2.2 Exposure ......................22 4.2.3 White Balance ....................24 4.2.4 Basic Setting ......................25 4.2.5 Smart Encoding ....................26 4.2.6 Smart Focus .......................27 4.2.7 Privacy Zone ......................27 4.2.8 ePTZ .........................28 4.3 Network ....................... 29 NCB855E/NCB855PRO User Manual... - Page 5 4.5.6 Ethernet Detection ....................45 4.5.7 Event Management ....................45 4.6 Recording ..................... 46 4.6.1 Settings – Video File ....................46 4.6.2 Settings – FTP ....................46 4.6.3 Settings – SMTP ....................47 4.6.4 SD Card Storage Format Selection .................48 4.6.5 Period Setting.....................49 NCB855E/NCB855PRO User Manual...
-
Page 6: Overview
CD-ROM (User manual and IP Finder utility) x1 „ Quick Start Guide „ 2-pin Captive Screw Terminal Block „ 6-pin Captive Screw Terminal Block „ CS-C Mount Adapter Ring „ 1.3 Hardware Overview 1.3.1 Dimensions 114mm (4.5”) 66mm (2.6”) NCB855E/NCB855PRO User Manual... -
Page 7: Part Names
Card Slot: Insert a microSD/SDHC card to the slot for recording and storage. I/O: Connect your external devices, e.g., sensors and alarms to the corresponding I/O contacts. The pins of the I/O terminal block control the following signals: NCB855E/NCB855PRO User Manual... - Page 8 Connects to the LAN port of a standard 10BaseT/100BaseTX device, e.g., hub, Ethernet/PoE: switch or router. The LED indicators show the status as below: Color Status Indication Green Network connection is established. No network connection. Orange Blinking Networking is active Collision occurs Networking is inactive NCB855E/NCB855PRO User Manual...
-
Page 9: Specifications
114 x 66 x 65 mm (4.5" x 2.6" x 2.6") Streaming Triple simultaneous streams Weight 320g (0.70 lb) w/o lens NCB855E 720P, XGA, SVGA, D1, VGA, 2CIF, CIF Environmental Resolution NCB855PRO 1080p, SXVGA, 720P, XGA, SVGA, D1, VGA, 2CIF, CIF Operating Temperature -10ºC ~ 50ºC (-14ºF ~ 122 ºF) -
Page 10: Camera Installation
4. Optionally connect a video monitor if you want to perform focus adjustments during the installation. 2.4 Adjusting the View and Focus Adjust the focus controller, and zoom controller of the lens to get the best resolution. If needed, adjust the back focus to achieve the focus. NCB855E/NCB855PRO User Manual... -
Page 11: Network Deployment
If you want to provide the camera power via the Ethernet connection, a PoE compliant hub/ switch is required. Caution Note The LAN port of the camera supports auto MDI/MDIX (Medium dependent interface crossover) so there is no need for an uplink port or the use of a cross-over cable. NCB855E/NCB855PRO User Manual... -
Page 12: Accessing The Camera For The First Time
RTSP port to enable access to video/audio streams from the camera. If your camera is configured to use a non-standard HTTP port, then you have to forward that port accordingly. 3.2 Accessing the Camera for the First Time NCB855E/NCB855PRO User Manual... - Page 13 Command Prompt. 2. At the prompt window, type ping x.x.x.x , where x.x.x.x is the IP address of the camera (the default is 192.168.1.30). If the message of “Reply from…” reponds, it means the connection is established. NCB855E/NCB855PRO User Manual...
- Page 14 Open the IE browser and enter the IP address of the camera in the URL field. The default is 192.168.1.30. When prompted for login, enter the user name and the password (The defaults: admin, 1234). Note that the user name and password are case-sensitive. NCB855E/NCB855PRO User Manual...
-
Page 15: Using "Ip Finder" To Manage Cameras
MAC address. Each camera comes with a unique MAC address, which is indicated on the product label. It helps identify which camera is currently accessed, particularly when multiple cameras are connected on your network. NCB855E/NCB855PRO User Manual... - Page 16 For an individual camera, right-click the camera and a menu will provide these options: Go to Presentation URL: Launch IE browser to access the web-based utility of the camera. „ Set Device ID and Password: Set the login ID and password for managing the camera with IP „ Finder. NCB855E/NCB855PRO User Manual...
- Page 17 3. Network Deployment Network Information: Allows you to configure the camera’s network settings. „ NCB855E/NCB855PRO User Manual...
-
Page 18: Web-Based Interface
Note that the accessibility to the options varies according to the login account. Viewer: Allowed to view only the live view screen. Access to other options is restricted. „ Administrator: Can access all the options on the live view page and make configurations on the „ setup pages. NCB855E/NCB855PRO User Manual... -
Page 19: Setup Menu
* The figure above is taken from NCB855PRO for web interface introduction purposes. Options within each item may differ slightly among series products. NCB855E/NCB855PRO User Manual... - Page 20 1. Live View uses the MJPEG codec. If no streaming is using MJPEG, it will result in no video for Live View. 2. If MJPEG is selected for both the primary stream and the third stream, Live View will always display video using the third stream codec settings. NCB855E/NCB855PRO User Manual...
- Page 21 MJPEG 720P SVGA H264 MPEG4 2CIF MJPEG 1080P MJPEG H264 SXVGA MJPEG MPEG4 720P SVGA H264 MPEG4 2CIF MJPEG NCB855E Streaming Combination Primary Secondary Third Codec Resolution Codec Resolution Codec Resolution 720P MJPEG MJPEG H264 SVGA MPEG4 H264 MPEG4 2CIF...
-
Page 22: Exposure
Method: Select which area of the image will be used to measure the amount of light to achieve „ best exposure. • Center Weighted: Exposure metering is averaged over the entire frame but emphasis is placed on the central area. NCB855E/NCB855PRO User Manual... - Page 23 BLC area setting: BLC area refers to the dark area where more details are expected. Define your „ BLC area by clicking squares displayed on the screen and then press Save BLC Window to save the setting. Digital Wide Dynamic Range NCB855E/NCB855PRO User Manual...
-
Page 24: White Balance
Manual White Balance: With any special light in the environment, you can use this option to „ manually adjust the red, green and blue channels, which are mostly affected by the special light. For example, if red color is too bright, then you should lower the R Gain value. NCB855E/NCB855PRO User Manual... -
Page 25: Basic Setting
Contrast: Adjust the image contrast level. „ Saturation: Adjust the image saturation level. „ Sharpness: Adjust the image sharpness level. „ Default All Image parameters: Pressing this button will restore all the image settings to the „ defaults. NCB855E/NCB855PRO User Manual... -
Page 26: Smart Encoding
Save Window to save the region. Click anywhere on the image to cancel the current defined area. Mode: Select Fixed ROI to enable smart encoding function. „ Priority: Select a priority level for the ROI. „ NCB855E/NCB855PRO User Manual... -
Page 27: Smart Focus
To turn on the privacy zone function: 1. Click and drag your mouse on the image to define the region to be masked and then click Save Window. 2. Select ON to enable Privacy Zone. This will turn the masked area to black. NCB855E/NCB855PRO User Manual... -
Page 28: Eptz
To tilt up/down: Click the up/down indicator to tilt the viewing area. The tilt function does not work if the video is not zoomed-in (no zoom status). • To preset to home: Click the home indicator and the image will return to the original view. NCB855E/NCB855PRO User Manual... -
Page 29: Network
IP address and related information to the camera. Caution Note If there is no DHCP server on your network or you prefer to manually assign an IP address to the camera, leave the DHCP checkbox blank. NCB855E/NCB855PRO User Manual... -
Page 30: Ftp
File Upload Path: Specify the folder which has been created under FTP server root directory. „ 4.3.3 SMTP To enable the camera to send you email notifications when an alarm is triggered, you need to specify an SMTP server to send the emails. NCB855E/NCB855PRO User Manual... - Page 31 Password: Enter the password to log on to the SMTP server. „ Sender: Enter the email address to be shown as the sender of the notification email. „ Receiver: Enter the email address to which the notification email is sent. „ NCB855E/NCB855PRO User Manual...
-
Page 32: Ntp
RTSP port. To use an RTSP player to access the camera’s streams, you have to use correct the RTSP URL to request the streams. Refer to the table below for RTSP URLs: NCB855E/NCB855PRO User Manual... -
Page 33: Onvif
Accept command/functionality outside of Discovery capability: If checked, the camera „ is allowed to accept commands from ONVIF compliant device thus changing the camera’s functionality. User Authentication: If an ONVIF compliant device needs authentication for communication, „ enable this option. NCB855E/NCB855PRO User Manual... -
Page 34: System
Date Format: Allows you to specify a desired date format. „ 4.4.2 Time Stamp The Time Stamp function allows you to overlay the date and time stamp on the video. When enabled, the recorded video will be displayed with the date and the time. NCB855E/NCB855PRO User Manual... -
Page 35: Firmware
DO NOT turn off or restart the camera during the firmware update process. „ To update the firmware: 1. Click the Browse button to locate the firmware file. 2. Click the Update button to start update. 3. When prompted, click OK to proceed. NCB855E/NCB855PRO User Manual... - Page 36 When complete, you will return to the live view page. Hardware Factory Default: Reset all of the camera parameters to the defaults, including the „ network settings. NCB855E/NCB855PRO User Manual...
-
Page 37: User Management
The Language drop-menu allows you to change the language of the web interface. Supported languages include English, Spanish, Italian, Simplified Chinese and Traditional Chinese. Click Save to apply the language setting, and the browser will automatically refresh to reflect the change. NCB855E/NCB855PRO User Manual... -
Page 38: Log
Download Log File: Click the button to save the current log into a text file. When a dialog „ window shows up, click the Save button to locate the directory where the logfile.txt is to be stored. NCB855E/NCB855PRO User Manual... -
Page 39: Audio
5. Speak into the microphone and the person(s) around the camera should hear your voice. 6. When people around the camera are talking to you, you should hear them from the speaker that is connected to the computer. NCB855E/NCB855PRO User Manual... -
Page 40: Event
Note that to use the motion detection function, the following two conditions must be met: 1. You must select MJPEG codec for one of the streams to enable the live view. 2. You must select H.264 or MPEG4 codec for one of the streams to process the motion detection. NCB855E/NCB855PRO User Manual... -
Page 41: External Alarms
Configuration Setting: Enable the Alarm I/O that is connected with the respective external alarm device. „ Level: Set the (electricity) current as low or high to define the active state. „ NCB855E/NCB855PRO User Manual... -
Page 42: Face Detection
Save button is clicked, the camera may take around 25 seconds to restart while the web displaying the status being loading. Detection Box: Select ON to show square frames on the screen for the detected faces. „ NCB855E/NCB855PRO User Manual... -
Page 43: Blur Detection
Note that to use the blur detection function, the following two conditions must be met: 1. You must select MJPEG codec for one of the streams to enable the live view. 2. You must select H.264 or MPEG4 codec for one of the streams to process the motion detection. NCB855E/NCB855PRO User Manual... -
Page 44: Audio Detection
SMTP: A notification email attached with the recorded video clip will be sent to the SMTP server. „ SD Card: Recorded video clip will be saved to the SD card when the alarm is triggered. „ Caution Note To perform a video recording, you must select MJPEG codec for one of the streams. NCB855E/NCB855PRO User Manual... -
Page 45: Ethernet Detection
Regardless of your settings in Recording > SD card, when an Ethernet disconnection is triggered, the video clip recording will always be saved in AVI format. 4.5.7 Event Management Basic Setting Alarm Duration: Specify the duration of the alarm when an event is triggered. „ NCB855E/NCB855PRO User Manual... -
Page 46: Recording
AVI Duration for SD Card: Select recorded video duration in seconds for the SD card. „ AVI Format: Select a desired video format. Available formats depend on the primary and the „ secondary streaming codec/resolution settings. 4.6.2 Settings – FTP NCB855E/NCB855PRO User Manual... -
Page 47: Settings - Smtp
Attached File Numbers: Enter the number of JPEG images that will be attached to the „ notification email. Set a lower number if SMTP server has an email size limit. Attached File Format: In JPEG format always. „ NCB855E/NCB855PRO User Manual... -
Page 48: Sd Card Storage Format Selection
Then an FTP login window shows up asking for login ID and password. After filling in the login ID and password fields (defaults are admin and 1234 respectively), you can see the the FTP directory with successful login. NCB855E/NCB855PRO User Manual... -
Page 49: Period Setting
Up to 7 scheduled recordings can be set. Check Save to SD Card should you wish to save the recorded video clips to the SD card. NCB855E/NCB855PRO User Manual... - Page 50 4. Web-based Interface Caution Note The scheduled recording always demands higher priority than the alarm-based recording. When a scheduled recording is proceeding, the alarm-based recording will be disabled but the alarms will be logged. NCB855E/NCB855PRO User Manual...
- Page 51 MESSOA TAIWAN, R.O.C. 6F, No.26, Wuquan 6th Rd., Wugu District, New Taipei City 248, Taiwan (R.O.C.) Tel: +886-2-2298-3908 Fax: +886-2-2298-3909 E-mail: info@messoa.com MESSOA USA 13611 12th St, Unit B Chino, CA 91710, USA Tel: +1-909-590-5955 Fax: +1-909-590-2374 E-mail: info@messoa.com MESSOA SHANGHAI INC.
