Network Camera

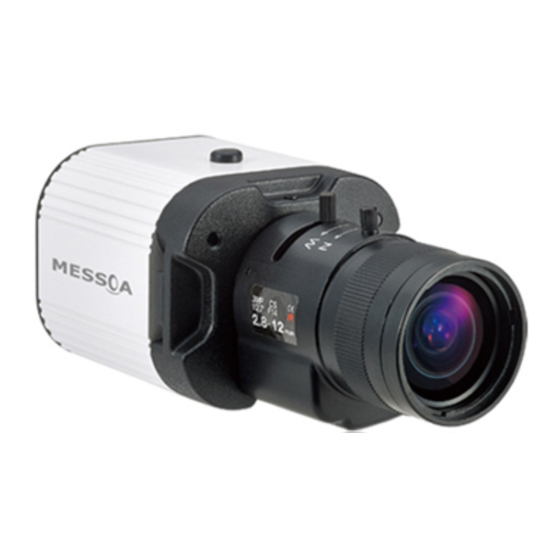

NCB752
NCB750
Quick Start
Guide
201407 752.750 A1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NCB752 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Messoa NCB752

  • Page 1 Network Camera NCB752 NCB750 Quick Start Guide 201407 752.750 A1...
  • Page 2: Product Overview

    English Product Overview Physical Characteristics & Connection RJ-45 AC-24V LED Indicator Light Sensor Terminal Block DC-12V Reset Micro SD Focus Microphone Assist Video DC IRIS MIC in Button Audio 65.5 66.0 Connections Define the type of network device. If the network device supports PoE (Power over Ethernet) function, simply connect the camera to it via Ethernet cable. If not, the connections to the network device (via Ethernet cable) and AC or DC adapter are required.
  • Page 3: Installation

    English Installation Package Content- Ceiling Mount Model Fixed Lens Camera Camera Stand (For NCB750) Quick Start Power Adapter Screws Pack Guide (For NCB750) screws Assigning IP address Launch Discovery Tool (IPCamDiscovery.exe). The tool will start searching and then displaying the cameras on the Device List after they are found. Check the checkbox to select a camera device from the list. The IP Camera may be assigned with a valid IP address via DHCP server. It can be also manually given a static IP address. To do so, click on “Set IP”, and then input the IP, Subnet Mask and Gateway. Input account info if the camera is password protected. (Default ID/Password: admin/1234) admin Click on the “Browse” button to get access to the camera web page immediately.
  • Page 4: Accessing The Camera

    English Accessing the camera Launch IE browser and input the IP address of the camera, or click on “Browse” button on Discovery Tool. The web page with video will then be shown as below. (Default ID/Password: admin/1234) The live video of the camera can be played with a RTSP player, such as VLC or QuickTime. The network URL is rtsp:// Camera IP/stream1. The example given below is that live video is displayed with QuickTime player. Cable Management A considerate design of groove located on the sides. Users can arrange the DC-Iris cable neatly.
  • Page 5 English Focus Assist Button Focus Assist Button allows users to adjust the camera focus with precision by a simple click. Step 1: "Press" Focus Assist Button ● Rotate the lens focus clockwise or anticlockwise to either end (N or ∞). ● Press and hold the button for 3 seconds until LED indicator flashes from Green light to Amber light. Flashing Green → Steady Amber Focus Assist Button Step 2: Adjust Focus ● Keep the camera pointing to the same scene during the tuning process . ● Start tuning the focus in order to turn the LED Green. ● If LED displays Red light, it indicates the opposite turning direction. focus controller Step 3: Get the Best Focus Value ● When camera gets correct focus, the LED will become Green flashing. ● Remain the camera's pointing direction until the LED becomes steady Green.
  • Page 6 日本語 製品の概要 各部説明&接続 RJ-45 AC-24V LED Indicator Light Sensor Terminal Block DC-12V Reset Micro SD Focus Microphone Assist Video DC IRIS MIC in Button Audio 65.5 66.0 接続 ネットワークデバイスのタイプを確認します。 ネットワークデバイスの PoE(パワー · オーバー · イーサネット)機能をサポートしている場合、単にイーサ ネットケーブルを介してカメラを接続してください。 PoE 機能を使用しない場合、ネットワークデバイスへの接続(イーサネットケーブルを介して)および AC ま たは...
  • Page 7 日本語 インストール パッケージ内容 固定式レンズ カメラ本体 カメラスタンド (NDR750 なし ) 固定式レンズ クイックスタート 電源アダプター ネジパック ガイド (NDR750 電源アダ プターなし ) ネジ IP アドレス配置 起動検出ツール(IPCamDiscovery.exe)。このツールでカメラを検索します。検索されたカメラがデバイス リストに表示されます。 リストからカメラデバイスを選択し、チェックボックスをオンにします。 IP カメラは DHCP サーバーを介して有効な IP アドレスが配置されます。また、手動で IP アドレスを付与す ることができます。そのためには、“Set IP”をチェックして IP を入力します。サブネットマスク、ゲート ウェイ、アカウント情報はパスワードで保護されています。( 初期 ID/ パスワード:admin/1234) admin “Browse”ボタンをチェックして、カメラの...
  • Page 8 日本語 2.3 カメラ配置 IE ブラウザにカメラの IP アドレスを入力して起動し、或は検出ツールの“Browse”ボタンをチェックしま すると、下図のように表示されます。( 初期 ID/ パスワード:admin/1234) カメラのライブ映像は、VLC や QuickTime などの RTSP プレーヤーで再生することができます。ネットワー ク URL は rtsp://Camera IP/stream1 です。下図では、ライブ映像がの QuickTime プレーヤーで表示され ている状態です。 ケーブル管理 クループ設計を配慮して両側に位置しています。ユーザーは DC アイリスケーブルを手配することができます。...
  • Page 9 日本語 2.5 フォーカスアシストボタン フォーカスアシストボタンはユーザーがクリックするだけでカメラのフォーカスを調整することができます。 ステップ 1: フォーカスアシストボタン " 押す " ● いずれかの端部に時計回りまたは反時計回りにレンズのフォーカスを回転させます (N または ∞ )。 ● LED インジケーター表示 グリーンライトからオレンジ色ライトになるまで 3 秒間ボタンを押し続け ます。 グリーン点滅→オレンジ色点灯 Focus Assist Button ステップ 2: フォーカス調整 ● 調整する際、カメラのポインティングをキープして同じシーンを映してください。 ● フォーカスチューニング開始する時、LED にグリーンが点灯されます。 ●ディスプレイの LED ライトに赤色が点灯される場合、それは回転方向が逆と示します。 フォーカスコントローラ ステップ 3: ベストフォーカス値取得 ●...
  • Page 10 简体中文 产品概述 产品特征 & 连接 RJ-45 AC-24V LED Indicator Light Sensor Terminal Block DC-12V Reset Micro SD Focus Microphone Assist Video DC IRIS MIC in Button Audio 65.5 66.0 连接摄像机 请确认将要连接的网络设备的类型。 如果该网络设备支持 POE(通过以太网供电)功能,那么只需使用一条网线连接摄像机即可。 如果不支持 POE 供电,用户需连接网线与 DC 电源适配器。...
  • Page 11 简体中文 安装和接线 标准配备 定焦镜头 摄像机 摄像机支架 (仅适用 NCB750) 螺丝包 快速安装指南 电源适配器 (仅适用 NCB750) 螺丝 *3 分配 IP 地址 在电脑上安装搜索工具 (IPCamDiscovery.exe)。 该搜索工具执行搜索动作后,窗口将显示已搜索到的摄像机列 表。 从列表复选框中勾选摄像机。 若使用 DHCP 服务器,摄像机会自动获取 DHCP 服务器分配的动态 IP 地址。手动设置静态 IP 地址,可在“设 置 IP”选项中手动输入 IP,子网掩码与网关信息。如果摄像机设置了密码保护,请先输入账户信息。(默认用 户名 / 密码:admin/1234) admin 点击“浏览”按钮进入摄像机网页页面。...
  • Page 12 简体中文 2.3 访问摄像机 安装 IE 浏览器后在地址栏键入摄像机的 IP 地址,或在搜索工具页面点击“浏览”按钮,进入如下如所示的网页 视频画面。(默认用户名 / 密码:admin/1234) 该实时视频可通过 RTSP 播放器播放,如 VLC 播放器或 QuickTime 播放器。网络 URL 为: rtsp:// 摄像机 IP 地址 / 码流 1。图示例子采用的播放器为 QuickTime 播放器。 线缆管理 摄像机两侧的槽位专门设计用于方便用户整齐防止 DC-Iris 线缆。...
  • Page 13 简体中文 2.5 对焦辅助按钮 对焦辅助按钮使用户能够通过一个简单的点击来实现对焦点精度的调整。 第一步:" 按 " 对焦辅助按钮 ● 顺时针或逆时针旋转镜头的对焦杆至两端 (N 或 ∞ )。 ● 按下并保持住此按钮 3 秒直到 LED 指示灯从闪烁绿灯转为黄灯。 闪烁绿灯 → 黄灯 Focus Assist Button 第二步:调整焦点 ● 调整过程中请保持摄像机所拍摄的位置不变。 ● 开始调整焦点直至 LED 灯变为绿色。 ● 如果 LED 灯转为红色,表明调整方向错误,应为反向。 对焦操作杆 第三步: 获取最佳焦距值 ● 当摄像机对焦正确时,LED 灯将闪烁绿色。 ● 保持摄像机拍摄位置不变直至 LED 灯变为稳定的绿色,此时完成对拍摄焦点的调整。...
