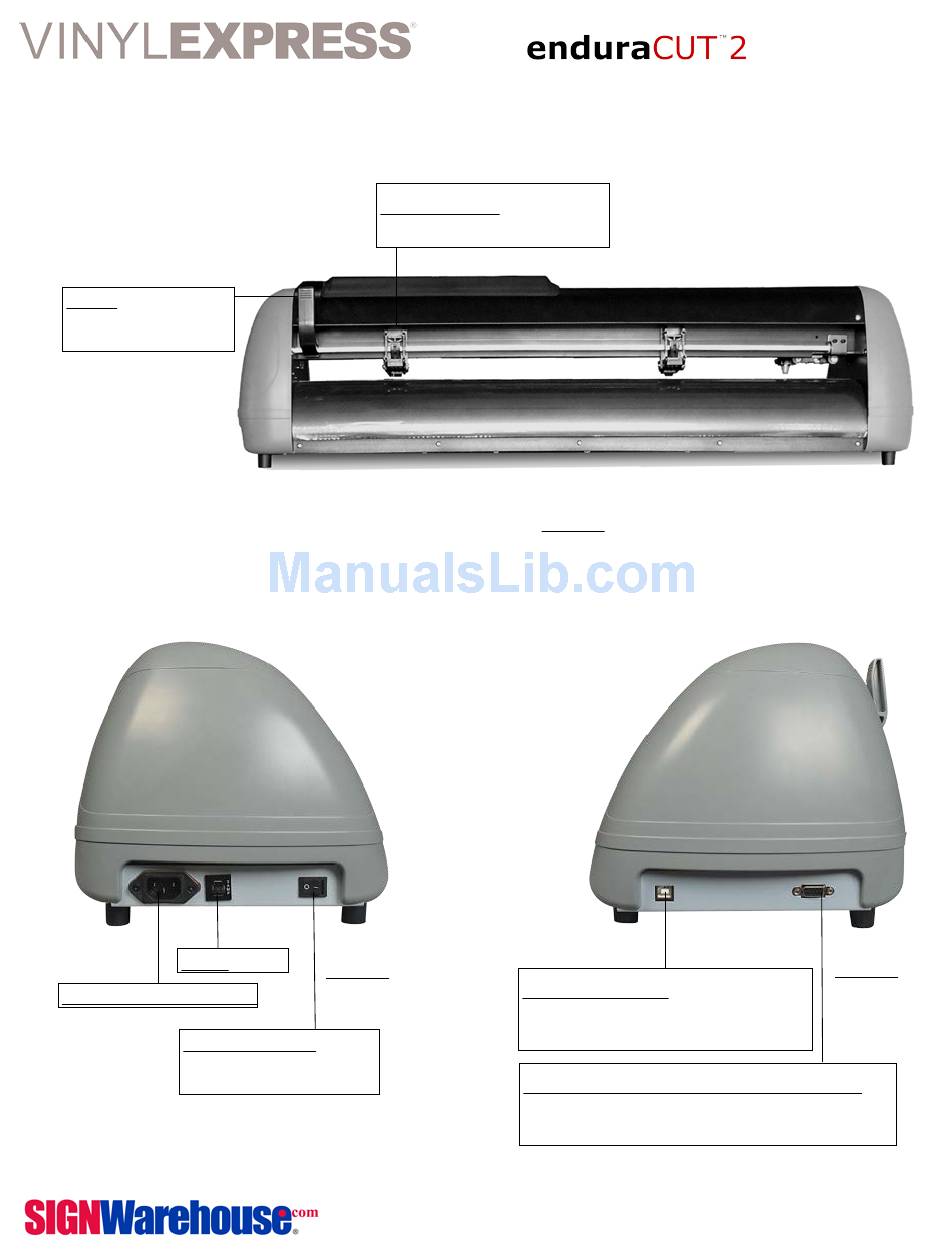

1.4.2 The Rear View (Figure 1-2)
Lever
raises or lowers the
pinch rollers.
1.4.3 The Left-Side View (Figure 1-3)
Fuse
-3Amp.
AC Power Connector
Power Switch
when switches to [I]; Off
to [O].
Pinch Rollers
Holds the media during cutting
Fig 1-3
-On
