Chapter 3: The Control Panel
This chapter describes the operation of the EnduraCUT 2 control panel and the navigation
of the menu. When the cutting plotter is ready for use as described in Chapter 1 & 2, all
functions are under default parameters.

3.1 The Control Panel

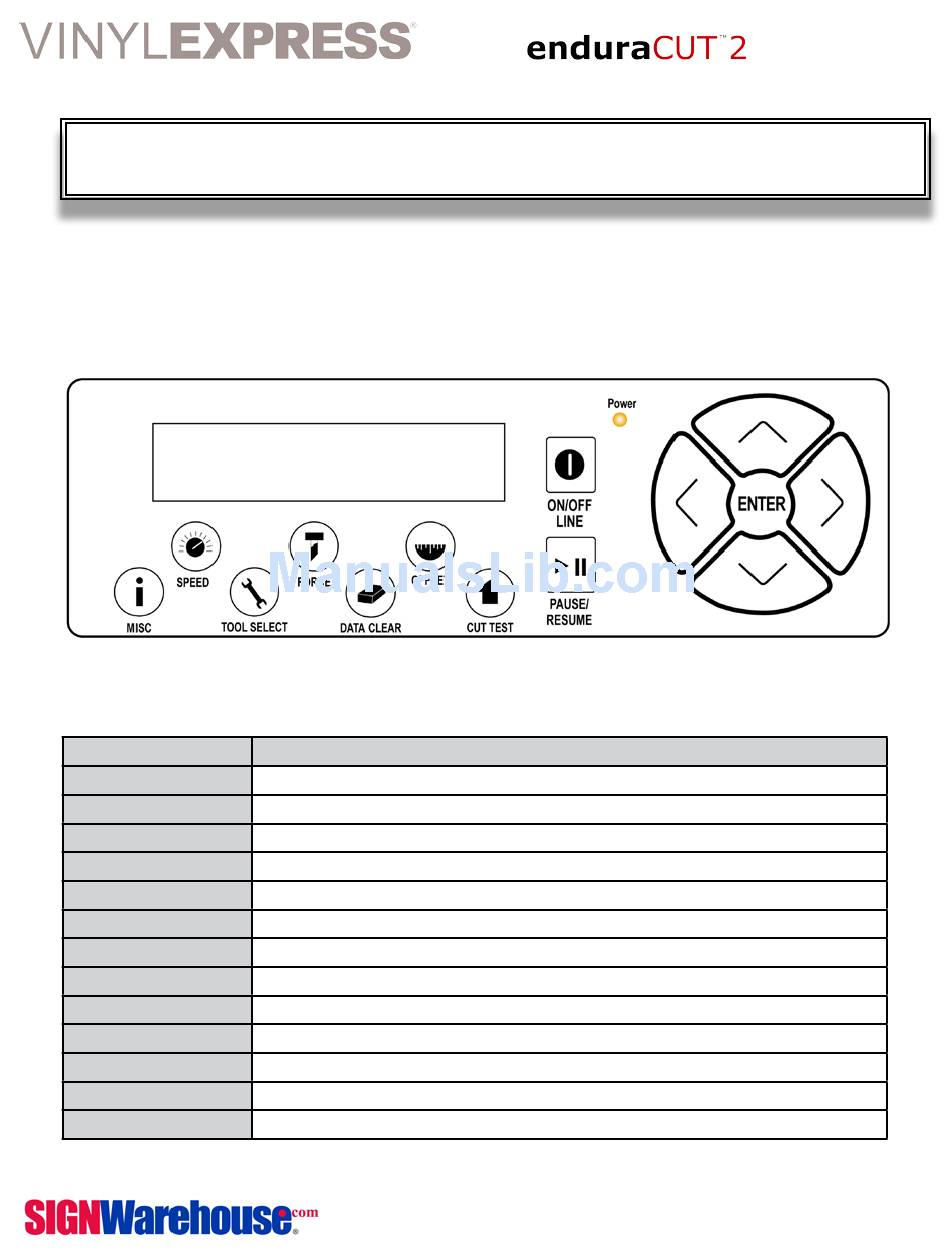

EnduraCUT 2 LCD Control Panel Functions
Key
LCD Screen
Power LED
4 Arrow Keys
ENTER
PAUSE/RESUME
ON/OFF LINE
OFFSET
FORCE
SPEED
CUT TEST
DATA CLEAR
TOOL SELECT
MISC
Function
To display functions and error messages.
To indicate the power status ( light up: power on; light off: power off )
To move blade holder or media, select functions, or change settings.
To set item or register the immediately preceding input value.
To temporarily halt or continue cutting process
To switch modes, stop cutting job, or abort setting changes.
To adjust the value of blade's offset.
To adjust the value of cutting force.
To adjust the value of cutting speed and quality.
To perform cutting tests on different media.
To clear buffer memory.
To select tools.
To set up functions.
