Before Using

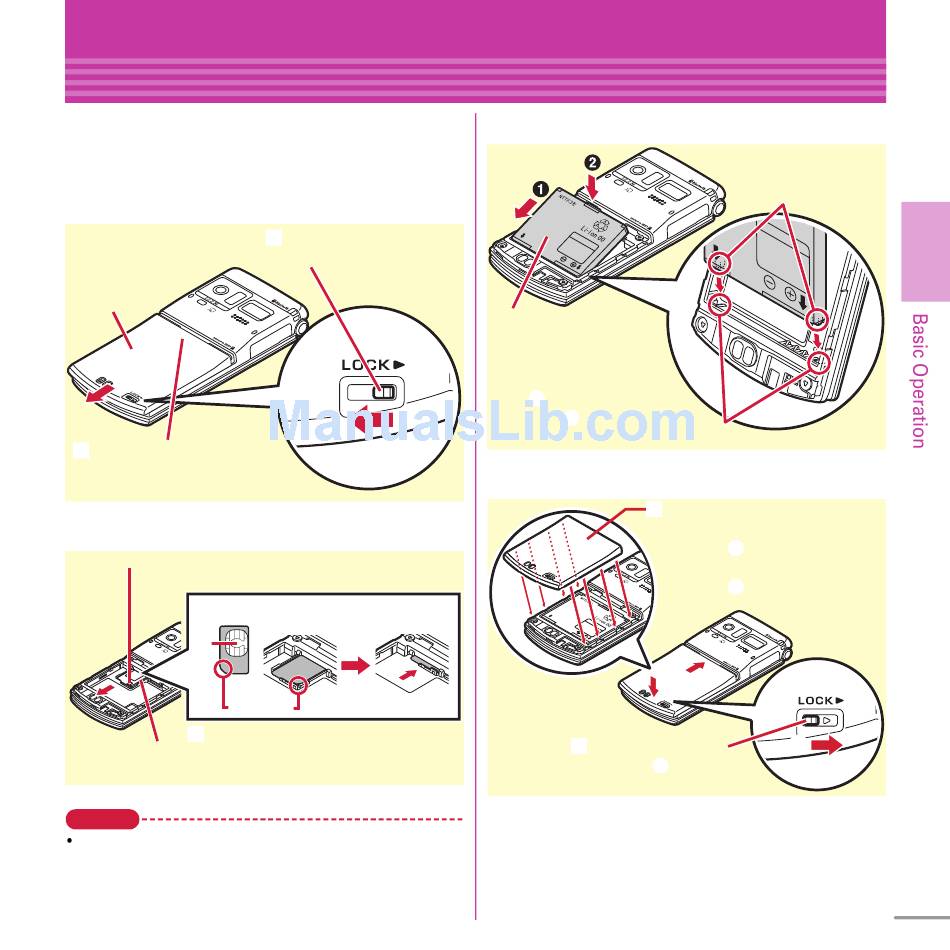

Attaching UIM/battery pack
After turning power OFF, close FOMA terminal
and hold it in your hand so that you can properly
attach UIM/battery pack.
✜
Removing back cover
Back cover
b
Press and slide the back
cover in the arrow direction
by approx. 2 mm to remove
✜
Attaching UIM
a
Pull the tab of the tray out until it clicks
UIM
IC
Corner cut
b
Hold UIM with the IC side down,
Tray
align the corner cut with the tray to
set in, and then push the tray
Point
The UIM (blue) is not available for this FOMA
terminal. If you have the UIM (blue), bring it to a
docomo Shop to replace.
a
Slide the lever in the
arrow direction to unlock
✜
Installing battery pack
With the label side up, fit
the convex parts to the
concave parts of the
FOMA terminal and insert
in the a direction, then
push in the b direction
Concave parts
to set in
✜
Installing back cover
a
a
b
Slide the lever in the
direction c to lock
Convex parts
Fit the 8 tabs to the notches of the
FOMA terminal and push in the
direction a not forming any
clearance, then slide in the
direction b
b
c
